BUC-Ka-1-26.55

وصف قصير

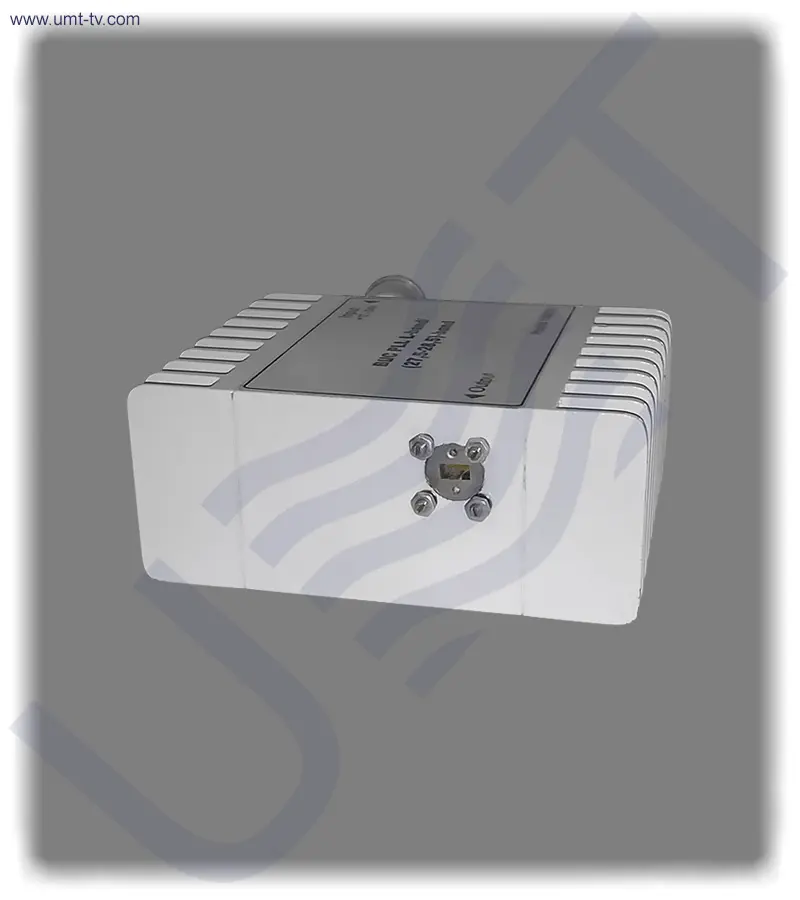

BUC-Ka-1-26.55 is block up-converter with fixed output power P1dB 1 W (ALC power: 100 mW) and LO of 26.55 GHz.

- +
  • وصف
  • التحميلات
Input parameters
Input frequency range, MHz 950 – 1950
Input impedance, Ohm 50
Input level, max, dBm  -2
Input VSWR, max  1.5
Input interface N-type, female
ALC range, min, dB  25
ALC threshold level, dBm -27
Local oscillator
LO frequency, GHz  26.55
LO phase noise, dBc/Hz :
@1 kHz -80
@10 kHz -85
@100 kHz -100
LO instability, ppm ± 2
Output parameters
Output frequency range, GHz 27.5-28.5
Output power @P1dB, W 1
ALC output power, mW 100
Gain, min, dB 47
IMD3 level at ALC output, dBc power, max -37
Output interface waveguide WR28, flange PG599/U
Output VSWR, max 2
Frequency response
Flatness over Full Band, dB ± 1.5
Spurious
In-band P1dB, max, dBc -55
Out-Band, max, dBm -30
LO leakage at ALC output, dBm power, max -40
Image rejection, min, dB 60
Power supply
Input voltage, VDC 18-30 (nominal 24)
Power consumption, max, W 20
Environmental
Operating temperature, oC -40 … +50
Storage temperature, oC -60 … +80
Operating humidity, % 100 (non-condensing)
Mechanical
Dimensions (W x H x D), mm 116×49×91
Weight, kg 0.86
