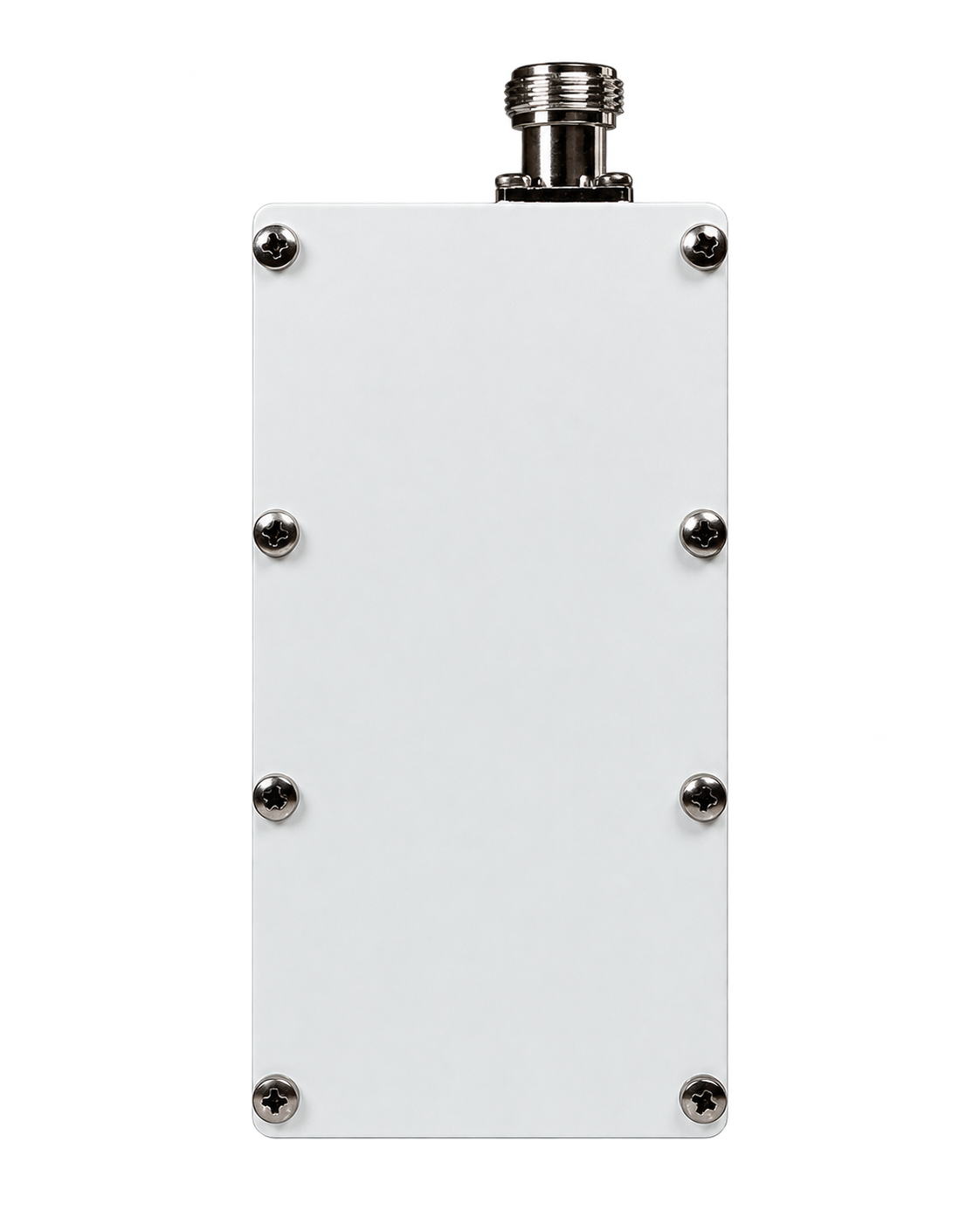

PLL LNB with AGC L.O. 12.8

Short description

PLL LNB with AGC L.O. 12.8 is professional low noise block down converter with automatic gain control, wide dynamic range of up to 50 dB (biggest among any other LNB). AGC range of 25 dB, LO instability of 50 kHz, Gain (min) of 40 dB.

12.8 GHz PLL مع ايه جي سي

- +

Description
Downloads

Input parameters:
Input Frequency range	13.75 – 14.55
Input level range	– 65 … -15 dBm
Input VSWR, max	1.8

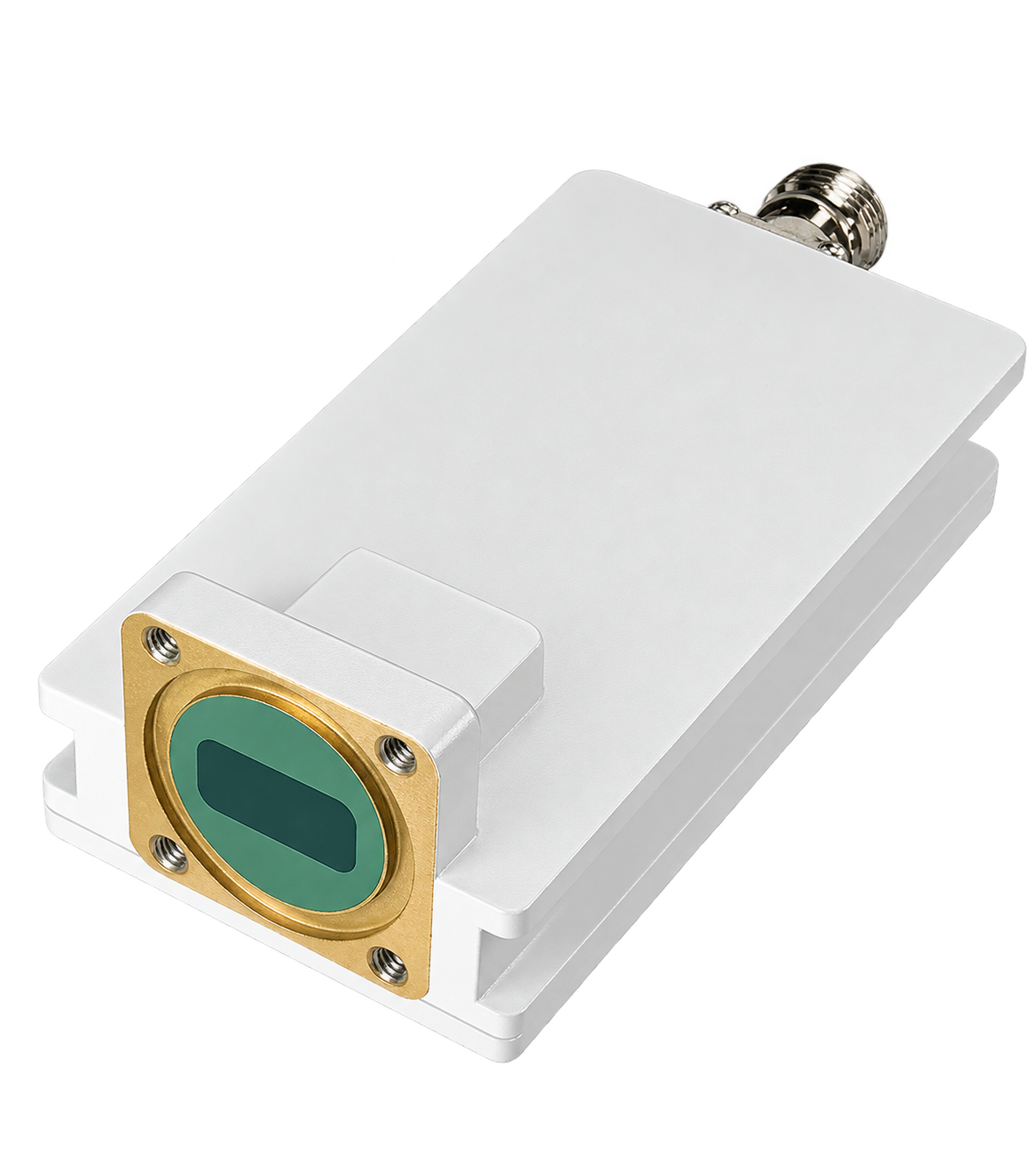

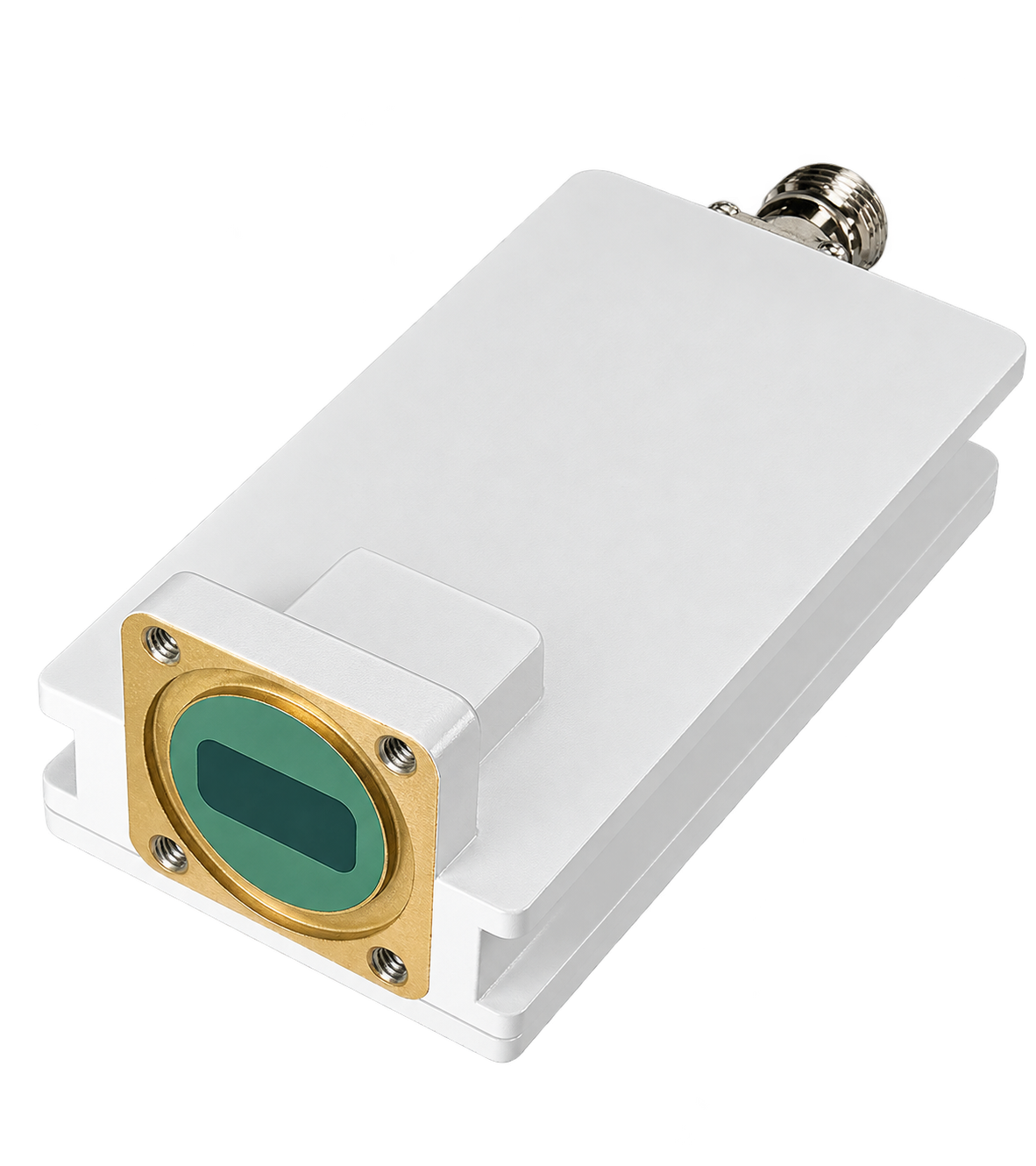

Input interface	Waveguide WR75, Flange UBR120
Local Oscillator:
LO frequency	12.8
LO Phase noise:
@1 kHz	-77 dBc/Hz
@10 kHz	-87 dBc/Hz
@100 kHz	-97 dBc/Hz
LO instability	± 100 kHz (or by order)
Output parameters:
Output frequency range	950 – 1750 MHz
Output Power @P1dB	0 dBm
Gain, min	40 dB

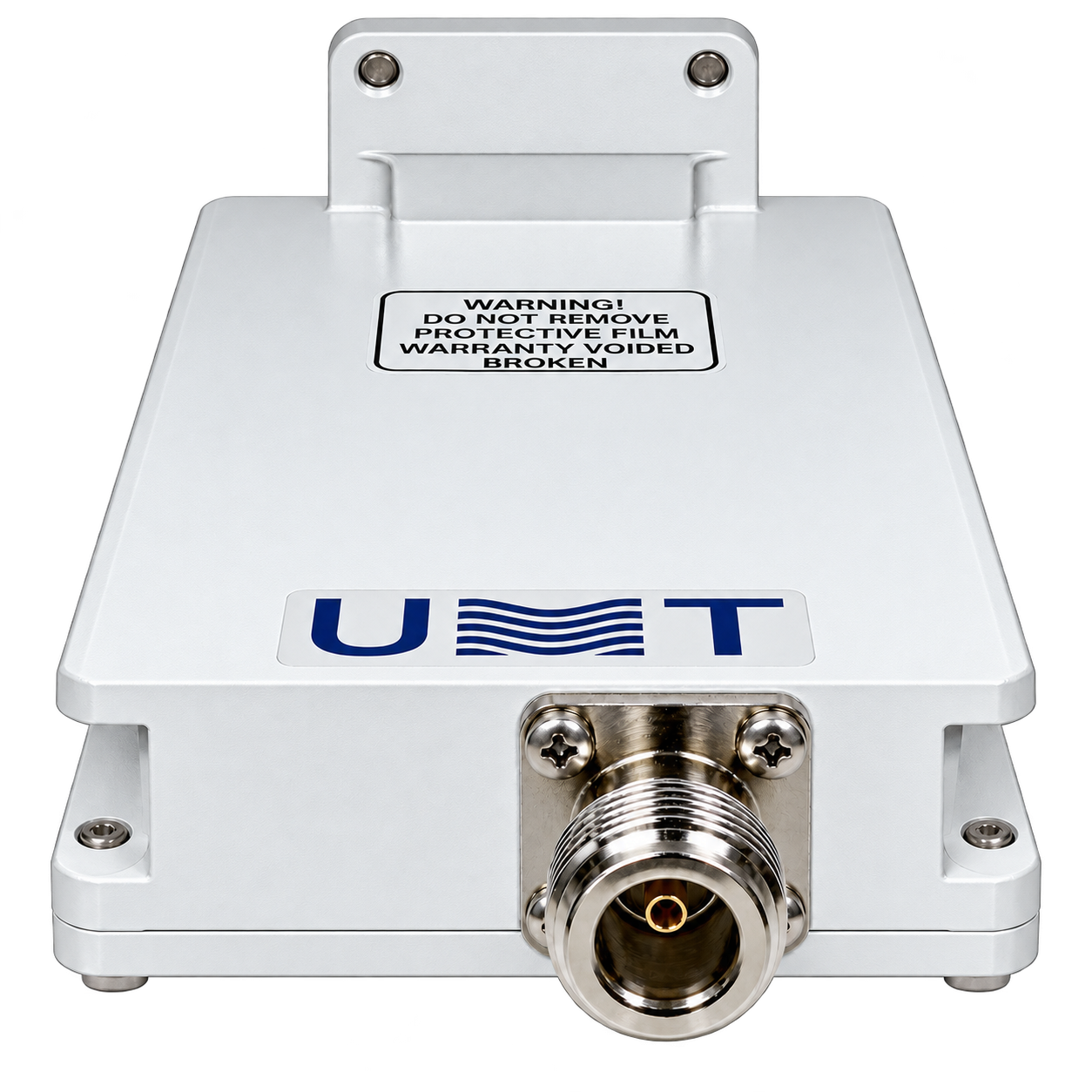

Output interface	N/F-type female (by order)
Output impedance	50/75 Ohm
Output VSWR, max	1.8 : 1
Frequency Response:
Flatness over Full Band	3 dB
Flatness over 27MHz Band	0.5 dB
Spurious:
Noise figure given to the input, no more	5.0 dB
LO leakage, max	-50 dBm
Image rejection, min	60 dBc
Power Supply:
Input voltage	15 VDC – 30 VDC, nominal 18 VDC
Power consumption, max	5 W
Environmental:
Operating temperature	–40℃ to +60℃ (–40℉ to +140℉)
Storage temperature	–40℃ to +80℃ (–40℉ to +176℉)
Operating humidity	0% – 95%
Mechanical
Dimensions (W x H x D)	59x41x144 mm
Weight	0.4 kg

Documentation

Datasheet (general)
