SSA-KuH180 v2

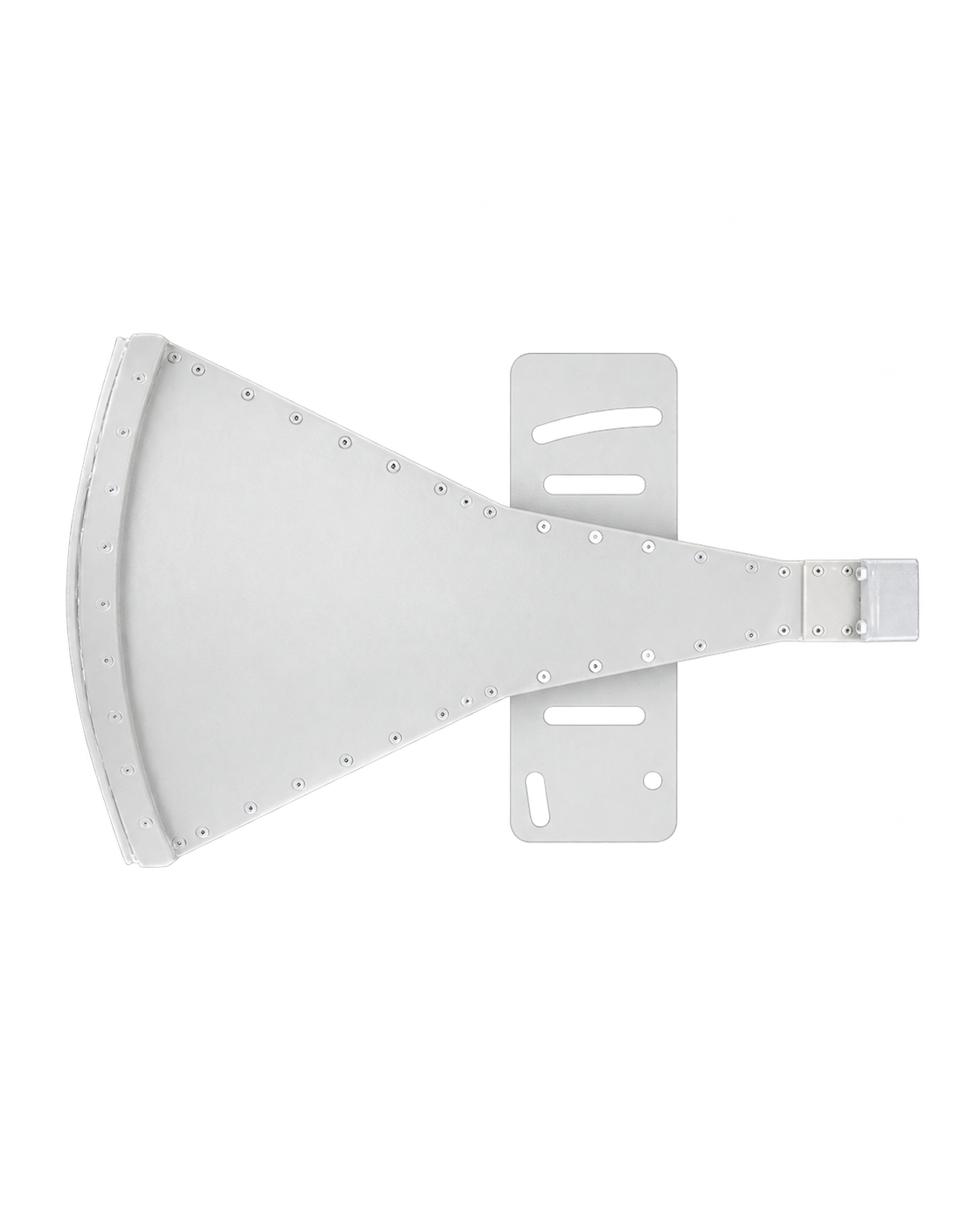

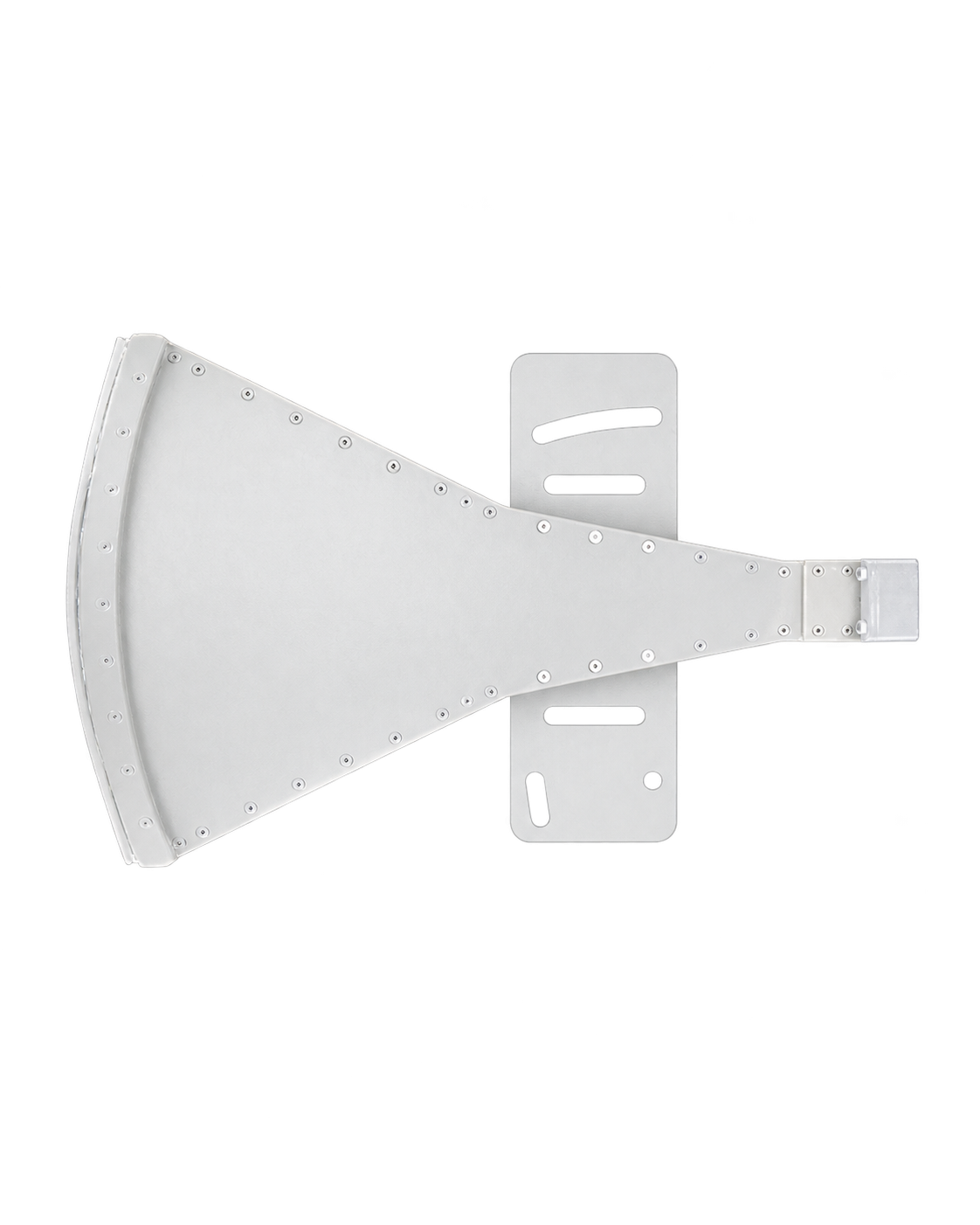

SSA-KuH180 v2 is Short Sector Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 180 degrees and H-polarization

► Beam(H):180°; Beam(V):16°

► Frequency range: 10.5-13.5 GHz

► Gain: 11.5-12.5 dB

► It is designed for Ku-band

- +

Parameter	Value
Frequency range, GHz	10.5 – 13.5
Gain, dBi	12
VSWR	2
Polarization	horizontal
Cross-polarization isolation, dB	25
HPBW:
@horizontal	180°
@vertical	18°
Gain range in aperture, dB	±0.5
Temperature range, °C	-50 to +80
Humidity	100% where 25°C
Size, mm	395х38х235
Weight (including holder), kg	1.75
Directional diagram tuning, deg:
Elevation angle	±20° (-20°…0° or 0°…+20°)
Azimuth	360° (around the pipe)

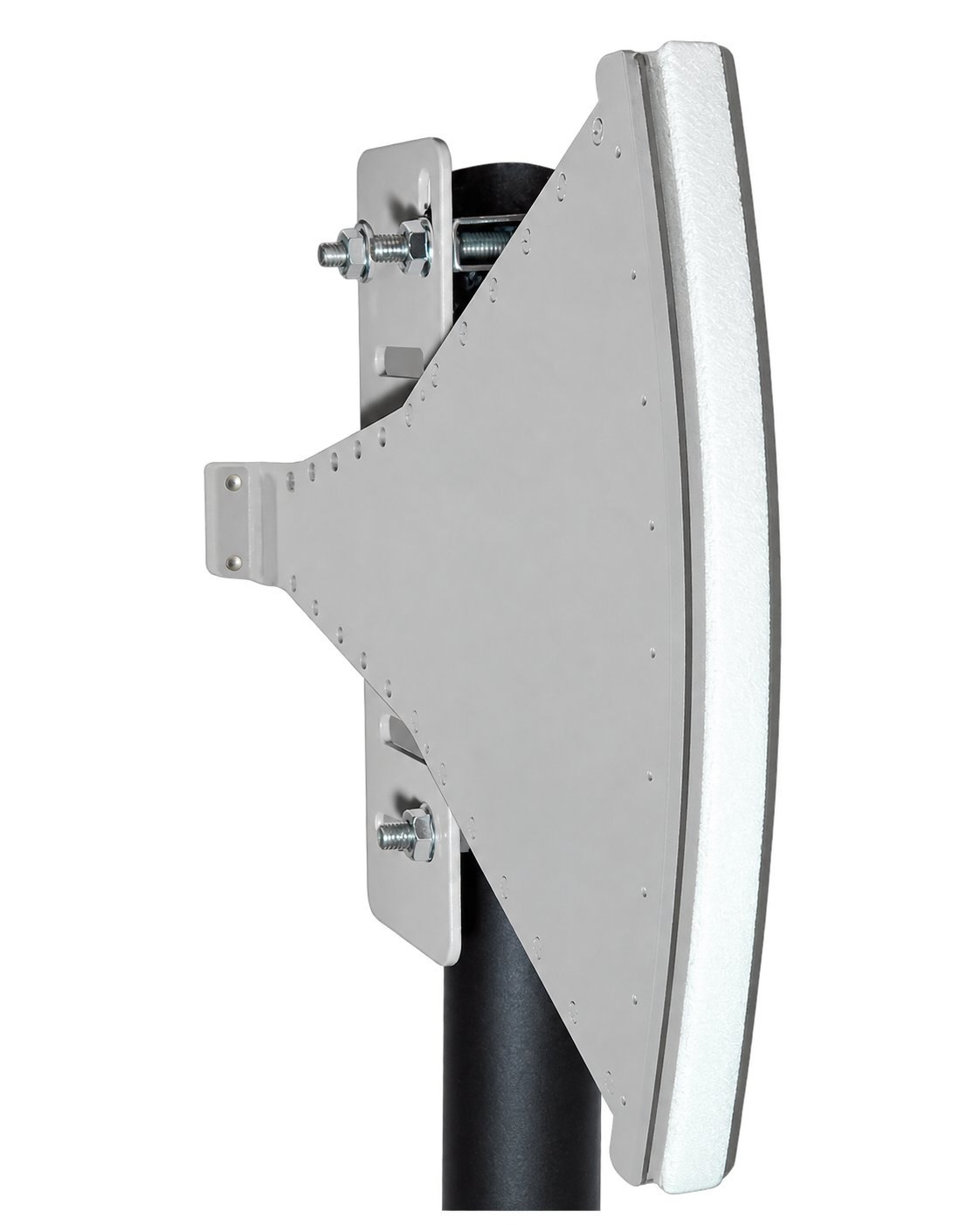

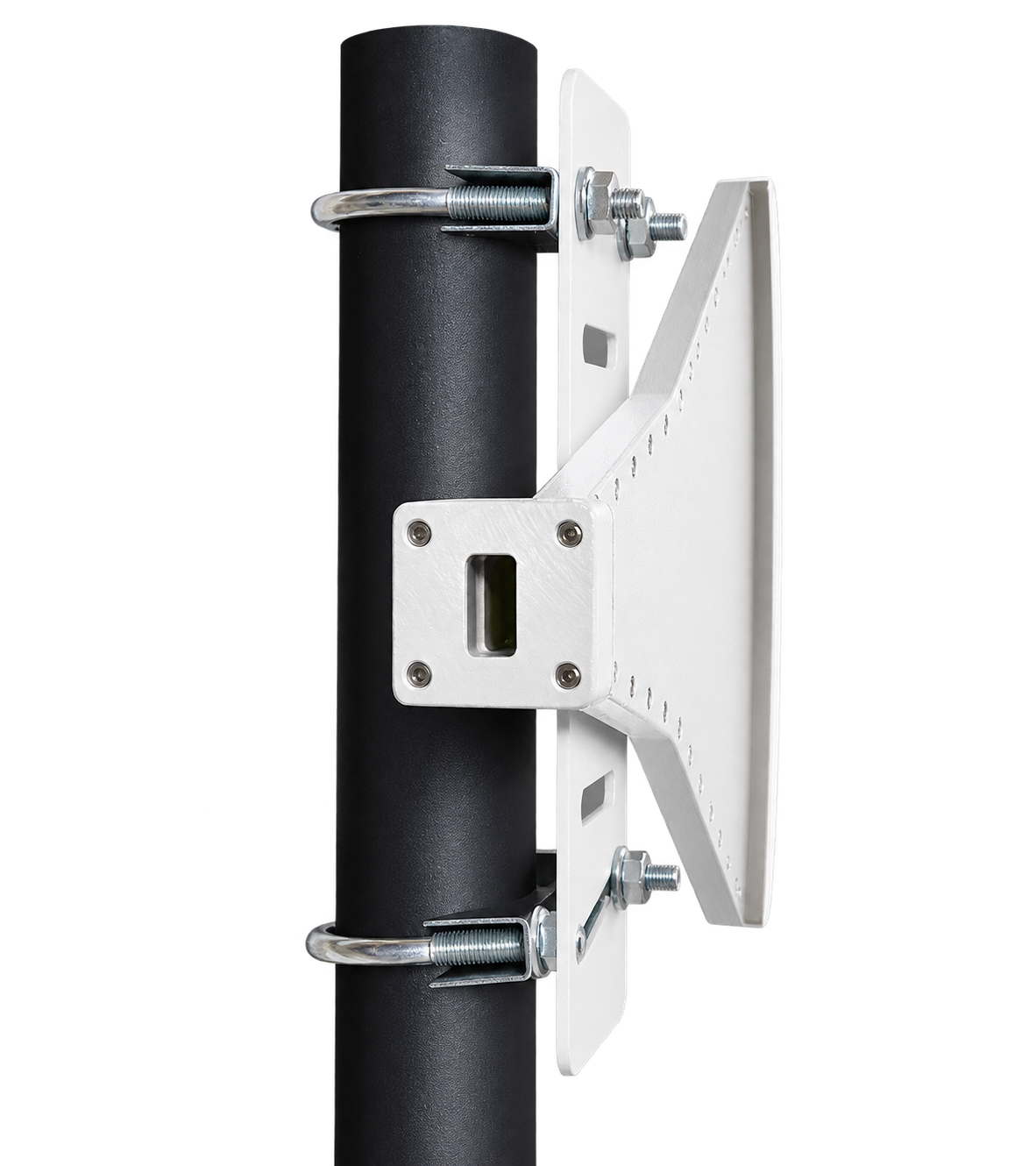

Mounting	Installation on the pipe diameter up to 45 mm
Input power, W	20
Body	Dust/moisture proof
