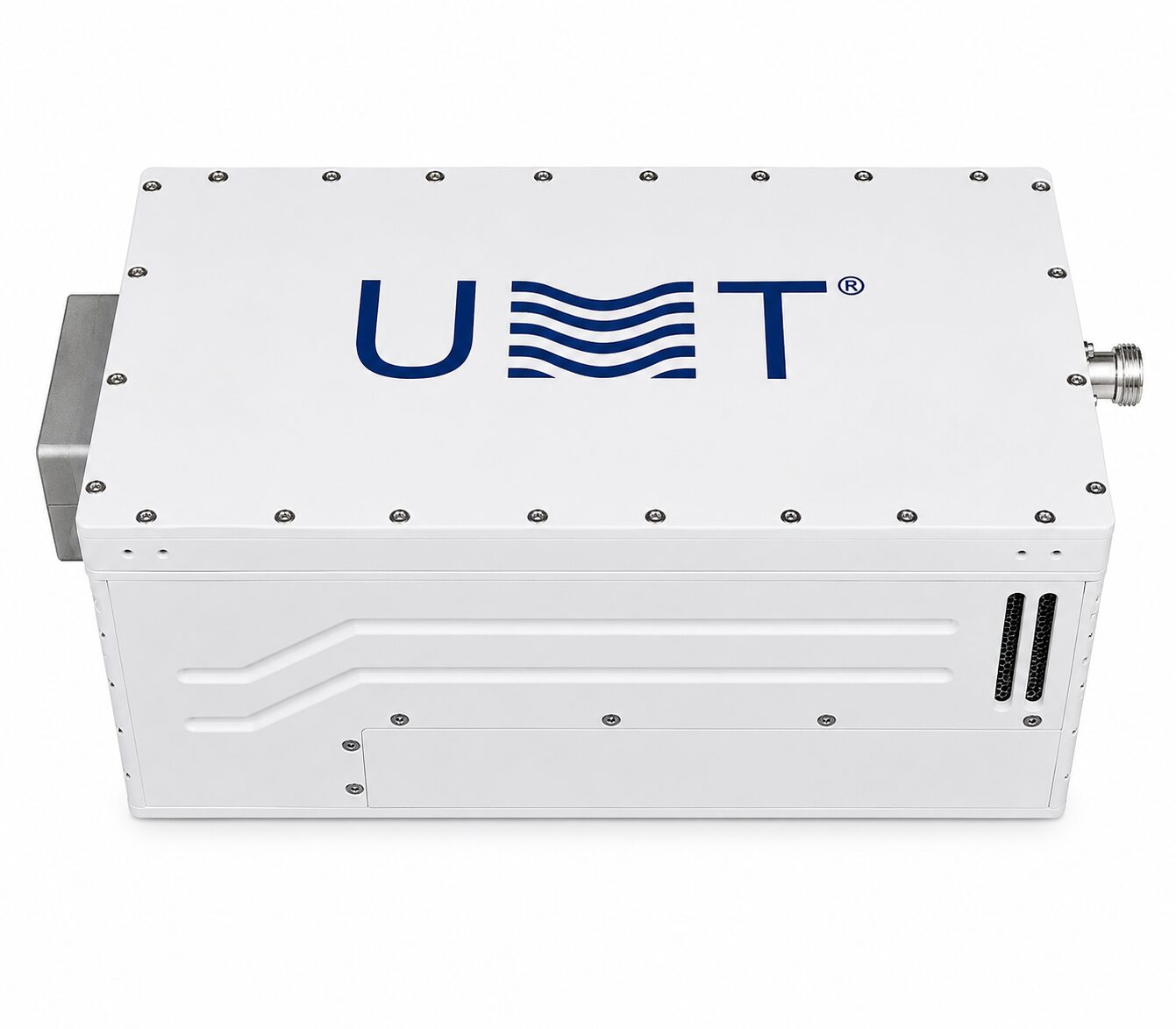

BUC-C200

BUC-C200 عبارة عن محول كتلة مع طاقة خرج ثابتة 200 وات. يحتوي BUC-C200 على مؤشر حالة LED في الجانب الخلفي.

- +

Input parameters:
Input Frequency range			950 – 1525 MHz
Input impedance			50 Ohm
Input VSWR, max			1.5
Input interface			N-type Female
Local Oscillator:
LO frequency			4900 MHz
LO Phase noise:	@1 kHz		-75 dBc/Hz
	@10 kHz		-85 dBc/Hz
	@100 kHz		-95 dBc/Hz
Output parameters:
Output frequency range			5850 – 6425 MHz
Output Power (GaN)		P_sat	53 dBm
Output Power (GaN)		P_linear	50 dBm
Gain, min			76 dB
IMD3 (two tones)			-25 dBc max 2 signal 5 MHz apart at P_linear

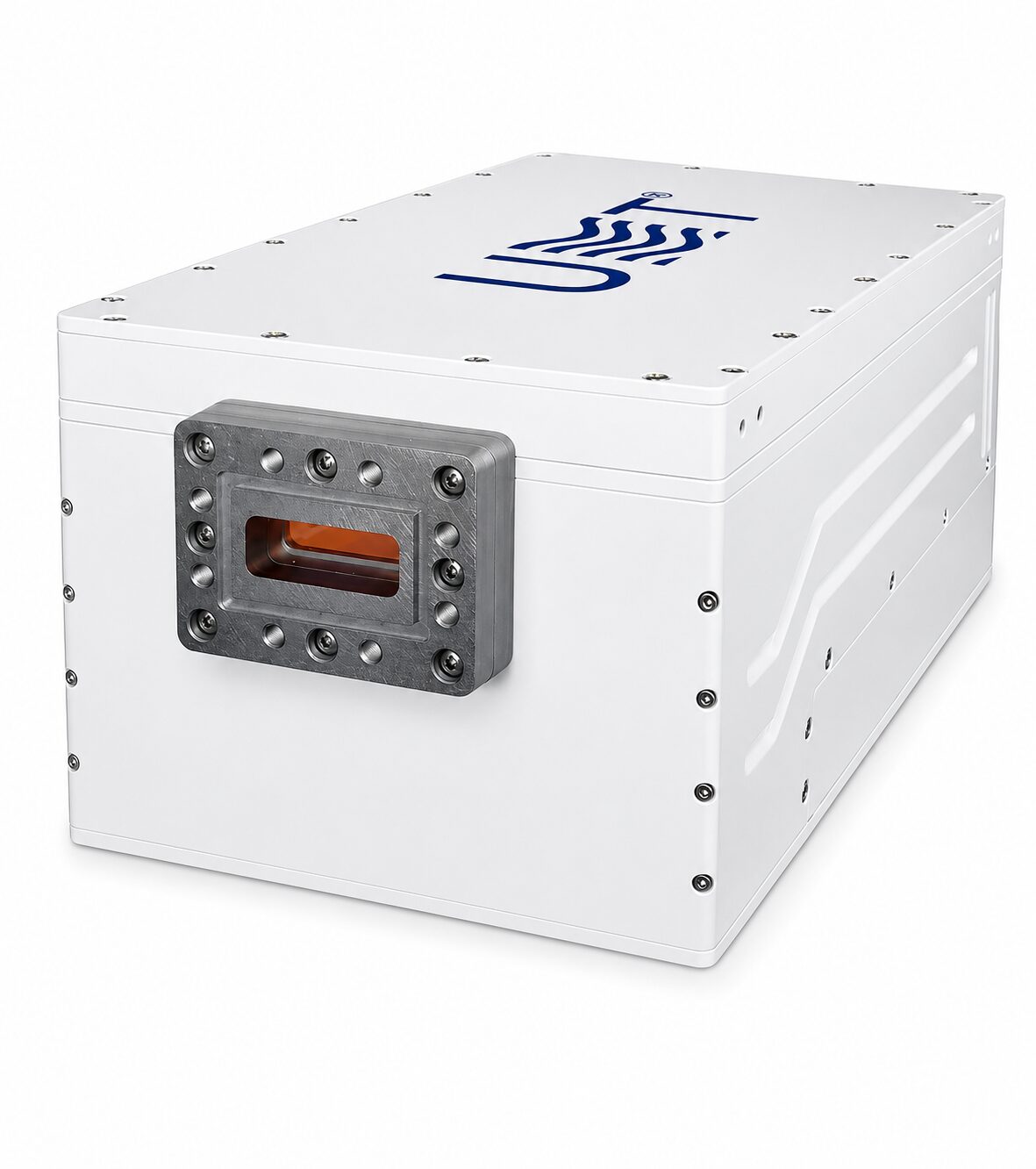

Output interface			WR137-G (Waveguide Flange)
Output VSWR, max			2.0:1
Frequency Response:
Flatness over Full Band			±2 dB (4 dB p-p max)
Gain flatness 40 MHz			± 0.5 dB
External frequency			10 MHz
Power range ref.			± 5 dBm
Spurious:
In-band P_linear, max			-50 dBc
Out-Band, max			-60 dBc
LO leakage, max			-40 dBm
Image rejection, min			60 dB
Power Supply:
Input voltage			110 – 265VAC, 47-63Hz
Power consumption, max			< 800 W
Environmental:
Operating temperature			-20℃ to +50℃
Operating humidity			0 – 95 %

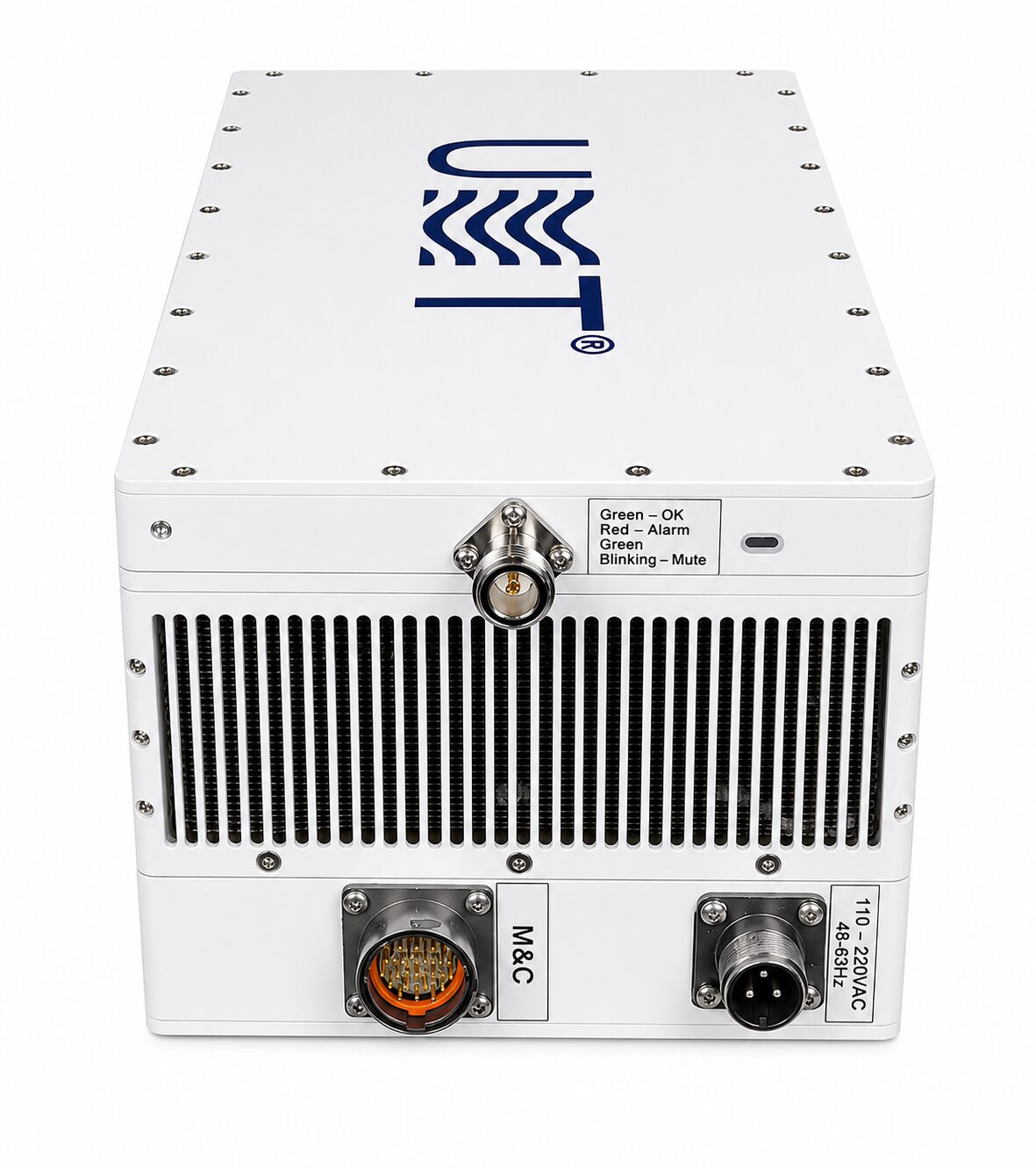

Interfaces:
IF input connector: N-type female; RF output connector: WR137-G
AC connector: PQ14-3; Monitor & Control connector: FQ24-19
Monitor & Control: Serial RS-232, Step Attenuator, Ethernet
LED indicator: Green – OK, Red – Alarm, blink Yellow – MUTE
Mechanical:
Dimensions			333x155x121 mm
Weight, max			11 kg
