BUC-C200

Short description

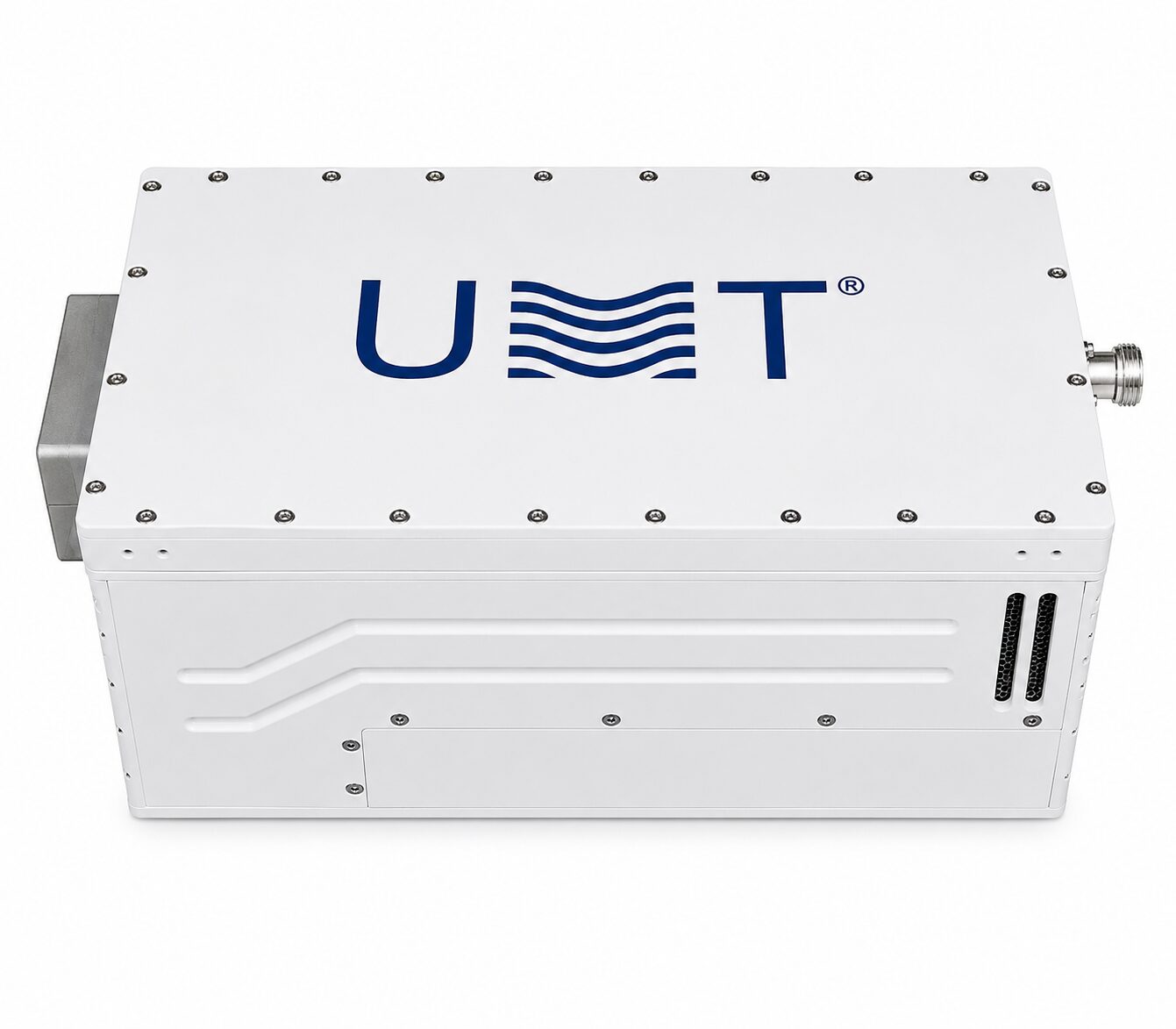

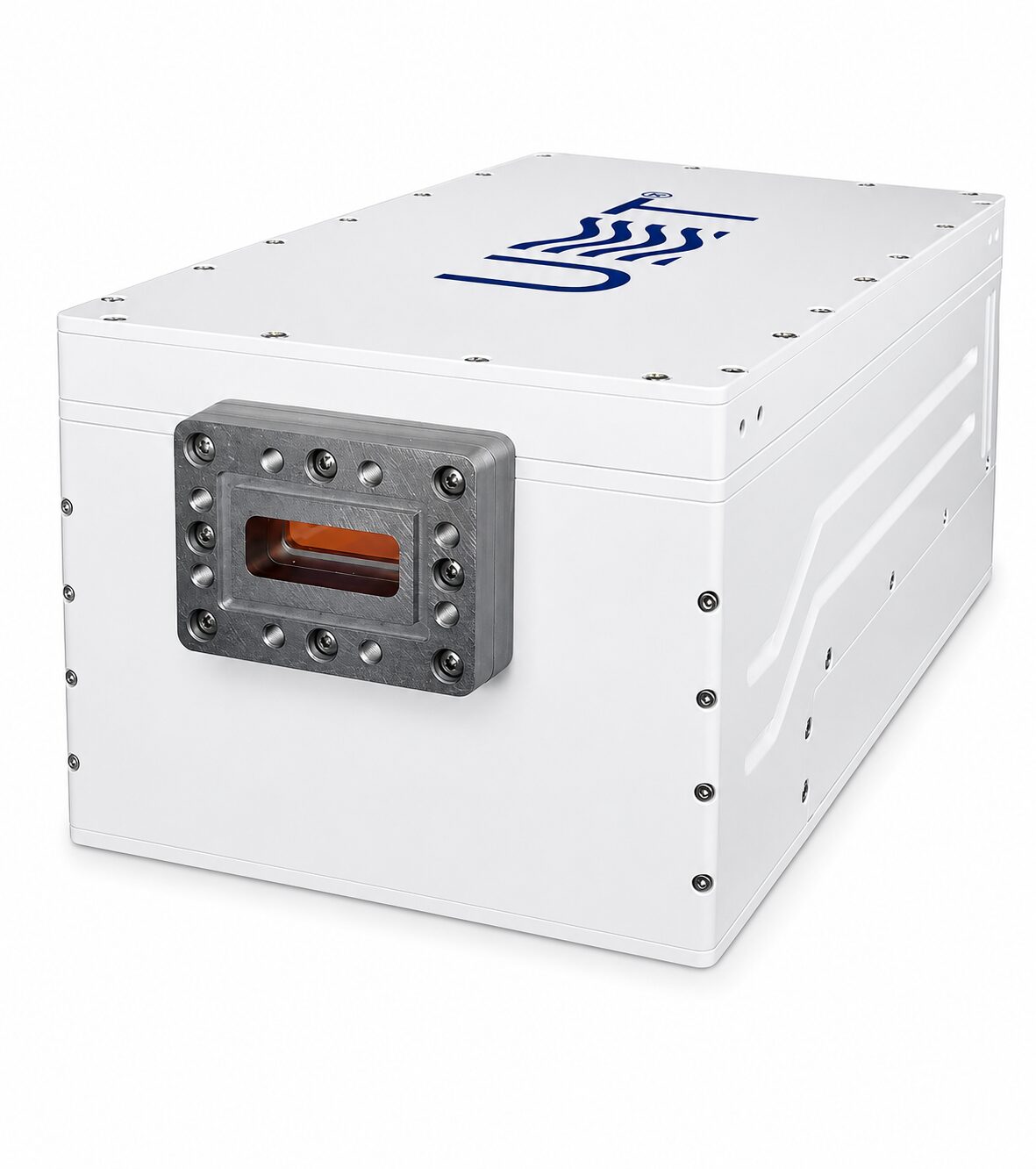

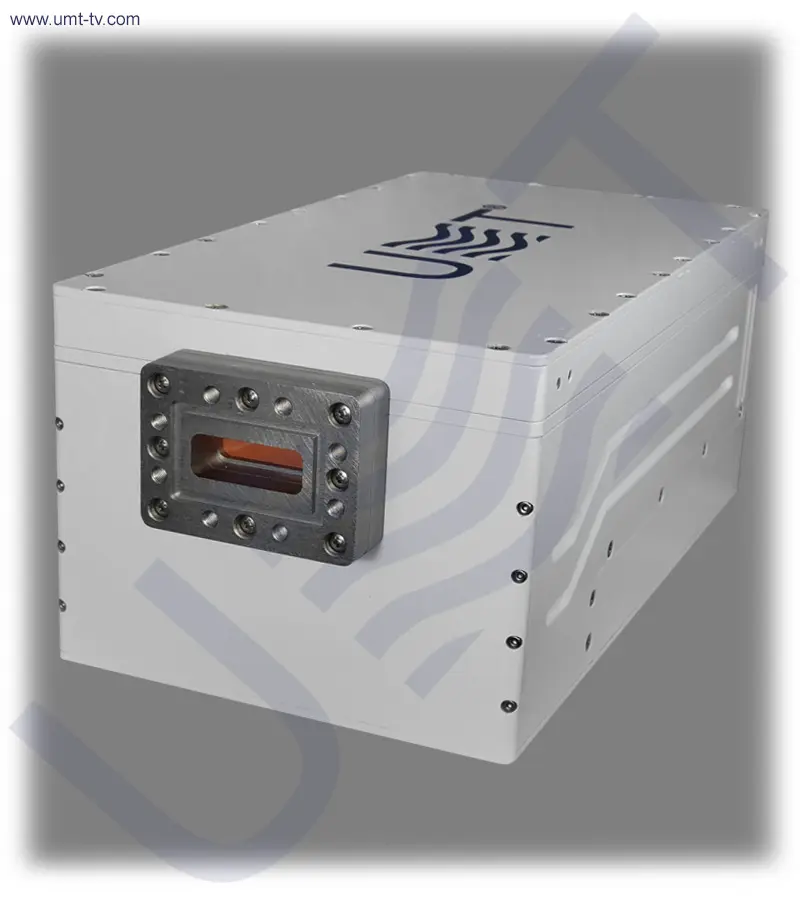

Le BUC-C200 est un convertisseur élévateur de bloc avec une puissance de sortie fixe de 200 W. Le BUC-C200 est doté d’une indication d’état par LED à l’arrière.

- +

Demande d'équipement sur mesure

    • Description
    • Downloads
    Input parameters:
    Input Frequency range 950 – 1525 MHz
    Input impedance 50 Ohm
    Input VSWR, max  1.5
    Input interface N-type Female
    Local Oscillator:
    LO frequency  4900 MHz
    LO Phase noise: @1 kHz -75 dBc/Hz
    @10 kHz -85 dBc/Hz
    @100 kHz -95 dBc/Hz
    Output parameters:
    Output frequency range 5850 – 6425  MHz
    Output Power (GaN) Psat 53 dBm
    Plinear 50 dBm
    Gain, min 76 dB
    IMD3 (two tones) -25 dBc max 2 signal 5 MHz apart at Plinear
    Output interface WR137-G (Waveguide Flange)
    Output VSWR, max 2.0:1
    Frequency Response:
    Flatness over Full Band ±2 dB  (4 dB p-p max)
    Gain flatness 40 MHz ± 0.5 dB
    External frequency 10 MHz
    Power range ref. ± 5 dBm
    Spurious:
    In-band Plinear, max -50 dBc
    Out-Band, max -60 dBc
    LO leakage, max -40 dBm
    Image rejection, min 60 dB
    Power Supply:
    Input voltage 110 – 265VAC, 47-63Hz
    Power consumption, max < 800 W
    Environmental:
    Operating temperature -20℃ to +50℃
    Operating humidity 0 – 95 %
    Interfaces:
    IF input connector: N-type female; RF output connector: WR137-G
    AC connector: PQ14-3; Monitor & Control connector: FQ24-19
    Monitor & Control: Serial RS-232, Step Attenuator, Ethernet

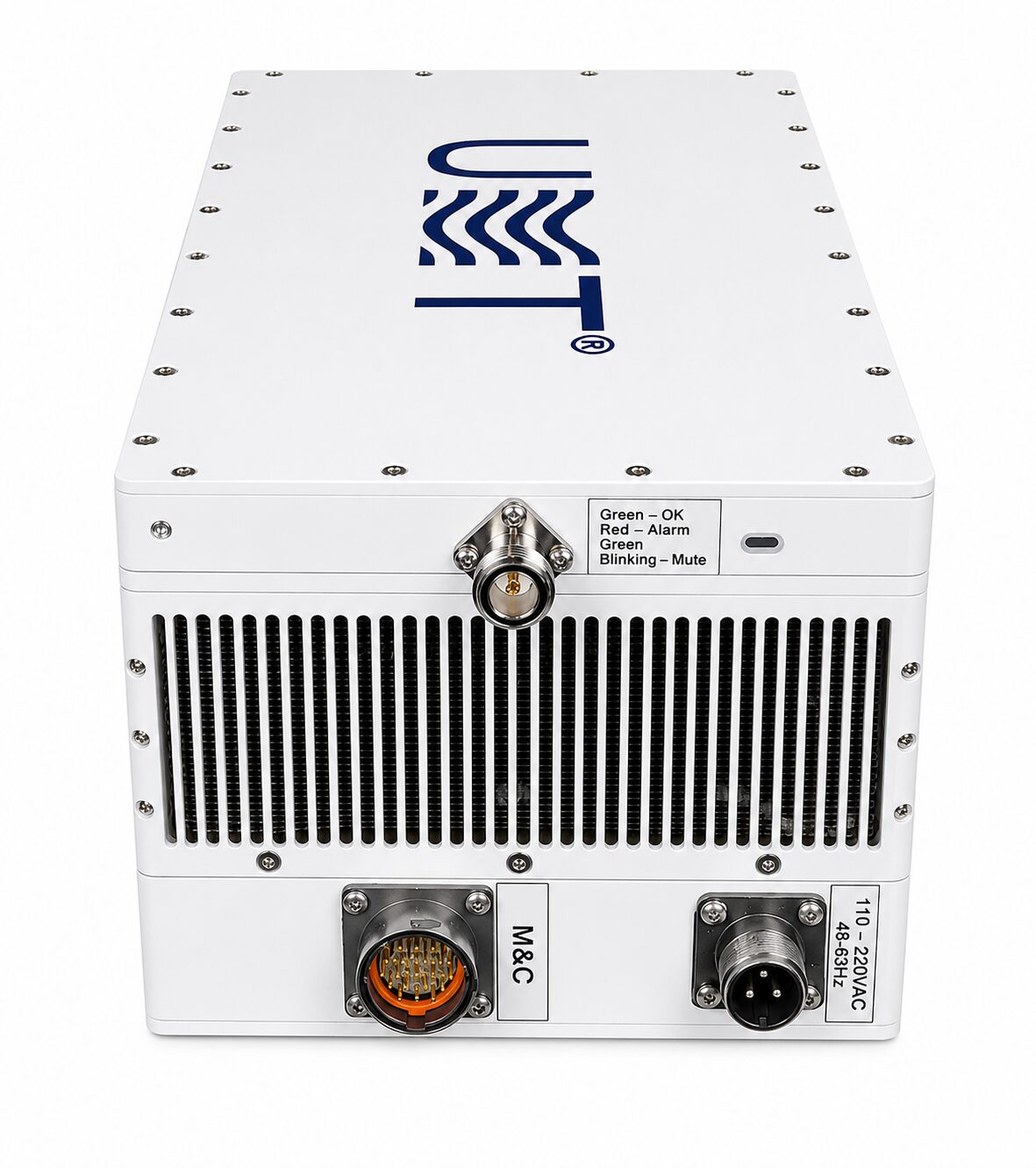

    LED indicator: Green – OK, Red – Alarm, blink Yellow – MUTE
    Mechanical:
    Dimensions 333x155x121 mm
    Weight, max 11  kg





    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
