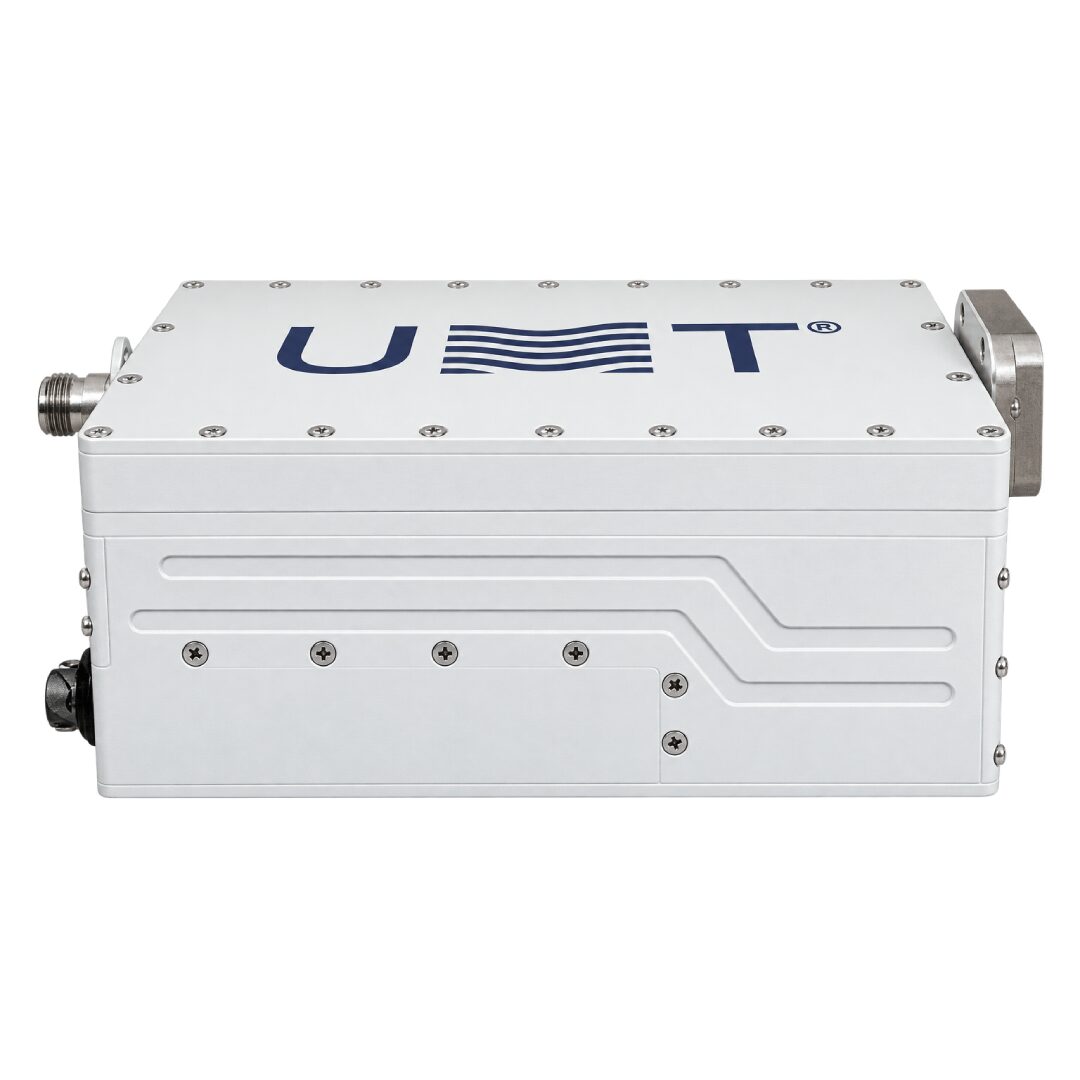

BUC-Ku40-9.75 + IP Ctrl is block up-converter with fixed output power P1dB 40 W (Output Power (Psat) 46 dBm) and LO of 9.75 GHz.

Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;

and ALC adjustment level range (nominal) -9 … +4 dB from PALC;

LED status indication at the rear side.

- +
  • وصف
  • التحميلات
Input parameters:
Input Frequency range 950 – 1750 MHz (950-1950 MHz by order)
Input impedance 50 Ohm
Input level, max -15 dBm
Input VSWR, max  1.5
Input interface N-type Female
ALC range, min 25 dB
Local Oscillator:
LO frequency 9750 MHz (or by order)
LO Phase noise: @1 kHz -80 dBc/Hz
@10 kHz -85dBc/Hz
@100 kHz -100dBc/Hz
LO instability ± 2ppm
Output parameters:
Output frequency range 10700 – 11500 MHz (or by order)
Output Power Psat 46 dBm
ALC Output Power with adjustment, PALC 36 dBm*
ALC adjustment level range (nominal) -9 … +4 dB from PALC
Gain, min 72 dB
IMD3 level at ALC Output Power, max -37 dBc
Output interface Waveguide WR75, Flange PBR120
Output VSWR, max 2
Frequency Response:
Flatness over Full Band ±1.5 dB
Spurious:
In-band Psat, max -55 dBc
Out-Band, max -30 dBm
LO leakage at ALC output power, max -40 dBm
Image rejection, min 60 dB
Power supply:
Input voltage 20 VDC – 55 VDC, nominal 48 VDC
Power consumption, max < 100 W
Interfaces:
IF input connector: N-type female / RF output connector: WR75 (PBR120)
DC connector: C90-3102R10SL-4P / Monitor & Control connector: UTS014E19P
Monitor & Control: Step level for ALC, Ethernet

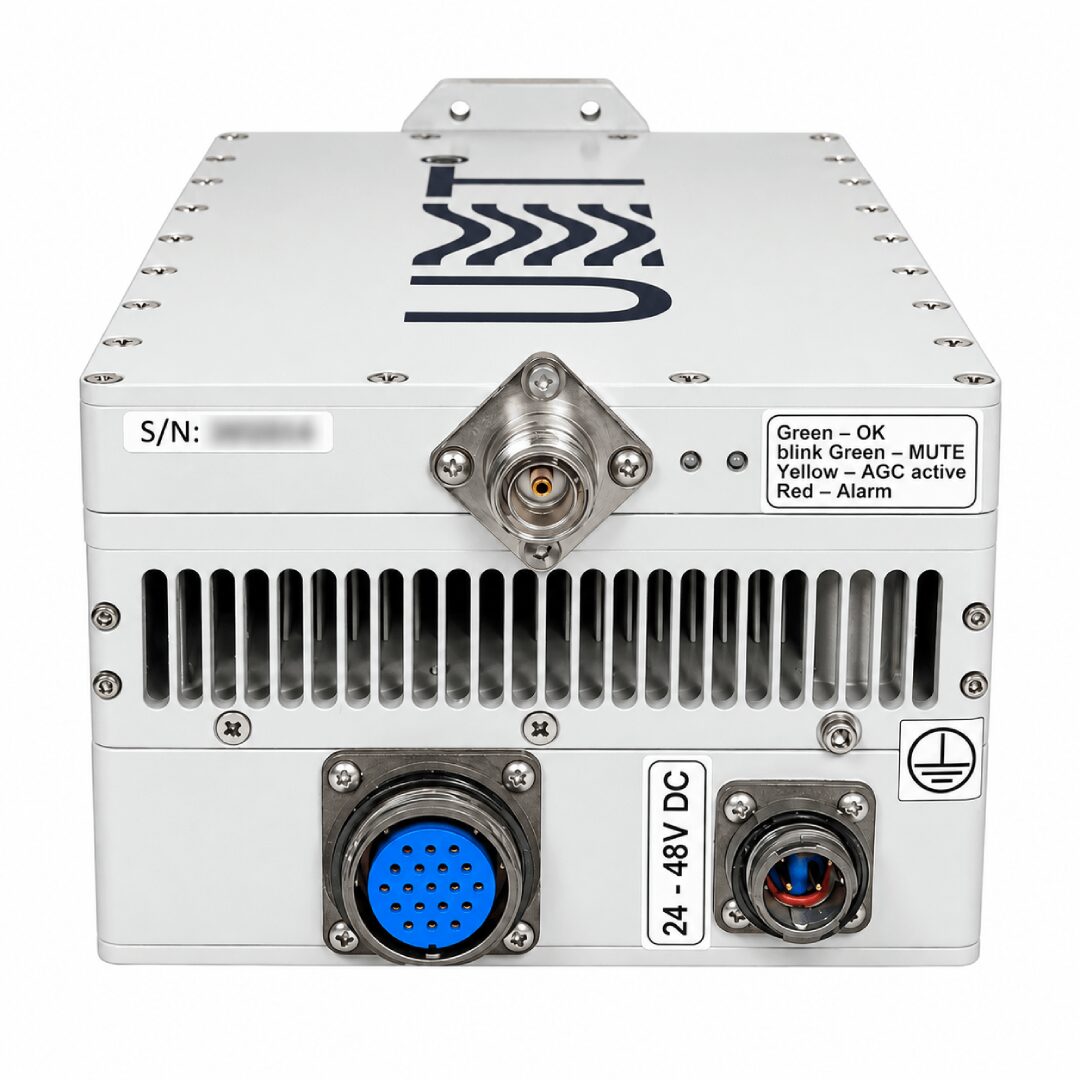

LED indicator: Green – OK, blink Green – MUTE, Yellow – AGC active, Red – Alarm
Environmental:
Operating temperature -30℃ to +55℃
Storage temperature -40℃ to +70℃
Operating humidity 100%, non‐condensing
Mechanical:
Dimensions 260х135х92mm
Weight, max 5 kg

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
