DRA-Ka09

وصف قصير

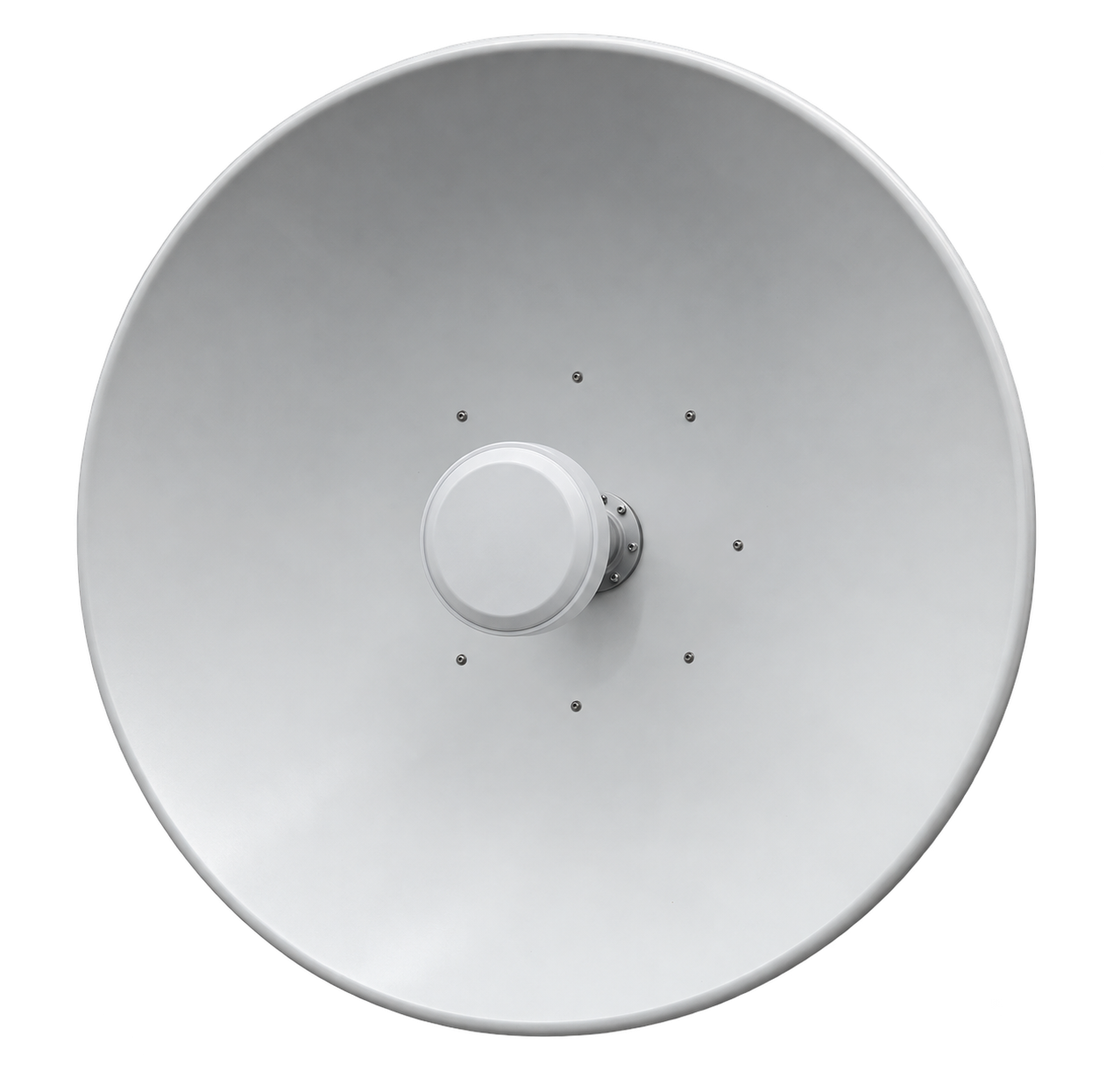

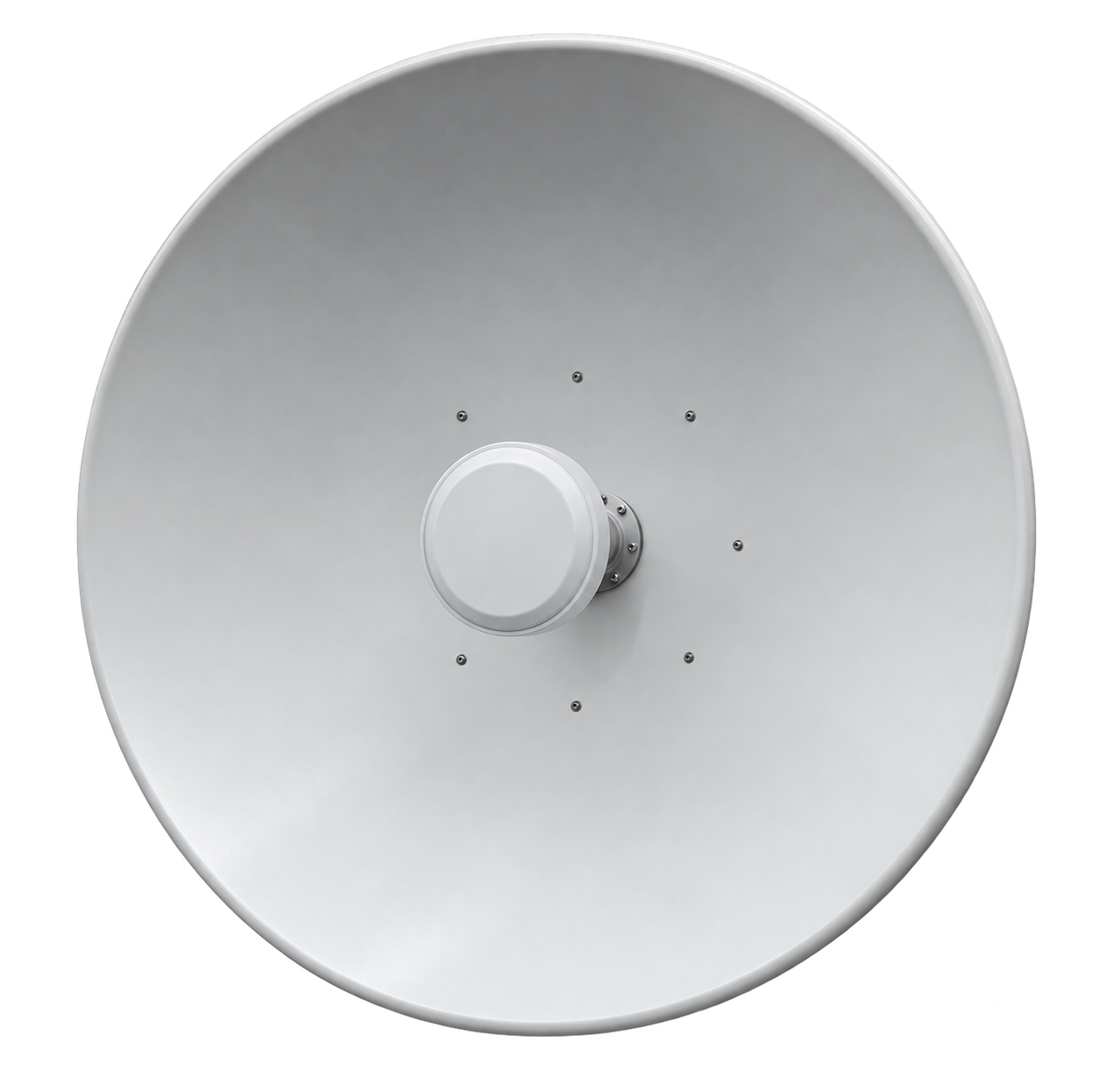

DRA-Ka09 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for K-band & Ka-band covering 18-40 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 1°; Beam (V): 1°

► Cross-polarization isolation: 25 dB

► Gain: 41 dBi

- +
  • وصف
  • التحميلات
Specification
Frequency range, GHz 25-40 (18-40 by order)
Gain, dBi 41
VSWR 1.5
Polarization Linear or circular
Cross-polarization isolation, dB 25
HPBW:
@horizontal
@vertical
Side-lobe level relative to the main beam, dB -12
Input power, W 20
Waveguide WR-28 or С-320
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 980x980x310
Weight, kg 12.5

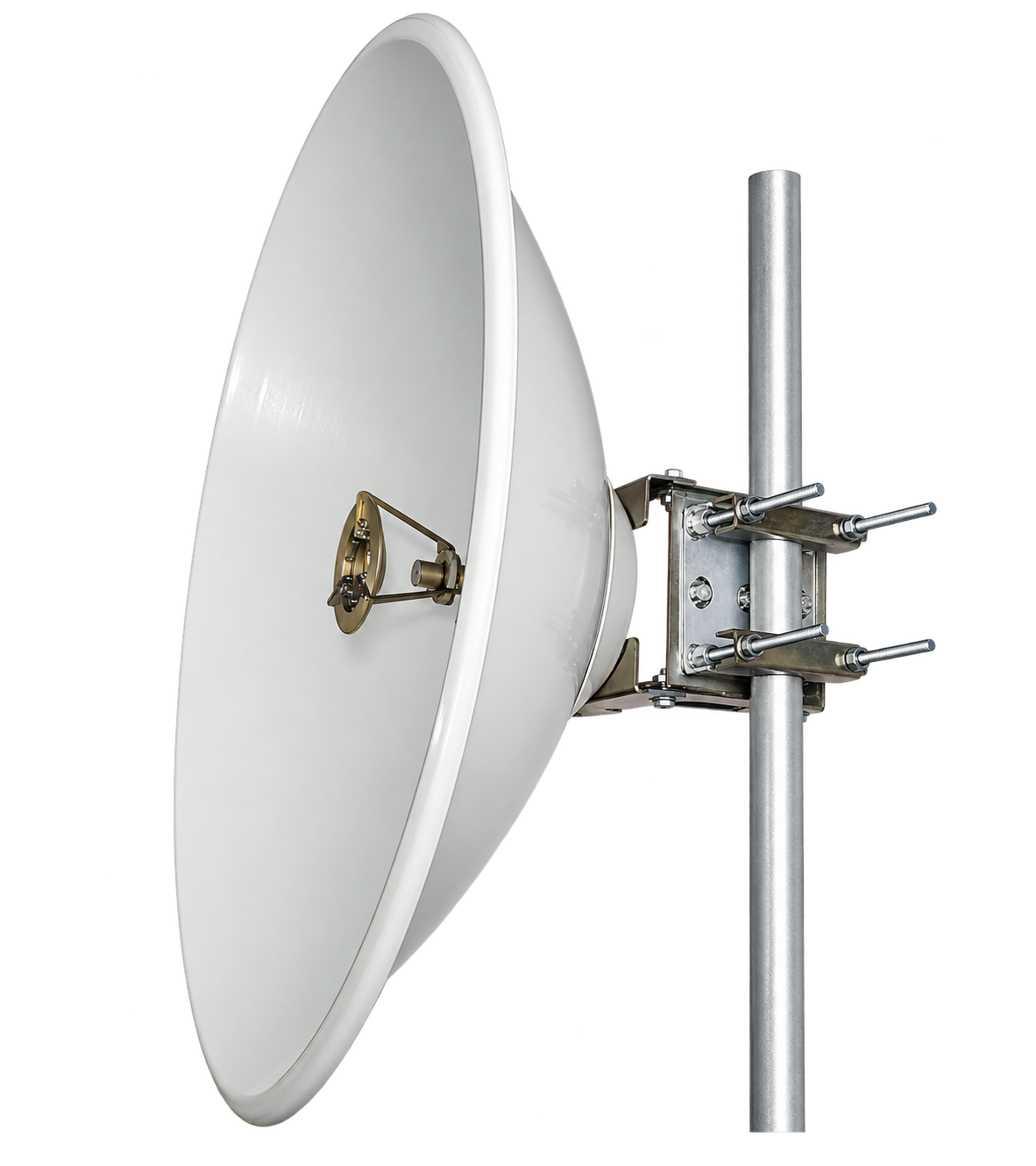

Mount Mounting on a vertical pipe with a diameter of 50-100 mm
Casing material Canvas coverage

Installation:
