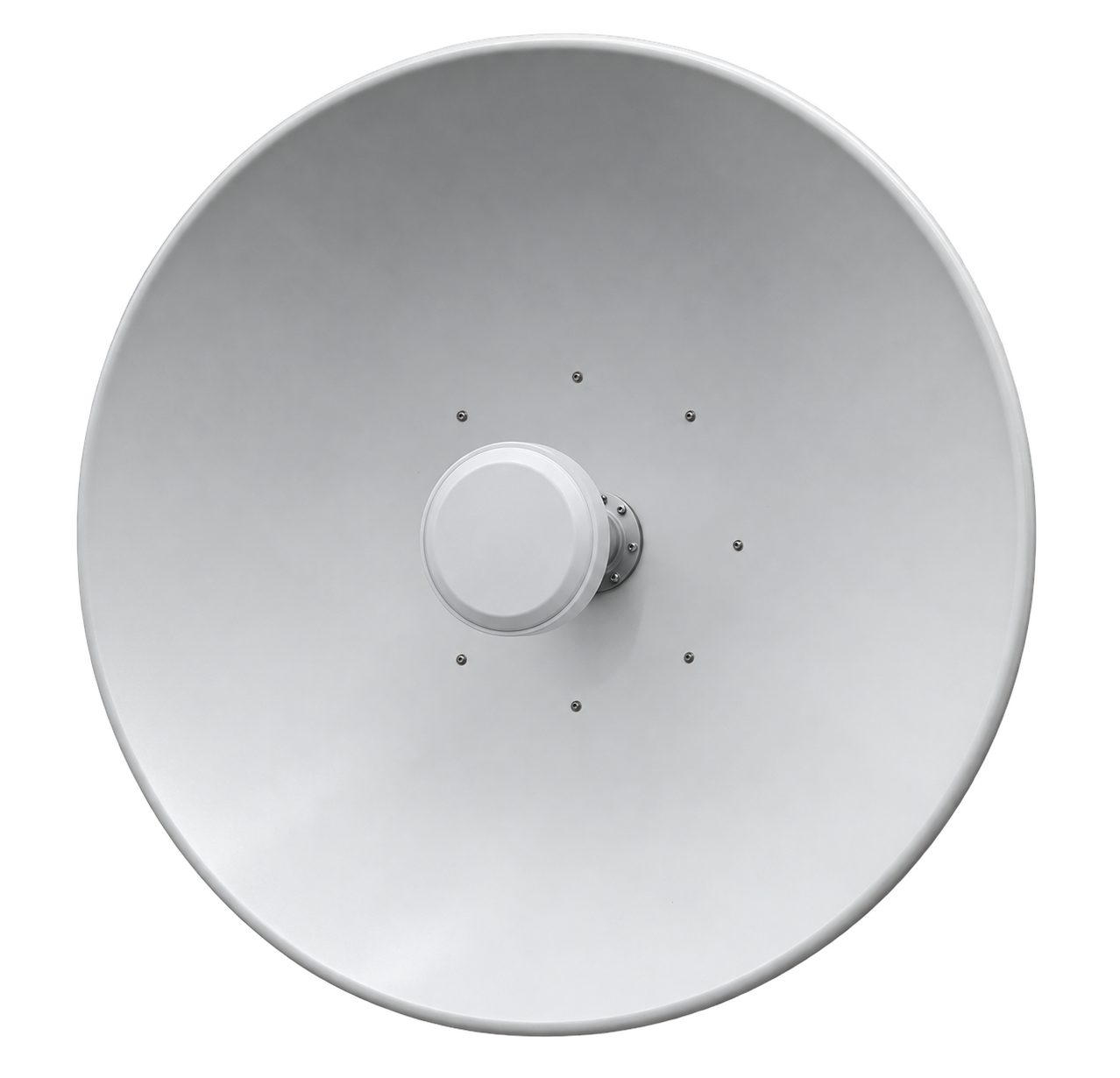

DRA-Ka09 is K-band & Ka-band double reflector antenna (Cassegrain antenna) designed for transmitting radio relay stations (RRS), MVDS / MMDS broadcasting systems. Antenna is performed as a single block with flange for transmitter or receiver connecting. Using one or several radio relay links allows to transfer the broadcast signal from/to remote TV (cable) operators or from/to remote head-end without wires. Thus, the current transmission method is especially useful in difficult terrain in the service area where cable laying is impossible.
DRA-Ka09 K/Ka-band double reflector directional antenna is a high-performance Cassegrain solution designed for MVDS/MMDS broadcasting systems and professional radio relay links. Operating across 25-40 GHz (18-40 GHz by request), it delivers 41 dBi antenna gain, narrow 1° beamwidth in both horizontal and vertical planes and excellent cross-polarization isolation of 25 dB, ensuring precise and reliable broadcasting performance.
Engineered as a single block, the DRA-Ka09 antenna features a flange interface for seamless connection to transmitters and receivers. Its robust construction makes it a cost-effective alternative to wired infrastructure, particularly in regions where cable laying is not feasible. With WR-28 or C-320 waveguide compatibility, this high gain directional antenna integrates easily into professional DVB-S2, DVB-T2 and microwave broadcasting infrastructures.

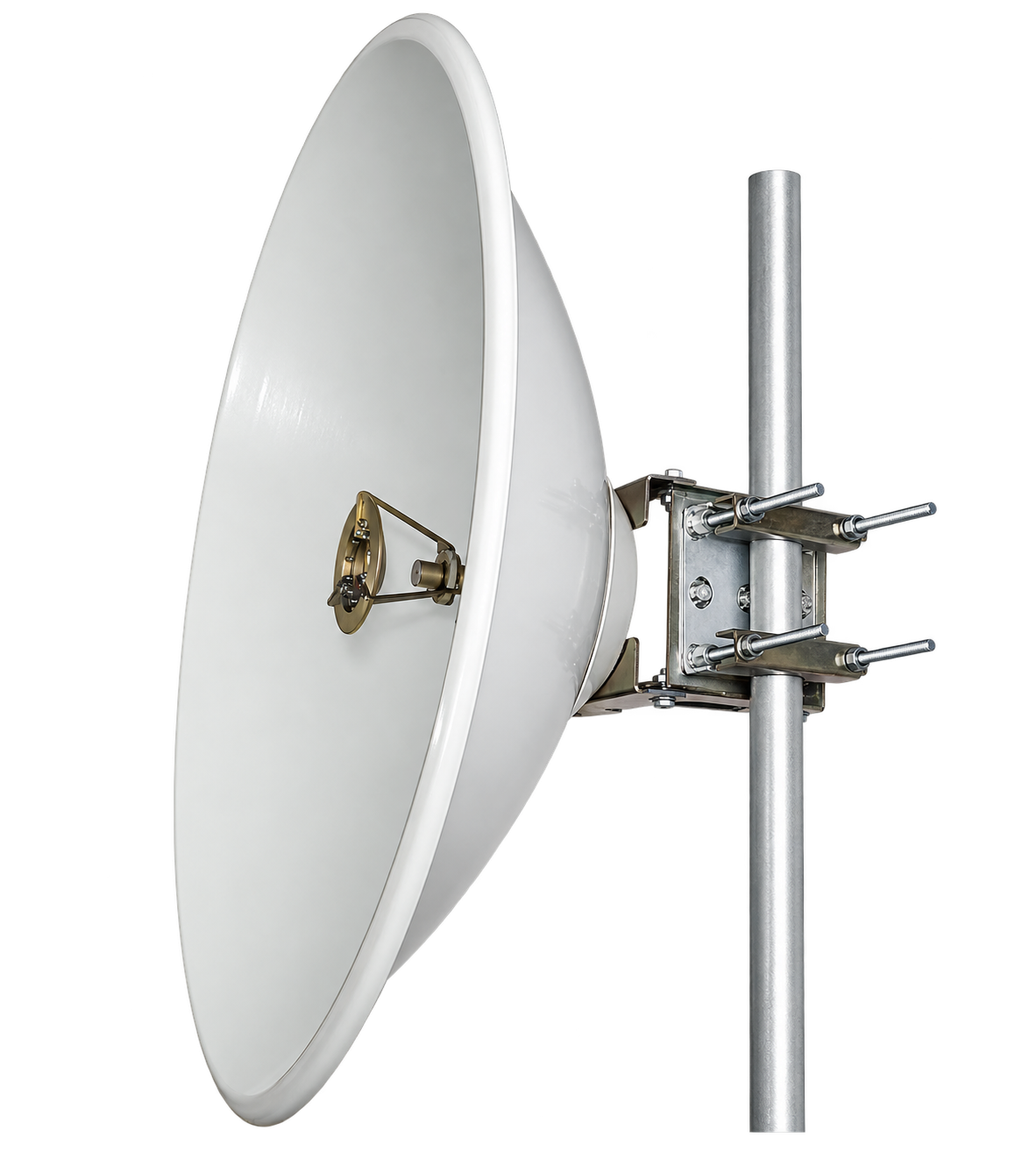

Thanks to its optimized radiation pattern and low side-lobe levels (-12 dB), the DRA-Ka09 antenna guarantees stable signal transmission even over long distances. It is suitable for installation on vertical pipes with a diameter of 50-100 mm and is covered with a durable weatherproof canvas for protection in outdoor environments.
✅ High 41 dBi gain performance
The DRA-Ka09 directional antenna provides exceptional 41 dBi gain, ensuring powerful and stable signal transmission across extended service areas.
✅ Narrow 1° beamwidth
With a precise 1° horizontal and vertical beam, the DRA-Ka09 antenna focuses energy efficiently for long-distance broadcasting and point-to-point links.
✅ Flexible polarization options
The DRA-Ka09 Cassegrain antenna supports both linear and circular polarization, ensuring compatibility with diverse professional broadcasting systems.
✅ Reliable outdoor design
The DRA-Ka09 antenna features a canvas-protected casing that withstands harsh climates, ensuring long-term durability in outdoor deployments.
🛠️ Whether you need a Ka-band directional antenna with 41 dBi gain, a K-band double reflector antenna with 1° beamwidth, or a Cassegrain antenna for MVDS head-end stations, the DRA-Ka09 is engineered to provide professional-grade performance and long-distance stability.
🛒 The DRA-Ka09 directional antenna is available to order now – ready for integration into broadcasting stations, repeater hubs, interactive microwave infrastructures and professional DVB networks.
📌 Key features
-
Wide frequency range 25-40 GHz
The DRA-Ka09 K/Ka-band antenna operates within a wide frequency range, supporting both K-band and Ka-band systems. By order, it can be tuned for 18-40 GHz applications, offering flexibility for professional broadcasting.
With exceptional gain, the DRA-Ka09 directional antenna ensures reliable long-distance signal transmission. This makes it suitable for point-to-point broadcasting and DVB infrastructures.
The DRA-Ka09 antenna delivers a sharp 1° beam in both horizontal and vertical planes. This enables focused transmission with minimal signal loss, ideal for long-range applications.
-
Cassegrain double reflector design
The DRA-Ka09 antenna uses a double reflector configuration for improved efficiency. This advanced design enhances signal stability and minimizes side-lobe interference.
-
Cross-polarization isolation ≥25 dB
The DRA-Ka09 antenna maintains high signal purity by providing excellent cross-polarization isolation. This guarantees minimal interference in dense communication environments.
With a low standing wave ratio, the DRA-Ka09 directional antenna ensures efficient energy transfer. This reduces reflection losses and improves broadcasting reliability.
-
Low side-lobe levels (-12 dB)
The DRA-Ka09 antenna minimizes unwanted radiation, ensuring clean and stable directional broadcasting. This supports consistent performance in professional infrastructures.
Supporting linear and circular polarization, the DRA-Ka09 antenna adapts to multiple broadcasting standards. This ensures versatility across DVB-S2 and DVB-T2 infrastructures.
With canvas protection, the DRA-Ka09 antenna resists dust, humidity and extreme temperatures. This ensures long-lasting operation in outdoor installations.
-
Professional waveguide interface
The DRA-Ka09 antenna is equipped with WR-28 or C-320 waveguide flanges. This guarantees easy integration into professional broadcasting and relay systems.
⚙️ Main functions
-
Transmission of Ka- and K-band signals
The DRA-Ka09 directional antenna ensures powerful broadcasting across K-band and Ka-band frequencies. Its narrow beamwidth enables precise and reliable signal delivery.
-
Reception of K/Ka-band signals
The DRA-Ka09 Cassegrain antenna provides stable reception for DVB-S2 and interactive microwave infrastructures. This enhances network reliability and service quality.
-
Broadcasting head-end integration
The DRA-Ka09 antenna is designed for use in broadcasting head-end stations. It ensures seamless connectivity and efficient signal management.
-
Repeater station deployment
The DRA-Ka09 directional antenna retransmits signals for extended coverage. This is particularly valuable in regions with challenging terrain.
-
Interactive microwave systems
The DRA-Ka09 antenna integrates into two-way microwave infrastructures. It ensures reliable data exchange and broadcasting performance.
-
MVDS/MMDS broadcasting networks
The DRA-Ka09 antenna is a core component of MVDS/MMDS infrastructures. It guarantees strong and consistent coverage across wide territories.
-
Point-to-point communication links
With its 41 dBi gain and 1° beamwidth, the DRA-Ka09 antenna supports long-distance communication links. This ensures efficiency in professional networks.
The DRA-Ka09 antenna can be installed in telecom stations requiring high gain directional performance. This enhances broadcasting capacity.
-
Outdoor broadcasting infrastructures
With weatherproof construction, the DRA-Ka09 antenna is suitable for permanent outdoor deployments. This ensures continuous service in harsh environments.
-
Flexible system integration
The DRA-Ka09 antenna is compatible with WR-28 and C-320 interfaces. This simplifies integration into diverse professional broadcasting infrastructures.
🧩 Applications
-
K-band broadcasting networks
The DRA-Ka09 antenna is widely used in K-band DVB systems. It ensures high-performance broadcasting with strong coverage.
The DRA-Ka09 Cassegrain antenna supports Ka-band broadcasting. This makes it suitable for DVB-S2 and DVB-T2 contribution links.
-
MVDS/MMDS broadcasting systems
The DRA-Ka09 antenna integrates into MVDS/MMDS infrastructures. It provides reliable long-distance broadcasting across large territories.
The DRA-Ka09 antenna retransmits signals effectively in repeater hubs. This ensures stable connectivity and coverage.
-
Broadcasting head-end stations
The DRA-Ka09 antenna ensures efficient integration into head-end infrastructures. This provides stable upstream and downstream connectivity.
-
Interactive microwave infrastructures
The DRA-Ka09 Cassegrain antenna supports interactive microwave communication. This enables efficient two-way broadcasting.
-
Point-to-point broadcasting links
With its narrow beamwidth, the DRA-Ka09 antenna is ideal for long-distance point-to-point links. This ensures high-quality transmission.
-
Public broadcasting infrastructures
The DRA-Ka09 antenna ensures reliable service for regional and national TV networks. This guarantees consistent coverage.
-
Outdoor telecom installations
Built with durable casing, the DRA-Ka09 antenna is suitable for telecom hubs and repeater sites. It ensures long-term performance in all climates.
-
Professional DVB networks
The DRA-Ka09 antenna is designed for integration into DVB-S2, DVB-T2 and DVB-C networks. It ensures maximum compatibility and reliable performance.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the DRA-Ka09 K/Ka-band double reflector directional antenna, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment.

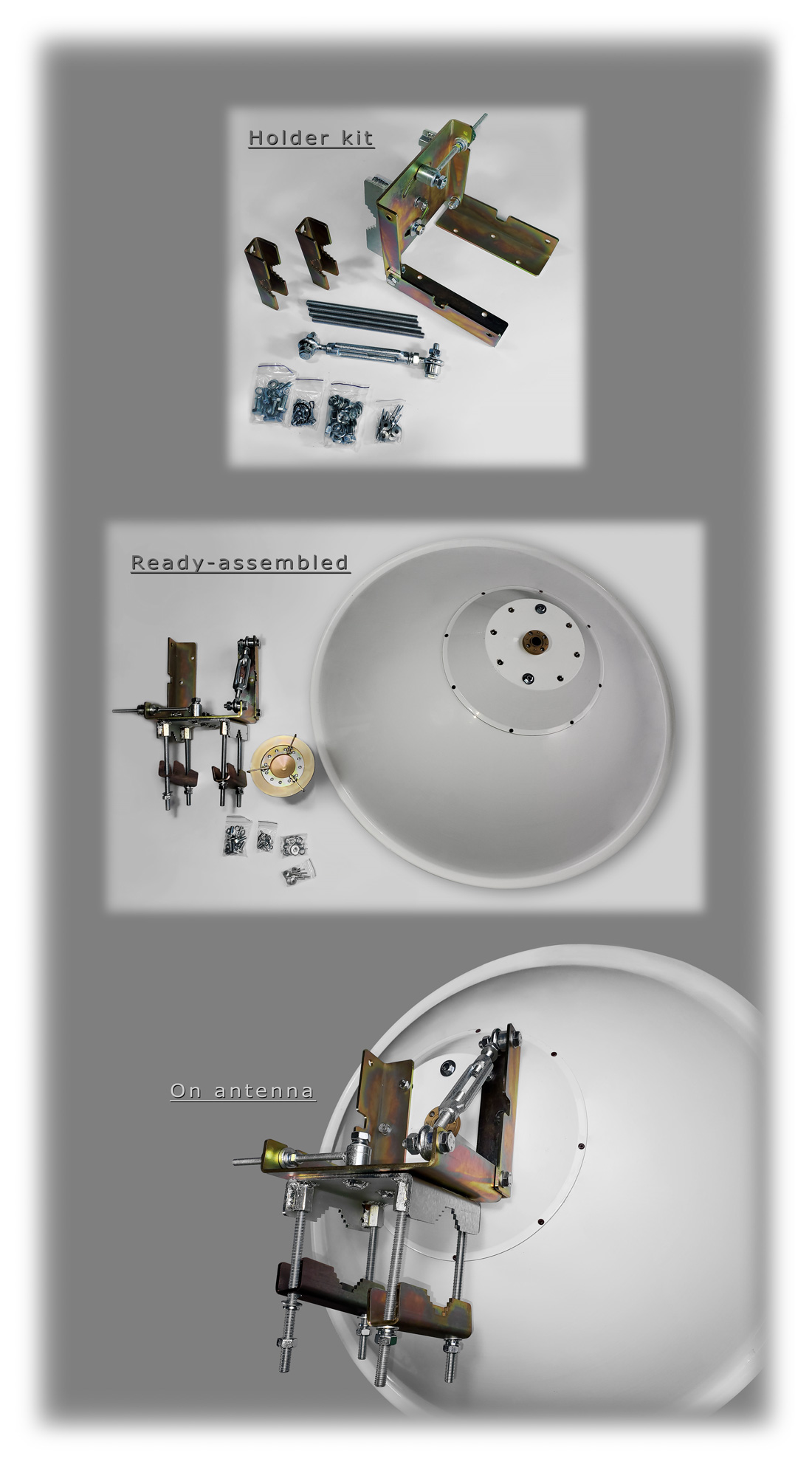

Short instruction about antenna assembling%20UMT%20LLC.jpg)
