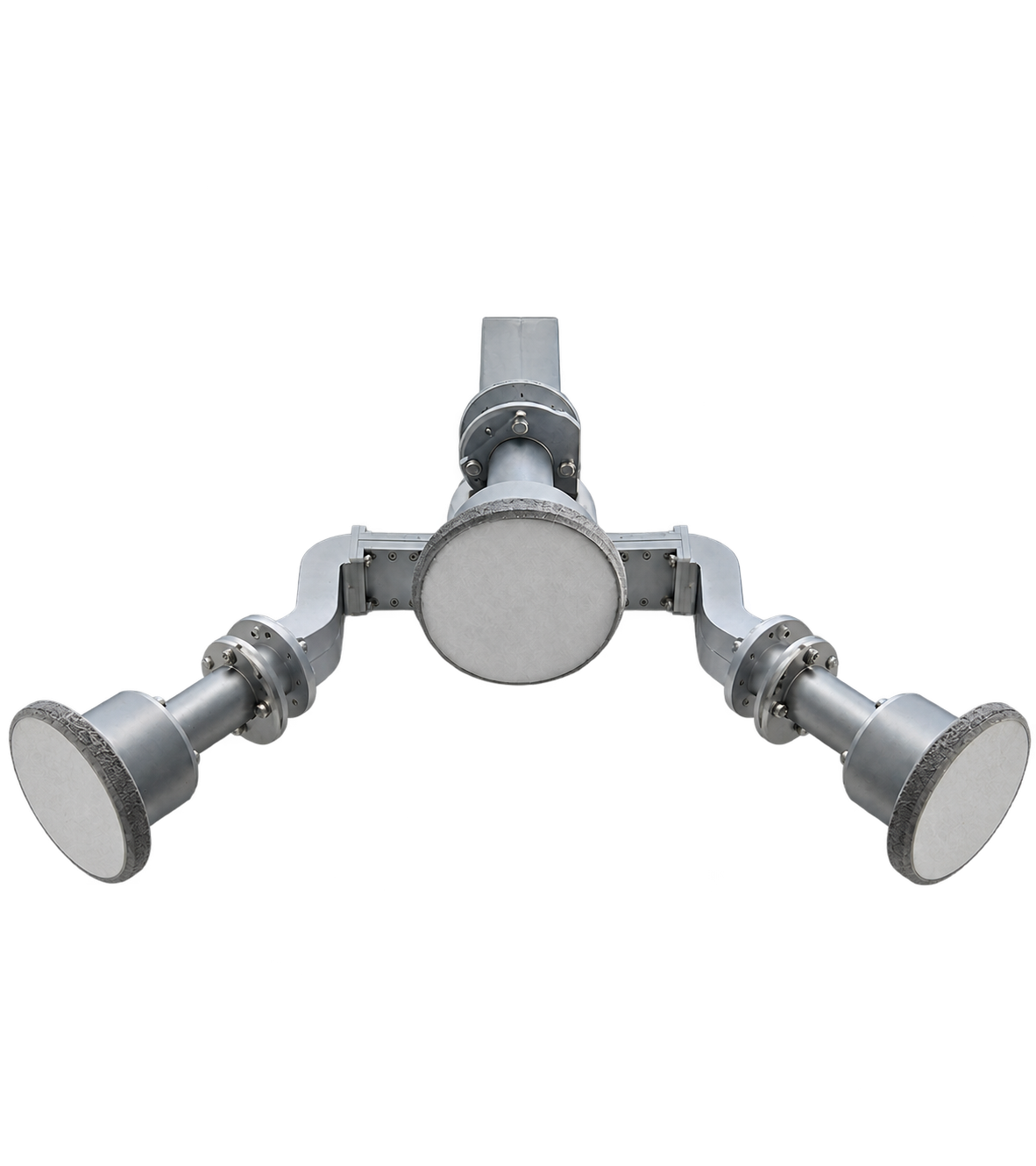

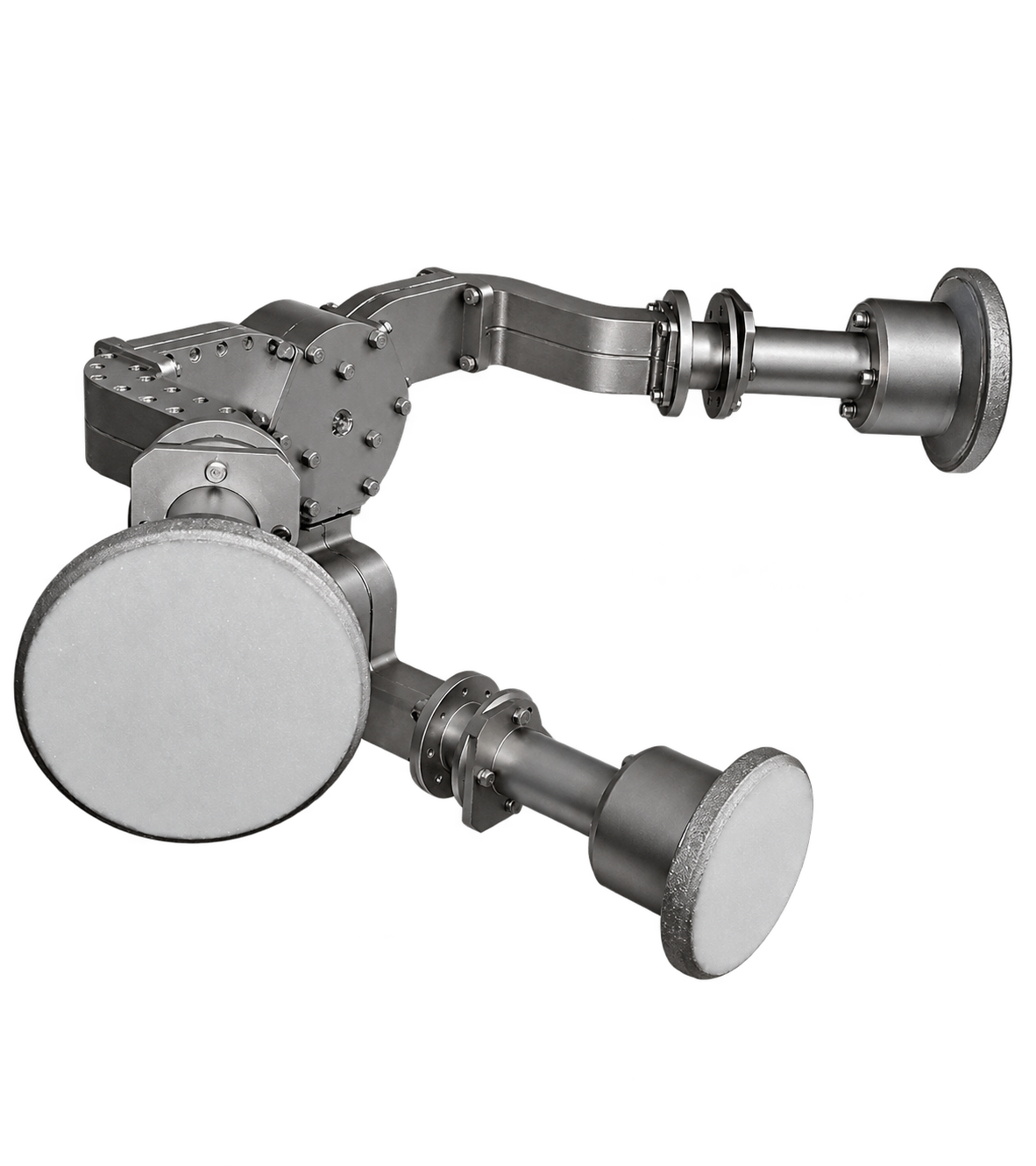

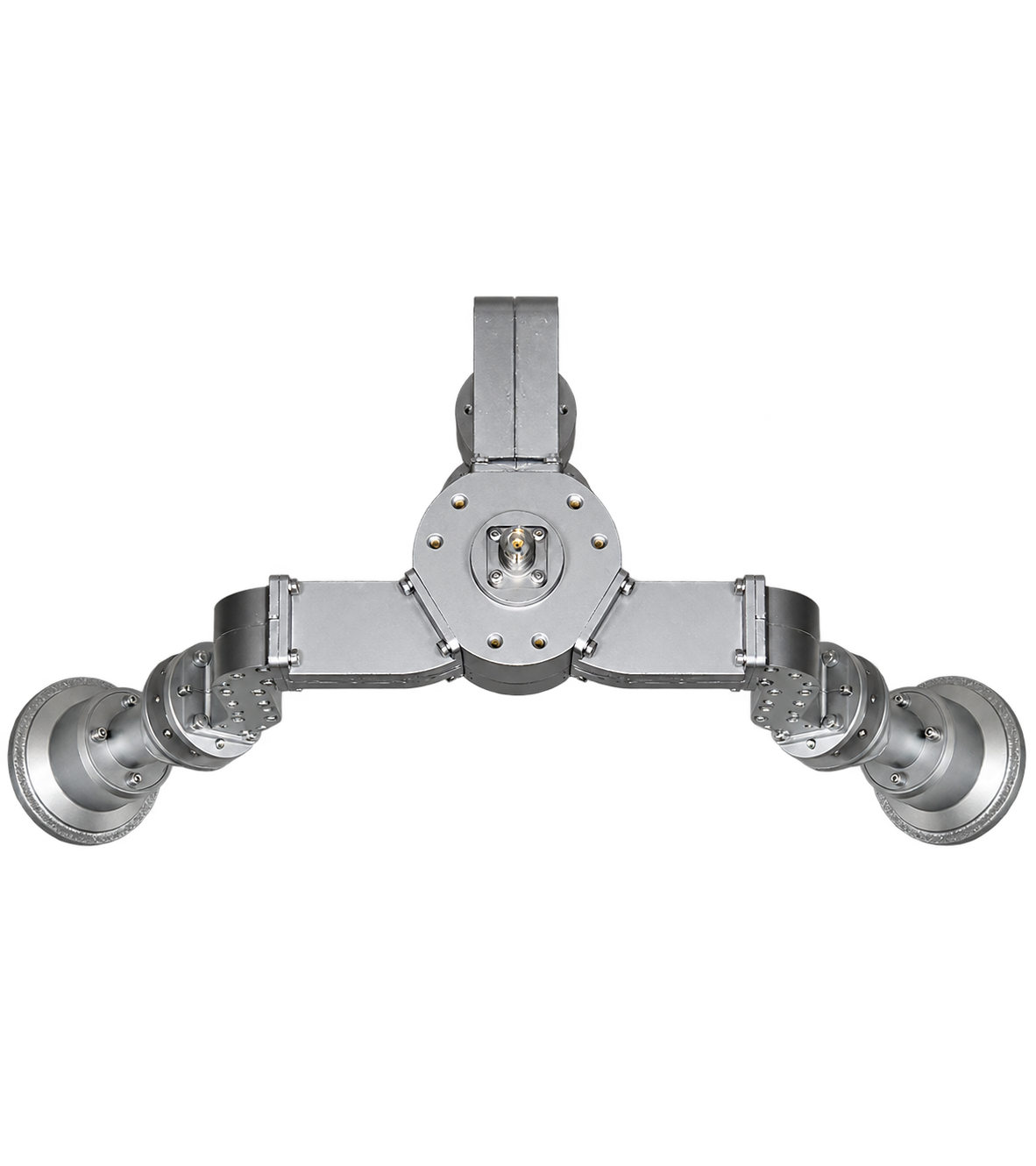

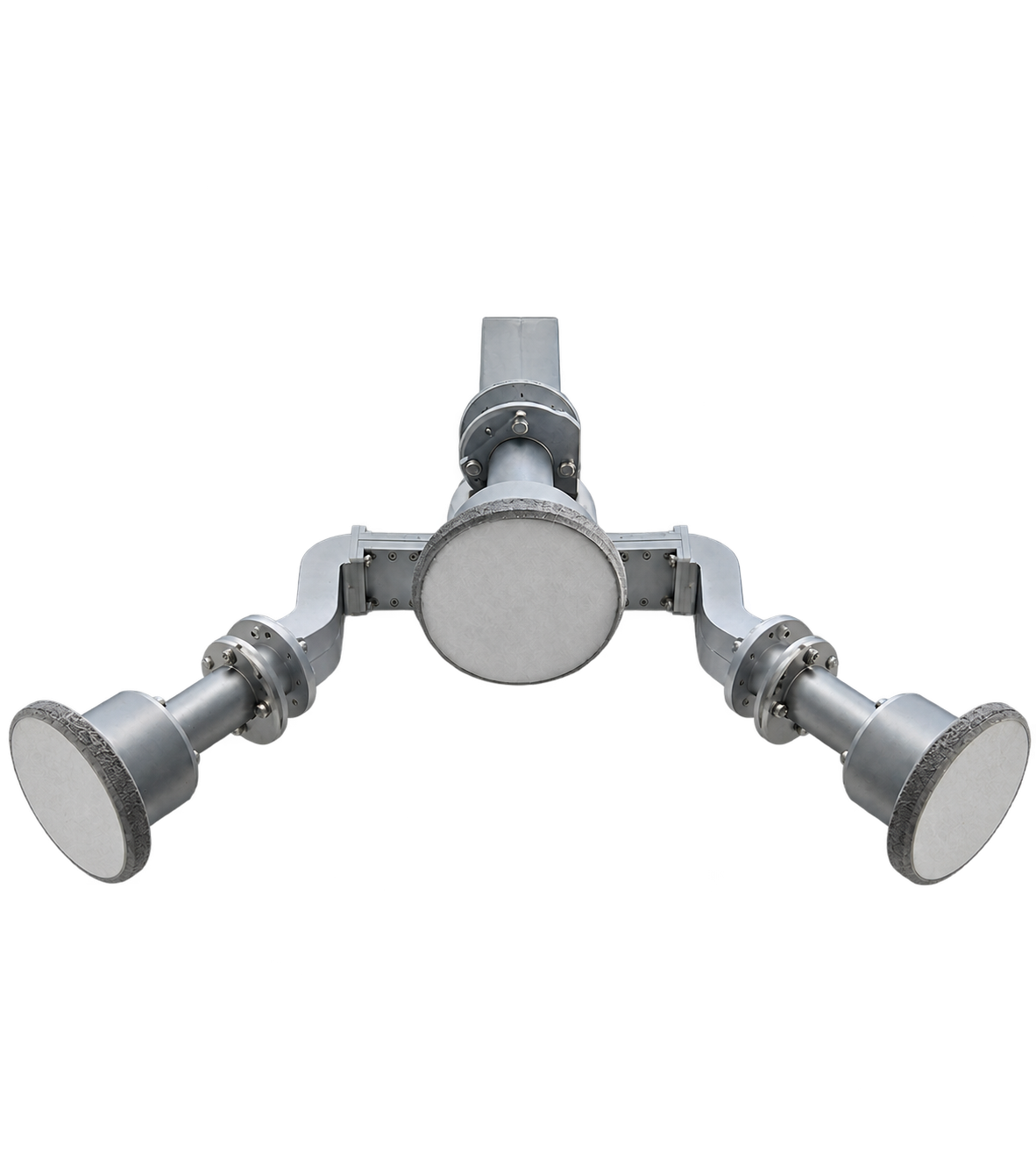

PAA-KuDP110

Short description

PAA-KuDP110 is PAA-KuDP110 is Phased Array Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 110 degrees and DUAL polarization

► Beam(H): 110°; Beam (V): 35°

► Frequency range: 8-12 GHz

► Gain: 10 dB

► It is designed for Ku-band

الاستقطاب المزدوجKu-bandمن 90 درجة إلى 120 درجة
- +

طلب هوائيات المعدات المخصصة Antennas

    • Description
    • Downloads

    PAA-KuDP110 is Ku-band short sector antenna which has radiation pattern of 110 degrees in horizontal plane and wide frequency range of 8 000 – 12 000 MHz.

    Key features:

    • Reliable design
    • Light weight
    • Compact size
    • High gain

    Main functions:

    • Transmit and receive Ku-band signals
    • Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems



    Parameter Value
    Frequency range, GHz 8 – 12
    Gain, dBi 10
    VSWR 2
    Polarization vertical, horizontal (3dB loss each)
    Polarization type linear (45°)
    Cross-polarization isolation, dB 25
    HPBW:
    @horizontal   110°
    @vertical 35°
    Gain range in aperture, dB ±1
    Temperature range, °C -50 to +80
    Humidity 100% where 25°C
    Size, mm *
    Weight (including holder), kg *
    Directional diagram tuning, deg:
     Elevation angle  ±30*
     Azimuth ±360*
    Mounting Installation on the pipe diameter up to 45 mm
    Input power, W 20
    Body Dust/moisture proof

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
