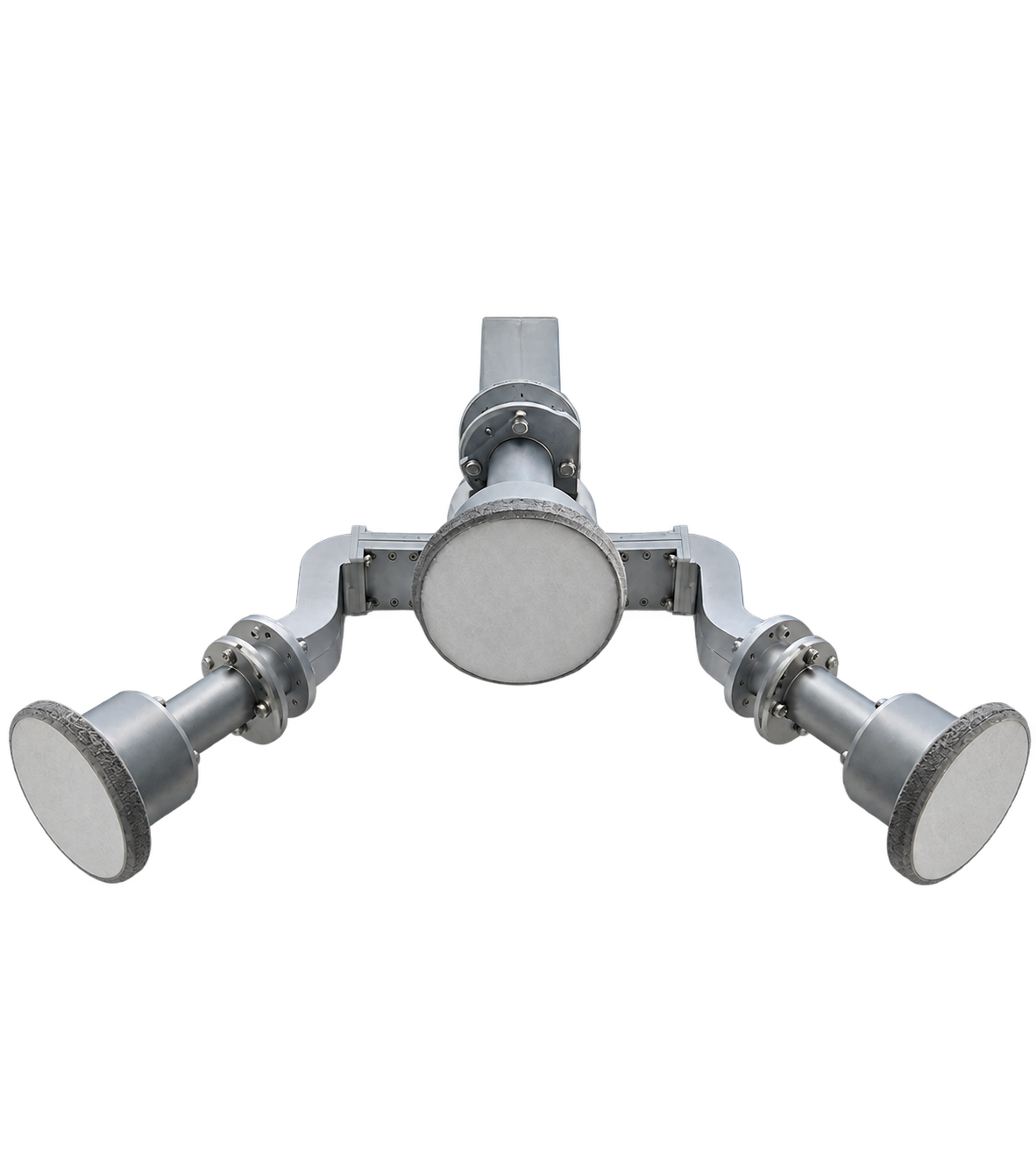

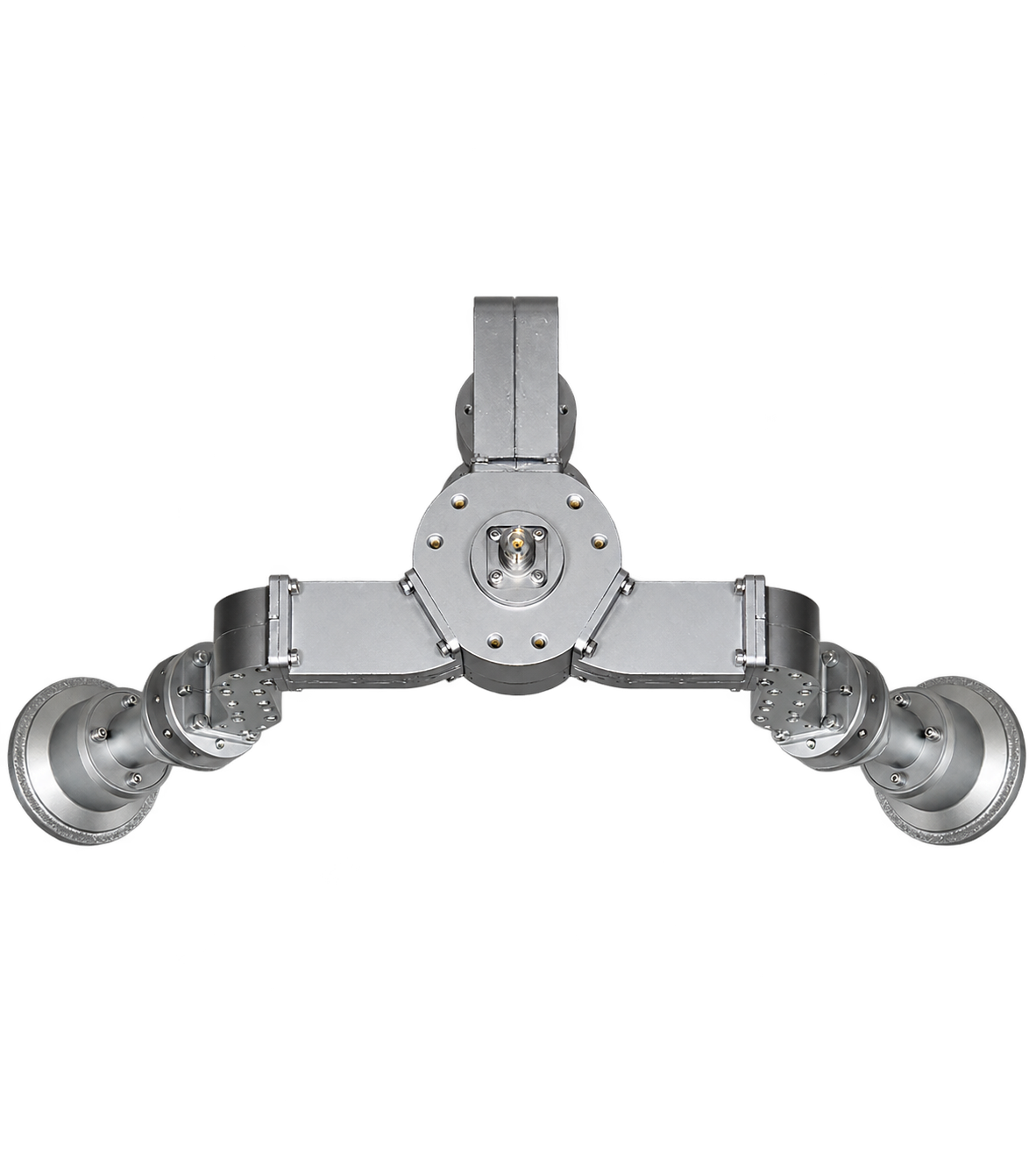

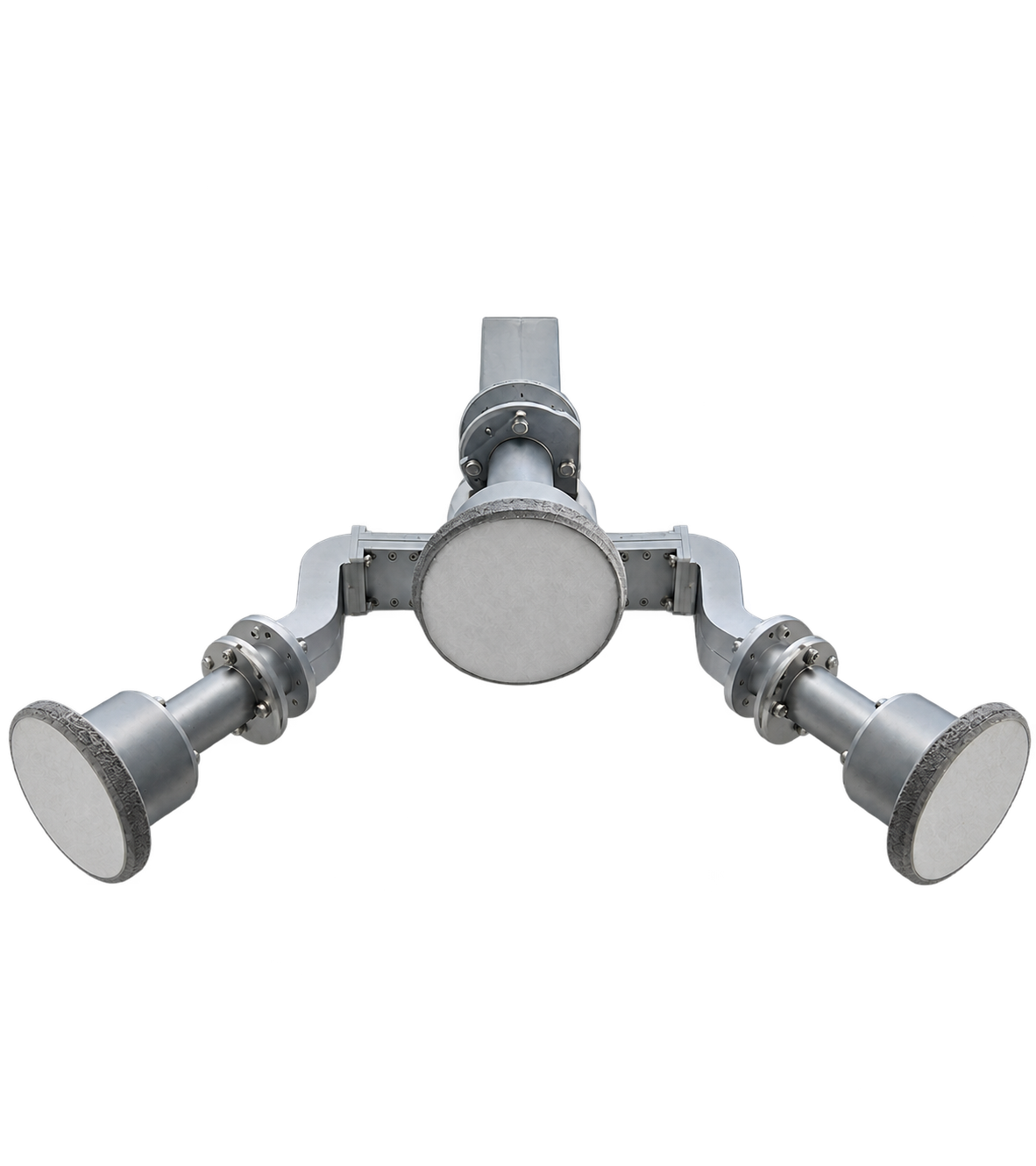

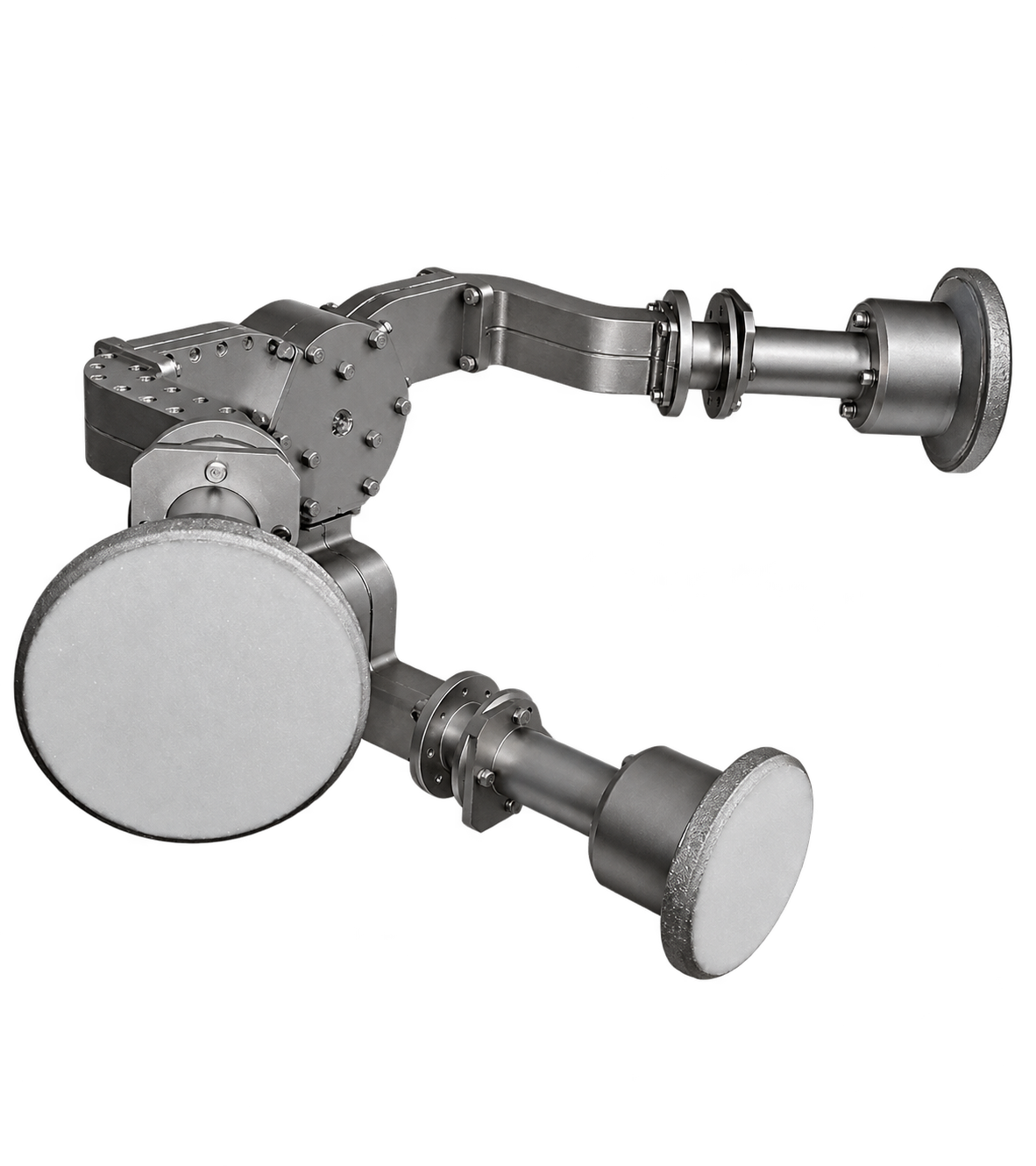

PAA-KuDP110

Short description

PAA-KuDP110 is PAA-KuDP110 is Phased Array Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 110 degrees and DUAL polarization

► Beam(H): 110°; Beam (V): 35°

► Frequency range: 8-12 GHz

► Gain: 10 dB

► It is designed for Ku-band

Dual-polarizationKu-bandfrom 90° to 120°
- +

Request for customized equipment Antennas

    • Description
    • Downloads

    PAA-KuDP110 is Ku-band short sector antenna which has radiation pattern of 110 degrees in horizontal plane and wide frequency range of 8 000 – 12 000 MHz.

    Key features:

    • Reliable design
    • Light weight
    • Compact size
    • High gain

    Main functions:

    • Transmit and receive Ku-band signals
    • Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems



    Parameter Value
    Frequency range, GHz 8 – 12
    Gain, dBi 10
    VSWR 2
    Polarization vertical, horizontal (3dB loss each)
    Polarization type linear (45°)
    Cross-polarization isolation, dB 25
    HPBW:
    @horizontal   110°
    @vertical 35°
    Gain range in aperture, dB ±1
    Temperature range, °C -50 to +80
    Humidity 100% where 25°C
    Size, mm *
    Weight (including holder), kg *
    Directional diagram tuning, deg:
     Elevation angle  ±30*
     Azimuth ±360*
    Mounting Installation on the pipe diameter up to 45 mm
    Input power, W 20
    Body Dust/moisture proof
