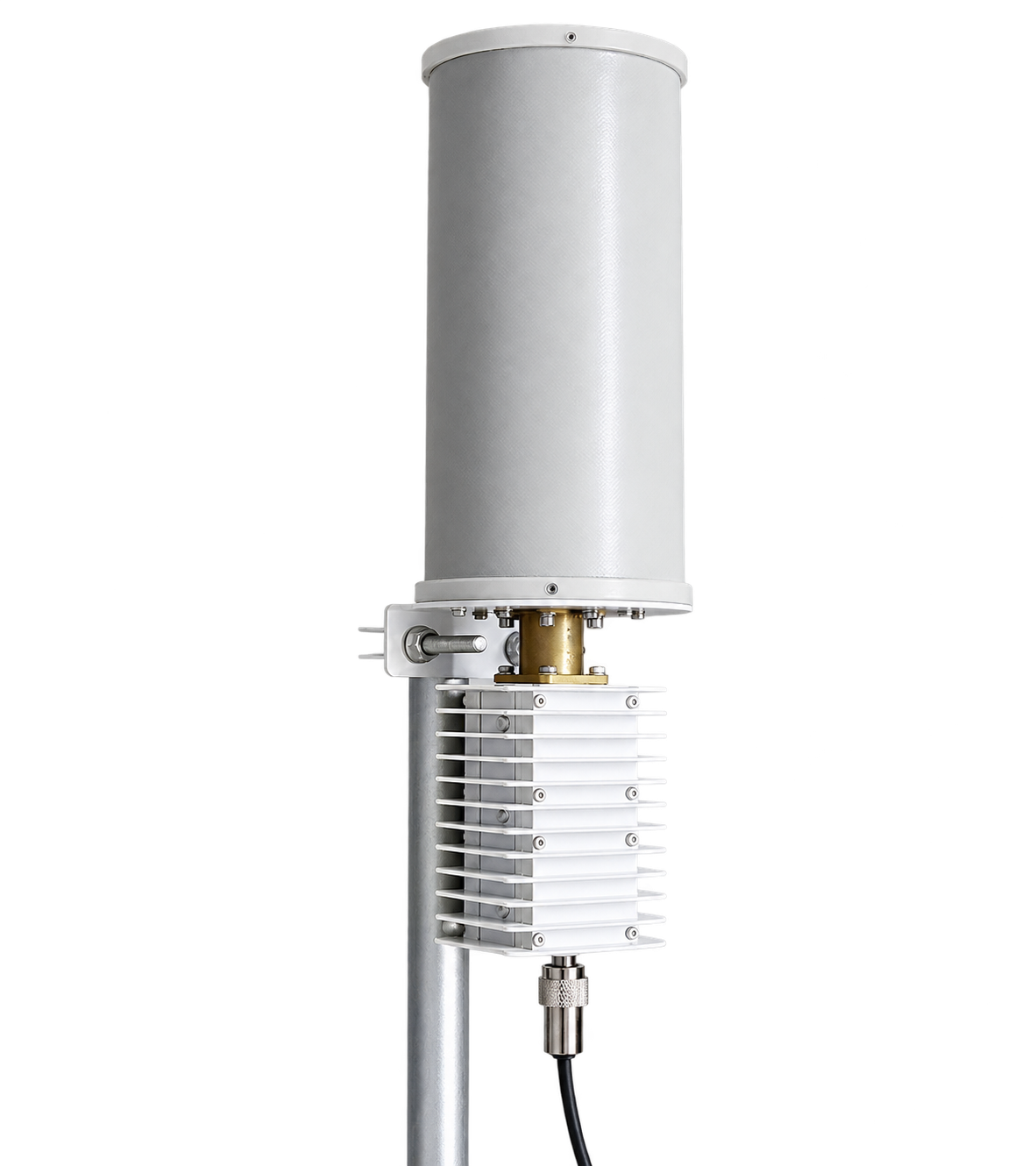

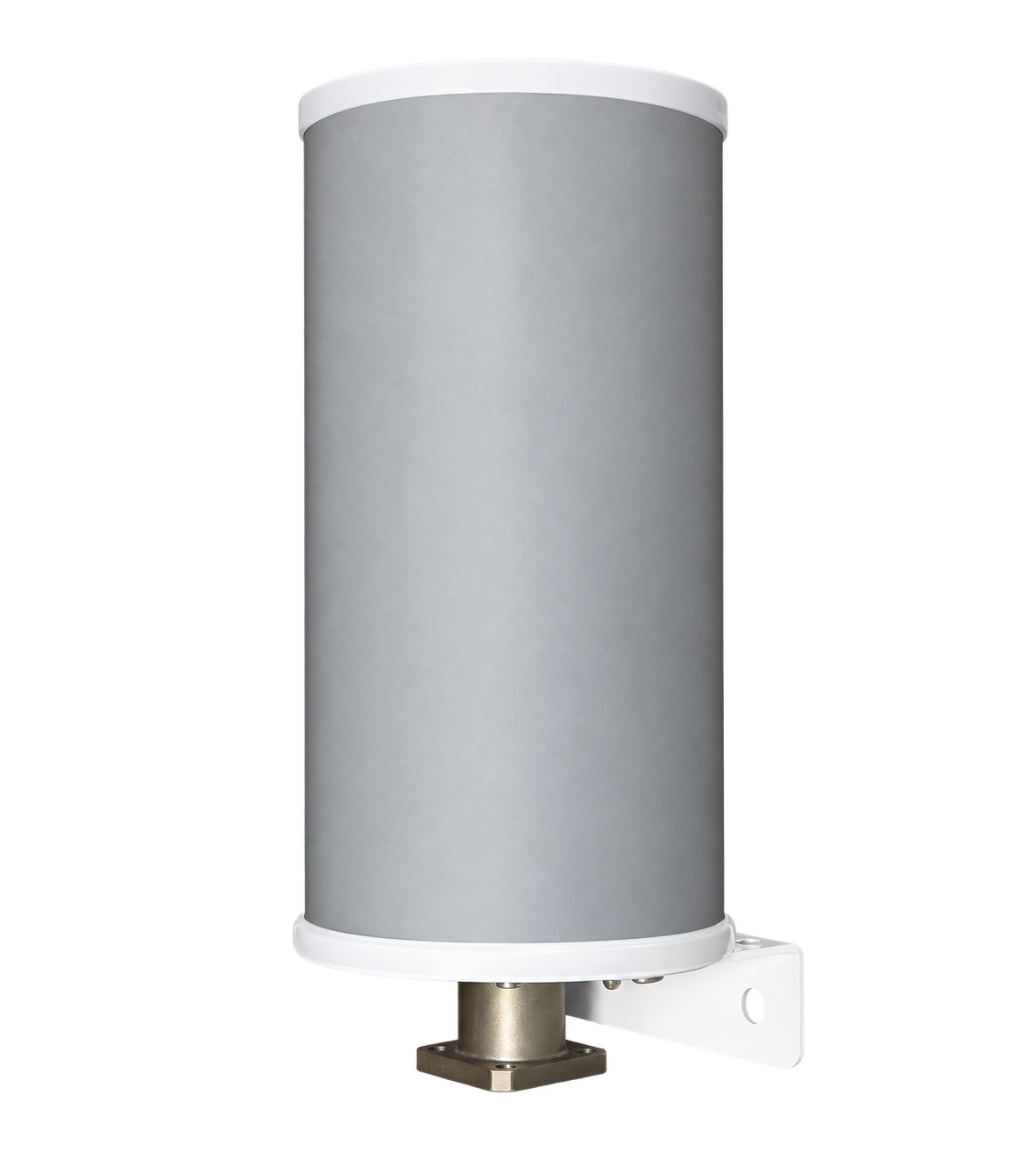

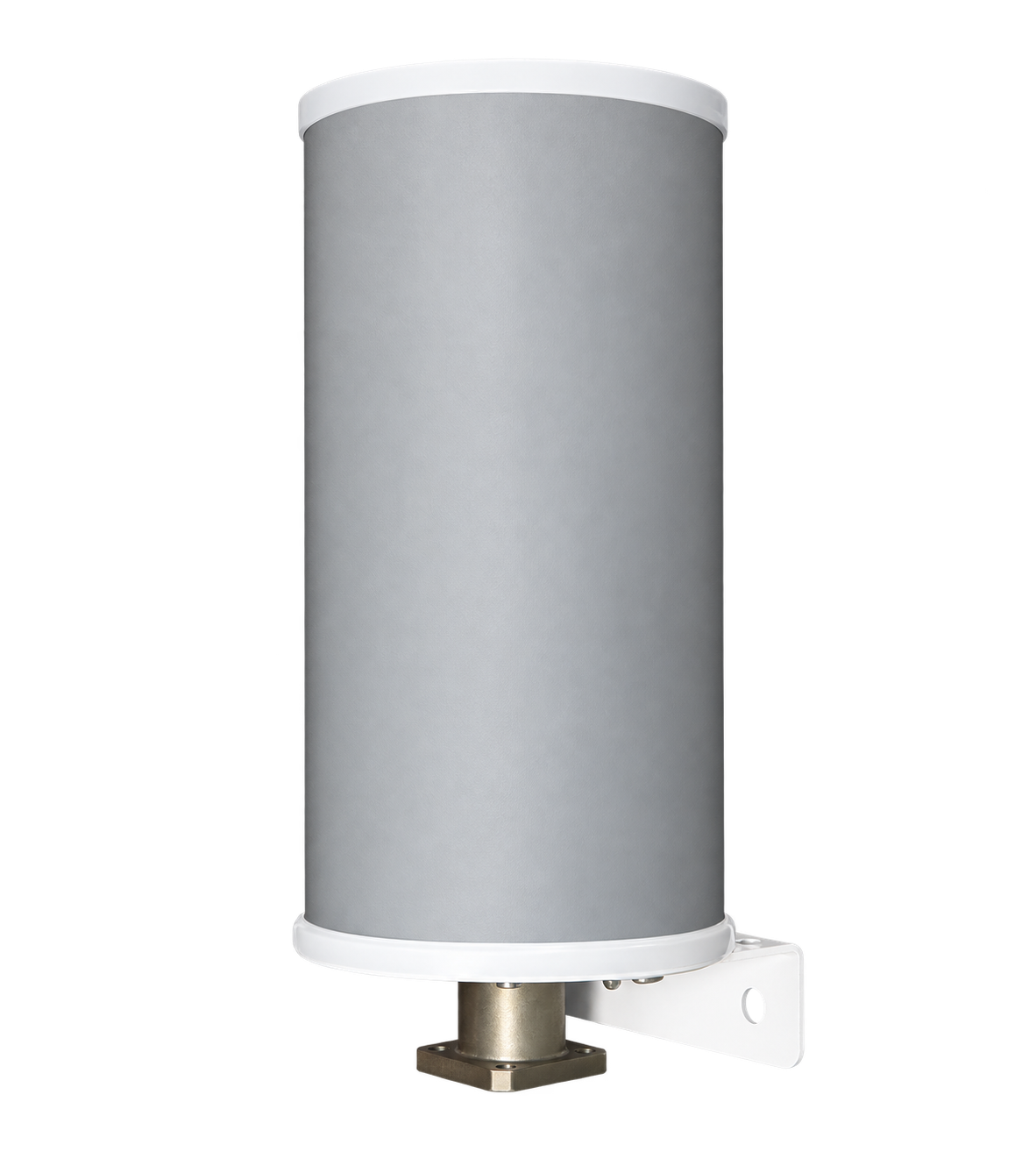

SWA-Ku360 v2 12.7-13.5 GHz is omni Slotted Waveguide Antenna
► It is designed for Ku-band with antenna aperture of 360° and linear polarization
► Frequency range of 12.7-13.5 GHz (or any 800MHz of Ku-band)
► Beam (H): 360°; Beam (V): 10°
► Gain: 11 dBi
SWA-Ku360 v2 12.7-13.5 GHz is Ku-band omni slotted waveguide antenna designed for MVDS / MMDS broadcasting systems. SWA-Ku360v2 has 360 deg radiation pattern, high gain of 11dBi and wide frequency range of 12.7-13.5 GHz, in addition, has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by SWA-Ku360 v2 12.7-13.5 GHz can be received by typical Ku-band satellite dish and LNB.
Short instruction about antenna assembling
Key features:
- Omnidirectional: 360-degree radiation pattern
- High gain: 11 dBi
- Full Ku-band covering
- Light weight
- Compact size
Main functions:
- Transmit Ku-band signals
- Applied as a part of broadcasting station, repeater and interactive microwave system
| Parameter | Value |
|---|---|
| Frequency range, GHz | 12.7-13.5 (or choose other 800MHz of Ku-band via “customized equipment” button) |
| Gain, dBi, at least | 11 |
| Gain variation in the aperture, dB, not more | ±2 |
| VSWR, max | 2 |
| Polarization | Linear, horizontal, vertical (by order) |
| Cross-polarization, dB, not less | 25 |
| HPBW: | |
| @horizontal | 360° |
| @vertical | 10±1° |
| Input power, W, up to | 20 |
| Waveguide | WR-75 flange |
| Operating temperature, ° C | -40 … +80 |
| Humidity | 100% @ 25°C |
| Dimensions, mm, not more | 245x115x115 |
| Weight, kg, not more | 2.5 |
| Mount | Mounting on a vertical pipe with a diameter of 40 mm (max) |
| Casing material | dust/moisture proof |
