SWA-Ku360 v2 12.7-13.5 GHz

Brève description

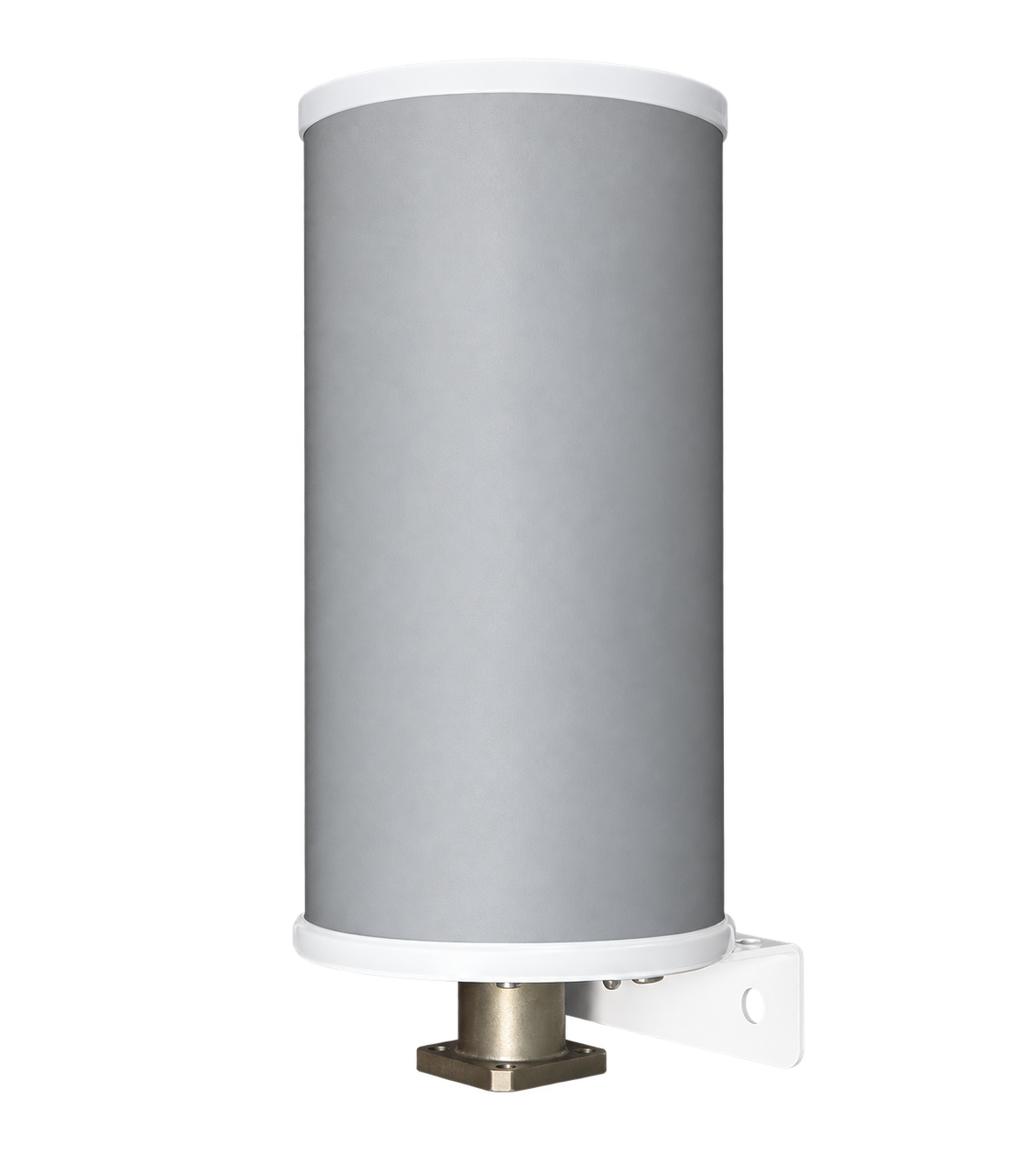

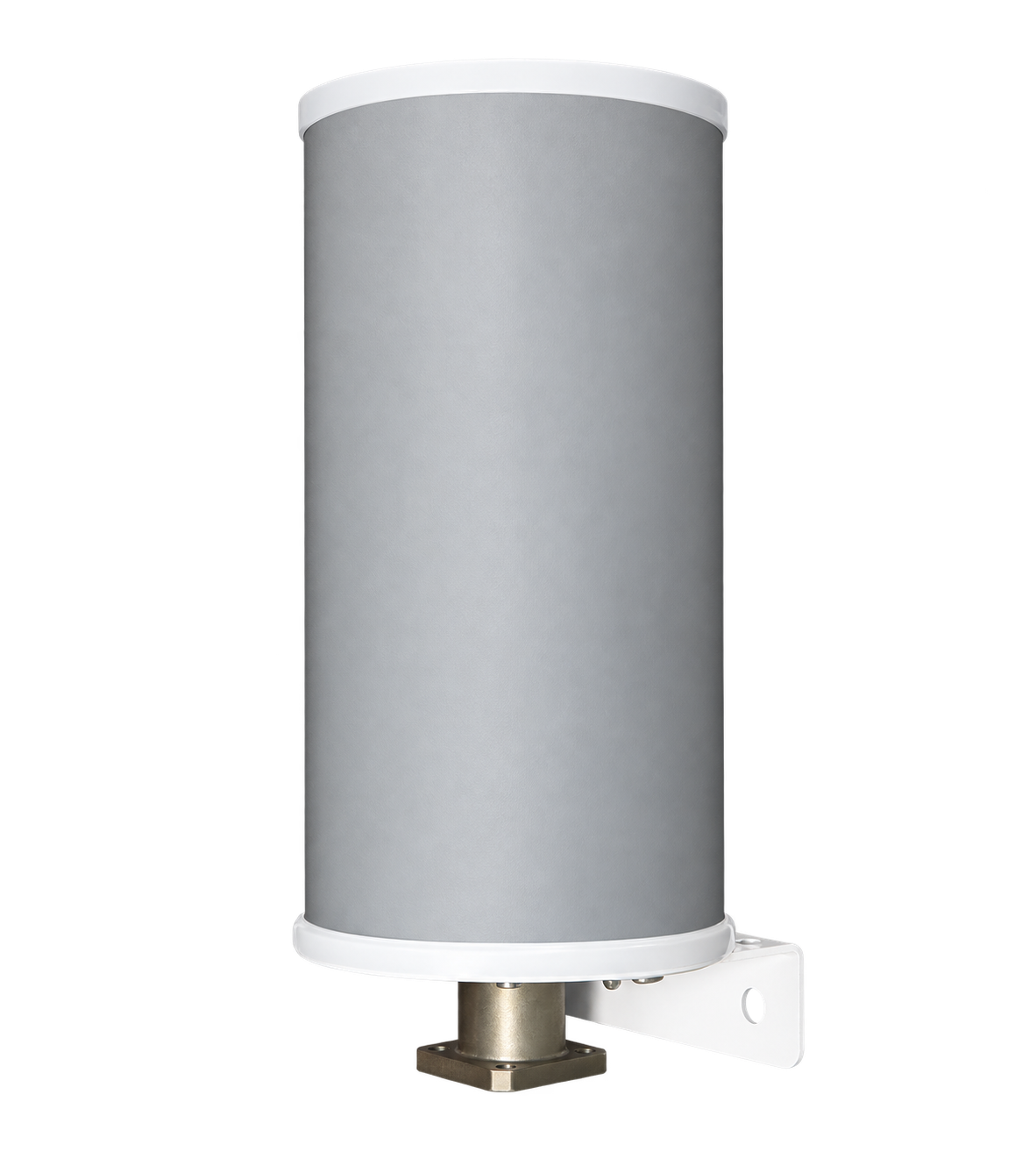

SWA-Ku360 v2 12.7-13.5 GHz is omni Slotted Waveguide Antenna

► It is designed for Ku-band with antenna aperture of 360° and linear polarization

► Frequency range of 12.7-13.5 GHz (or any 800MHz of Ku-band)

► Beam (H): 360°; Beam (V): 10°

► Gain: 11 dBi

- +
  • Description
  • Téléchargements

SWA-Ku360 v2 12.7-13.5 GHz is Ku-band omni slotted waveguide antenna designed for MVDS / MMDS broadcasting systems. SWA-Ku360v2 has 360 deg radiation pattern, high gain of 11dBi and wide frequency range of 12.7-13.5 GHz, in addition, has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by SWA-Ku360 v2 12.7-13.5 GHz can be received by typical Ku-band satellite dish and LNB.

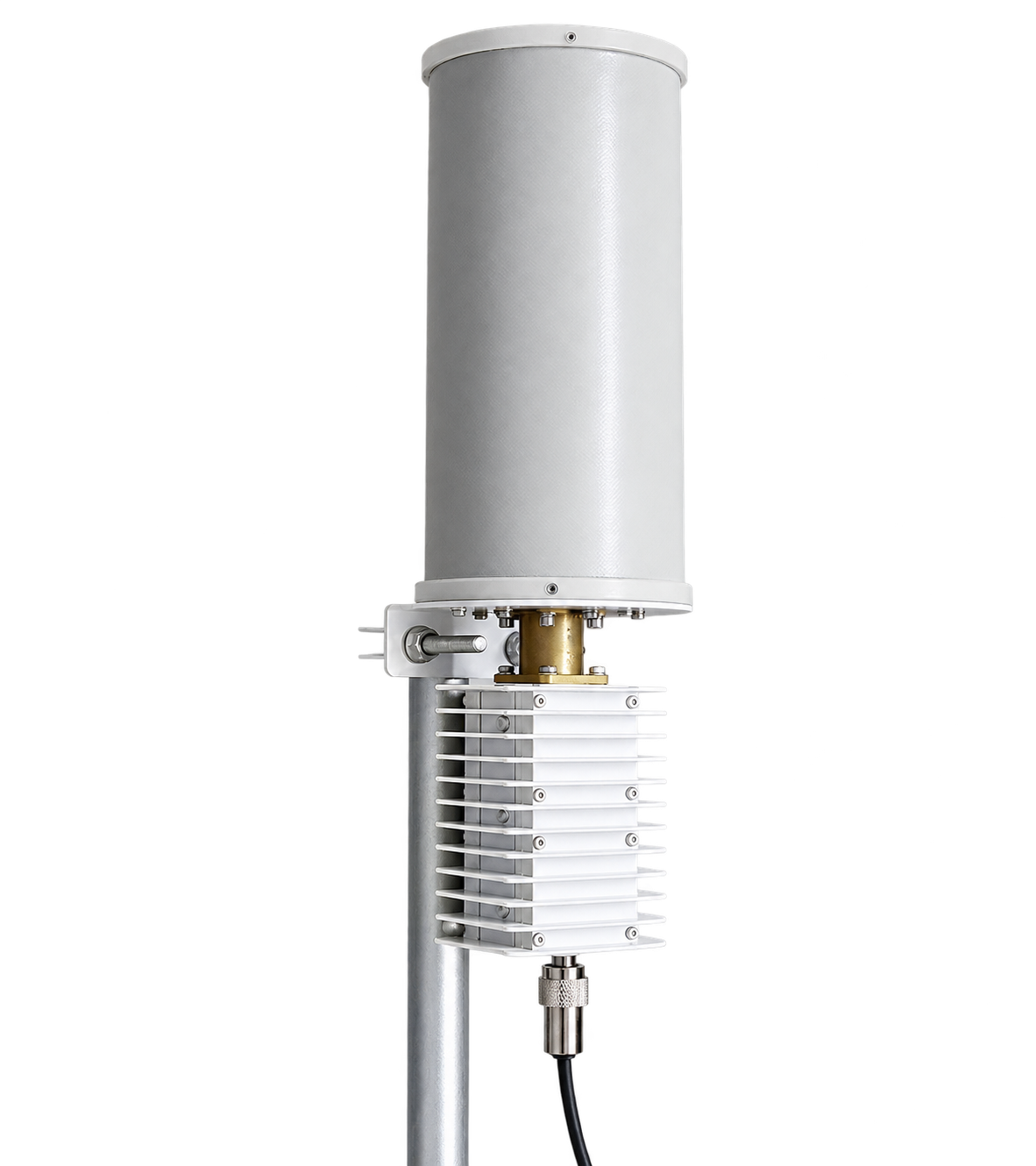

 Short instruction about antenna assembling

Key features:

  • Omnidirectional: 360-degree radiation pattern
  • High gain: 11 dBi
  • Full Ku-band covering
  • Light weight
  • Compact size

Main functions:

  • Transmit Ku-band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

SWA-Ku360 v2 12.7-13.5 GHz radiation pattern - developed by UMT LLC

 Parameter Value
Frequency range, GHz 12.7-13.5 (or choose other 800MHz of Ku-band via “customized equipment” button)
Gain, dBi, at least 11
Gain variation in the aperture, dB, not more ±2
VSWR, max 2
Polarization Linear, horizontal, vertical (by order)
Cross-polarization, dB, not less 25
HPBW:
@horizontal 360°
@vertical 10±1°
Input power, W, up to 20
Waveguide WR-75 flange
Operating temperature, ° C -40 … +80
Humidity 100% @ 25°C
Dimensions, mm, not more 245x115x115
Weight, kg, not more 2.5
Mount Mounting on a vertical pipe with a diameter of 40 mm (max)
Casing material dust/moisture proof

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
