وصف قصير

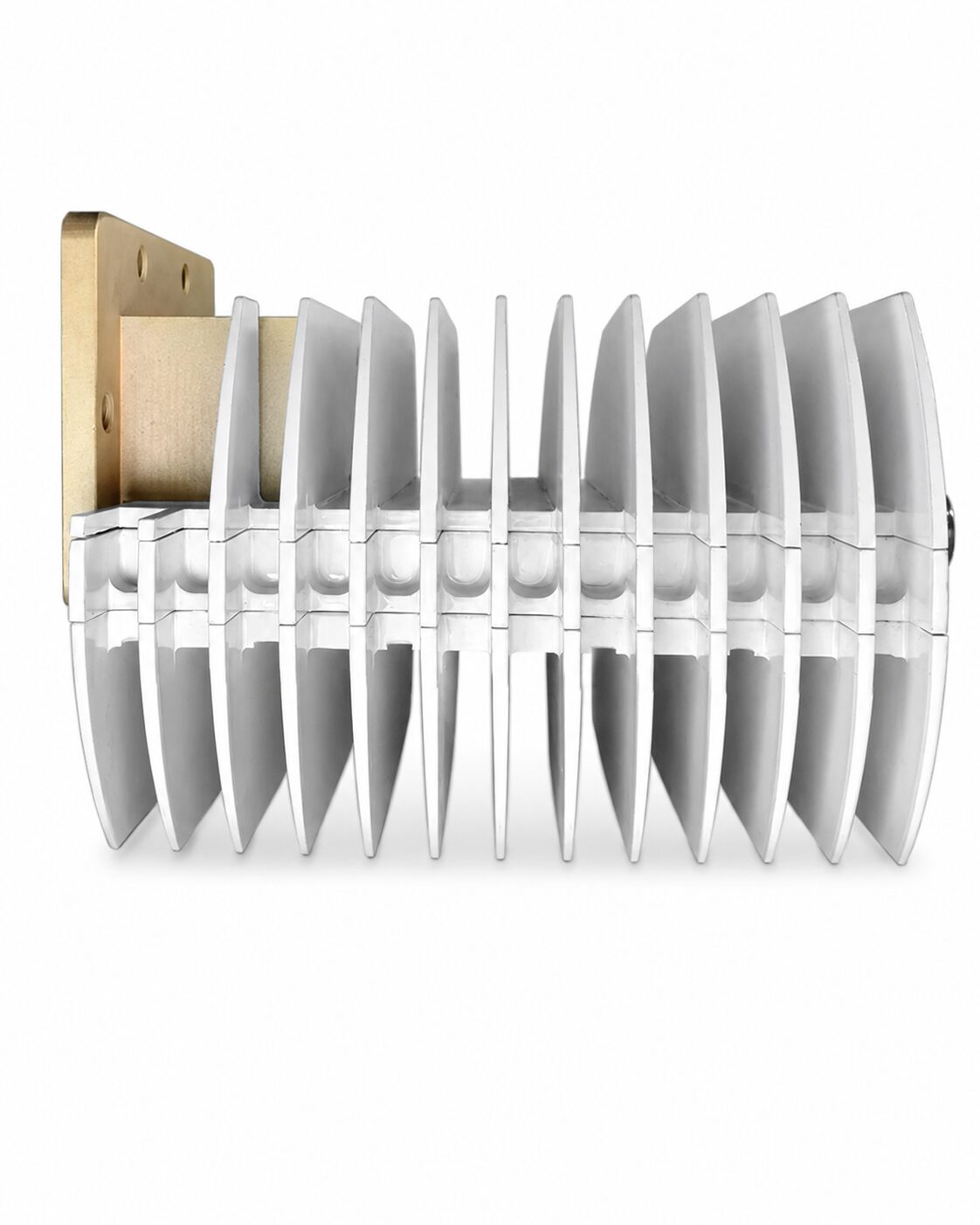

BUC-C04 is block up-converter with fixed output power P1dB 4 W (ALC power: 400 mW). BUC-C04 operates with up to 25 carriers and has built-in reference of 10MHz; ALC with 25 dB range; LEDs status indication at the rear side and integrated matched CWT.

- +
  • وصف
  • التحميلات
Input parameters
Input frequency range 470 – 670 MHz (UHF or L-band (by order) – fill the “customized equipment” form)
Input impedance 50 Ohm
Input level, max -10 dBm
Input VSWR, max  1.5

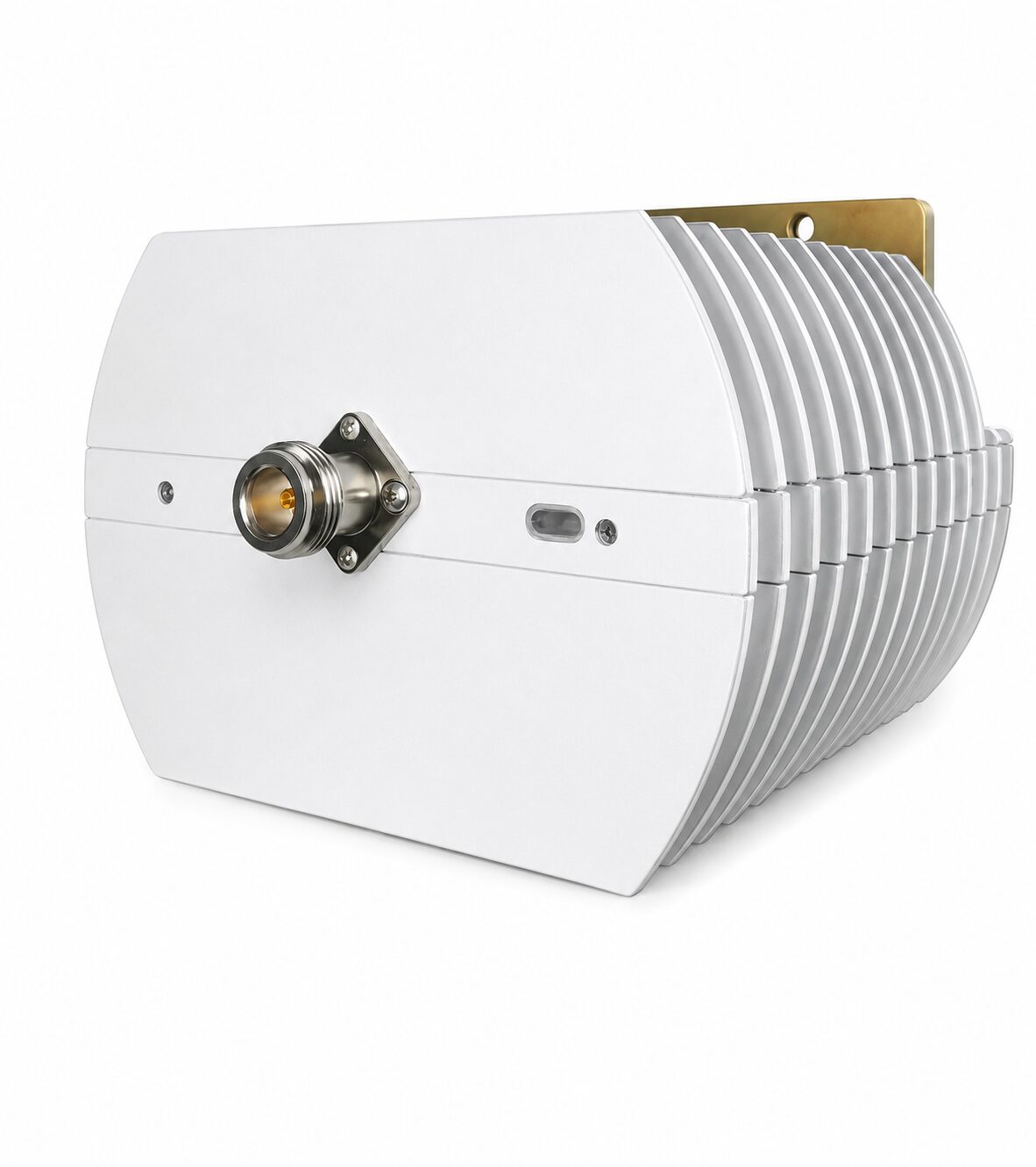

Input interface N-type Female
ALC rage, min 25 dB
ALC threshold level -35 dBm
Local Oscilator
LO frequency  4670 MHz (or by order)
LO phase noise:
@1 kHz -80 dBc/Hz
@10 kHz -90dBc/Hz
@100 kHz -100dBc/Hz
LO instability ± 2ppm
Output parameters
Output frequency range 4000 – 4200 MHz (or any 200 MHz in C-band by order)
Output Power @P1dB 4 W
ALC Output Power 400 mW
Gain, min 60 dB
IMD3 level at ALC Output Power, max -45 dBc

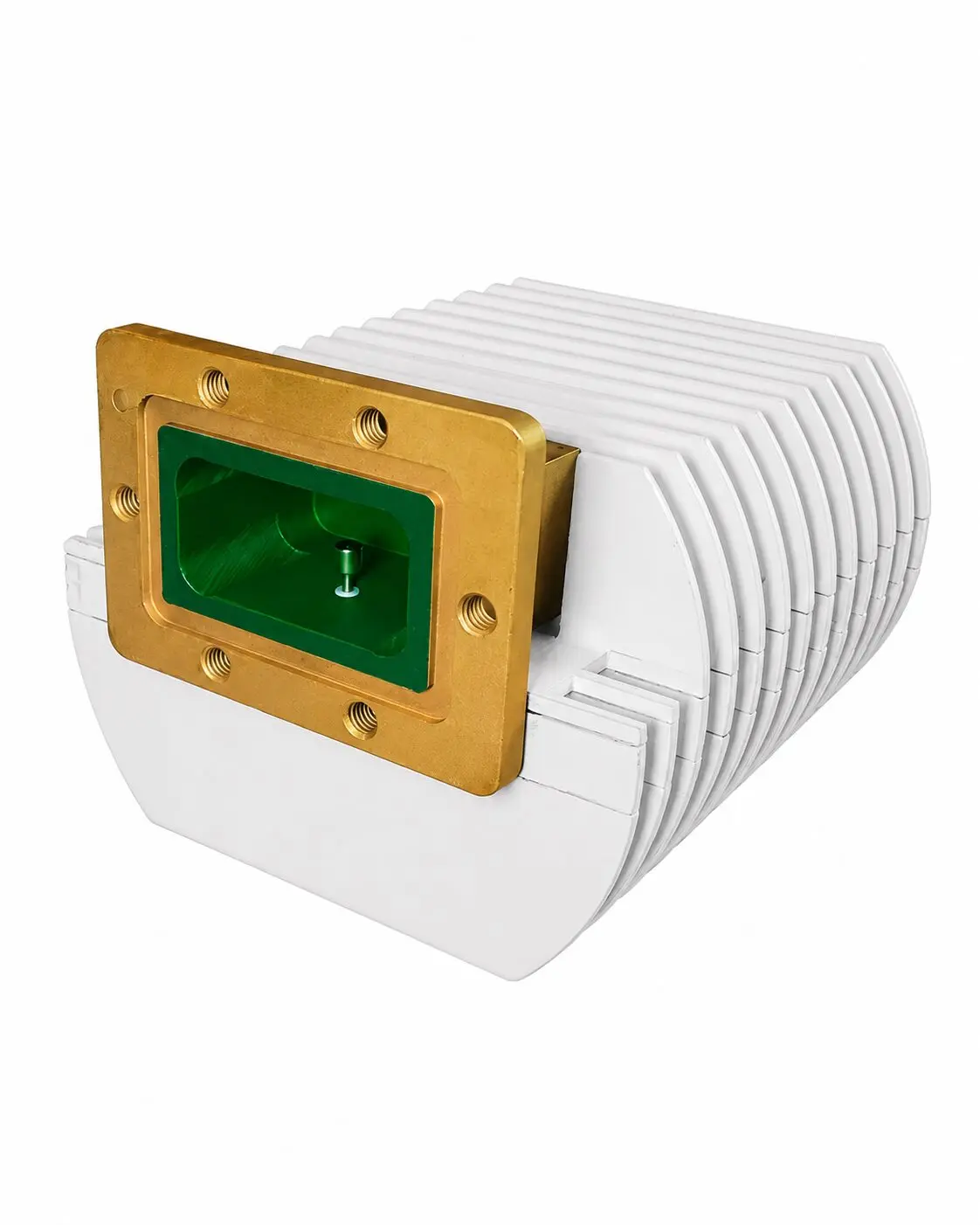

Output interface Waveguide WR229, Flange PDR40
Output VSWR, max 1.3
Frequency Response
Flatness over Full Band ±1 dB
In-band @P1dB, max -50 dBc
Out-Band, max -60 dBc
LO leakage at ALC output power, max 40 dBm
Image rejection, min 60 dB
Power Supply
Input voltage 18 VDC – 30 VDC, nominal 24 VDC
Power consumption, max 17 W
Operating temperature -40℃ to +50℃ (-40℉ to +122℉)
Storage temperature -60℃ to +80℃ (-76℉ to +176℉)
Operating humidity 100%, non‐condensing
Dimensions (W x H x D) 130x80x175 mm
Weight 1.8 kg
