BUC-C04

Brève description

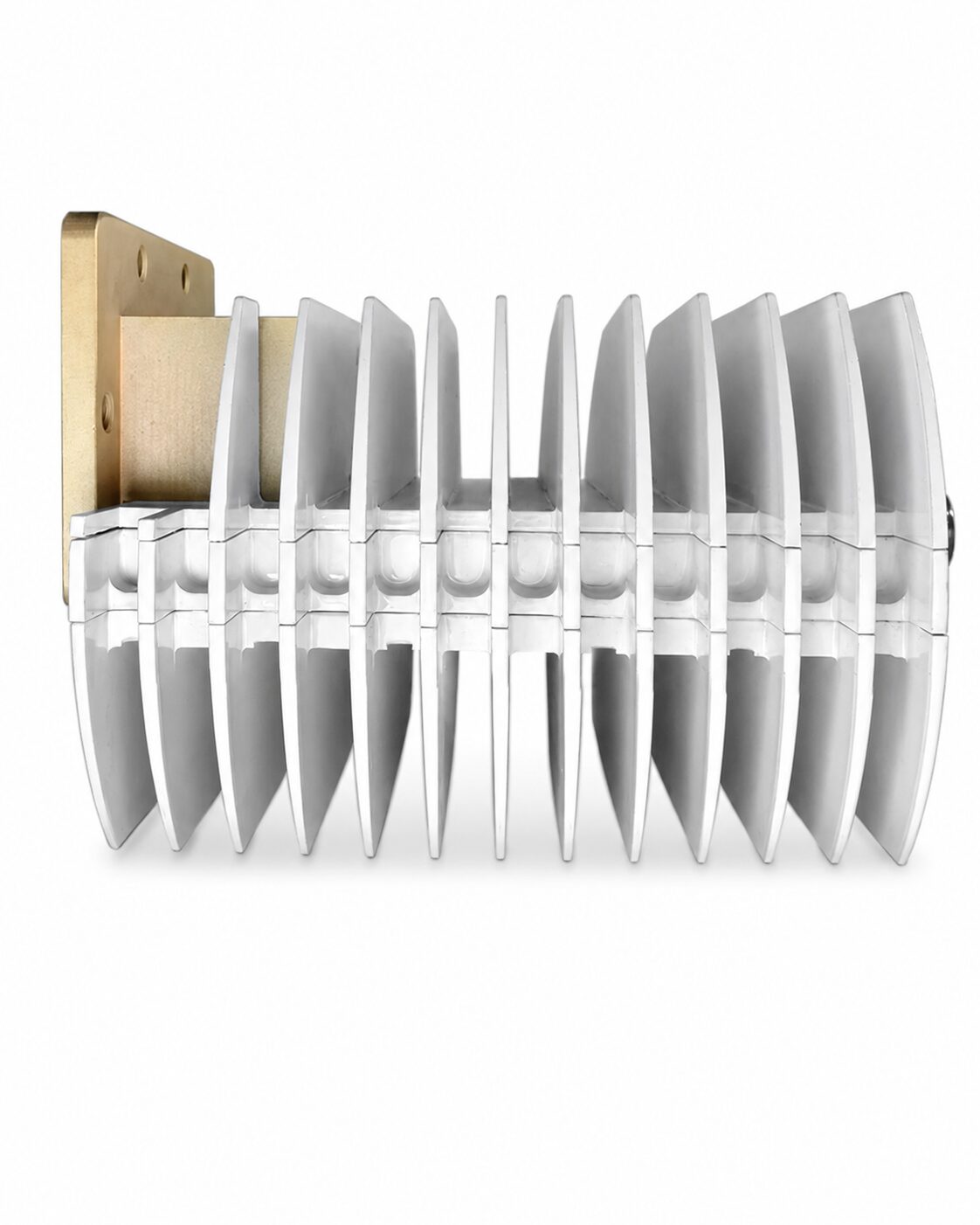

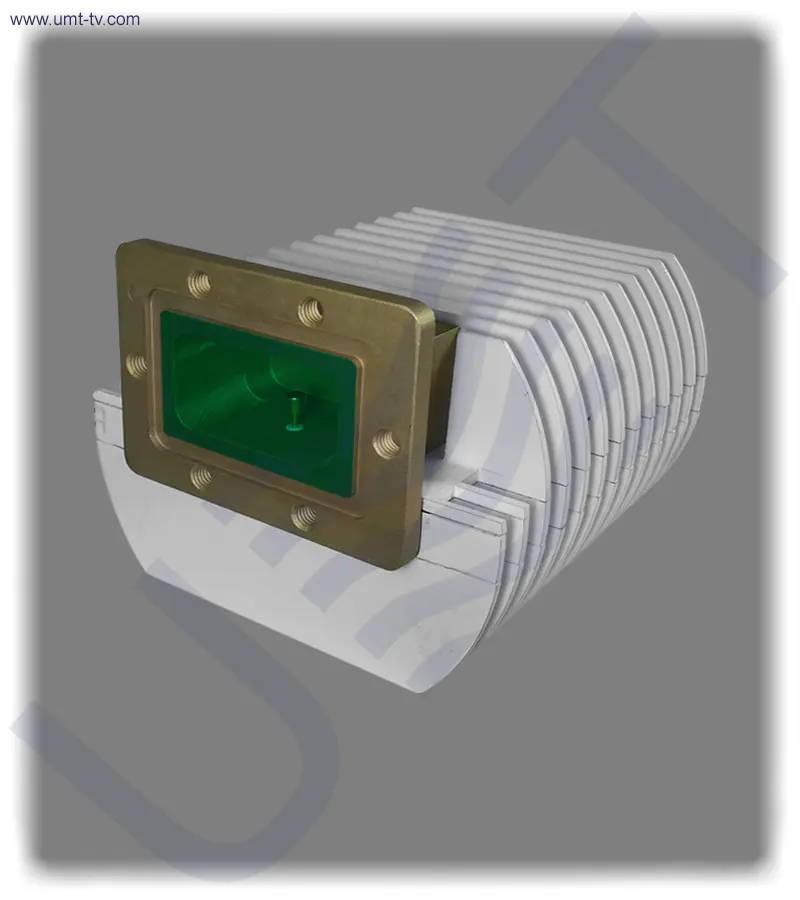

BUC-C04 is block up-converter with fixed output power P1dB 4 W (ALC power: 400 mW). BUC-C04 operates with up to 25 carriers and has built-in reference of 10MHz; ALC with 25 dB range; LEDs status indication at the rear side and integrated matched CWT.

- +
  • Description
  • Téléchargements
Input parameters
Input frequency range 470 – 670 MHz (UHF or L-band (by order) – fill the “customized equipment” form)
Input impedance 50 Ohm
Input level, max -10 dBm
Input VSWR, max  1.5

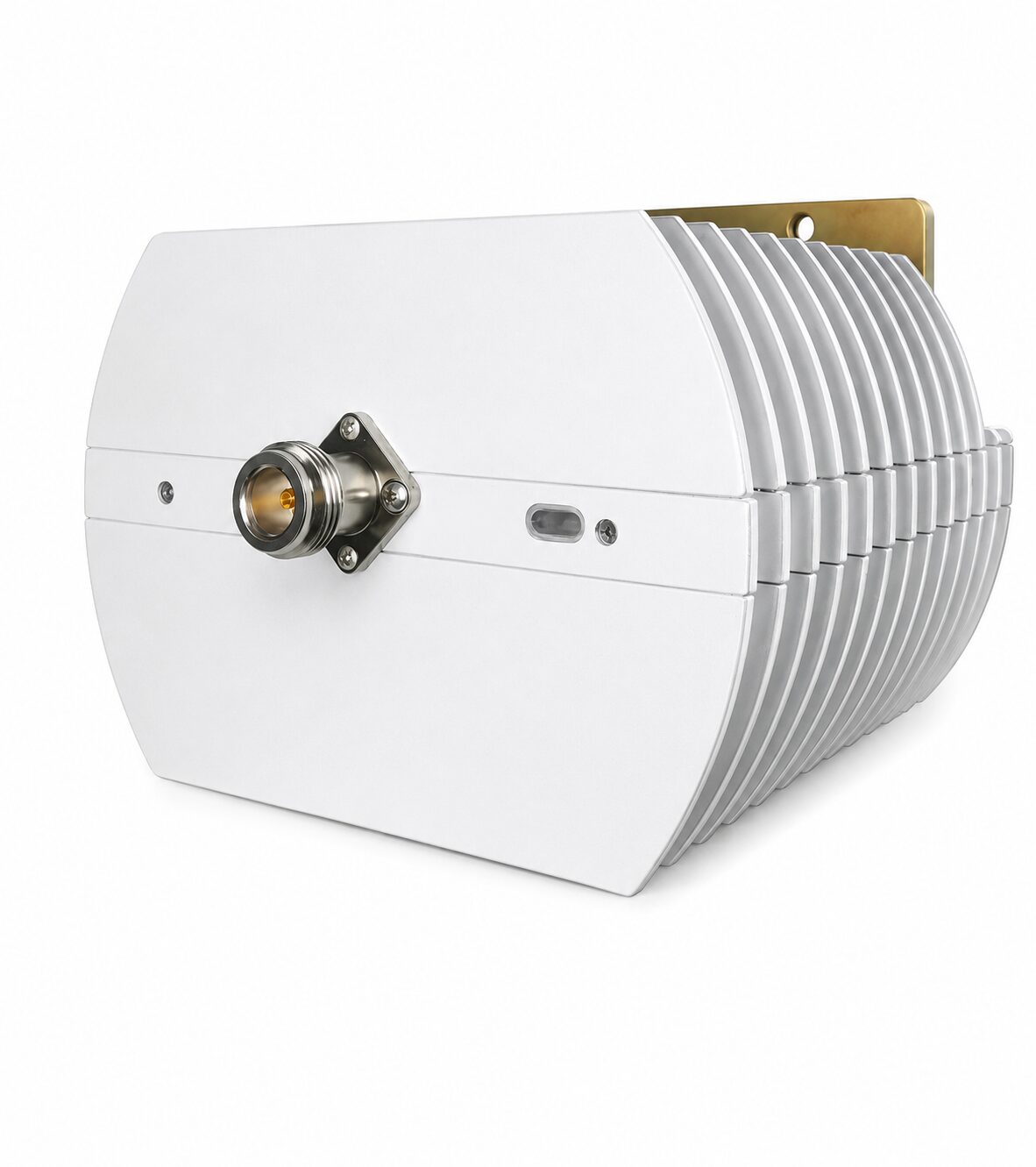

Input interface N-type Female
ALC rage, min 25 dB
ALC threshold level -35 dBm
Local Oscilator
LO frequency  4670 MHz (or by order)
LO phase noise:
@1 kHz -80 dBc/Hz
@10 kHz -90dBc/Hz
@100 kHz -100dBc/Hz
LO instability ± 2ppm
Output parameters
Output frequency range 4000 – 4200 MHz (or any 200 MHz in C-band by order)
Output Power @P1dB 4 W
ALC Output Power 400 mW
Gain, min 60 dB
IMD3 level at ALC Output Power, max -45 dBc

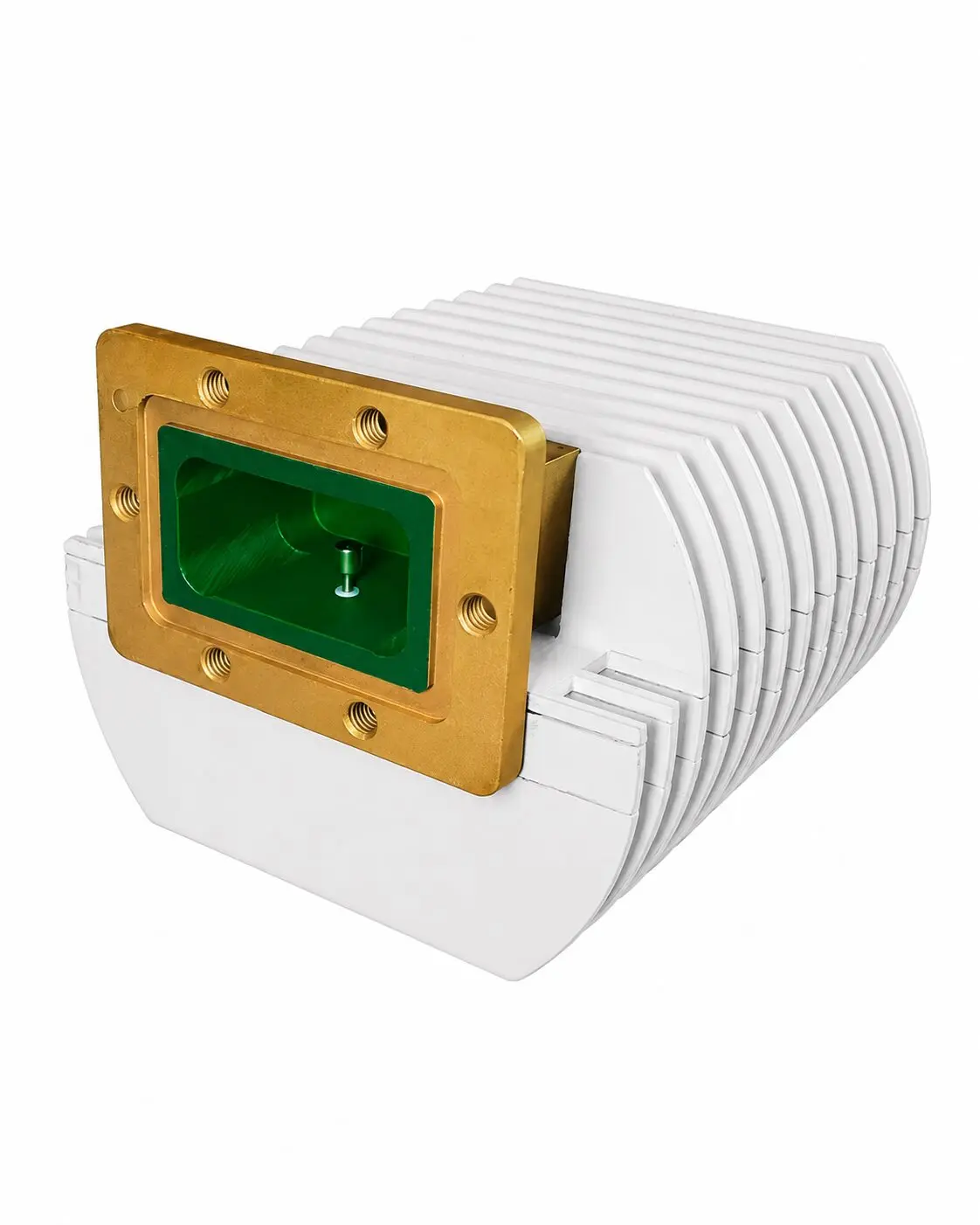

Output interface Waveguide WR229, Flange PDR40
Output VSWR, max 1.3
Frequency Response
Flatness over Full Band ±1 dB
Spurious
In-band @P1dB, max -50 dBc
Out-Band, max -60 dBc
LO leakage at ALC output power, max 40 dBm
Image rejection, min 60 dB
Power Supply
Input voltage 18 VDC – 30 VDC, nominal 24 VDC
Power consumption, max 17 W
Environmental
Operating temperature -40℃ to +50℃ (-40℉ to +122℉)
Storage temperature -60℃ to +80℃ (-76℉ to +176℉)
Operating humidity 100%, non‐condensing
Mechanical
Dimensions (W x H x D) 130x80x175 mm
Weight 1.8 kg

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
