BUC-C04

Short description

BUC-C04 is block up-converter with fixed output power P1dB 4 W (ALC power: 400 mW). BUC-C04 operates with up to 25 carriers and has built-in reference of 10MHz; ALC with 25 dB range; LEDs status indication at the rear side and integrated matched CWT.

- +
  • Description
  • Downloads

4W C-band block up-converter BUC-C04 is designed for MVDS TV broadcasting systems application in accordance with DVB-S/S2, DVB-C or DVB-T standards (fill the form of needed parameters using “customized equipment” button) and operates with up to 25 carriers. BUC-C04 has integrated matched coaxial to waveguide transition and can be used with regular radio-relay link (directional) or broadcast (sector and OMNI) antennas. BUC-C04 supports the following modulation types: 16APSK, 256QAM and COFDM (you may choose the modulation type while filling the “customized equipment” form). The local oscillator of BUC-C04 is locked by PLL with internal frequency reference and has the best linearity parameters to ensure the stability of the output frequency and low IMD3 level (these parameters are very important for high quality modulation). BUC-C04 provides 4 – 4.2 GHz output frequency range (or any 200 MHz in C-band) for 470 – 670 MHz input frequency range (either any other UHF or L-band – by order).

KEY FEATURES:

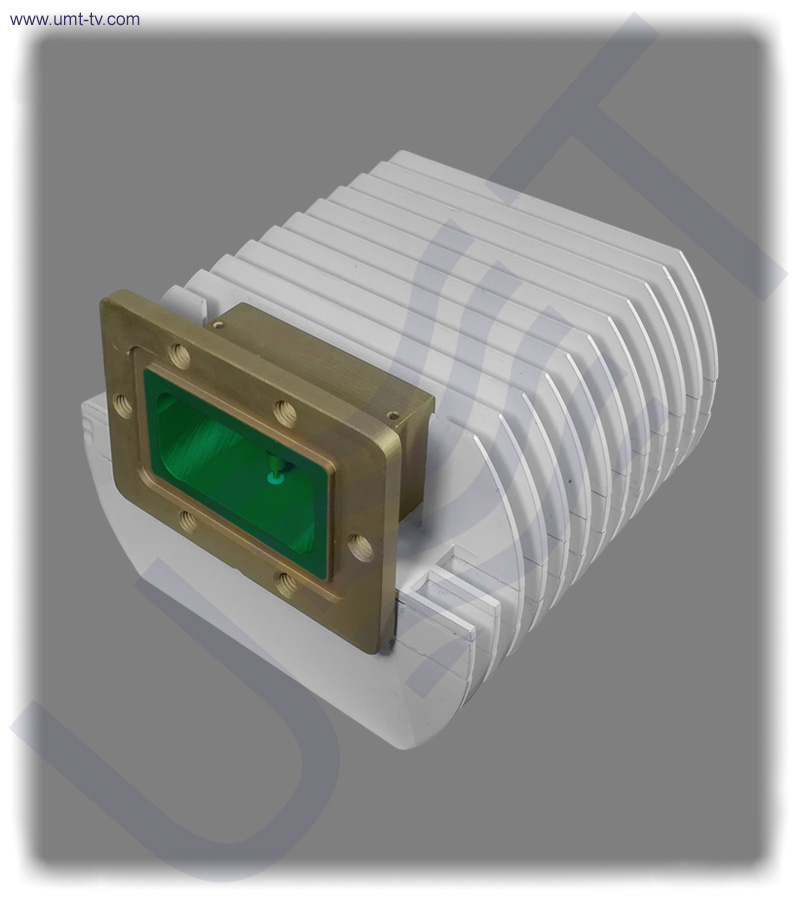

  • Integrated matched coaxial waveguide transition
  • Output power (P1dB, min): 4W
  • Output frequency range: 4 – 4.2 GHz (or any 200 MHz in C-band by order – fill the “customized equipment” form)
  • Input frequency range: 470 – 670 MHz (you may choose other UHF or L-band – fill the “customized equipment” form)
  • Gain (min): 60 dB
  • Highly stable internal frequency reference
  • LO is locked by PLL with internal frequency reference
  • IMD3 level at ALC output power (the lowest value): -45 dBc max
  • Operates with up to 25 carriers
  • Supports: 16APSK, 256QAM and COFDM



Input parameters
Input frequency range 470 – 670 MHz (UHF or L-band (by order) – fill the “customized equipment” form)
Input impedance 50 Ohm
Input level, max -10 dBm
Input VSWR, max  1.5

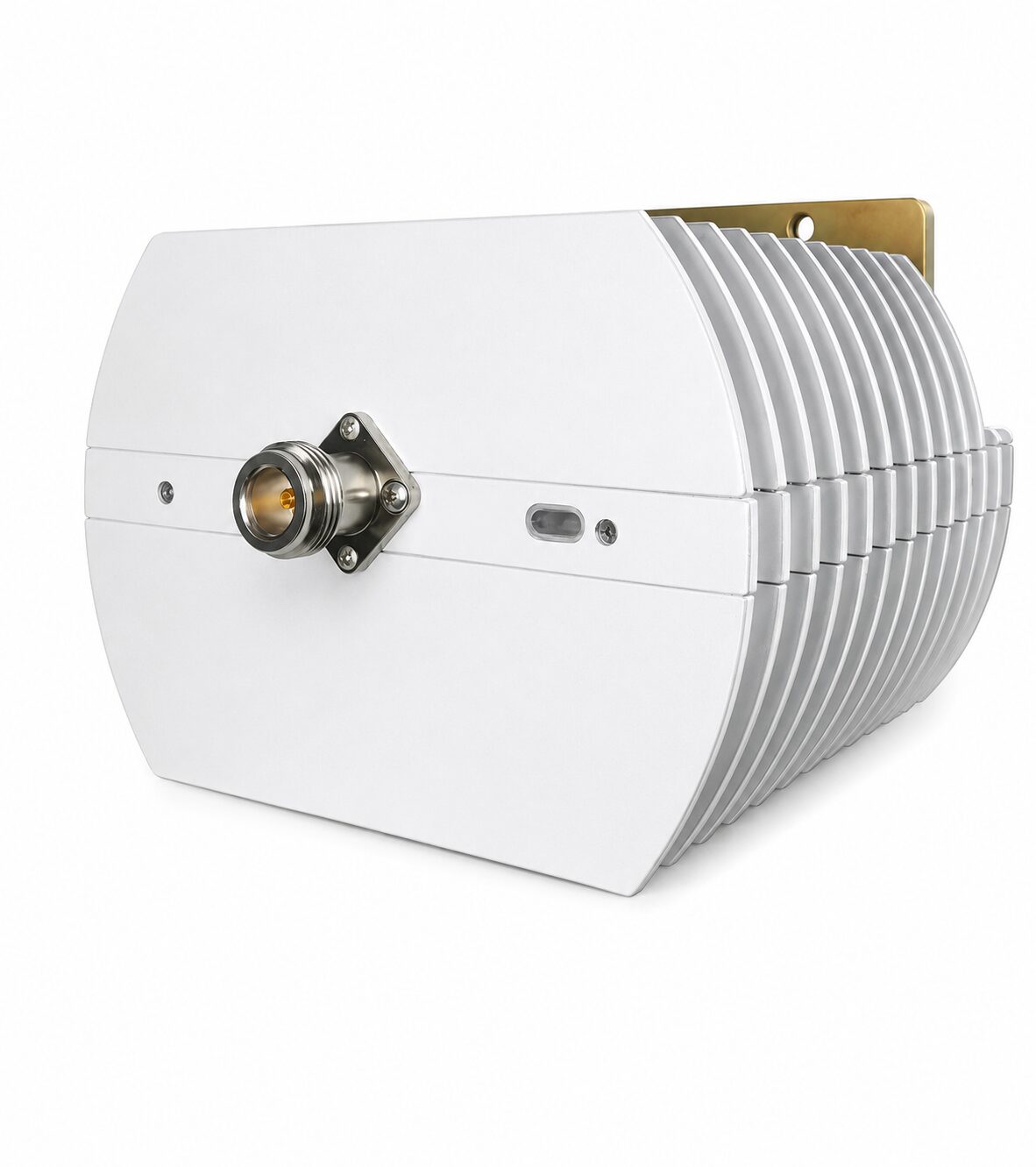

Input interface N-type Female
ALC rage, min 25 dB
ALC threshold level -35 dBm
Local Oscilator
LO frequency  4670 MHz (or by order)
LO phase noise:
@1 kHz -80 dBc/Hz
@10 kHz -90dBc/Hz
@100 kHz -100dBc/Hz
LO instability ± 2ppm
Output parameters
Output frequency range 4000 – 4200 MHz (or any 200 MHz in C-band by order)
Output Power @P1dB 4 W
ALC Output Power 400 mW
Gain, min 60 dB
IMD3 level at ALC Output Power, max -45 dBc

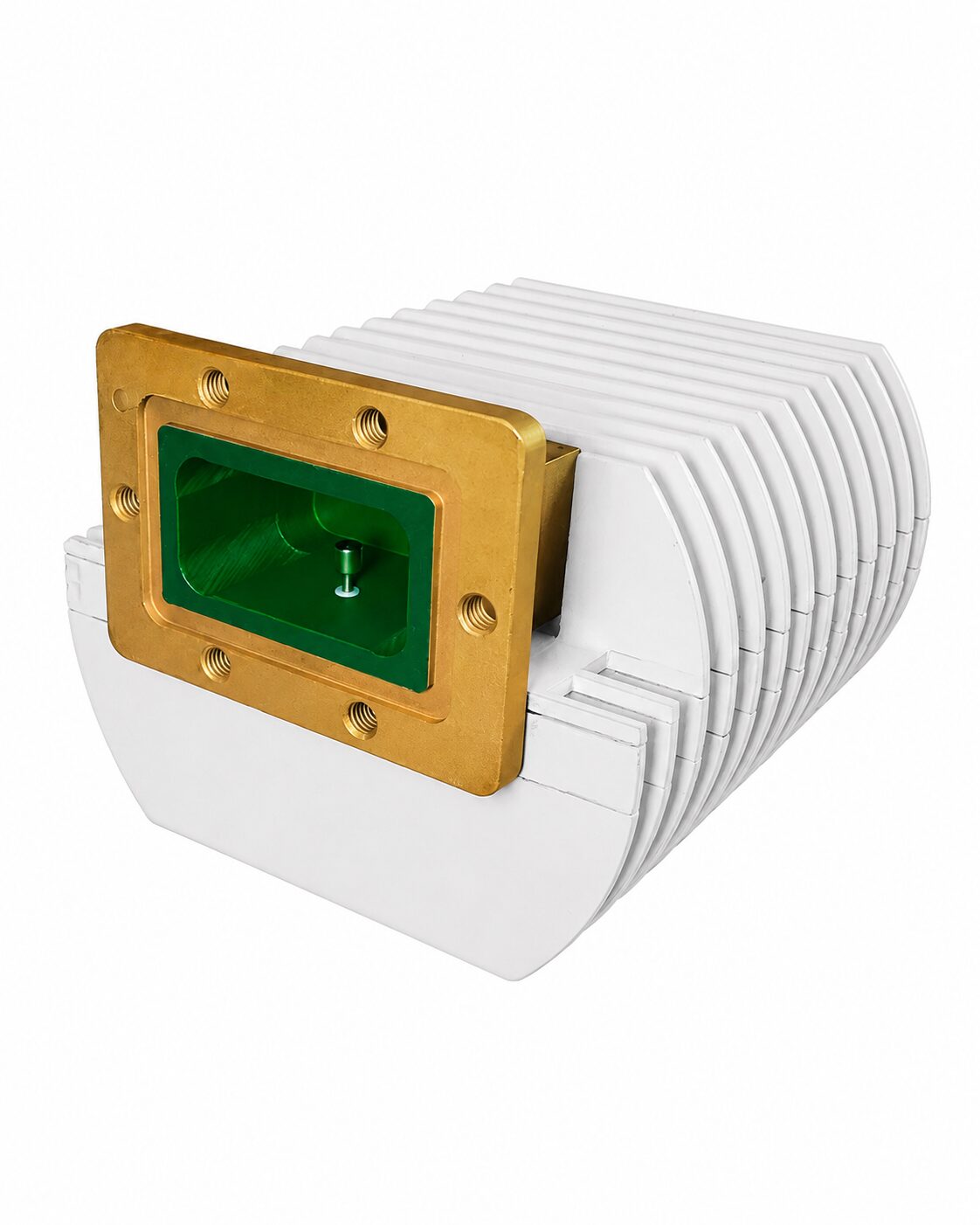

Output interface Waveguide WR229, Flange PDR40
Output VSWR, max 1.3
Frequency Response
Flatness over Full Band ±1 dB
Spurious
In-band @P1dB, max -50 dBc
Out-Band, max -60 dBc
LO leakage at ALC output power, max 40 dBm
Image rejection, min 60 dB
Power Supply
Input voltage 18 VDC – 30 VDC, nominal 24 VDC
Power consumption, max 17 W
Environmental
Operating temperature -40℃ to +50℃ (-40℉ to +122℉)
Storage temperature -60℃ to +80℃ (-76℉ to +176℉)
Operating humidity 100%, non‐condensing
Mechanical

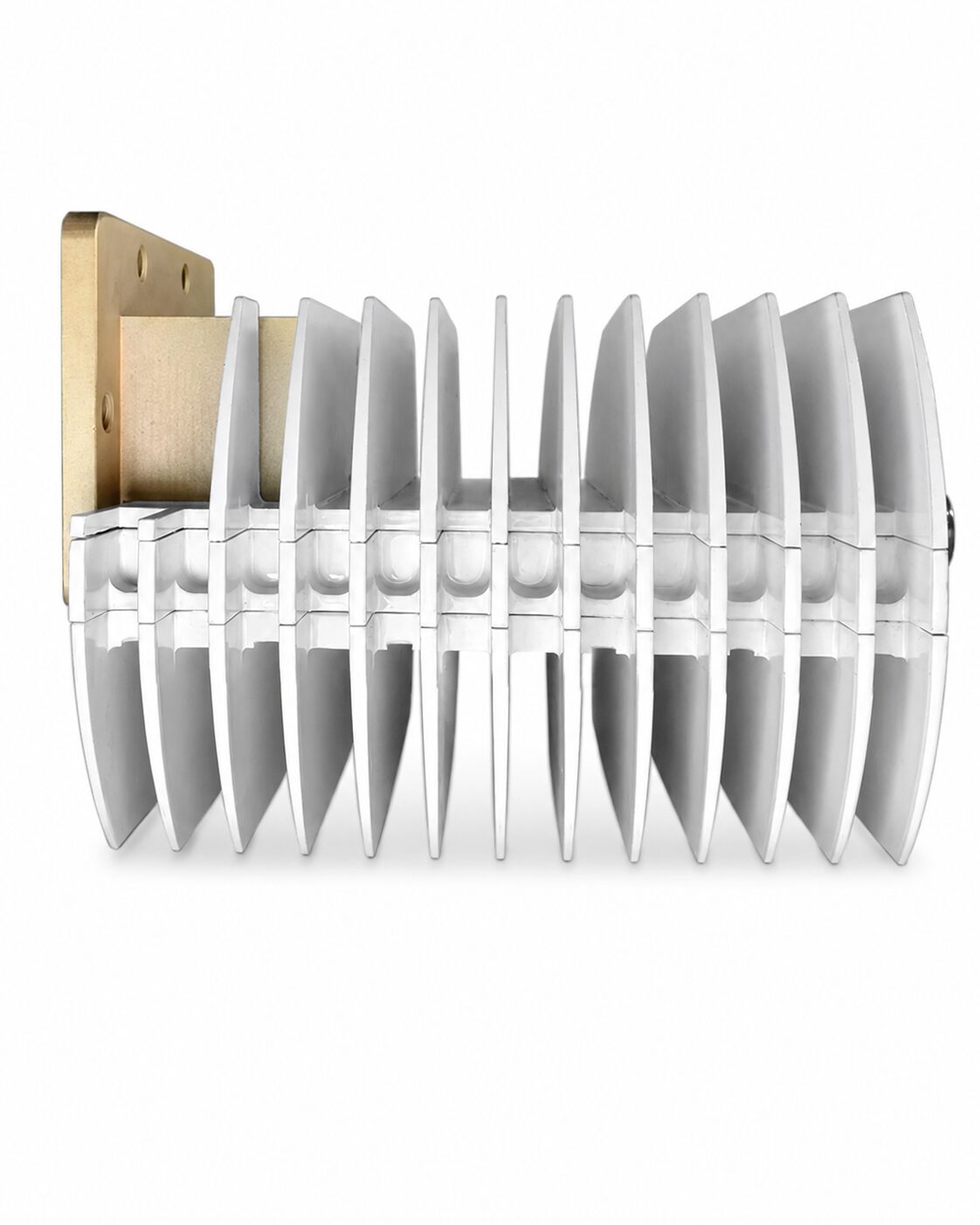

Dimensions (W x H x D) 130x80x175 mm
Weight 1.8 kg

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
