LNB PLL dual LO: 9.75 + 10.60 v.2

وصف قصير

محول التردد منخفض الضجيج Ku-band LNB PLL مزدوج المذبذب المحلي 9.75 و10.60 جيجاهرتز، مع خرج مزدوج من نوع F بمقاومة 75 أوم.
عدم استقرار المذبذب المحلي: ±2.5 جزء في المليون، الكسب: 55 ديسيبل، رقم الضجيج: 0.8 ديسيبل، القدرة الخارجة عند P1dB: 0 ديسيبل ملي واط.

- +
  • وصف
  • التحميلات

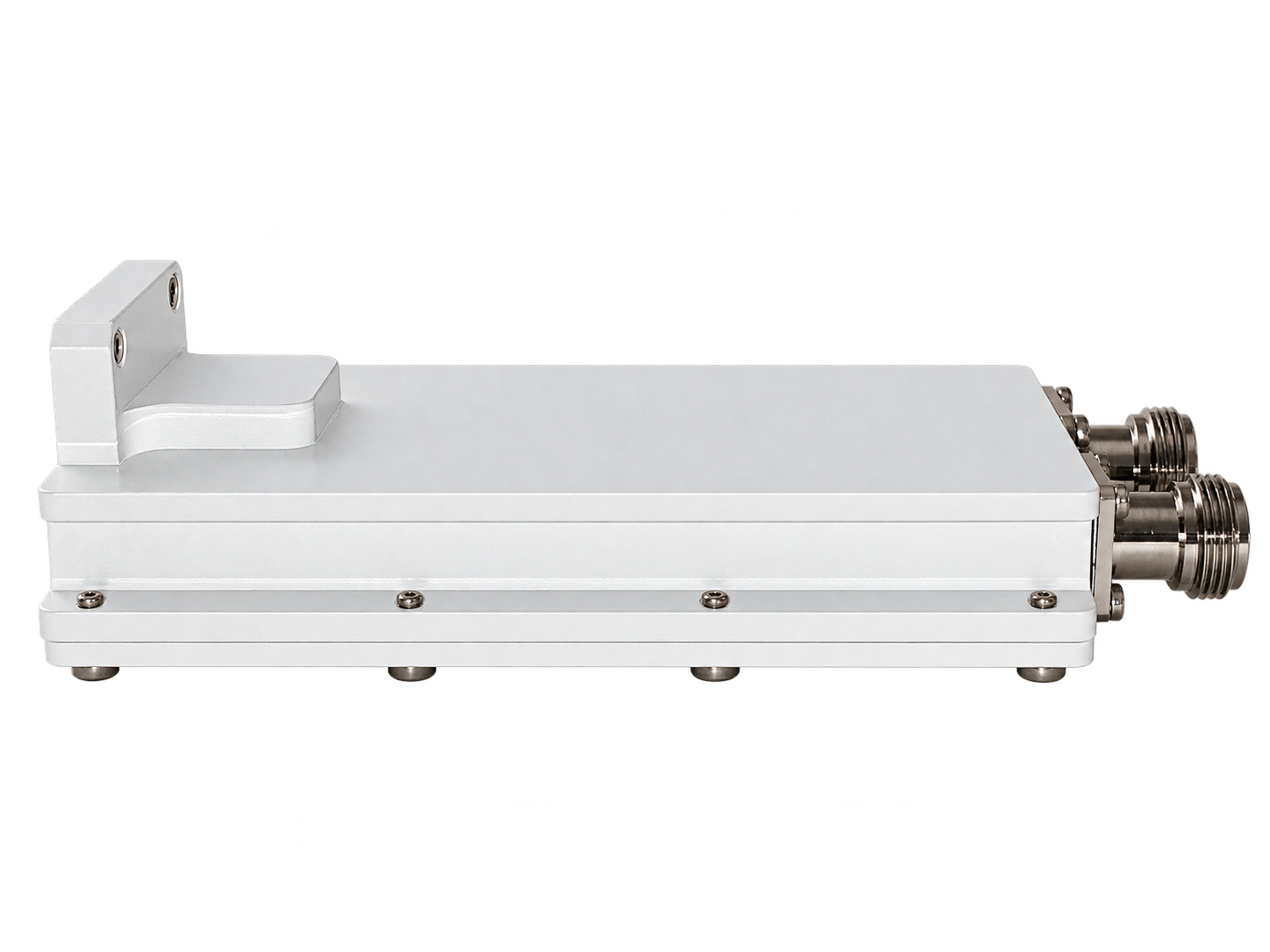

محول التردد منخفض الضجيج Ku-band LNB PLL مزدوج المذبذب المحلي 9.75 / 10.6 v.2 مصمم لتقوية وتحويل الإشارات اللاسلكية من نطاق Ku إلى نطاق L (الترددات المتوسطة).
يتميز هذا الجهاز بعلبة مقاومة للماء ويمكن تركيبه بالقرب من الهوائي.
يحتوي على شفة إدخال من نوع PBR120 ويمكن استخدامه مع هوائيات RRL العادية أو هوائيات الاستقبال.



Input parameters:
Input Frequency range LB: 10.7-11.7 GHz; HB: 11.7-12.75 GHz
Input level, max -60 dBm
Input VSWR, max  2
Input interface Waveguide WR75, Flange PBR120
Local Oscilator:
LO frequency  LB: 9.75 GHz; HB: 10.6 GHz
LO Phase noise:
@1 kHz -73 dBc/Hz
@10 kHz -83 dBc/Hz
@100 kHz -95 dBc/Hz
LO instability ± 2 ppm (± 1 ppm by request)
Output parameters:
Output frequency range LB: 950-1950 MHz; HB: 1100-2150 MHz
Output Power @P1dB 0 dBm
Gain, min 55 dB

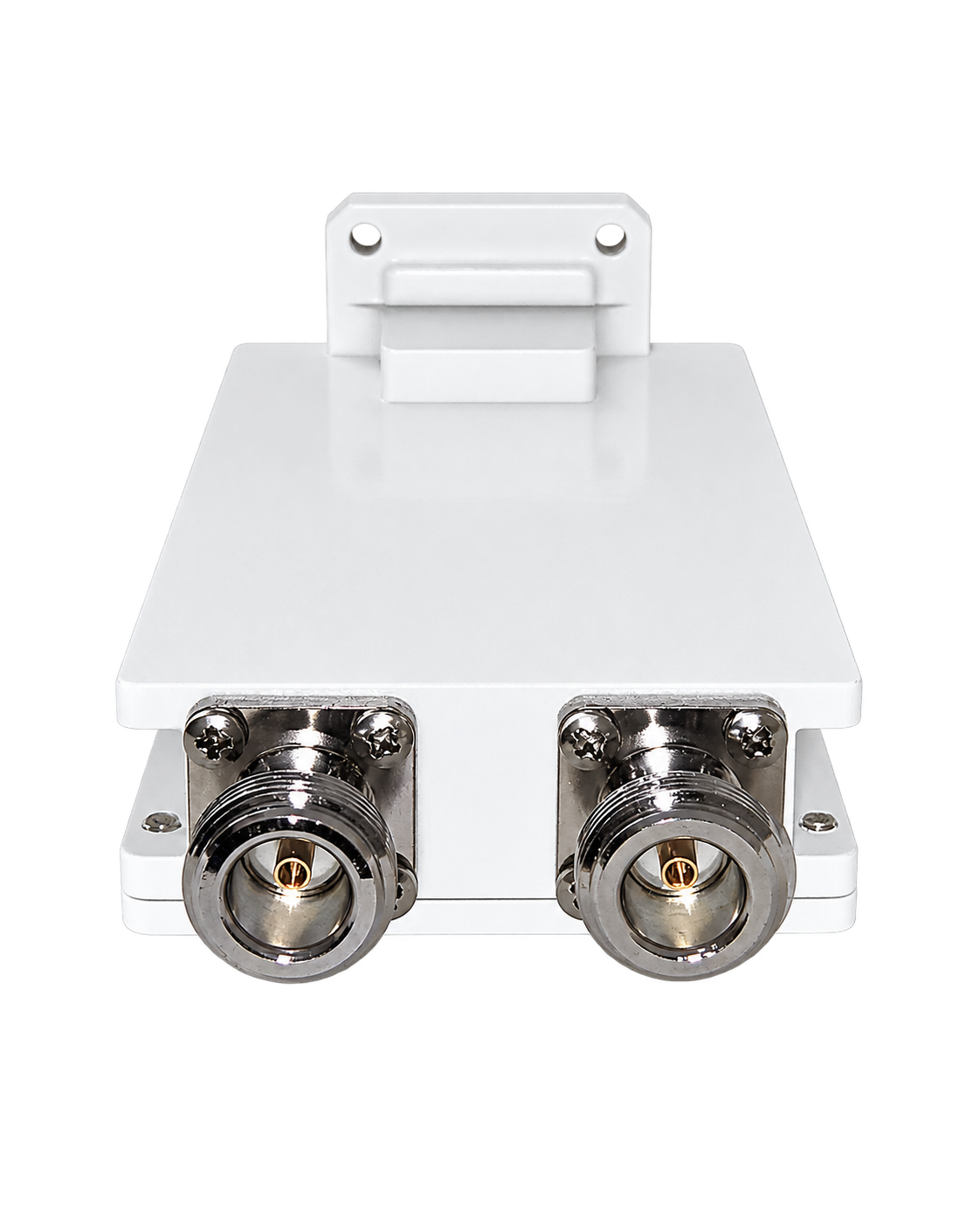

Output interface N-type female
Output impedance 50 Ohm
Output VSWR, max 2
Frequency Response:
Flatness over Full Band ±2 dB
Flatness over 27MHz Band ±0.75 dB
Spurious:
Noise Figure (@+25℃) 0.8 dB max
LO leakage, max -50 dBm
Image rejection, min 50 dBc
Power supply:
Input voltage 13 – 18 VDC, nominal 18 VDC
Power consumption, max 3.9 W
Environmental:
Operating temperature -30℃ to +60℃ (-22℉ to +140℉)
Storage temperature -30℃ to +80℃ (-22℉ to +176℉)
Operating humidity 0% – 95%
Mechanical:
Dimensions (W x H x D) 59x41x144 mm
Weight 0.44 kg

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
