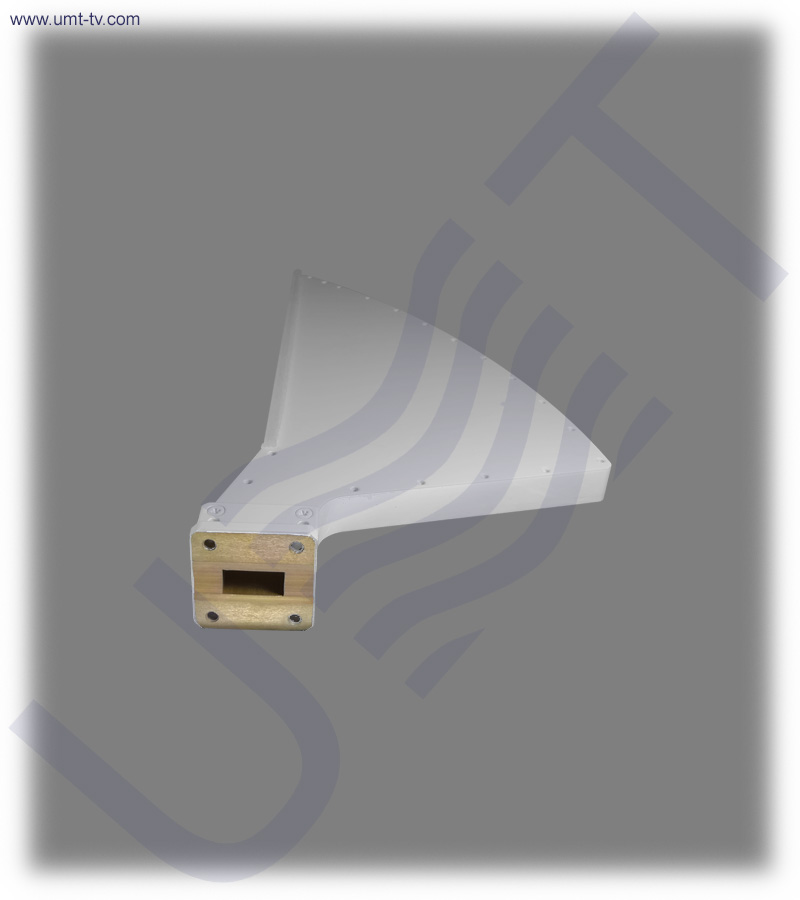

HPSA-KuH120 is Horn Parabolic Sector Antenna.

► Light weight + Compact size + High gain

► Gain: 17 dBi

► It is designed for Ku-band (full range)

► Frequency range of 10-15 GHz

► Radiation pattern of 120° and H-polarization

► Beam (H): 120°; Beam (V): 8°

- +
  • Description
  • Téléchargements

HPSA-KuH120 is Ku-band horn parabolic sector antenna designed for MVDS / MMDS broadcasting systems. HPSA-KuH120 has 120 deg radiation pattern, high gain of 17 dBi and wide frequency range of 10000 – 15000 MHz. HPSA-KuH120 v1 has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by HPSA-KuH120 can be received by typical Ku-band satellite dish and LNB.

Key features:

  • 120-degree radiation pattern
  • High gain: 17 dBi
  • Full Ku-band covering
  • Light weight
  • Compact size

Main functions:

  • Transmission of Ku-band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

HPSA-KuH120 radiation pattern - developed by UMT LLC

Parameter Value
Frequency range, GHz 10.0-15.0
Gain, dBi, not less 17
Gain variation in the aperture, dB, not more ±2
VSWR, max 2
Polarization Linear: horizontal (by order)
Cross-polarization, dB, not less 25
HPBW:
@horizontal 120°
@vertical
Input power (max), W 20
Waveguide WR-75 flange
Operating temperature, °C from -40 to +80
Humidity 100% @ 25°C
Dimensions, mm 294x154x39
Weight, kg 0.6
Casing material dust/moisture proof
