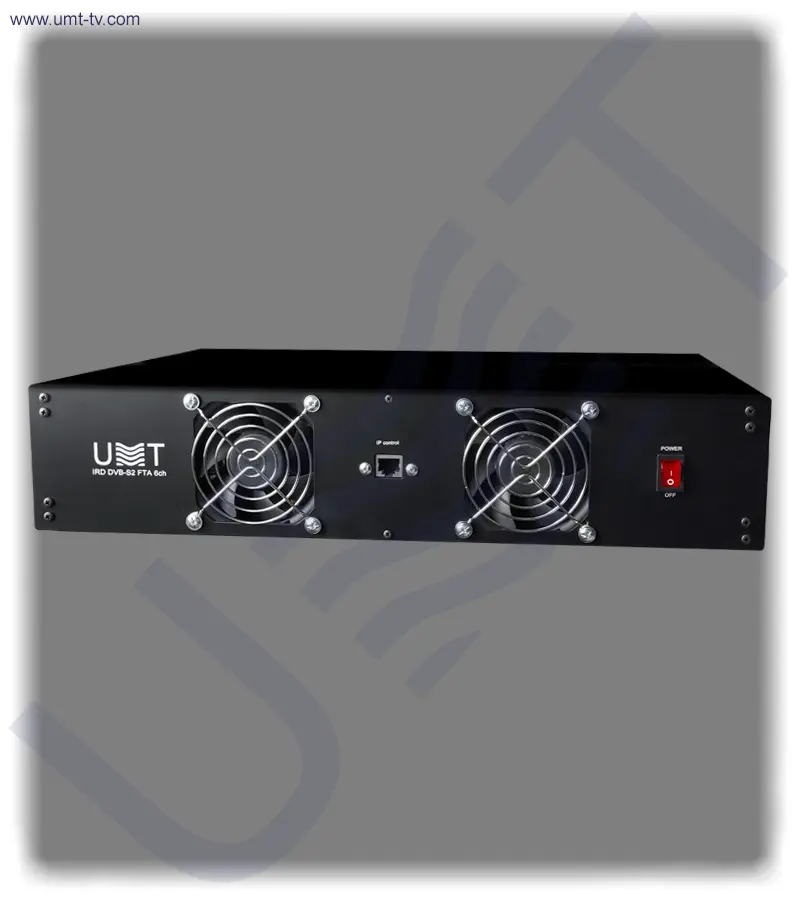

6ch DVB-S/S2 FTA IRD

Brève description

6ch DVB-S/S2 FTA IRD is applied in head-end systems for receiving multicarrier signals and transforming them into ASI TS.

- +

Demande d'équipement sur mesure HEAD-END

    • Description
    • Téléchargements
    Parameter Value
    Modulation types DVB-S, DVB-S2
    Input connector type N / F (by request)
    Demodulation parameters
    Modulation QPSK, 8PSK, 16APSK and/or 32APSK (by request)
    FEC 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    Symbol rate 1 … 31 or 45 Msymb/s (depends on constellation mode)
    Roll-Off-Factor 0.2, 0.25, 0.35
    Maximum bitrate per channel 115 Mbit/s
    ASI output parameters
    Output signal type DVB ASI, electric
    Data modes packet / byte
    Bytes number in the packet 188 / 204 bytes
    Input stream type determining automatic
    Output connector type BNC
    Management
    Control by IP
    Connector type RJ-45
    General
    Power supply 220 V AC, 50 Hz
    Power consumption, max 80 W
    Dimensions (transport mode) 483х450х90 mm
    Weight 6.4 kg

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
