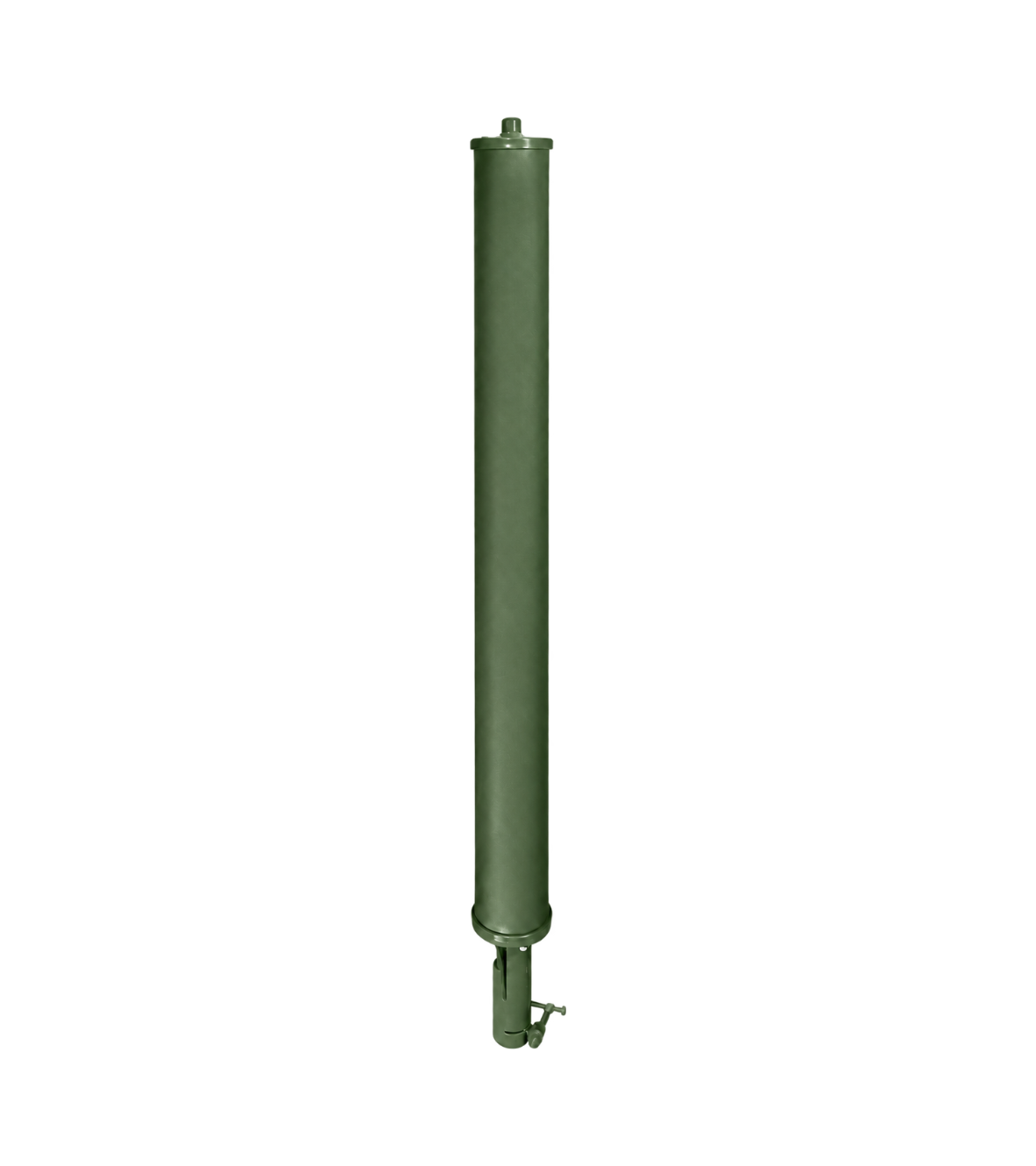

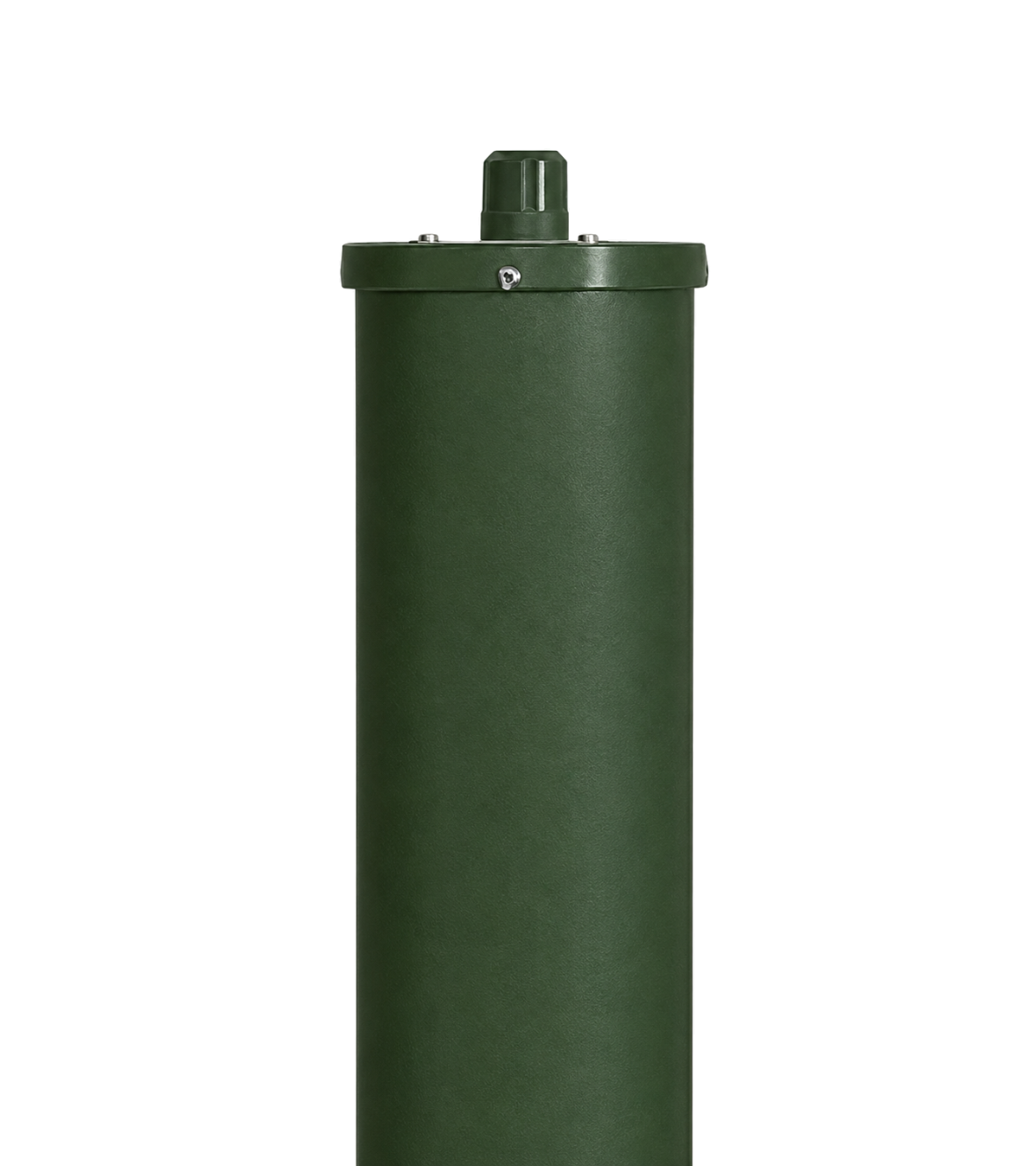

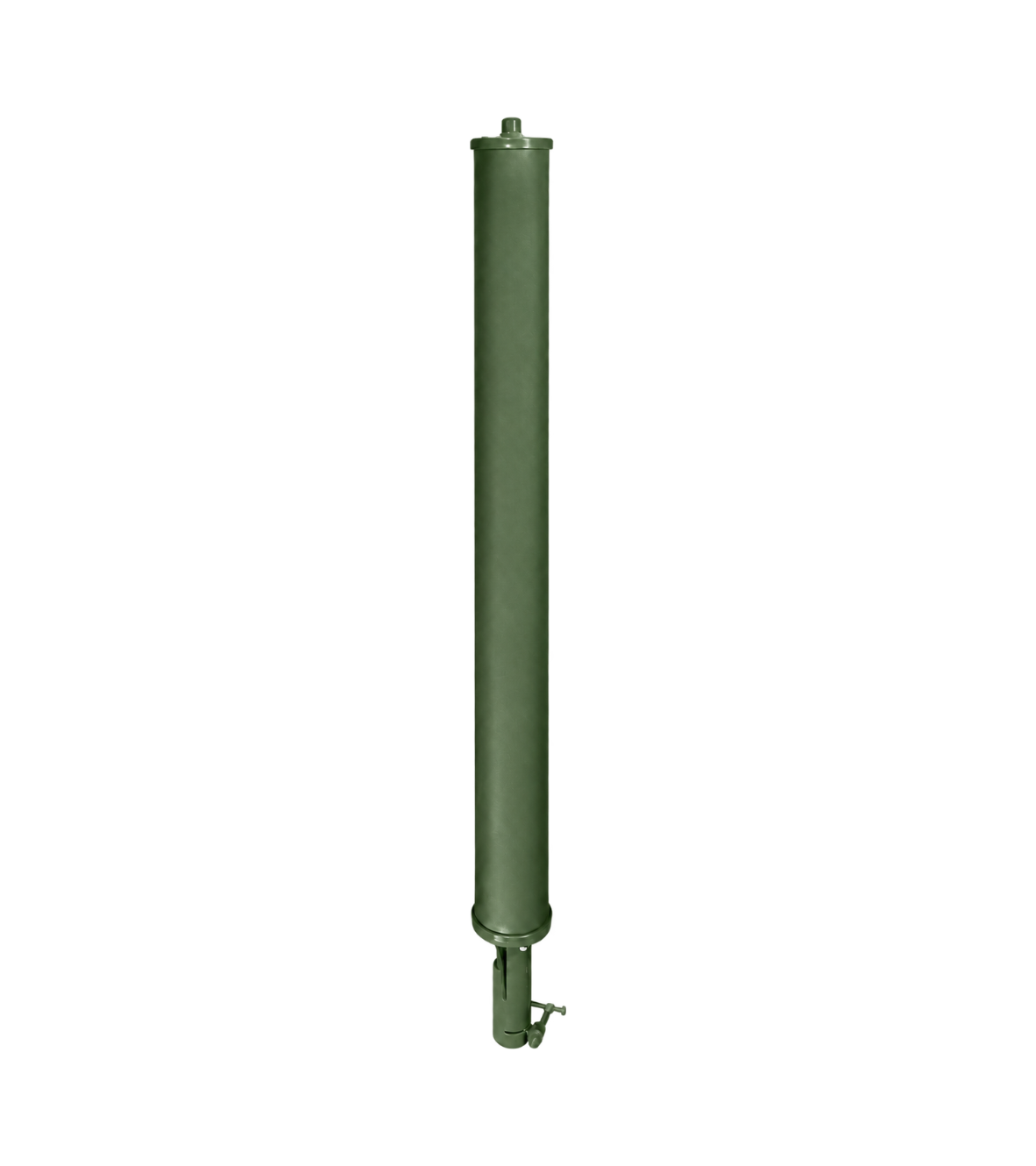

Antenna OMNI 725 – 815 MHz

Brève description

Antenna OMNI

► It is designed with 360° radiation pattern and horisontal polarization

► Frequency range of 725 – 815 MHz

► Beam (H): 360°; Beam (V): 15°

► Gain: 7 dB

- +
  • Description
  • Téléchargements

DME antenna (DME – distance measuring equipment) is applied for radio navigation that determines the distance from a ground station to an aircraft.

The antenna is designed to receive and transmit signals in the frequency range from 725 MHz to 815 MHz.

 Key features:

  • Omnidirectional: 360-degree radiation pattern
  • Frequency range of 725 – 815 MHz
  • Low pattern ripple: up to 0.5 dB
  • Gain: 7 dBi
  • Low windage characteristics

RSBN antenna - diagram - developed by UMT LLC

Parameter Value
Frequency range, MHz 725 – 815
Gain, dB 7
VSWR 1.8
Polarization Horizontal
Radiation patter:
Horizontal plane
Vertical plane
360˚
15˚
Orientation of radiation pattern in vertical plane along the horizon

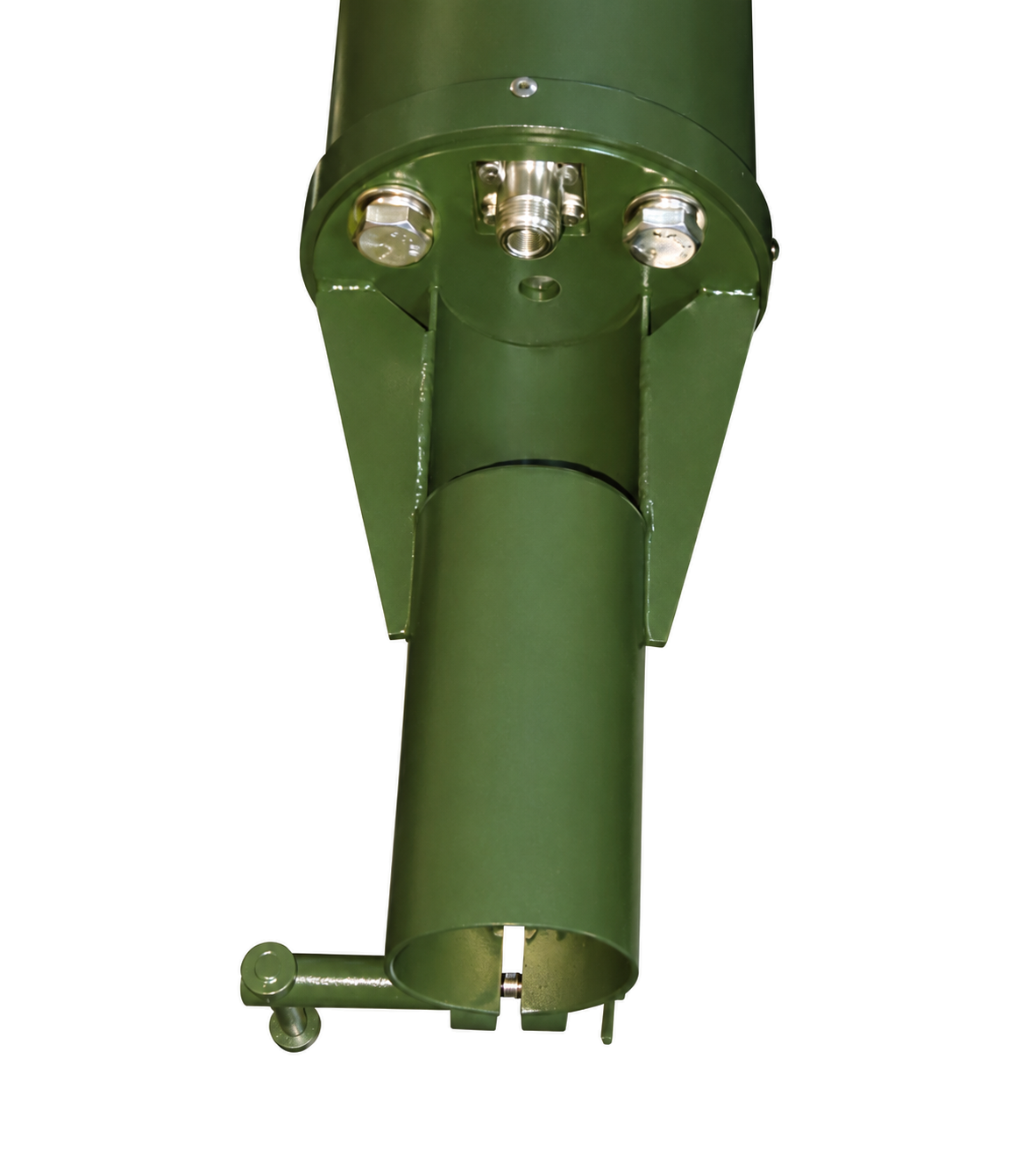

Connector N-type
Operating temperature range, °C -10…+50
Storage temperature range, °C -40…+70
Humidity 100% 20˚C
Dimensions (hight/diameter), mm 1505/168
Weight, kg, max *
