DRA-Ka06

Brève description

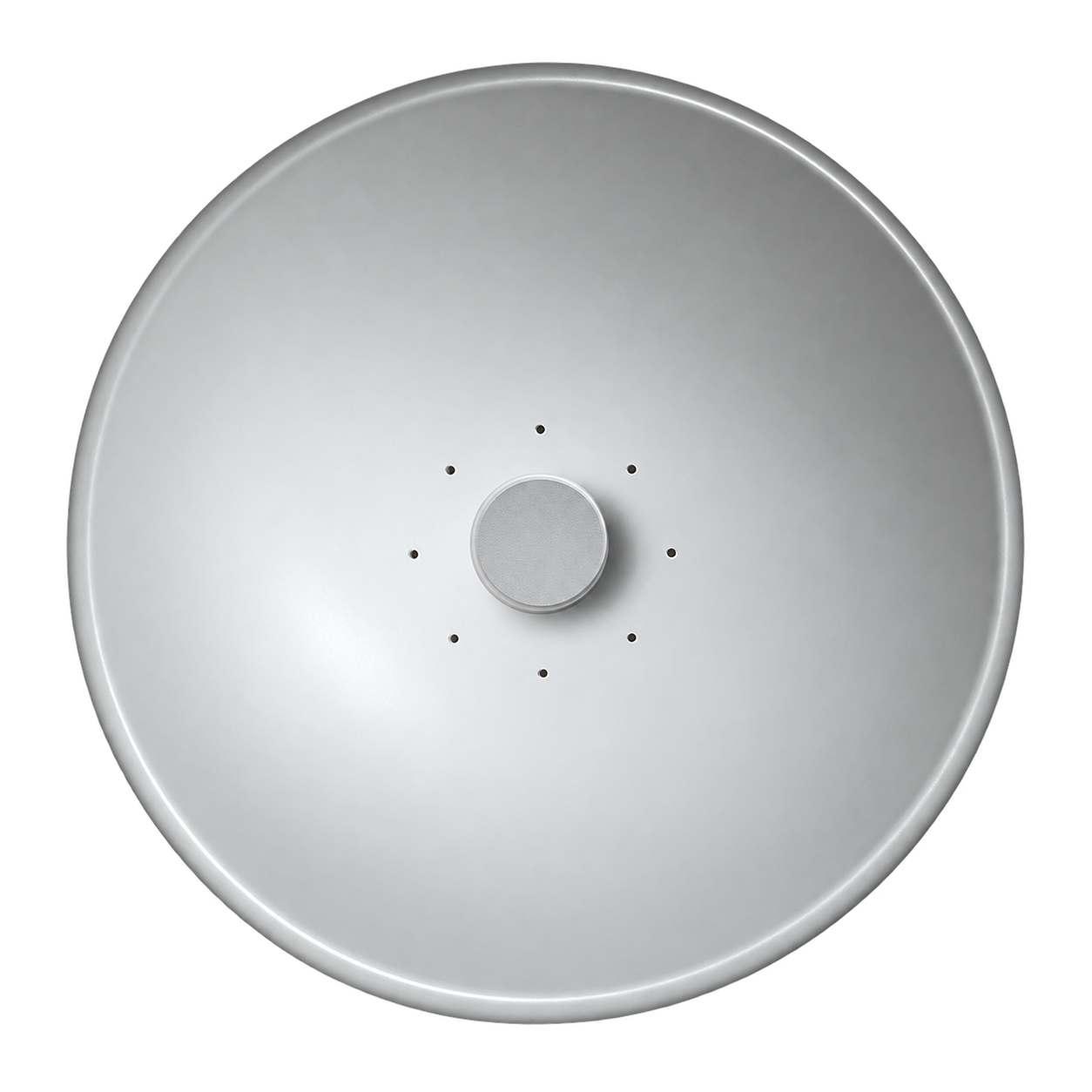

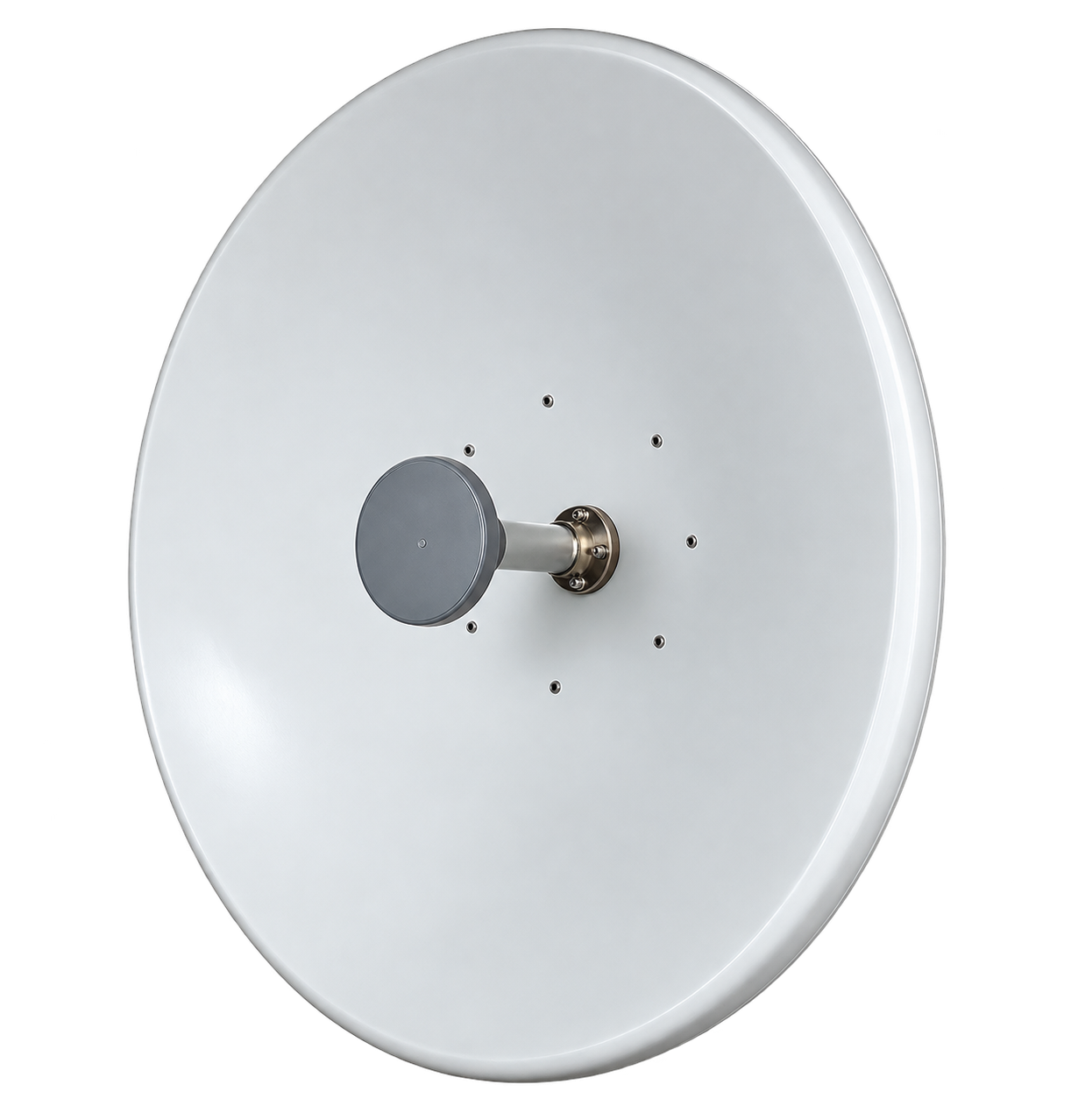

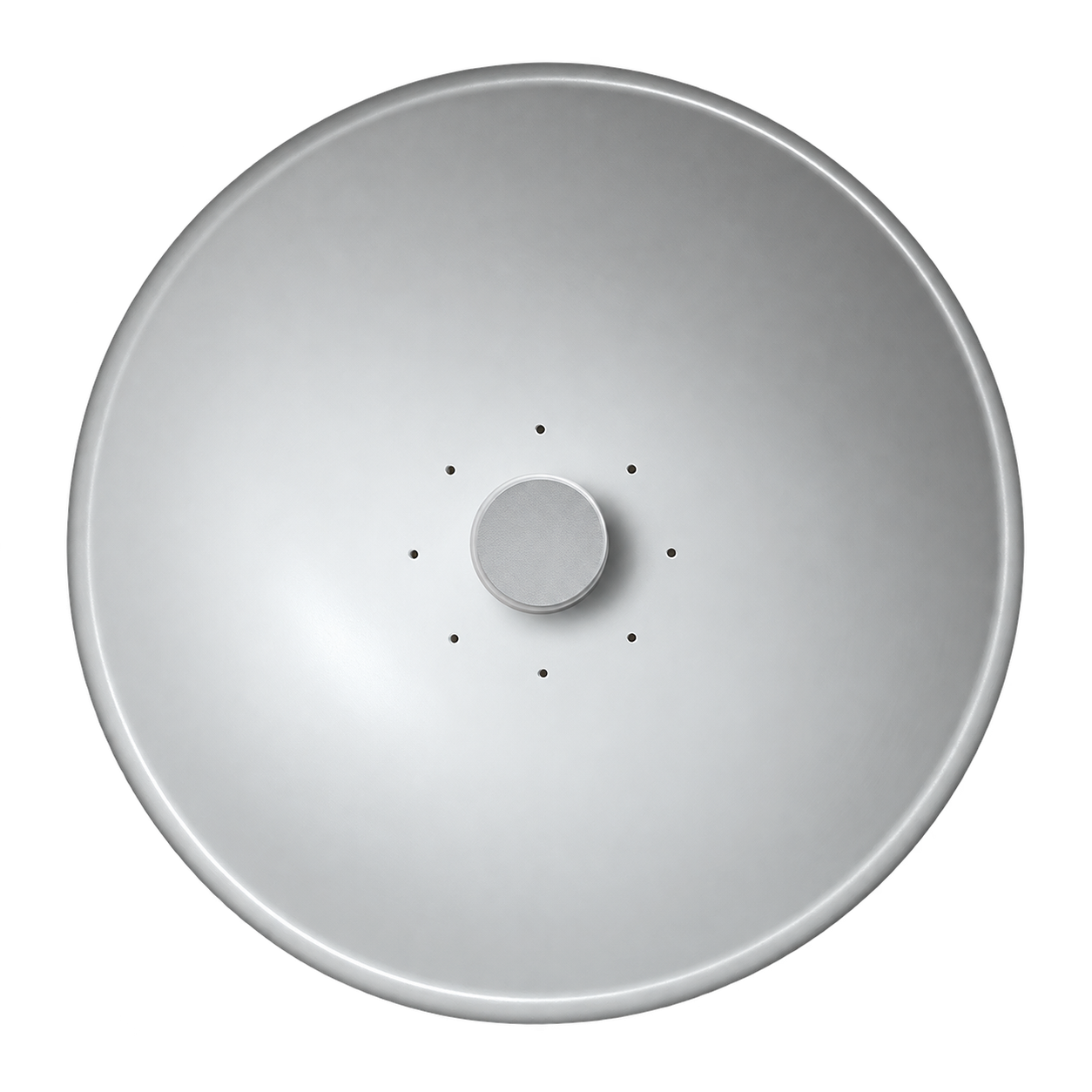

DRA-Ka06 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for K-band & Ka-band: 18-40 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 1.5°; Beam (V): 1.5°

► Cross-polarization isolation: 25 dB

► Gain: 40 dBi

- +
  • Description
  • Téléchargements
Specification
Frequency range, GHz 25-40 (18-40 by order)
Gain, dBi 40
VSWR 1.5
Polarization Linear or circular
Cross-polarization isolation, dB 25
HPBW:
@horizontal 1.5°
@vertical 1.5°
Side-lobe level relative to the main beam, dB -12
Input power, max, W 20
Waveguide WR-28 or С-320
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 650x650x220
Weight, kg 5.8

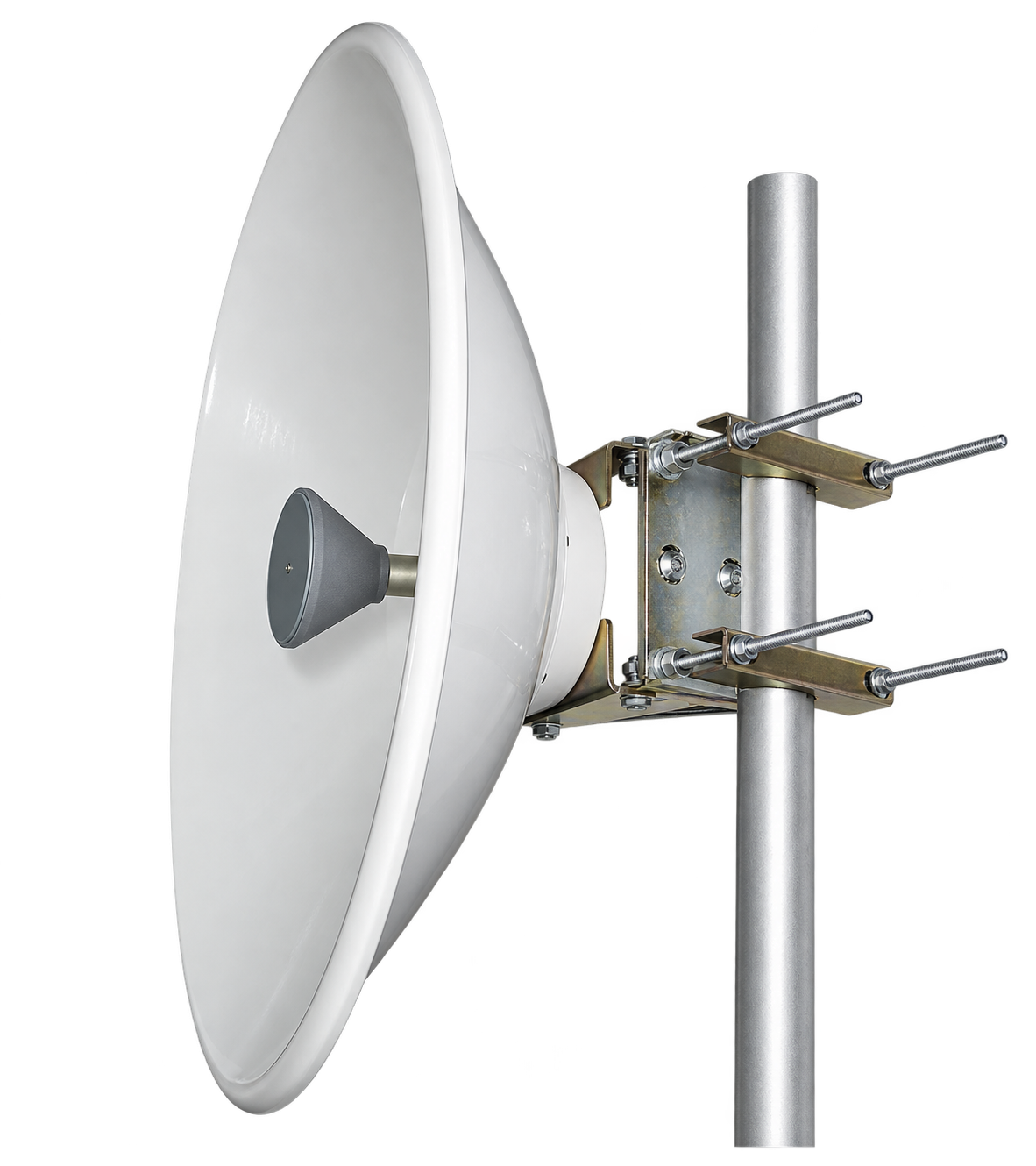

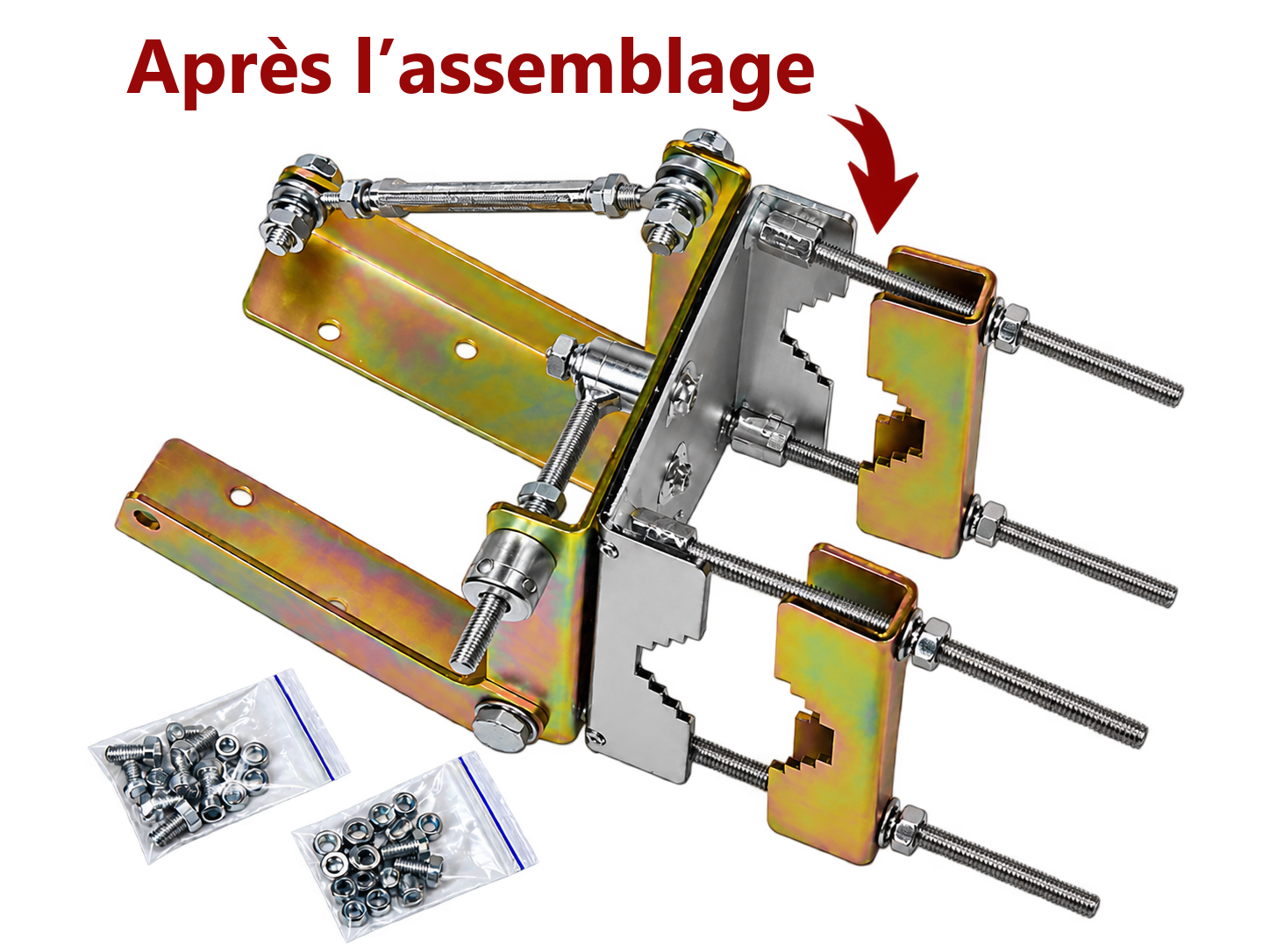

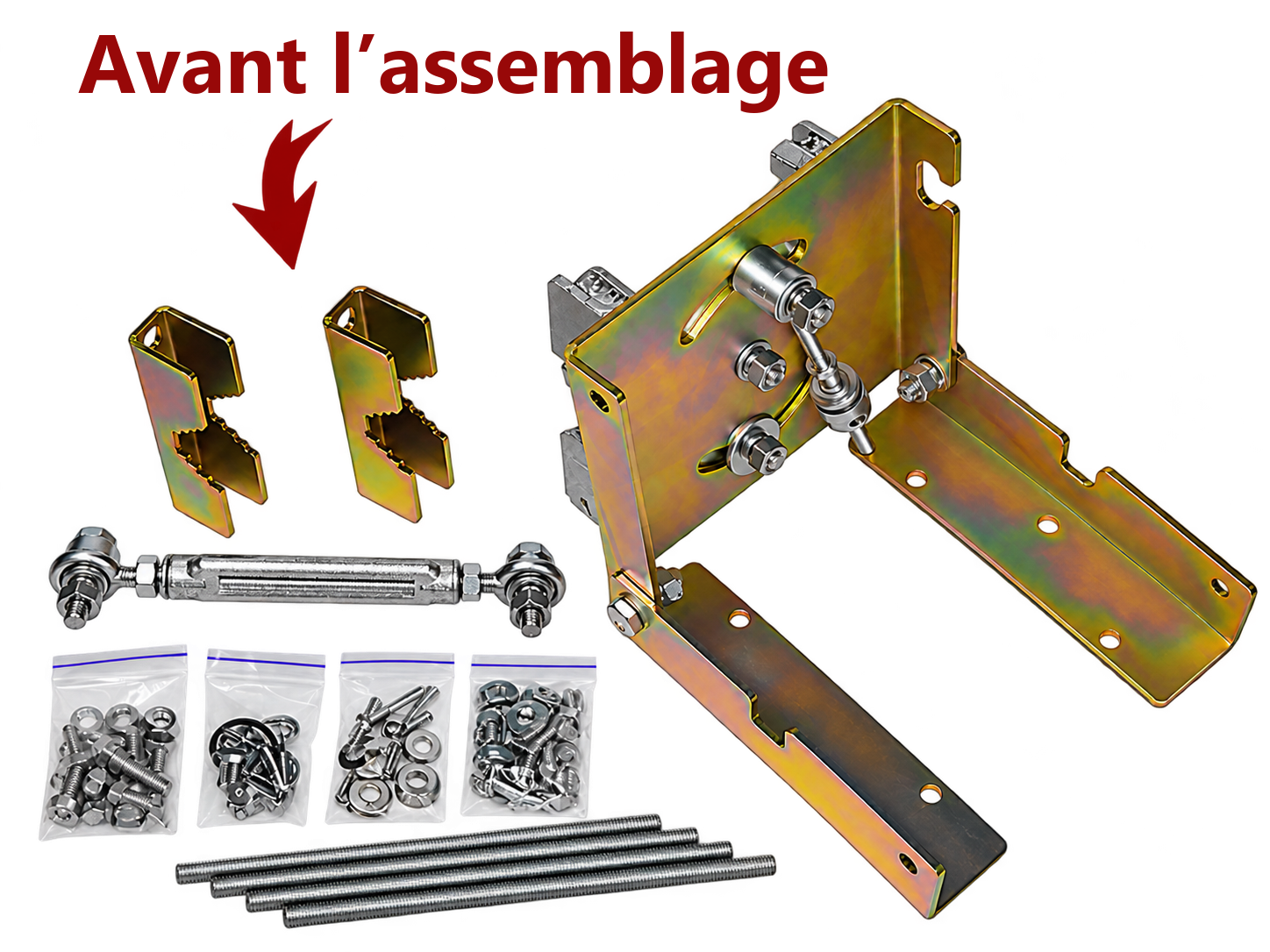

Mount Mounting on a vertical pipe with a diameter of 50-100 mm
Casing material Canvas coverage

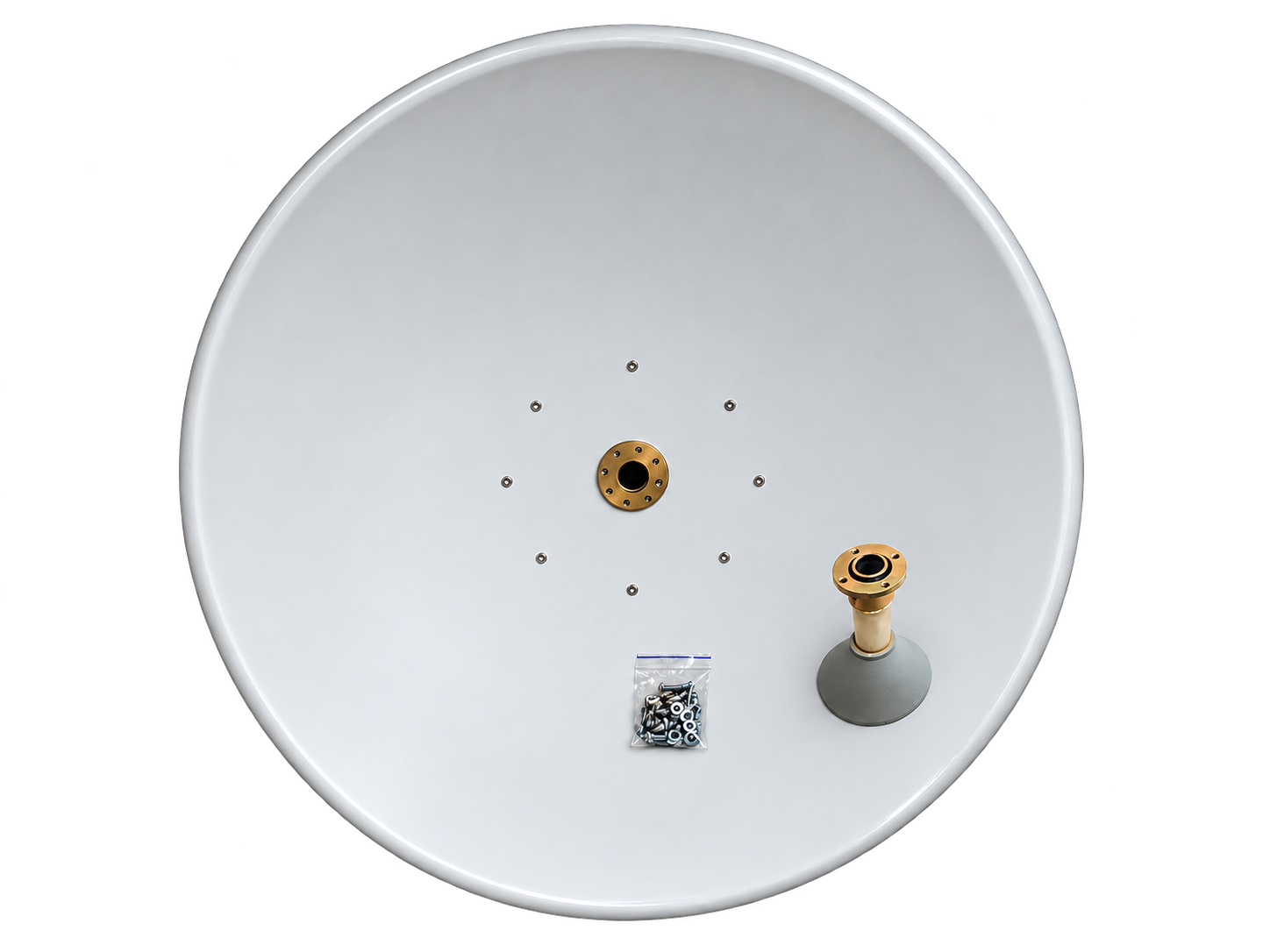

Installation:

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
