LNB PLL LO 12.80

Brève description

Ku-band LNB PLL LO 12.80 is Low Noise Block Down Converter with single LO 12.80 GHz and single 75 Ohm F-type output. LO instability: ± 150 kHz, Gain: 45 dB, Noise figure: 0.9 dB, Output power P1dB: +3 dBm.

- +
  • Description
  • Téléchargements

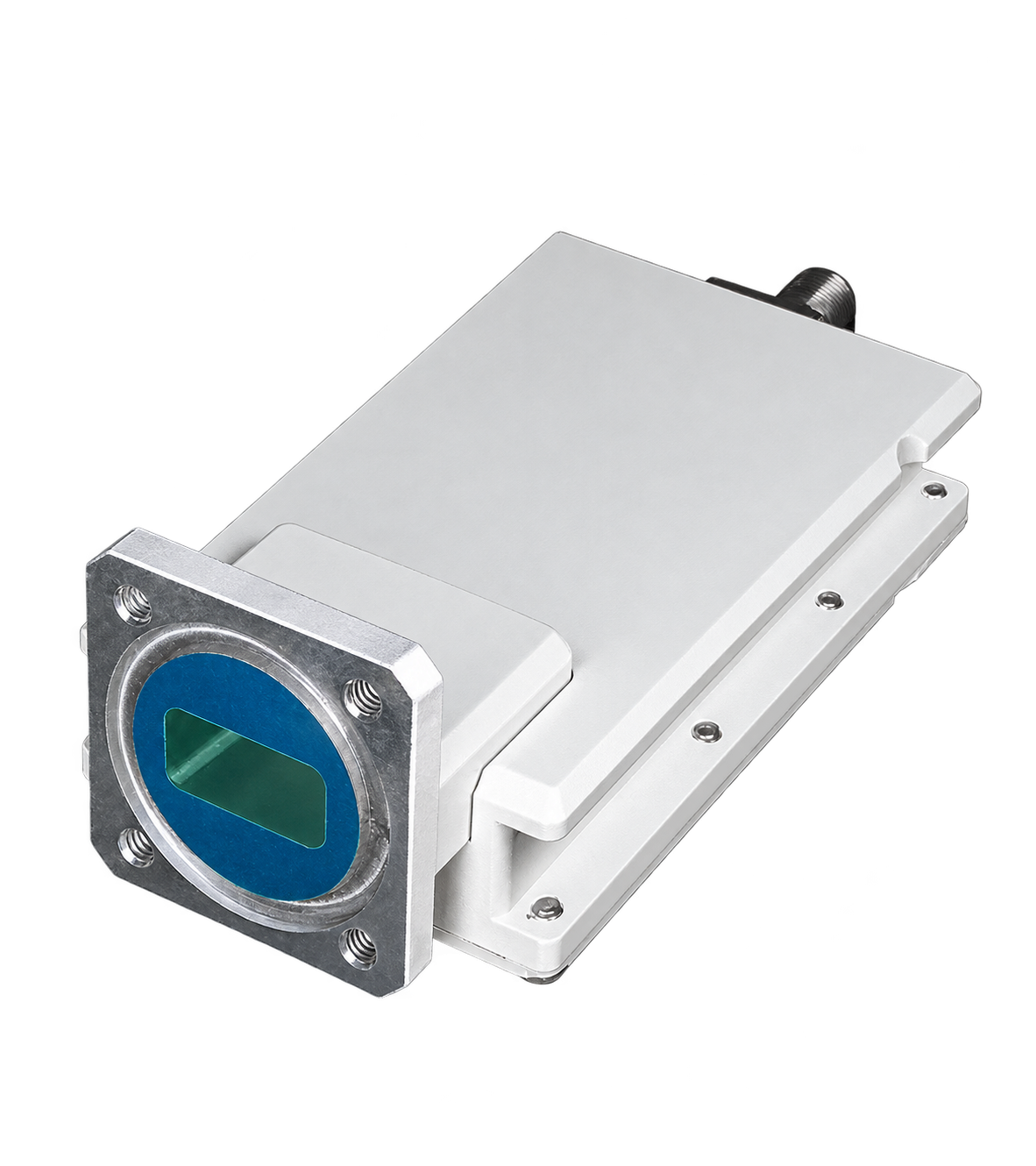

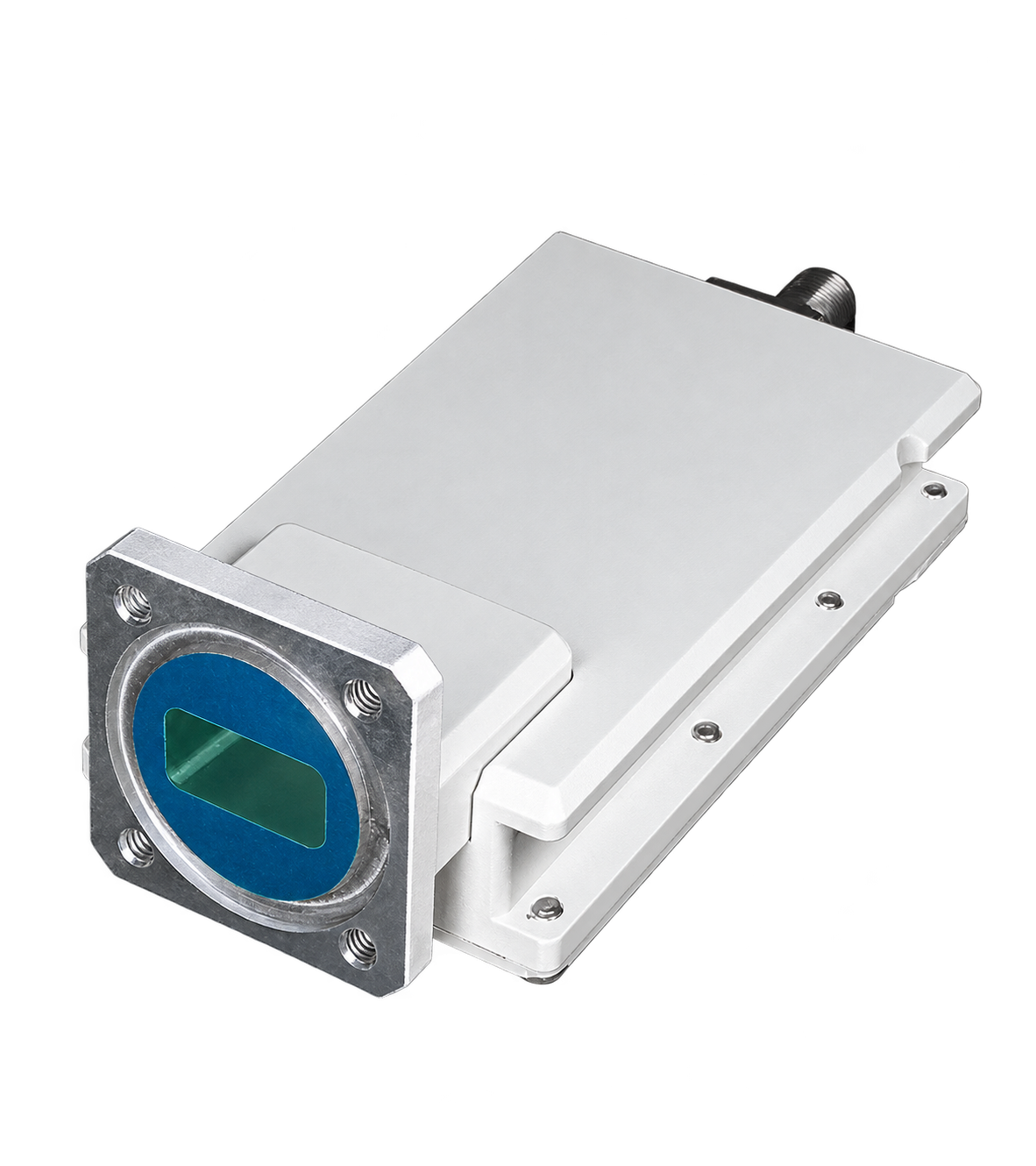

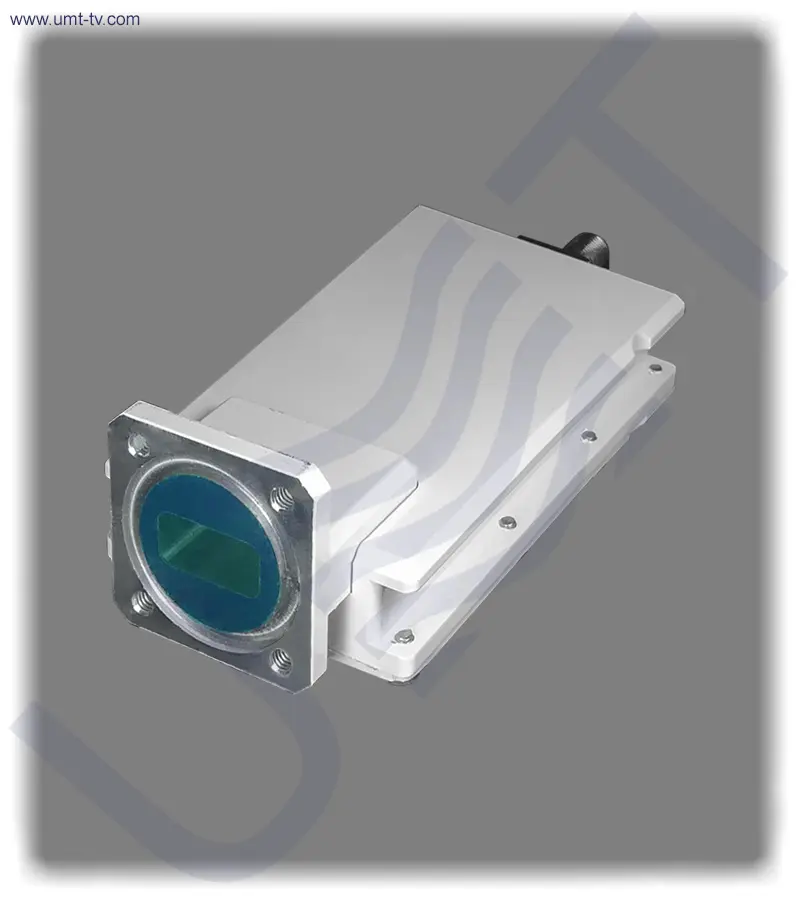

LNB PLL LO 12.80 is Low Noise Block Down Converter which is designed for RF signals gaining and transforming from Ku-band to L-band (intermediate frequencies). The LNB PLL LO 12.80 has a waterproof case. LNB PLL LO 12.80 can be mounted in close proximity to antenna. LNB parameters correspond to MVDS / MITRIS TV broadcasting systems conditions in accordance with DVB-S/S2 or DVB-C standard and can be operated up to 25 carriers. LNB PLL LO 12.80 has input flange of PBR120 type and can be used with regular RRL or receive antennas.

LO: 12.80 GHz    IN: 13.75 – 14.75 GHz   OUT: 950 – 1950 MHz



KEY FEATURES:

  • Wide dynamic range (power at the input)
  • Input flange: PBR120
  • Output power P1dB: +3 dBm
  • Input frequencies: 13.75 – 14.75 GHz
  • Output frequencies: 950 – 1950 MHz
  • Min. gain: 45 dB
  • Oscillator type: PLL
  • Operates up to 25 carriers
  • Designed for operation in MVDS/MITRIS TV broadcasting systems
Input parameters:
Input Frequency range 13.75 – 14.75 GHz
Input level, max -57 dBm
Input VSWR, max  2.0

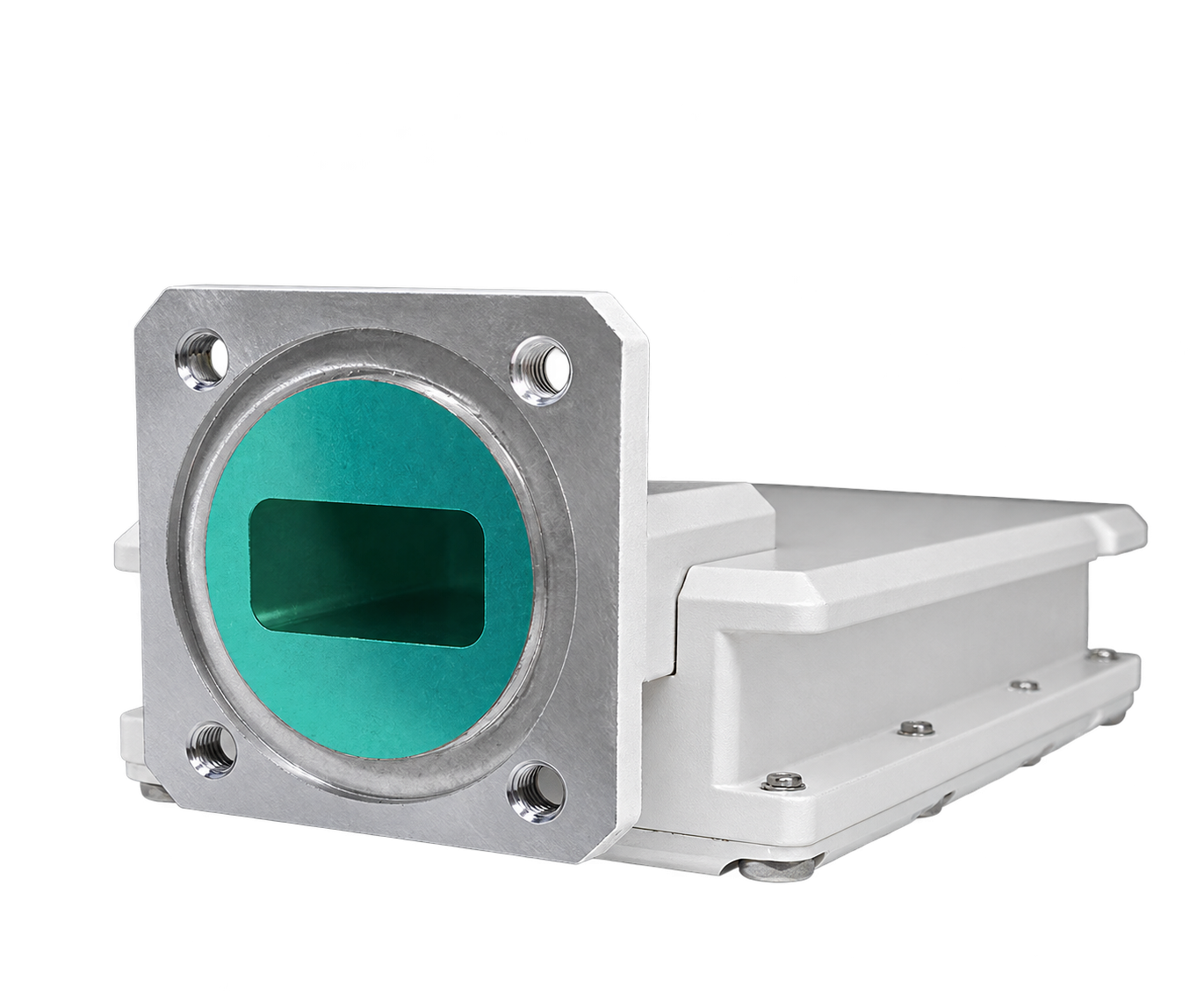

Input interface Waveguide WR75, Flange PBR120
Local Oscilator:
LO frequency 12.80 GHz
LO Phase noise:
@1 kHz -75 dBc/Hz
@10 kHz -85 dBc/Hz
@100 kHz -95 dBc/Hz
LO instability ± 150 kHz
Output parameters:
Output frequency range 950 – 1950 (or by order)
Output Power @P1dB +3 dBm
Gain, min 45 dB

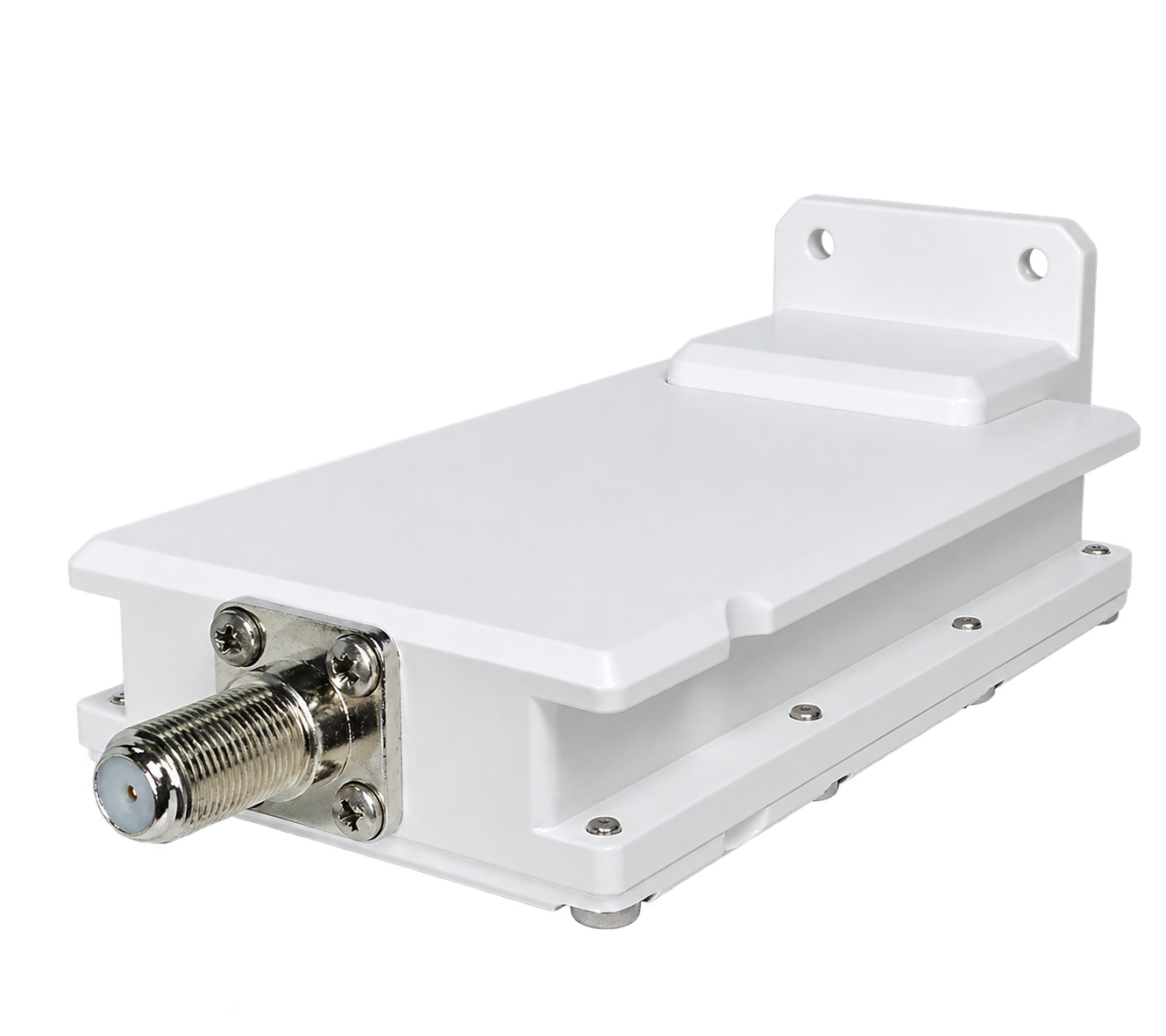

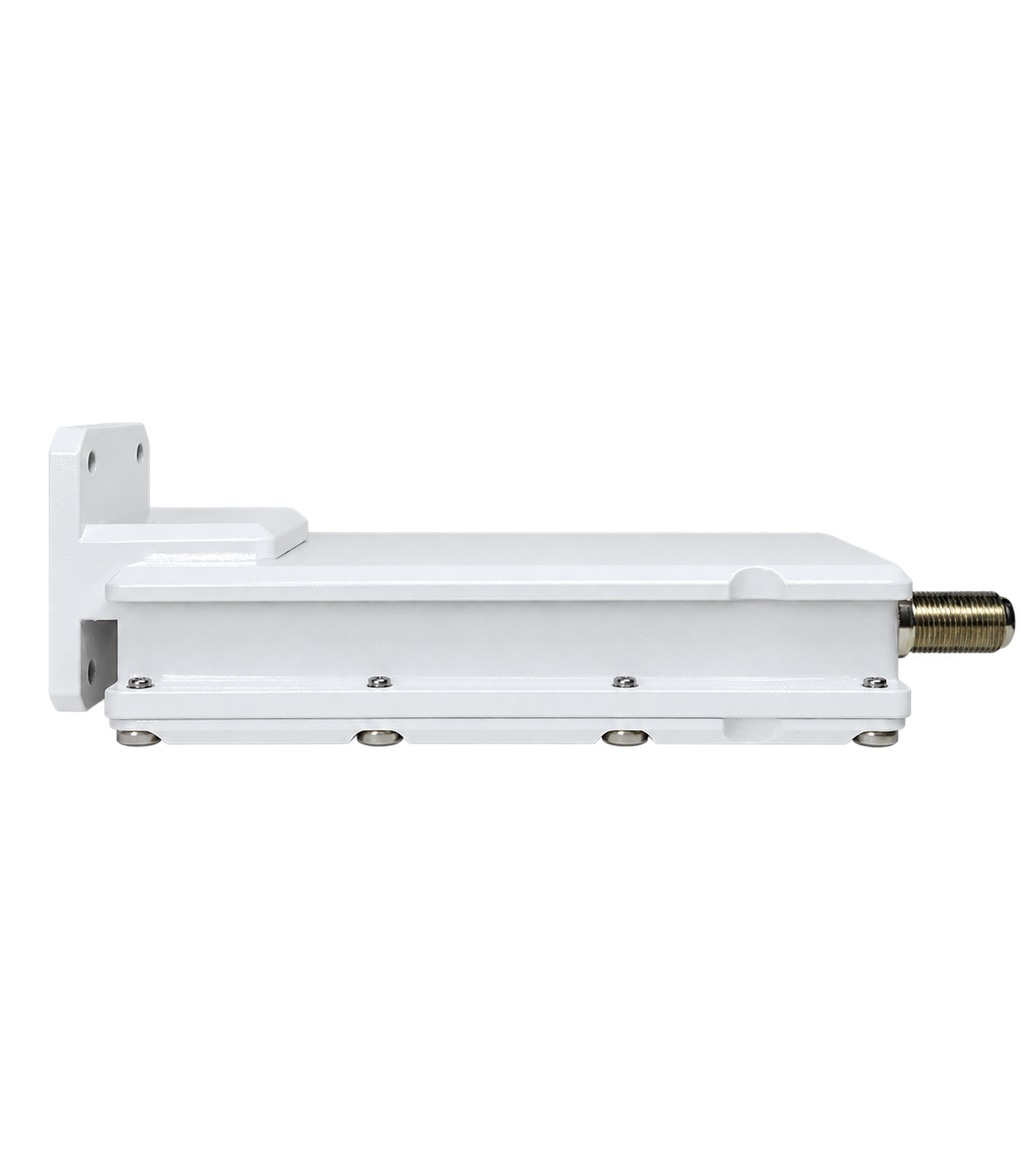

Output interface F-type female
Output impedance 75 Ohm
Output VSWR, max 2.5
Frequency Response:
Flatness over Full Band ±2 dB
Flatness over 27MHz Band ±0.75 dB
Spurious:
Noise Figure (@+25℃) 0.9 dB max
LO leakage, max -45 dBm
Image rejection, min 45 dBc
Power supply:
Input voltage 12 VDC – 24 VDC, nominal 18 VDC
Power consumption, max 5.25 W
Environmental:
Operating temperature -30℃ to +60℃ (-22℉ to +140℉)
Storage temperature -40℃ to +80℃ (-40℉ to +176℉)
Operating humidity 0% – 95%
Mechanical:
Dimensions (W x H x D) 60x42x126 mm
Weight 0.4 kg
