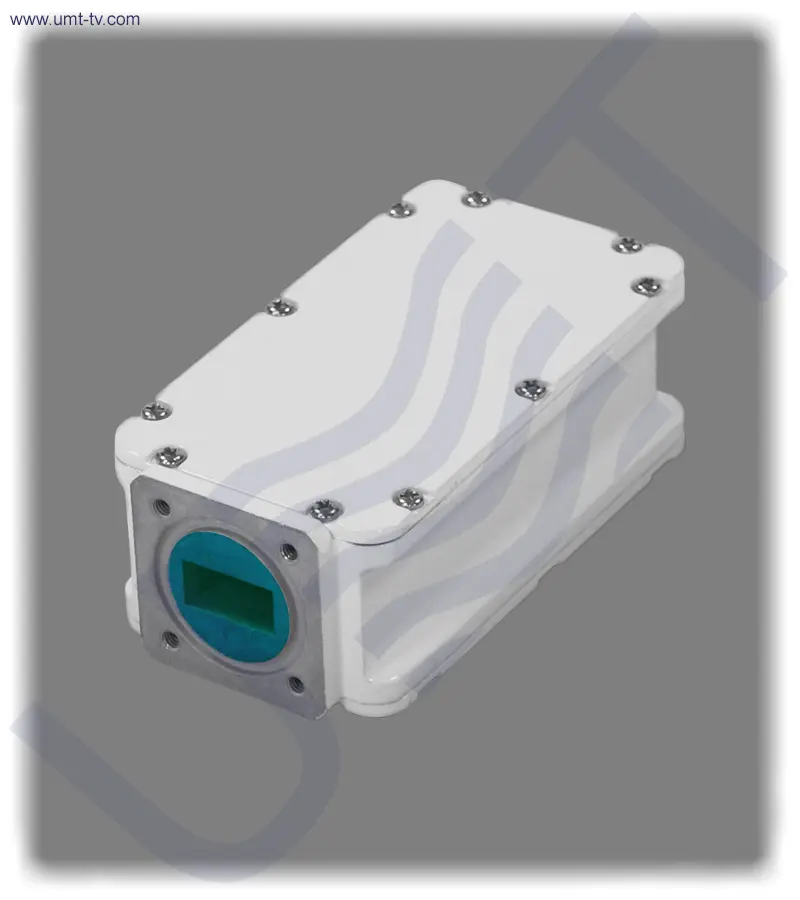

LNB PLL with AGC LO 9.75

Brève description

Ku-band LNB PLL with AGC LO 9.75 is low noise block down converter with automatic gain control. It is professional LNB with wide dynamic range – up to 50 dB (biggest among any other LNB). AGC range: 20 dB, LO instability: ± 25 kHz, Gain (min): 34 dB.

Out of production
9.75 GHzPLLavec AGC
- +
  • Description
  • Téléchargements

Ku-band LNB PLL with AGC LO 9.75 is professional low noise block down converter with automatic gain control designed for using in MVDS / MITRIS TV broadcasting systems (links and repeaters) in which the signal stability is very important. In addition, LNB PLL with AGC LO 9.75 has wide dynamic range (power at the input) which is the biggest among other LNBs.

LO: 9.75 GHz    IN: 10.70 – 11.70 GHz    OUT: 950 – 1950 MHz

KEY FEATURES:

  • Wide dynamic range (power at the input) – up to 50 dB (biggest among any other LNB-type)
  • AGC range: 20 dB
  • Waveguide: WR75
  • Flange: PBR120
  • 75 Ohm F-type output
Input parameters:
Input Frequency range 10.70 – 11.70 GHz
Input level range – 47.44 … – 27.44 dBm
Input signal nominal level – 37.44 dBm
Input VSWR, max 1.8
Input interface Waveguide WR75, Flange UBR120
Local Oscillator:
LO frequency 9.75 GHz
LO Phase noise:
@10 kHz -90 dBc/Hz
LO instability ± 25 kHz
Output parameters:
Output frequency range 950 – 1950 MHz
Output Power @P1dB 0 dBm
Gain, min 34 dB
Output interface N-type female
Output impedance 50 Ohm
Output VSWR, max 1.8 : 1
Frequency Response:
Flatness over Full Band 3 dB
Flatness over 27MHz Band 0.5 dB
Spurious:
Noise figure given to the input, no more 5.0 dB
LO leakage, max -50 dBm
Image rejection, min 60 dBc
Power Supply:
Input voltage 15 VDC – 30 VDC, nominal 18 VDC
Power consumption, max 5 W
Environmental:
Operating temperature -40℃ to +60℃ (-40℉ to +140℉)
Storage temperature -40℃ to +80℃ (-40℉ to +176℉)
Operating humidity 0% – 95%
Mechanical
Dimensions (W x H x D) 40x73x155 mm
Weight 0.55 kg
