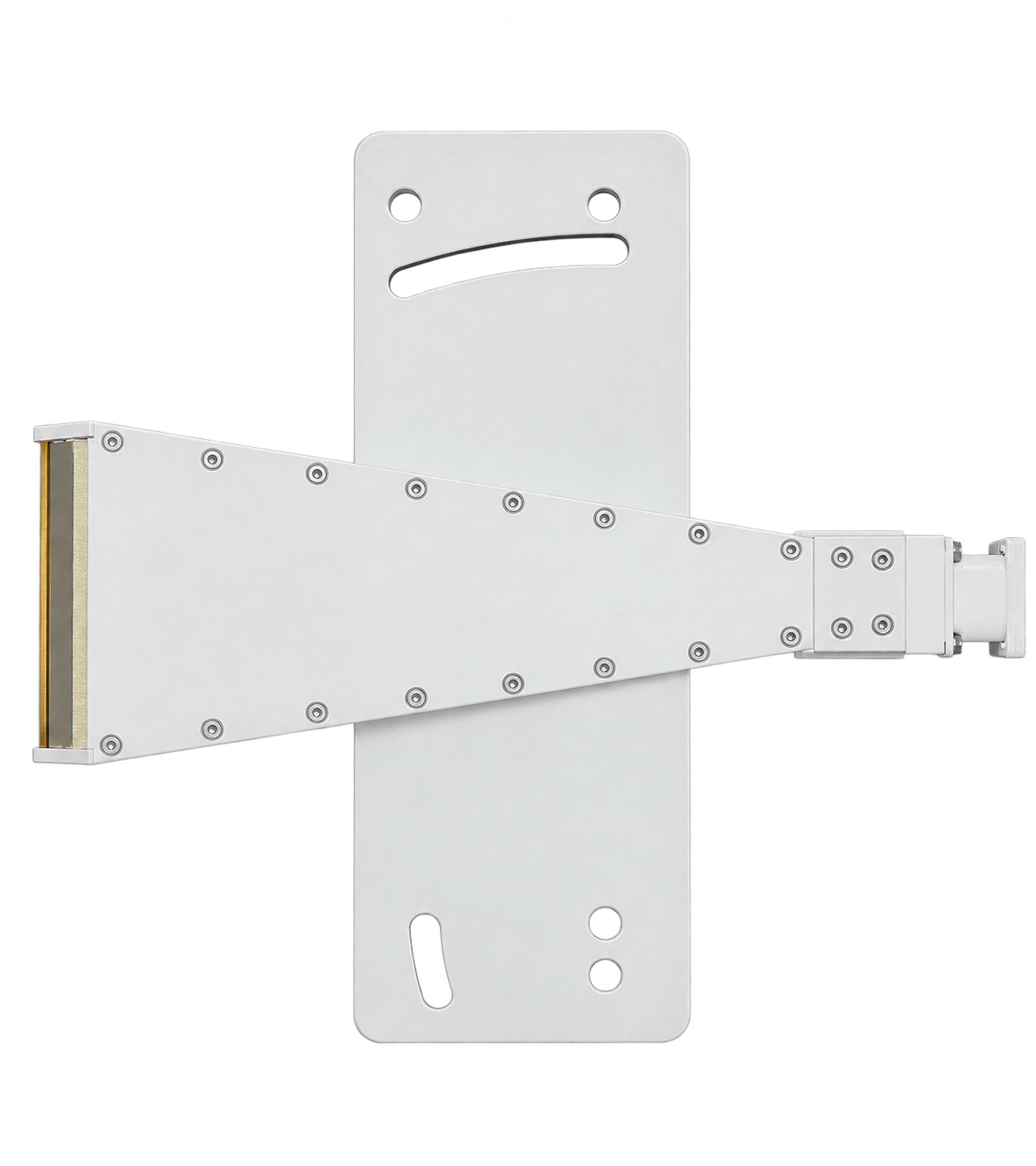

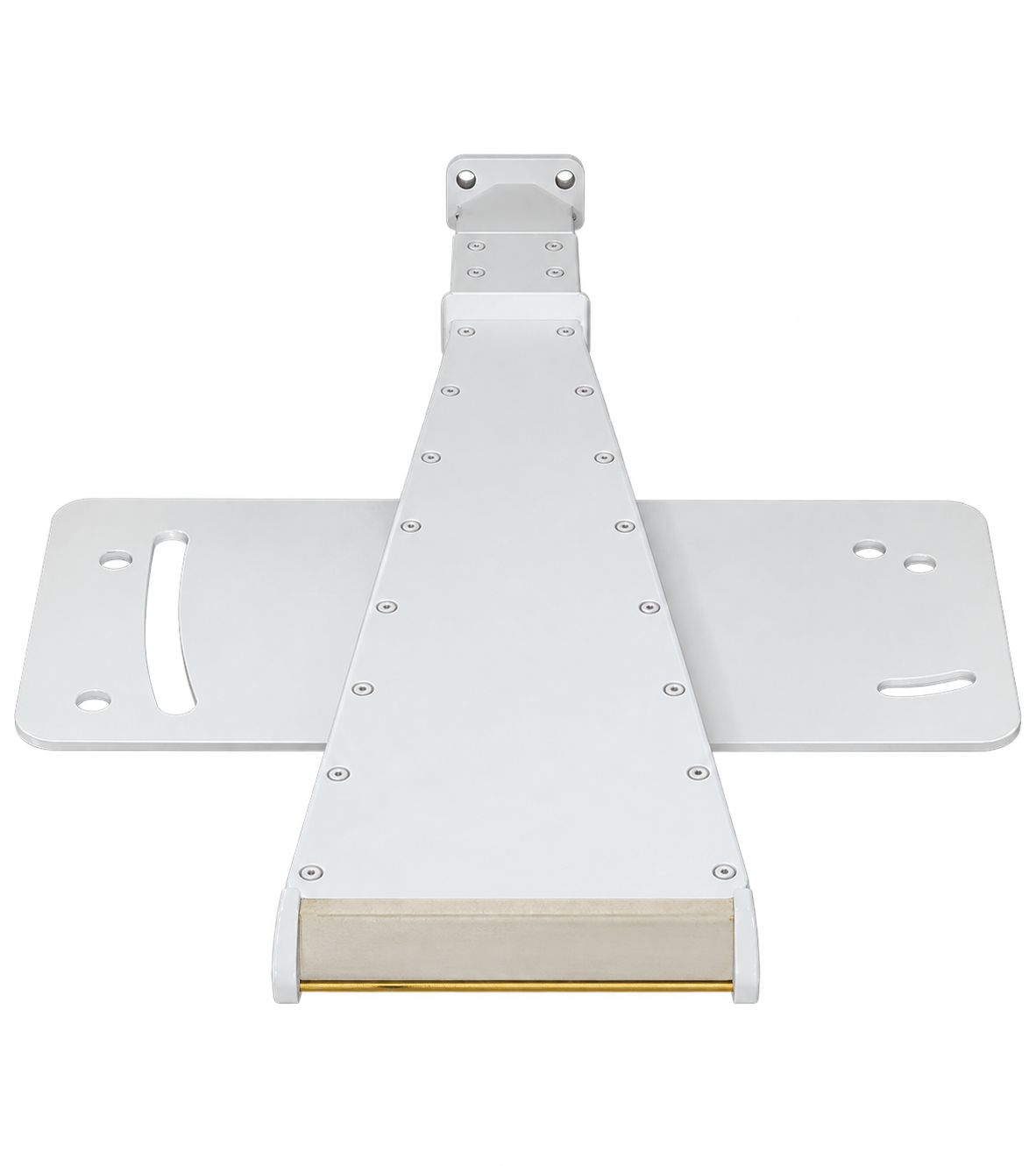

SSA-KuV180

Brève description

SSA-KuV180 is Short Sector Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 180 degrees and V-polarization

► Beam(H):180°; Beam(V):15°

► Frequency range: 10.7-14.4 GHz

► Gain: 10.6 dB

► It is designed for Ku-band

- +
  • Description
  • Téléchargements
Parameter Value
Frequency range, GHz 10.7 – 14.4
Gain, dBi, min 10.6
VSWR 1.8
Polarization vertical
Cross-polarization isolation, dB 25
HPBW:
@horizontal   180-195°
@vertical 12-16.5°
Gain range in aperture, dB ±0.5
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 320х280х39
Weight (including holder), kg 1.5
Directional diagram tuning, deg:
 Elevation angle  ±20° (-20°…0° or 0°…+20°)
 Azimuth 360° (around the pipe)
Mounting Installation on the pipe diameter up to 45 mm
Input power, W 20
Body Dust/moisture proof

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
