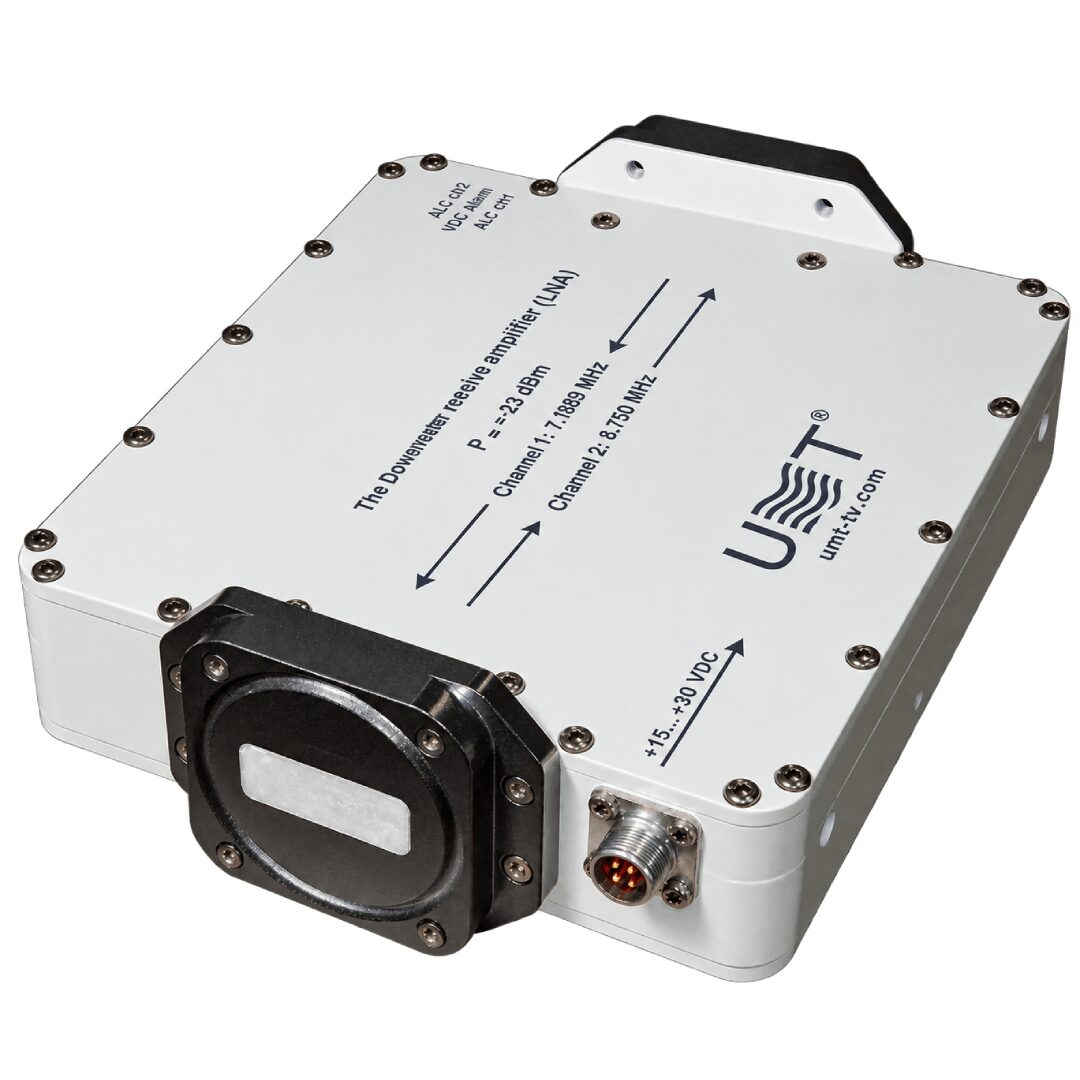

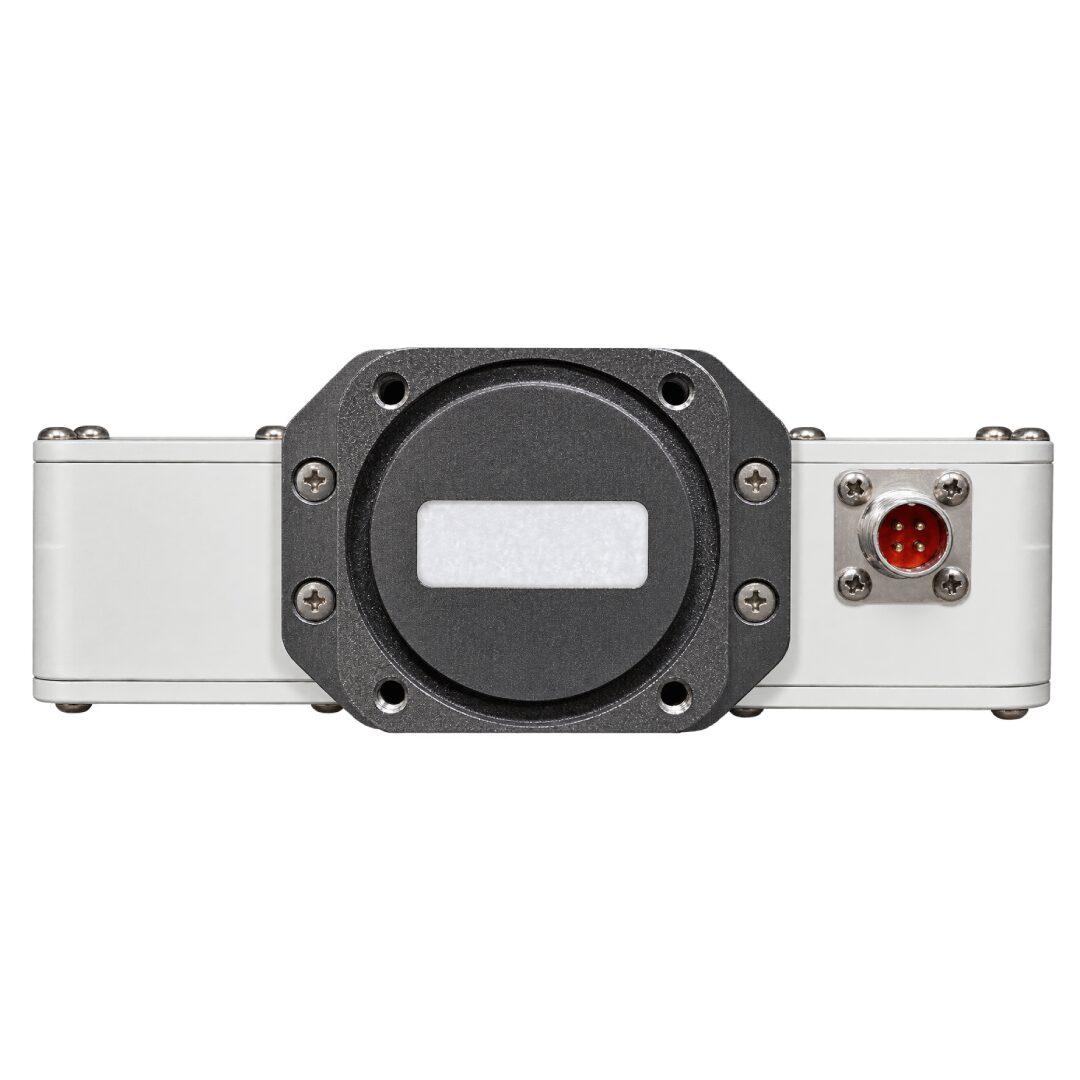

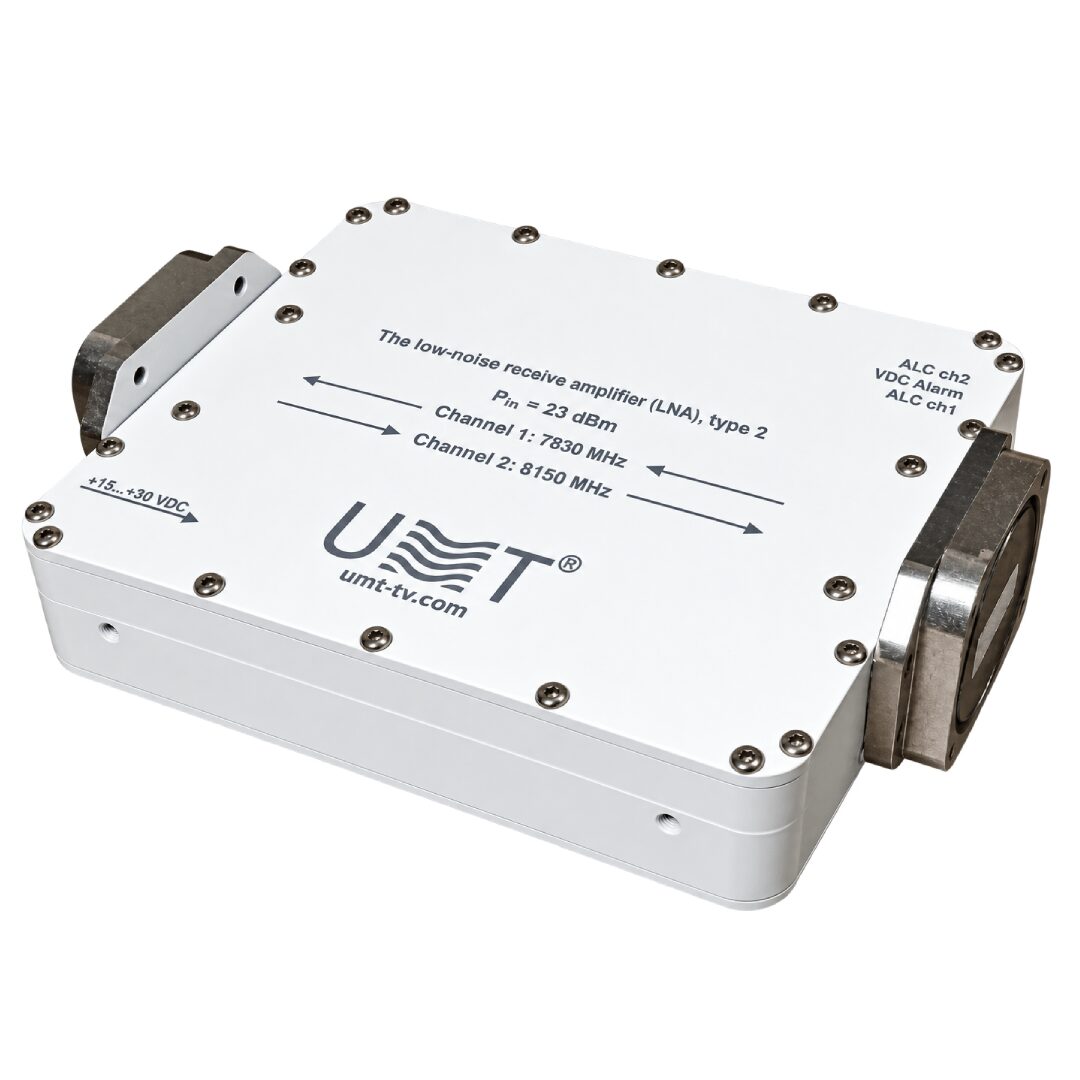

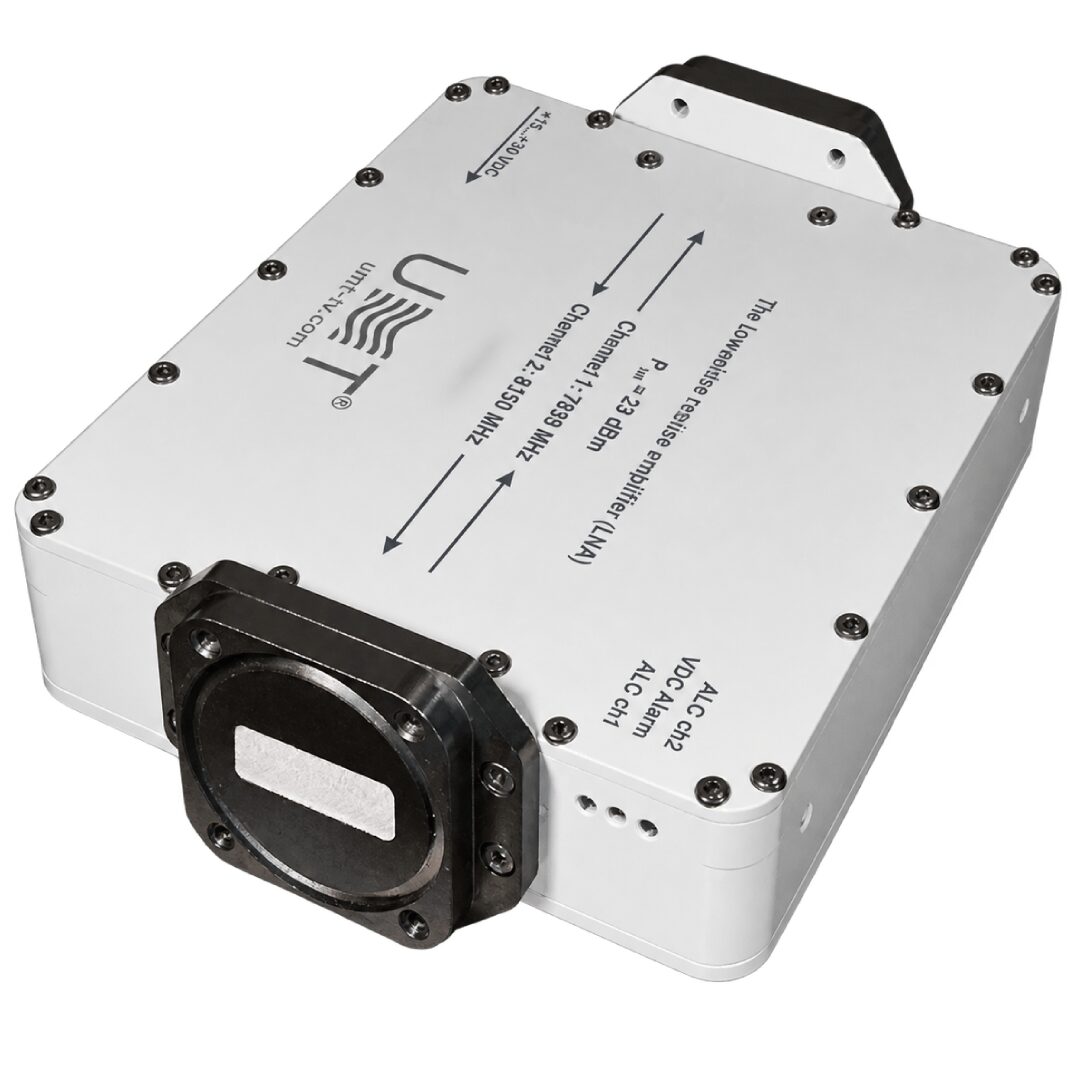

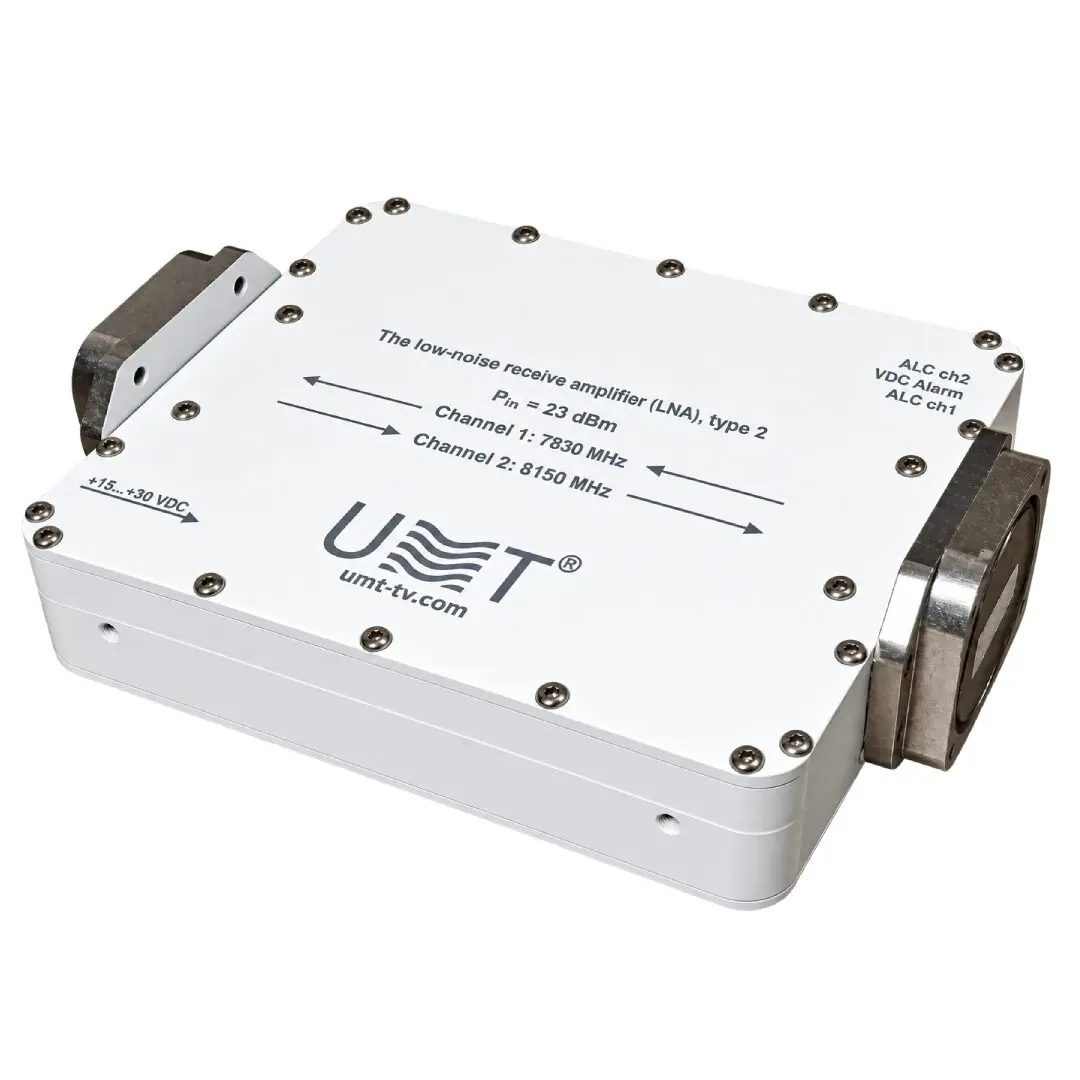

Bloc répéteur bande X

Short description

The repeater block is used for weak X-band RF signals amplifying from two antennas. The gain is carried out by two blocks of amplifiers and bandpass filters. X-band repeater block is applied in GSM / MVDS / MITRIS systems

- +

Demande d'équipement sur mesure

    • Description
    • Downloads
    Parameter Value
    Frequency ranges:
    amplifier 1 7.839 GHz (with bandwidth 40 МHz)
    amplifier 2 8.150 GHz (with bandwidth 40 МHz)
    Gain of amplifiers 1 and 2, dB, not less 35
    Noise figure of amplifiers 1 and 2, dB, not more 5.0
    Output Power @P1dB, dBm 23
    Output Power of amplifiers 1 and 2, dBm at level IMD3 – 45dBc, not less +15…16
    Gain flatness over frequency range (amplifiers 1 and 2), dB, not less +/– 0.6
    Input/output, not more 1.5
    Input/output interfaces  Waveguide flanges WR-112
    Return loss at Repeater Block inputs/outputs, not more 15 dB
    Connectors for supply voltage РС4
    Supply voltage, V +15…+30 VDC
    Supply current, mA 300 mA max
    Operating temperature From –30 to +60°C
    Operating humidity from 0% to 95%
    Dimensions (W x H x D) 134 x 47.9 x 178.8
    Weight, kg up to 3 kg

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
