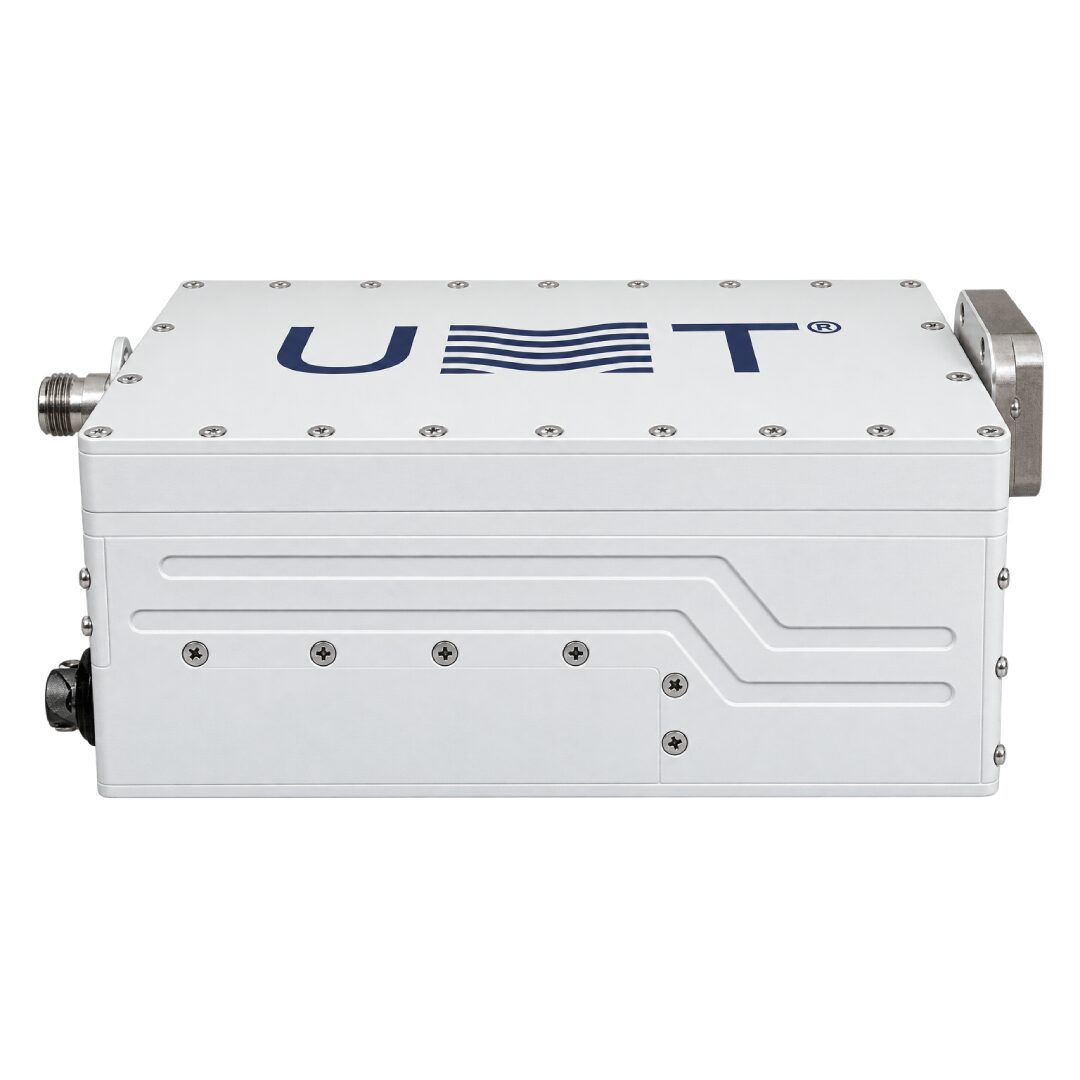

BUC-Ku40-10.75 + contrôle IP

Brève description

BUC-Ku40-10.75 + IP Ctrl est un convertisseur élévateur de bloc avec une puissance de sortie fixe P1dB 40 W (Puissance de sortie (Psat) 46 dBm) et LO de 10,75 GHz.
Notre BUC fonctionne avec jusqu’à 25 porteuses et possède une référence intégrée de 10 MHz ;
et ALC plage de niveau de réglage (nominal) -9 … +4 dB par rapport à PALC</strong >;
+ indication d’état LED à l’arrière.

40 W10.75 GHzCtrl IP à distance (support sur commande)
- +

Demande d'équipement sur mesure

    • Description
    • Téléchargements
    Input parameters:
    Input Frequency range 950 – 1750 MHz (950-1950 MHz by order)
    Input impedance 50 Ohm
    Input level, max -15 dBm
    Input VSWR, max  1.5
    Input interface N-type Female
    ALC range, min 25 dB
    Local Oscillator:
    LO frequency 10750 MHz (or by order)
    LO Phase noise: @1 kHz -80 dBc/Hz
    @10 kHz -85dBc/Hz
    @100 kHz -100dBc/Hz
    LO instability ± 2ppm
    Output parameters:
    Output frequency range 11700 – 12500 MHz (or by order)
    Output Power Psat 46 dBm
    ALC Output Power with adjustment, PALC 36 dBm*
    ALC adjustment level range (nominal) -9 … +4 dB from PALC
    Gain, min 72 dB
    IMD3 level at ALC Output Power, max -37 dBc
    Output interface Waveguide WR75, Flange PBR120
    Output VSWR, max 2
    Frequency Response:
    Flatness over Full Band ±1.5 dB
    Spurious:
    In-band Psat, max -55 dBc
    Out-Band, max -30 dBm
    LO leakage at ALC output power, max -40 dBm
    Image rejection, min 60 dB
    Power supply:
    Input voltage 20 VDC – 55 VDC, nominal 48 VDC
    Power consumption, max < 100 W

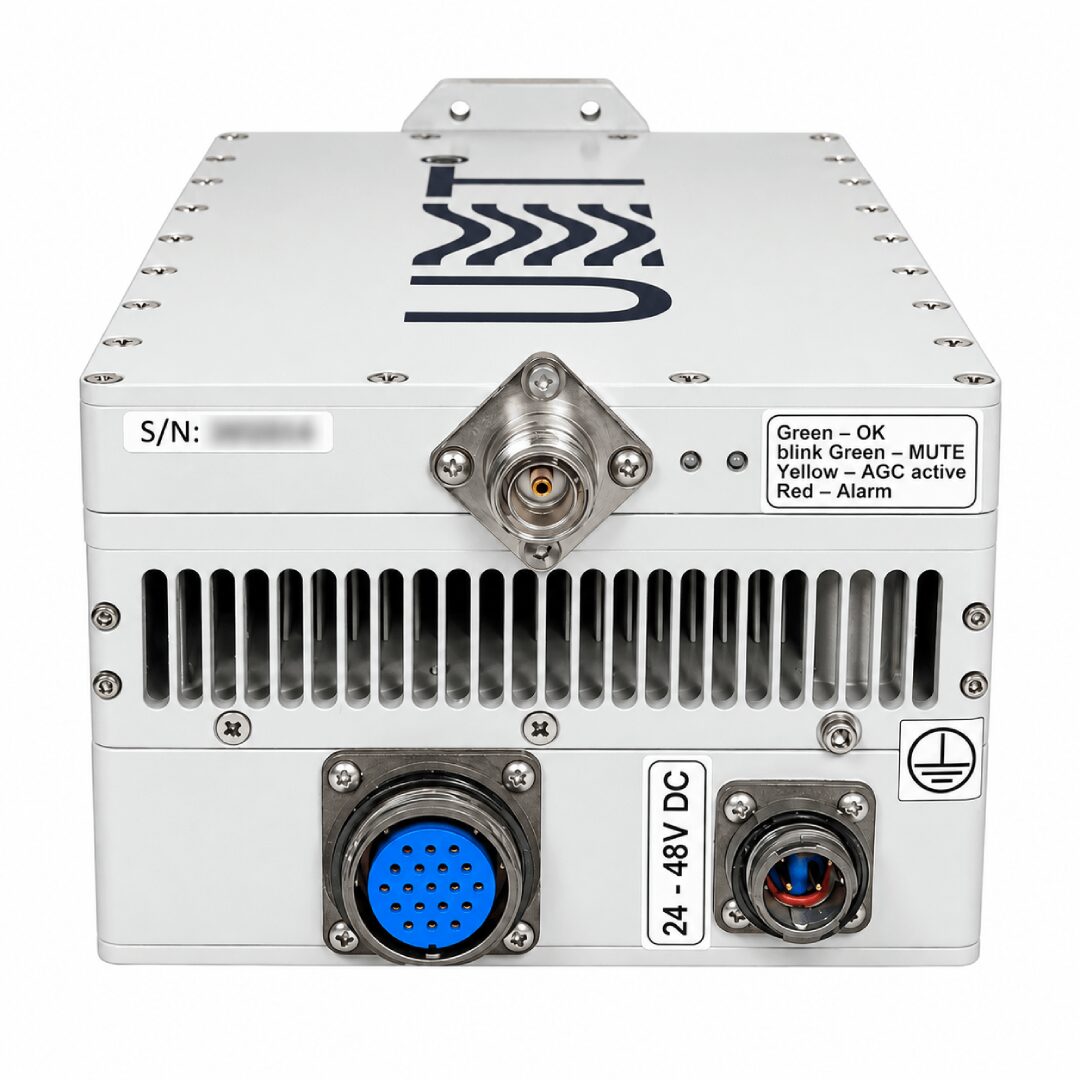

    Interfaces:
    IF input connector: N-type female / RF output connector: WR75 (PBR120)
    DC connector: C90-3102R10SL-4P / Monitor & Control connector: UTS014E19P
    Monitor & Control: Step level for ALC, Ethernet
    LED indicator: Green – OK, blink Green – MUTE, Yellow – AGC active, Red – Alarm
    Environmental:
    Operating temperature -30℃ to +55℃
    Storage temperature -40℃ to +70℃
    Operating humidity 100%, non‐condensing
    Mechanical:
    Dimensions 260х135х92mm
    Weight, max 5 kg

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
