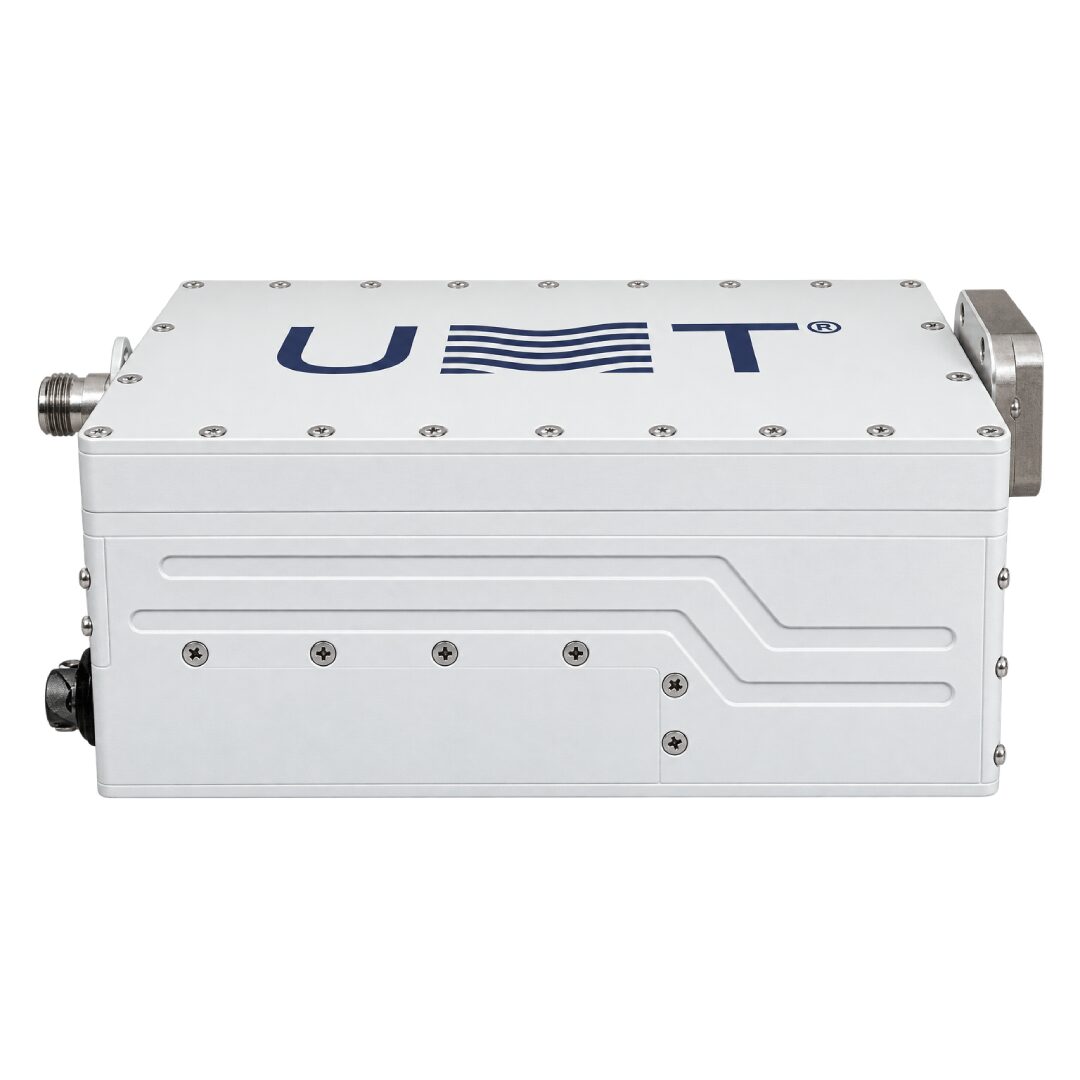

BUC-Ku40-10.75 + IP Ctrl

Short description

BUC-Ku40-10.75 + IP Ctrl is block up-converter with fixed output power P1dB 40 W (Output Power (Psat) 46 dBm) and LO of 10.75 GHz.

Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;

and ALC adjustment level range (nominal) -9 … +4 dB from PALC;

+ LED status indication at the rear side.

40 W10.75 GHzRemote IP Ctrl (support by order)
- +

Request for customized equipment

    • Description
    • Downloads

    BUC-Ku40 is designed for MVDS TV broadcasting systems application in accordance with DVB-S/S2 and operates with up to 25 carriers. BUC-Ku40 has output flange of PBR120 type and can be used with regular radio-relay link or broadcast antennas. BUC-Ku40 supports all modulation types up to 32APSK. BUC-Ku40 has the best linearity parameters to ensure the stability of the output frequency and low IMD3 level (these parameters are very important for high quality modulation, therefore the local oscillator of BUC-Ku40 is locked by PLL with internal frequency reference).

    KEY FEATURES:

    • Output flange: PBR120
    • Output power (Psat, min): 40 W
    • Any LO frequency by order: 8.8, 9.75, 10.6, 10.75, 10.8, 11.3, 11.8, 12.8, 13.05 (or other by request)
    • Output frequency range: any 800-1000 MHz in Ku-band (10-15 GHz) by order
    • Input frequency range: 950 – 1750 MHz (950-1950 MHz by order)
    • Gain (min): 71 dB
    • Highly stable internal frequency reference
    • LO is locked by PLL with internal frequency reference
    • IMD3 level at ALC output power (the lowest value): -37 dBc max
    • Operates with up to 20 carriers
    • Supported modulation types: up to 32APSK
    Input parameters:
    Input Frequency range 950 – 1750 MHz (950-1950 MHz by order)
    Input impedance 50 Ohm
    Input level, max -15 dBm
    Input VSWR, max  1.5
    Input interface N-type Female
    ALC range, min 25 dB
    Local Oscillator:
    LO frequency 10750 MHz (or by order)
    LO Phase noise: @1 kHz -80 dBc/Hz
    @10 kHz -85dBc/Hz
    @100 kHz -100dBc/Hz
    LO instability ± 2ppm
    Output parameters:
    Output frequency range 11700 – 12500 MHz (or by order)
    Output Power Psat 46 dBm
    ALC Output Power with adjustment, PALC 36 dBm*
    ALC adjustment level range (nominal) -9 … +4 dB from PALC
    Gain, min 72 dB
    IMD3 level at ALC Output Power, max -37 dBc
    Output interface Waveguide WR75, Flange PBR120
    Output VSWR, max 2
    Frequency Response:
    Flatness over Full Band ±1.5 dB
    Spurious:
    In-band Psat, max -55 dBc
    Out-Band, max -30 dBm
    LO leakage at ALC output power, max -40 dBm
    Image rejection, min 60 dB
    Power supply:
    Input voltage 20 VDC – 55 VDC, nominal 48 VDC
    Power consumption, max < 100 W
    Interfaces:
    IF input connector: N-type female / RF output connector: WR75 (PBR120)
    DC connector: C90-3102R10SL-4P / Monitor & Control connector: UTS014E19P
    Monitor & Control: Step level for ALC, Ethernet

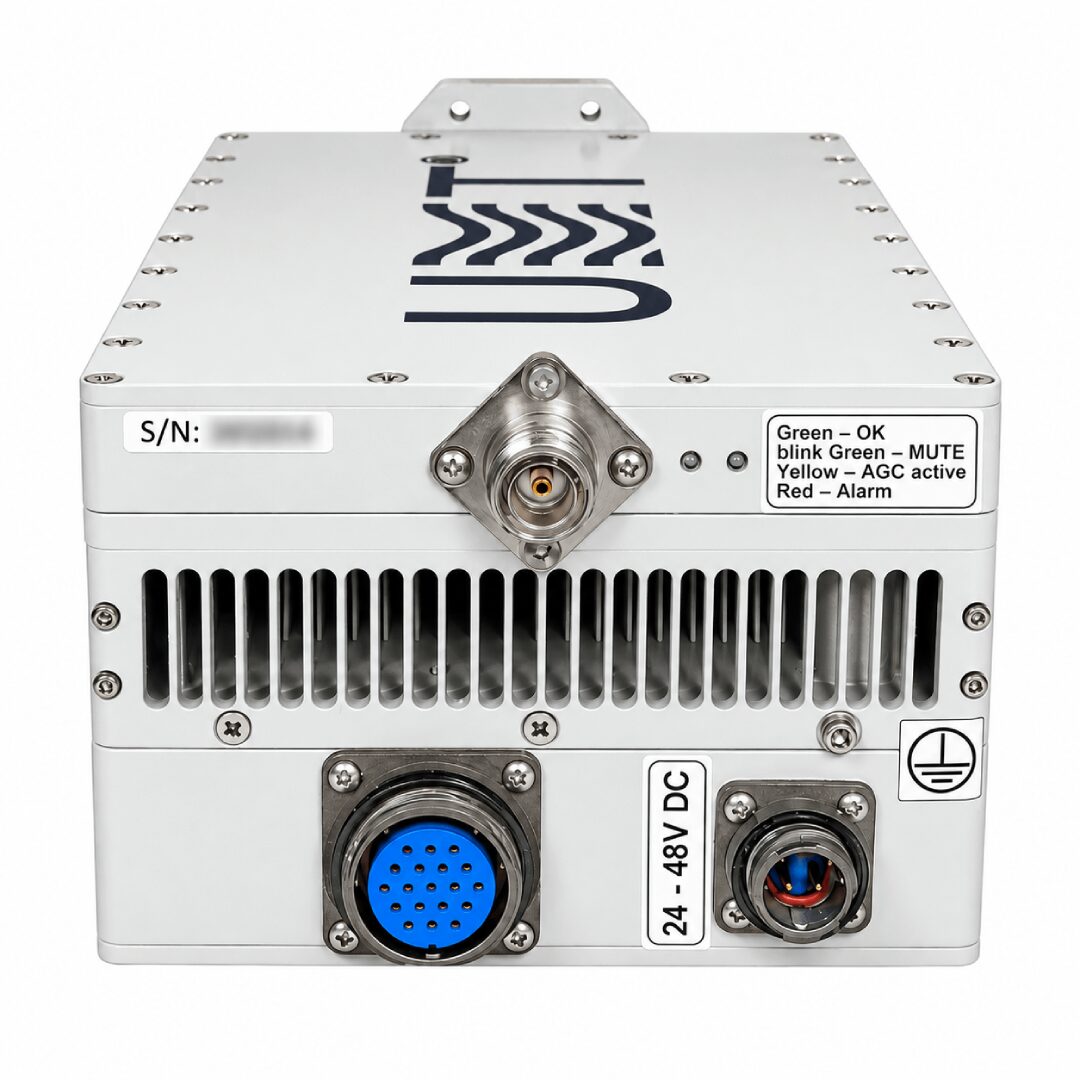

    LED indicator: Green – OK, blink Green – MUTE, Yellow – AGC active, Red – Alarm
    Environmental:
    Operating temperature -30℃ to +55℃
    Storage temperature -40℃ to +70℃
    Operating humidity 100%, non‐condensing
    Mechanical:
    Dimensions 260х135х92mm
    Weight, max 5 kg

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
