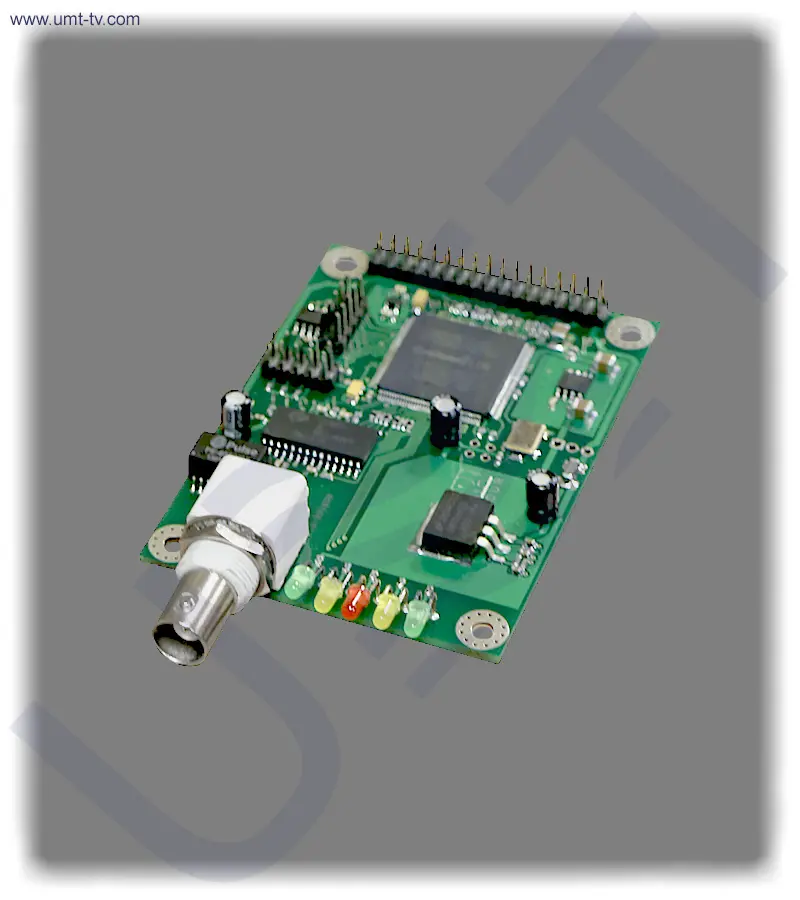

DVB ASI TS input board

Short description

DVB ASI TS input board is designed to convert the ASI TS into parallel DVB TS and can be used with other our boards for building ASI-IP converters modulators and other digital broadcasting equipment.

- +

Demande d'équipement sur mesure HEAD-END

    • Description
    • Downloads
    Parameters
    Input
    Type of input signal  DVB ASI, electric
    Modes of operation  burst, byte
    Number of bytes in the packet  188/204
    Determining the type of input stream  automatic
    Number of inputs  1
    Input connector type  BNC
    Input voltage  200..880 mV
    Input impedance  75 Ohm
    Input bitrate  up to 180 Mbps
    Output
    Output transport stream bitrate  up to 150 Mbps
    Operating mode  byte
    Number of bytes in the packet  188
    Other
    Indication  LED: carrier lock, frame lock, frame size, error, power
    Power supply  +5 VDC +/-5%
    Consumed power, no more than  2 W
    Module board dimensions  101х61 mm

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
