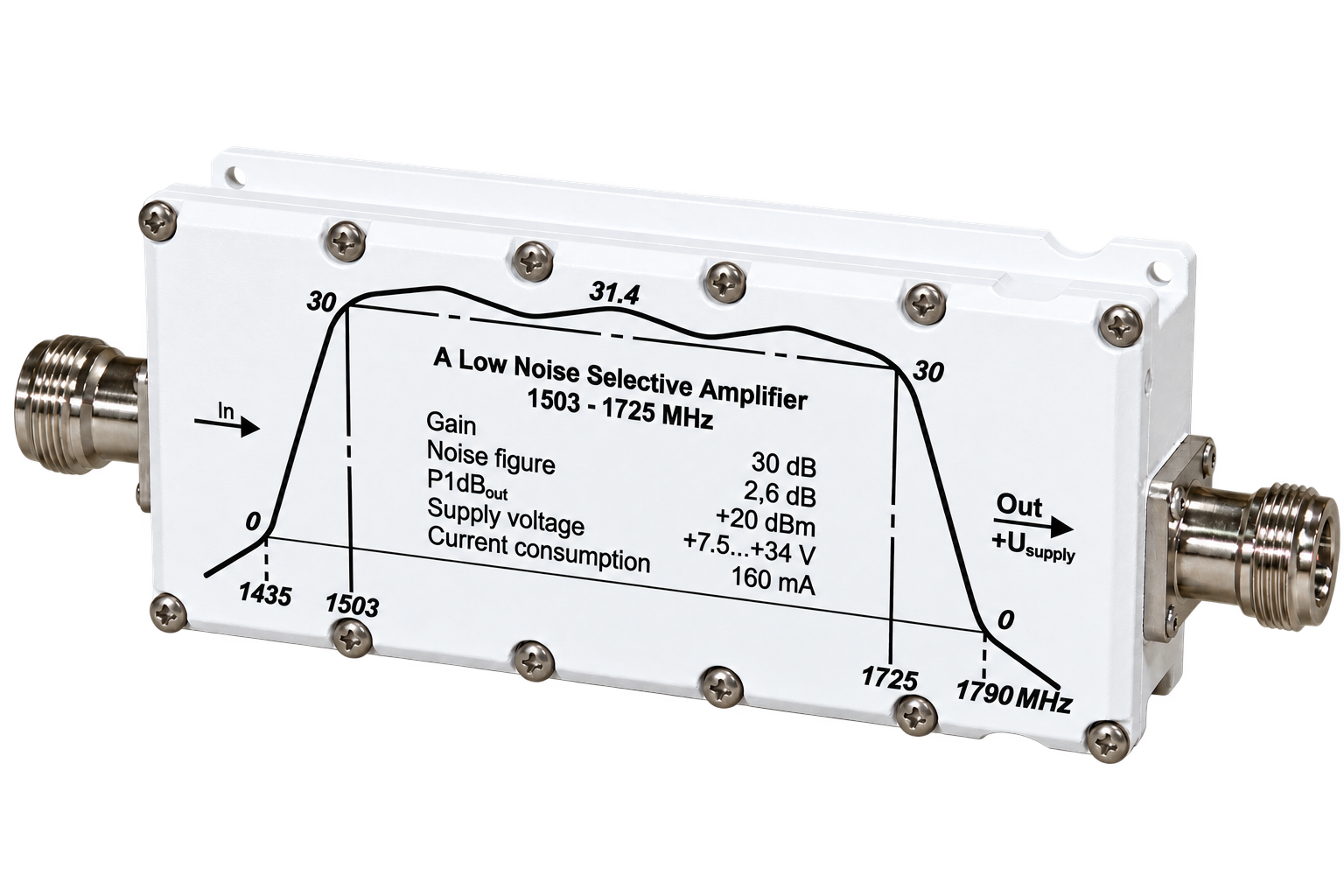

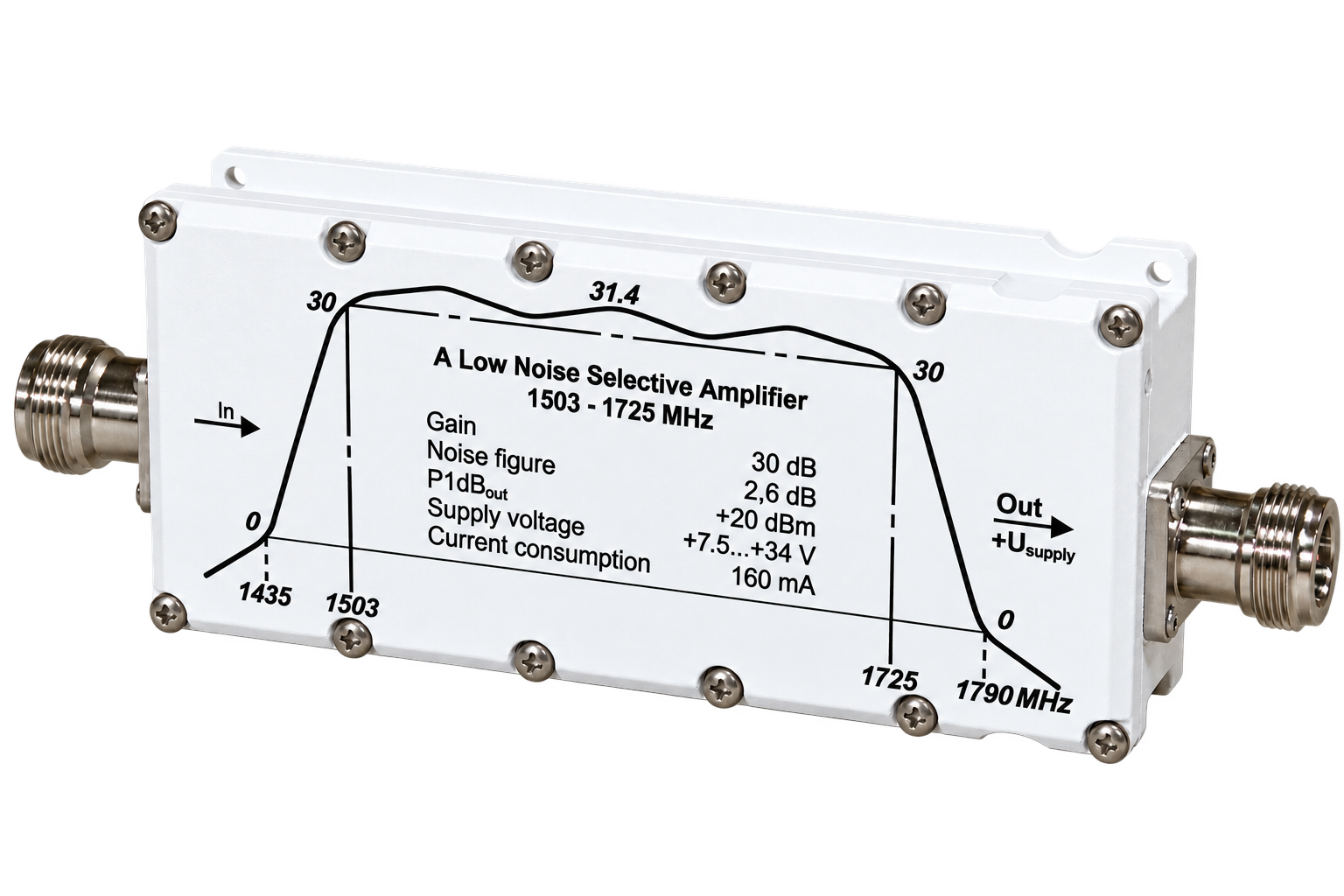

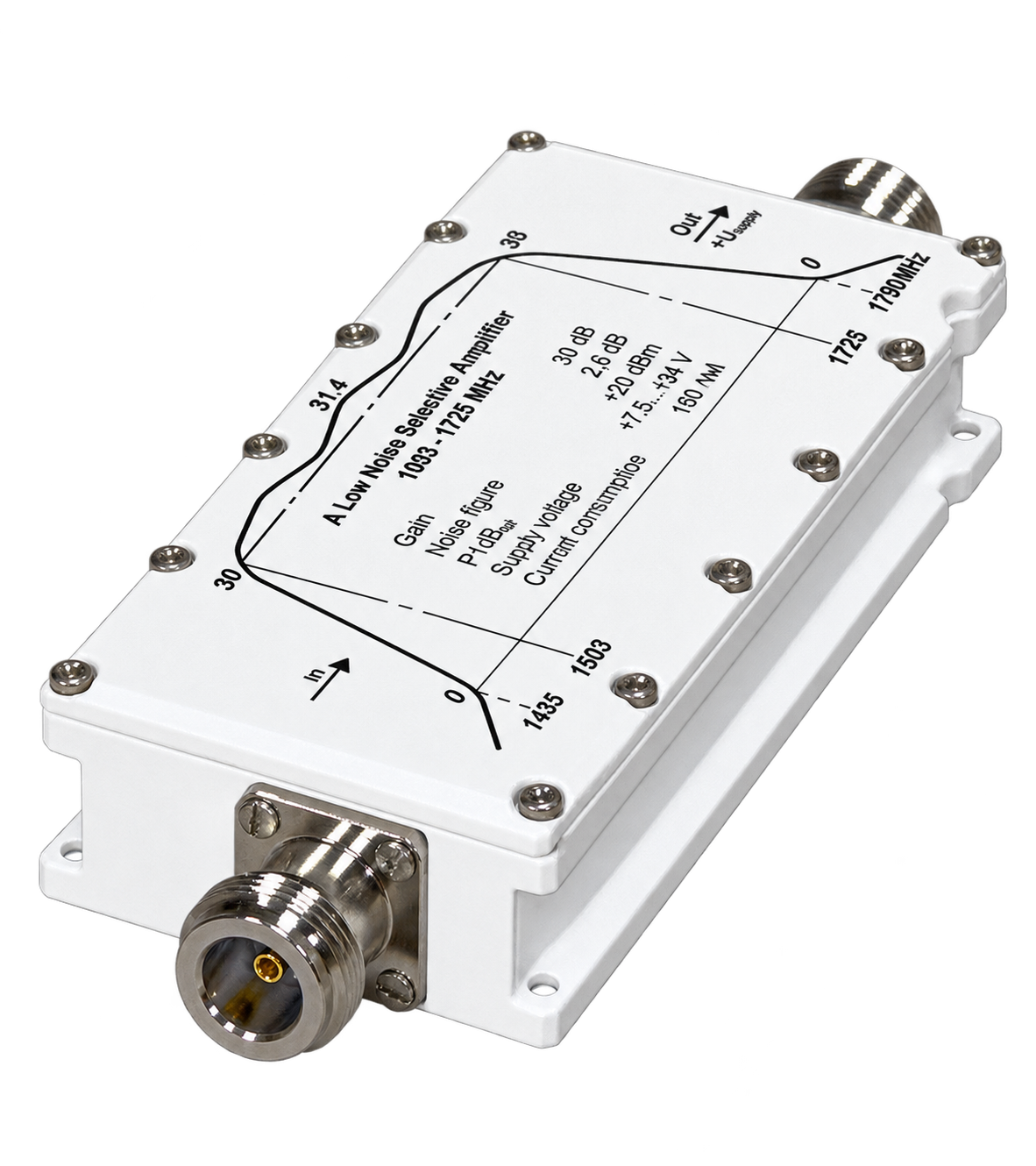

LNA L-band with filter

Brève description

L-band low-noise amplifier with filter is designed for increasing the sensitivity of the satellite communication and navigation systems receivers and for protecting from noise.

- +

Demande d'équipement sur mesure Équipement associé

    • Description
    • Téléchargements
    General parameters
    Frequensies range 1503 .. 1725 Mhz
    Gain 30 dB
    Flatnes ±1 dB
    Input retun loss -19 dB
    Output return loss -13 dB
    Noise Figure 2.6 dB
    Output power, P1dB +20 dBm
    Power Supply
    Input Voltage +7.5 .. +34 V
    Power Consumption 2 W
    Environmental:
    Operating temperature -40℃ to +50℃ (-40℉ to +122℉)
    Storage temperature -60℃ to +80℃ (-76℉ to +176℉)
    Operating humidity 100%, non‐condensing
    Mechanical
    Dimensions (W x H x D) 145 x 50 x 25
    Weight 280 g

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
