LSA-KH120

Brève description

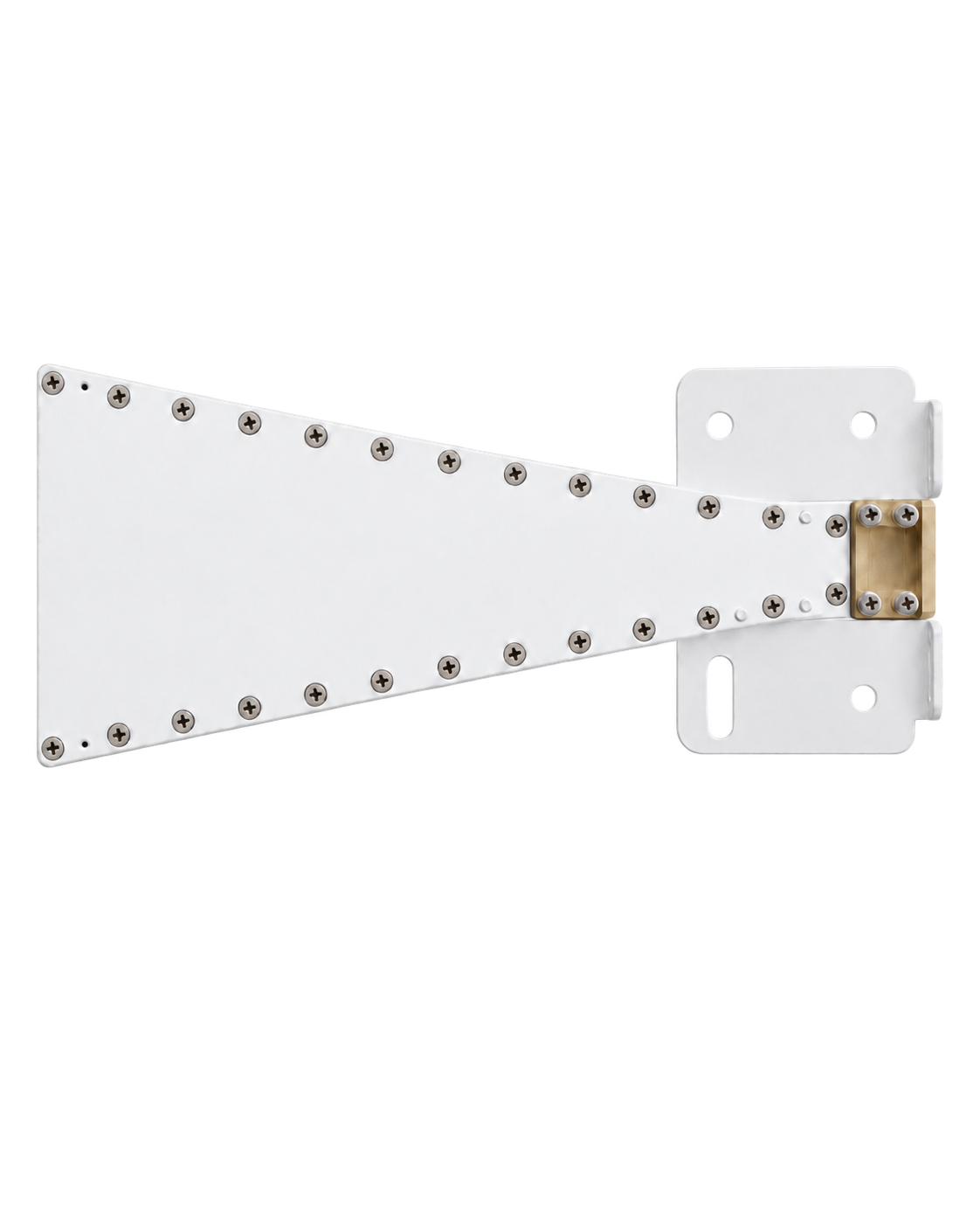

LSA-KH120 is Long Sector Antenna designed for K-band.

► Light weight + Compact size + High gain

► Gain: 15 dBi

► It is designed for K-band

► Frequency range of 18-26 GHz

► Radiation pattern of 120° and H-polarization

► Beam (H): 120°; Beam (V): 6°

Polarisation HK-bandde 90° à 120°
- +

Demande d'équipement sur mesure Antennes

    • Description
    • Téléchargements
    Parameter Value
    Frequency range, GHz 18.0-26.0
    Gain, dBi, not less 15
    Gain variation in the aperture, dB, min ±1.5
    VSWR, max 2
    Polarization Linear: horizontal (or by order)
    Cross-polarization, dB, not less 25
    HPBW:
    @horizontal 120°
    @vertical 6°
    Input power (max), W 20

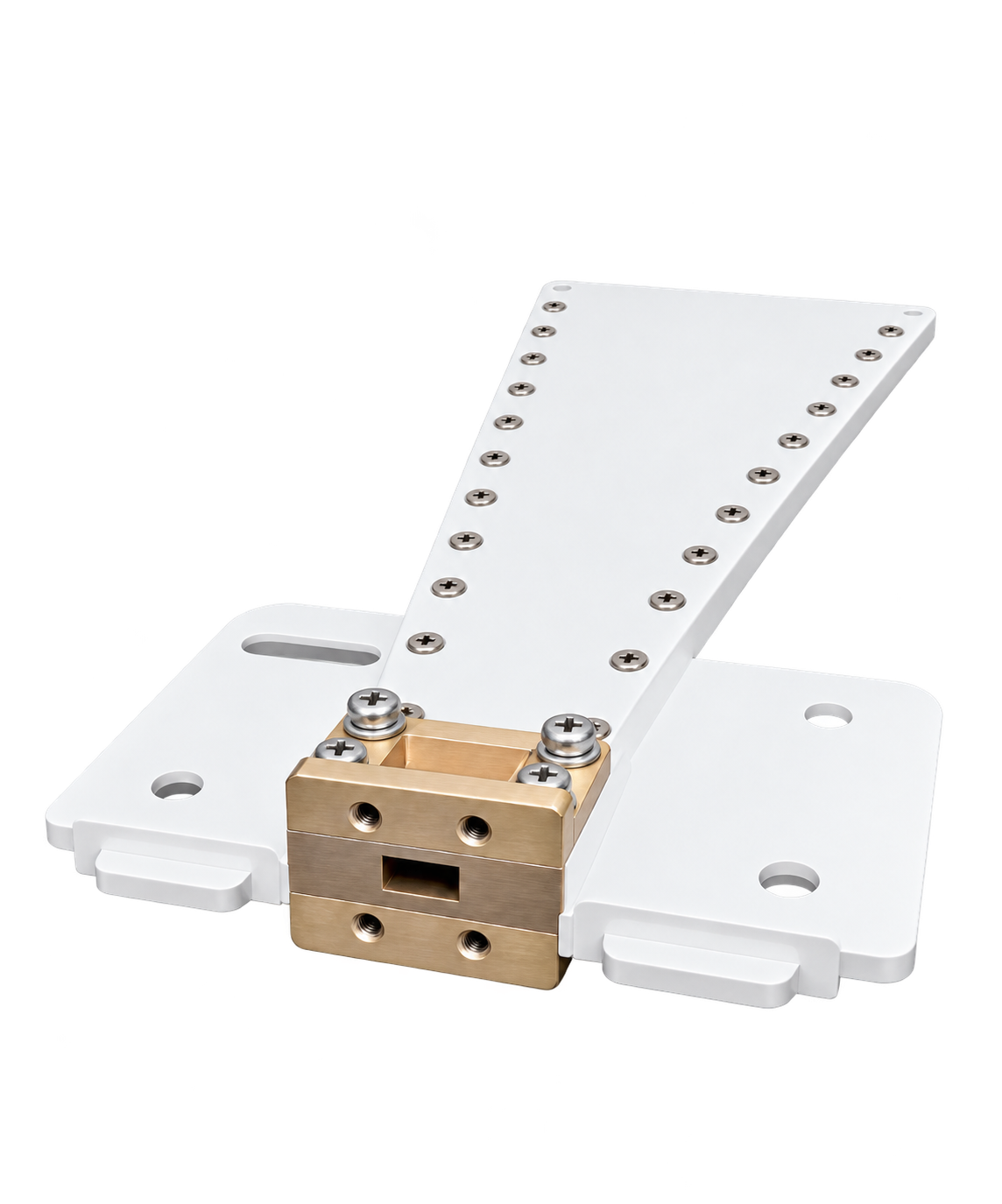

    Waveguide type, flange WR-42, UBR220
    Operating temperature, °C from -50 to +80
    Humidity 100% @ 25°C
    Dimensions, mm 341×140×10.8
    Weight, kg 1.2
    Mounting Installation on the pipe diameter up to 45 mm

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
