LSA-KH120
Short description

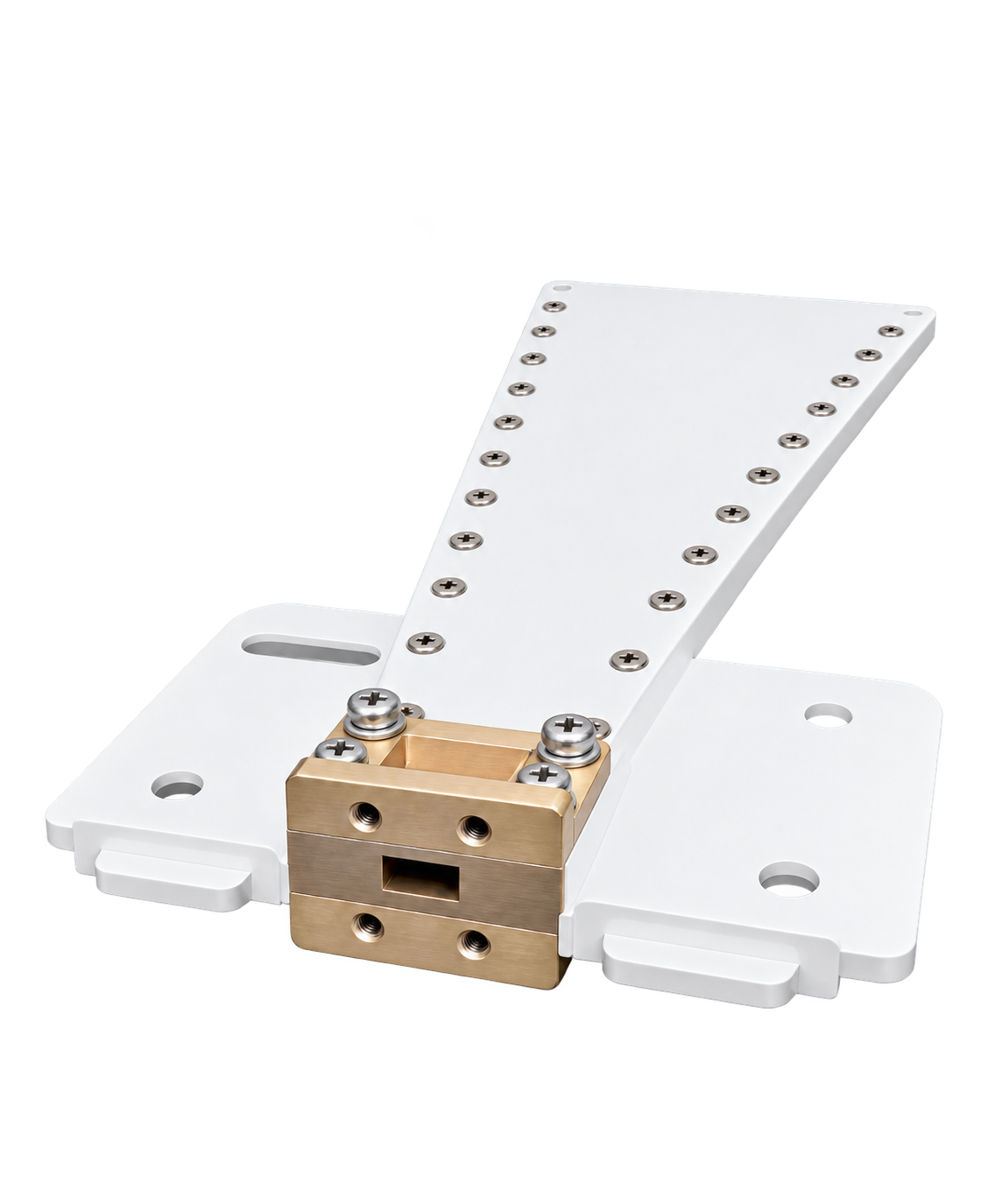

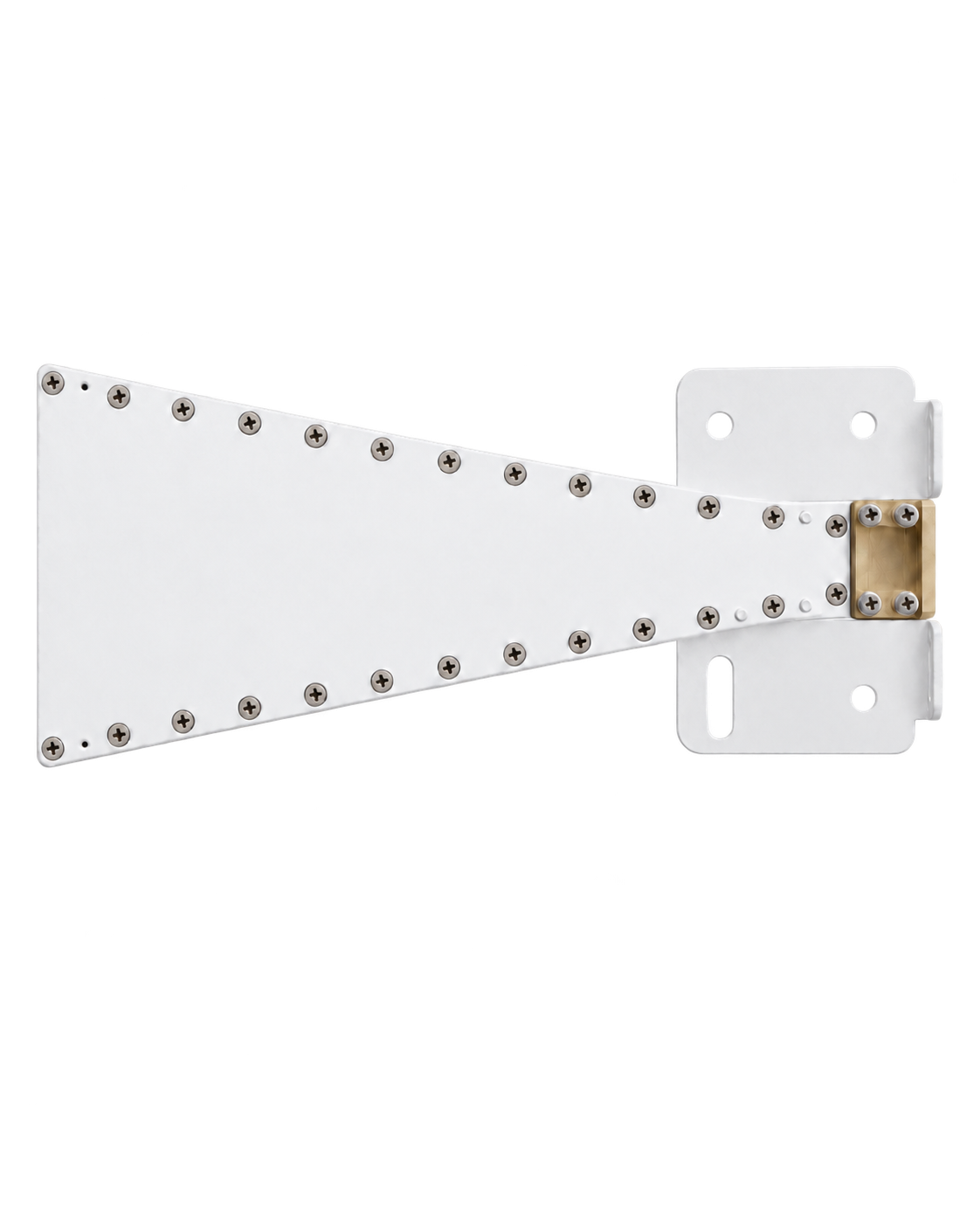

LSA-KH120 is Long Sector Antenna designed for K-band.
► Light weight + Compact size + High gain
► Gain: 15 dBi
► It is designed for K-band
► Frequency range of 18-26 GHz
► Radiation pattern of 120° and H-polarization
► Beam (H): 120°; Beam (V): 6°
-
+
-
Description
-
Downloads
LSA-KH120 is K-band long sector antenna designed for MVDS / MMDS broadcasting systems. LSA-KH120 has 120 deg radiation pattern, high gain of 15 dBi and wide frequency range of 18 - 26 GHz. LSA-KH120 has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by LSA-KH120 can be received by typical Ku-band satellite dish and LNB.
Key features:
- 120-degree radiation pattern
- High gain: 15 dBi
- Full K-band covering
- Light weight
- Compact size
- Transmission of K-band signals
- Applied as a part of broadcasting station, repeater and interactive microwave system
| Parameter | Value |
|---|---|
| Frequency range, GHz | 18.0-26.0 |
| Gain, dBi, not less | 15 |
| Gain variation in the aperture, dB, min | ±1.5 |
| VSWR, max | 2 |
| Polarization | Linear: horizontal (or by order) |
| Cross-polarization, dB, not less | 25 |
| HPBW: | |
| @horizontal | 120° |
| @vertical | 6° |
| Input power (max), W | 20 |
| Waveguide type, flange | WR-42, UBR220 |
| Operating temperature, °C | from -50 to +80 |
| Humidity | 100% @ 25°C |
| Dimensions, mm | 341×140×10.8 |
| Weight, kg | 1.2 |
| Mounting | Installation on the pipe diameter up to 45 mm |
