LSA-KuH120

Brève description

LSA-KuH120 is Long Sector Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 120 degrees and H-polarization

► Beam(H):120°; Beam(V):12°

► Frequency range: 10.7-13.5 GHz

► Gain: 13 dB

► It is designed for Ku-band

- +
  • Description
  • Téléchargements

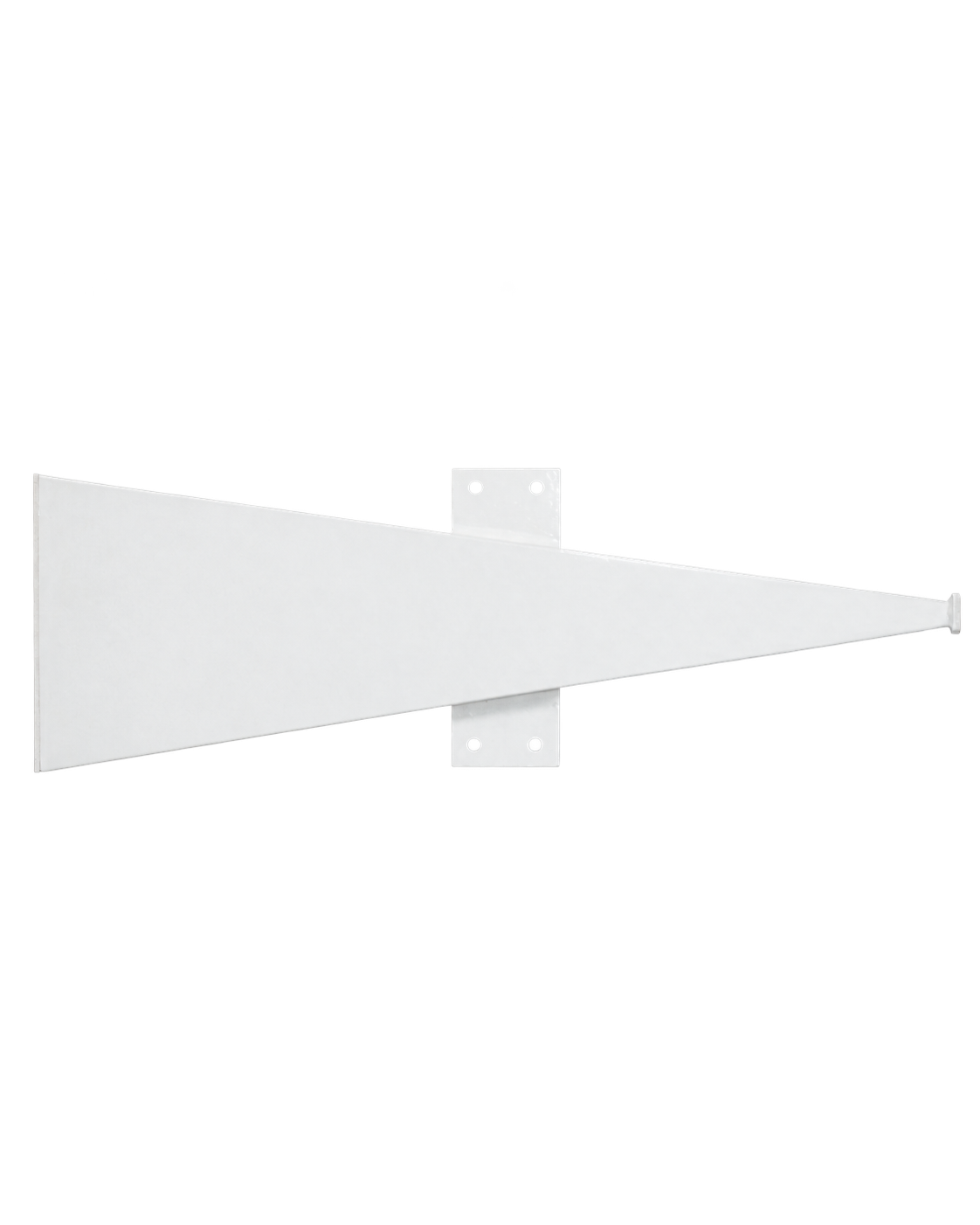

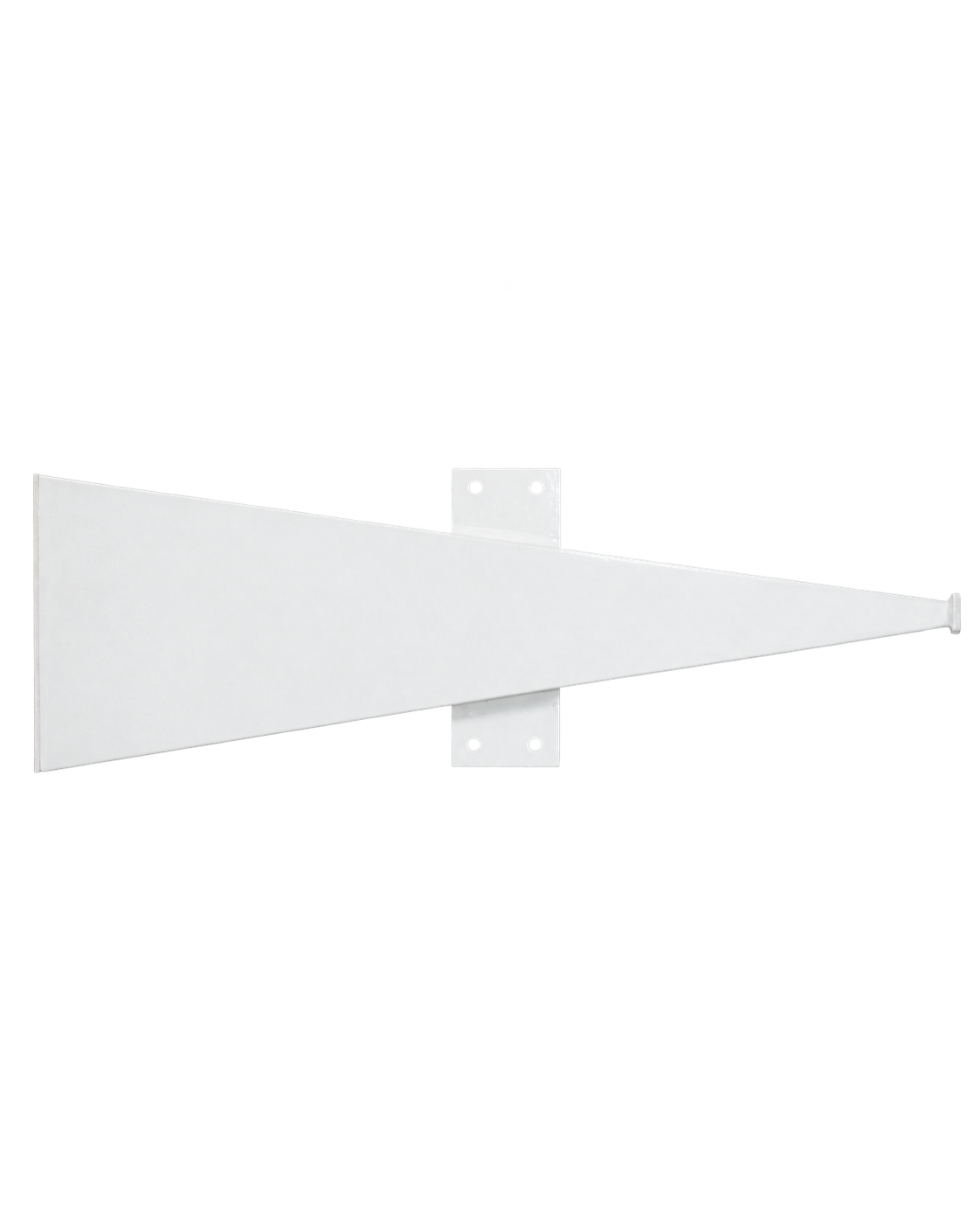

LSA-KuH120 is Ku-band long sector antenna which has radiation pattern of 120 degrees in horizontal plane and wide frequency range of 10700 – 13500 MHz.

Key features:

  • Reliable design
  • Light weight
  • Compact size
  • High gain

Main functions:

  • Transmit and receive Ku-band signals
  • Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems

LSA-KuH120 radiation pattern - developed by UMT LLC

Parameter Value
Frequency range, GHz 10.7 – 13.5
Gain, dBi 13
VSWR 2
Polarization horizontal
Cross-polarization isolation, dB 25
HPBW:
@horizontal   120°
@vertical 12°
Gain range in aperture, dB ±1
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 820х60х300
Weight, kg 3.0
Directional diagram tuning, deg:
 Elevation angle  ±30
 Azimuth ±360
Mounting Installation on the pipe diameter up to 45 mm
Input power, W 20
Body Dust/moisture proof

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
