LSA-KuH120

  • Description
  • Downloads

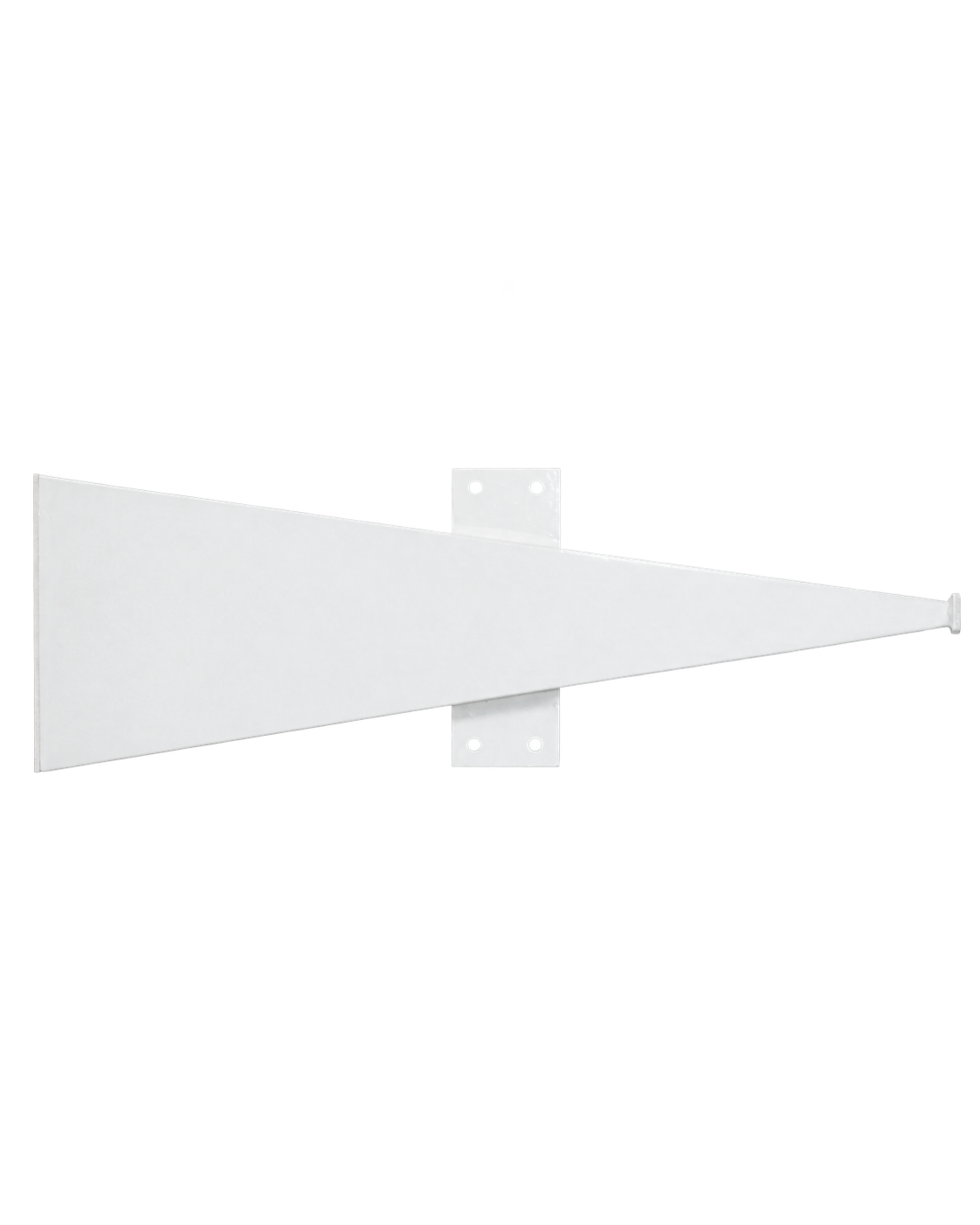

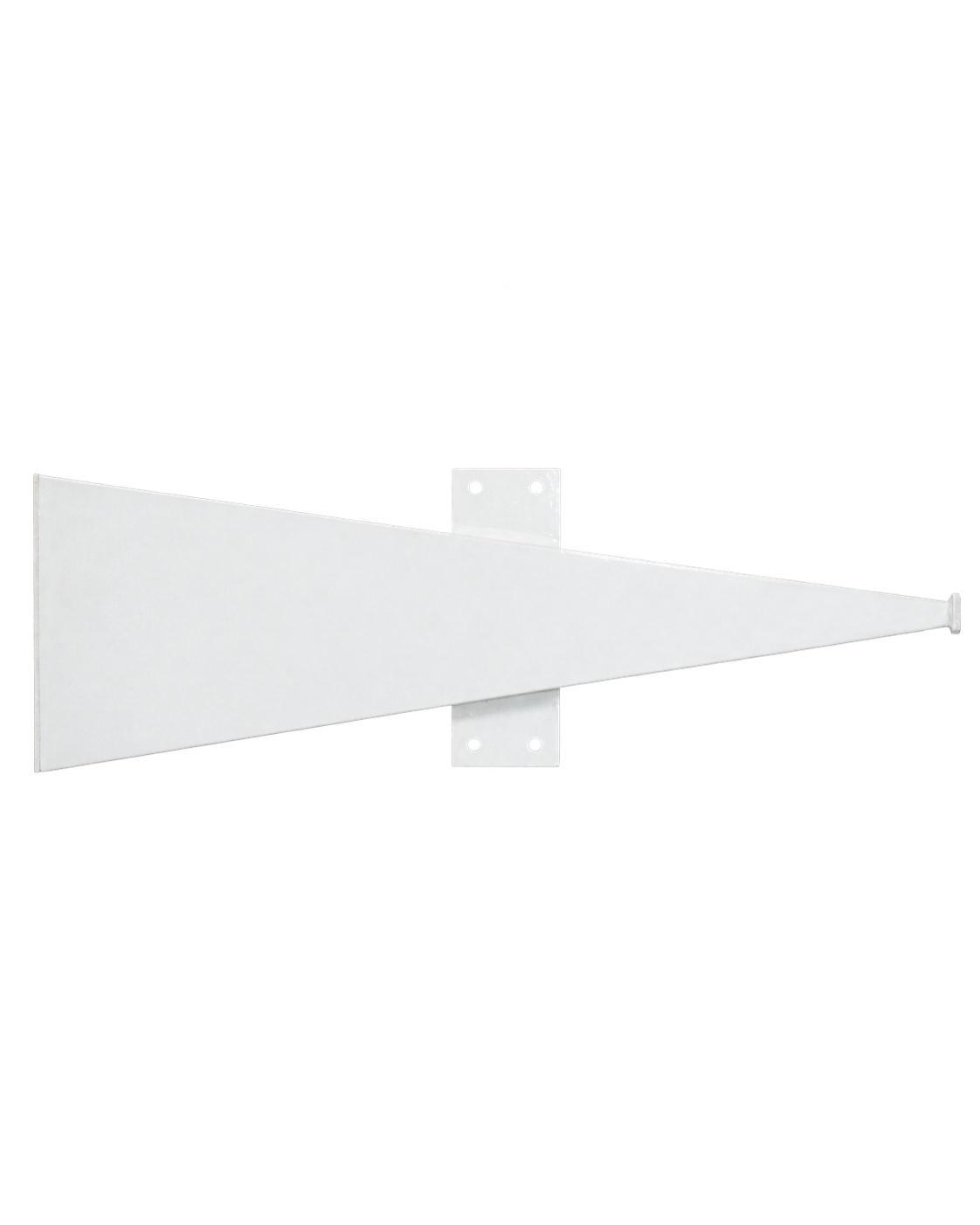

LSA-KuH120 is Ku-band long sector antenna which has radiation pattern of 120 degrees in horizontal plane and wide frequency range of 10700 - 13500 MHz.

Key features:

  • Reliable design
  • Light weight
  • Compact size
  • High gain


Main functions:

  • Transmit and receive Ku-band signals
  • Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems

LSA-KuH120 radiation pattern - developed by UMT LLC

ParameterValue
Frequency range, GHz 10.7 - 13.5
Gain, dBi 13
VSWR 2
Polarization horizontal
Cross-polarization isolation, dB 25
HPBW:
@horizontal   120°
@vertical 12°
Side-lobe level relative to the main beam, dB
Gain range in aperture, dB ±1
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 820х60х300
Weight, kg 3.0
Directional diagram tuning, deg:
 Elevation angle  ±30
 Azimuth ±360
Mounting Installation on the pipe diameter up to 45 mm
Input power, W 20
Body Dust/moisture proof
