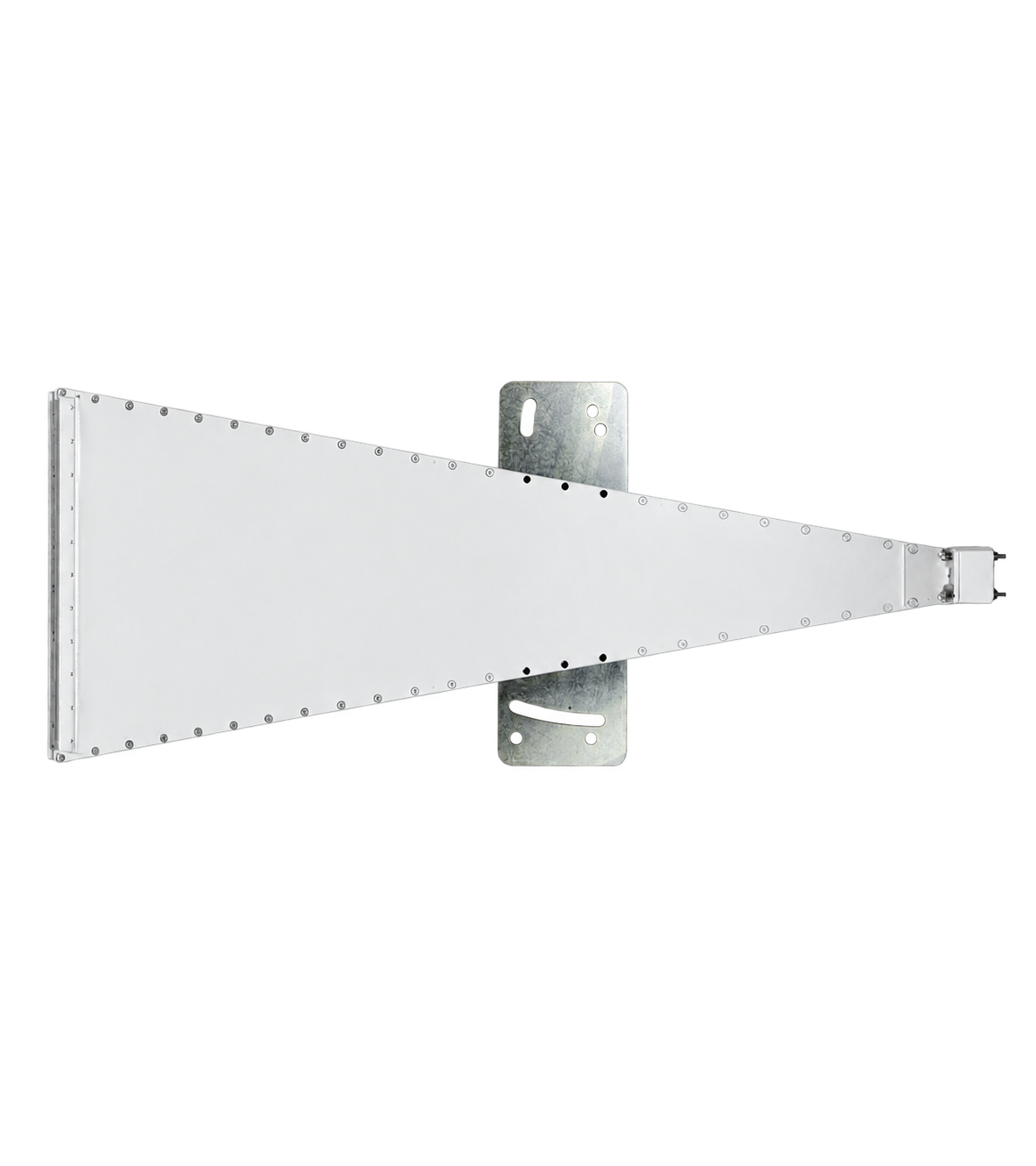

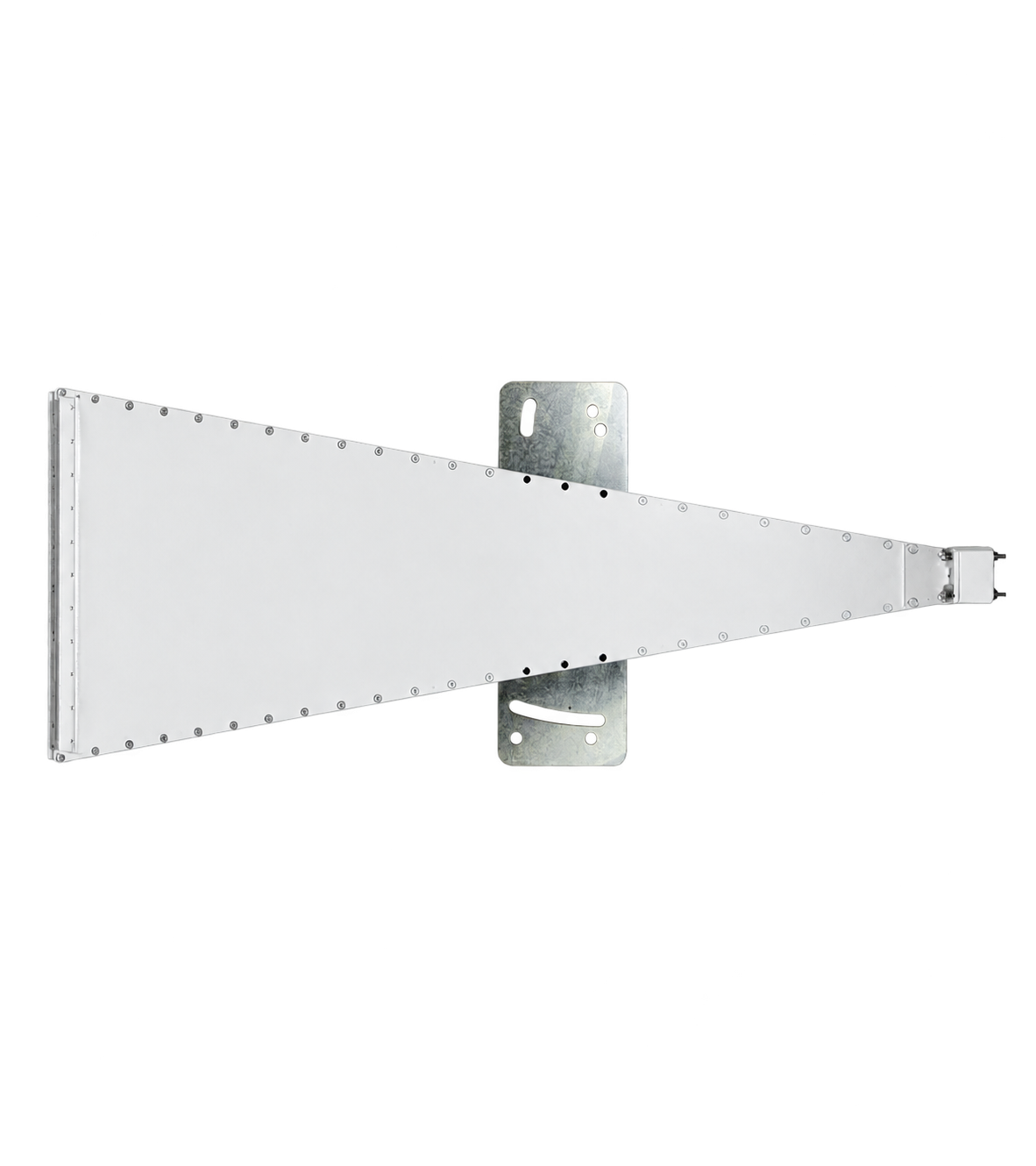

LSA-KuH120 v2
Brève description
LSA-KuH120 v2 v2 is Long Sector Antenna.
It has:
► Light weight + Compact size + High gain
► Radiation pattern of 120 degrees and H-polarization
► Beam (H): 120°; Beam (V): 12°
► Frequency range: 11-13.5 GHz
► Gain: 14 dB
► It is designed for Ku-band
LSA-KuH120 v2 v2 is Ku-band long sector antenna which has radiation pattern of 120 degrees in horizontal plane and wide frequency range of 11000 – 13500 MHz.
Key features:
- Reliable design
- Light weight
- Compact size
- High gain
Main functions:
- Transmit and receive Ku-band signals
- Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems
| Parameter | Value |
|---|---|
| Frequency range, GHz | 11 – 13.5 |
| Gain, dBi | 14 |
| VSWR | 2 |
| Polarization | horizontal |
| Cross-polarization isolation, dB | 25 |
| HPBW (depending on carrier): | |
| @horizontal (max) | 120° |
| @vertical (max) | 12° |
| Gain range in aperture, dB | ±0.5 |
| Temperature range, °C | -50 to +80 |
| Humidity | 100% where 25°C |
| Size, mm | 726х26х280 |
| Weight, kg | 3.1 |
| Directional diagram tuning, deg: | |
| Elevation angle | ±20° (-20°…0° or 0°…+20°) |
| Azimuth | ±360° (around the pipe) |

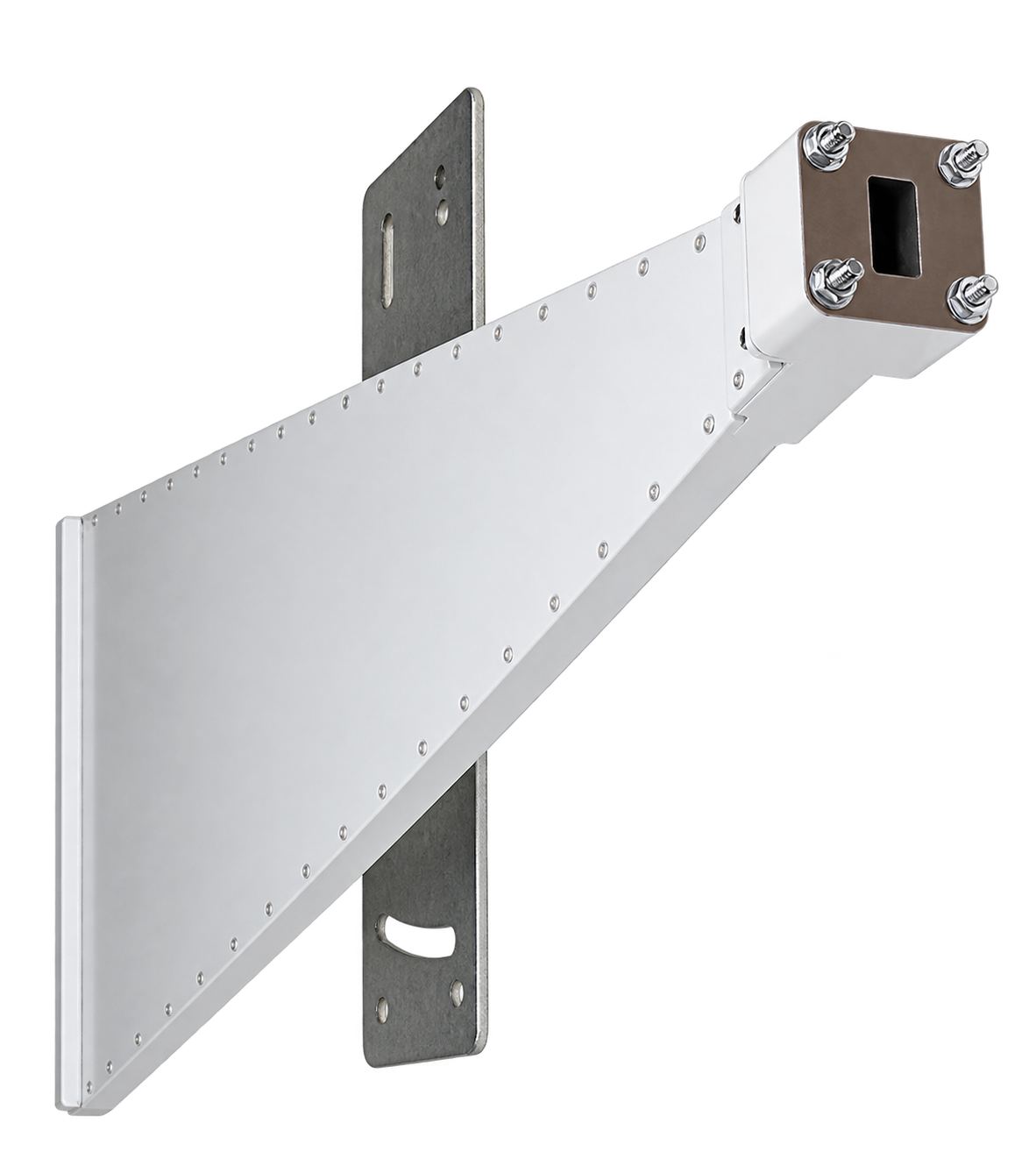

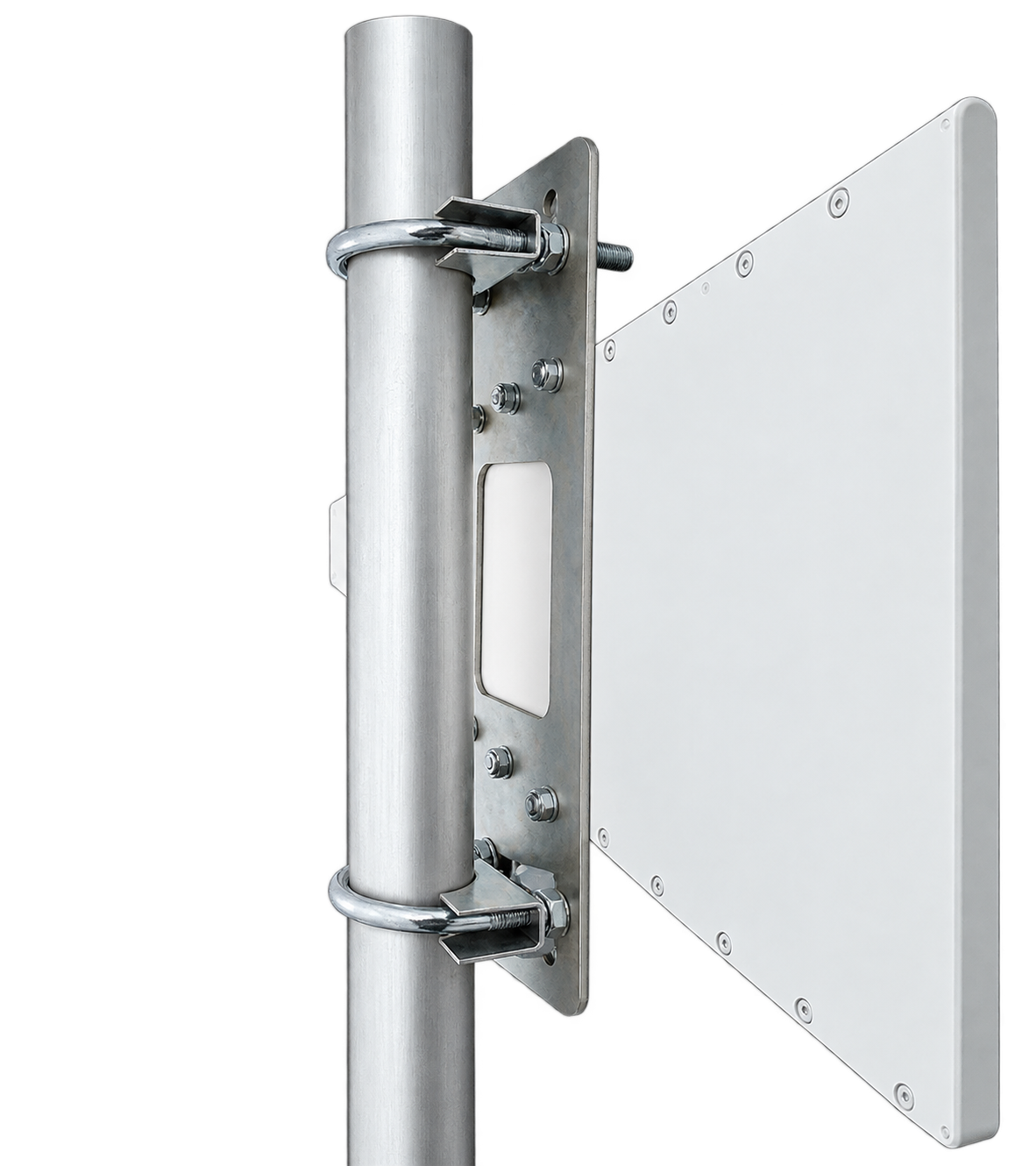

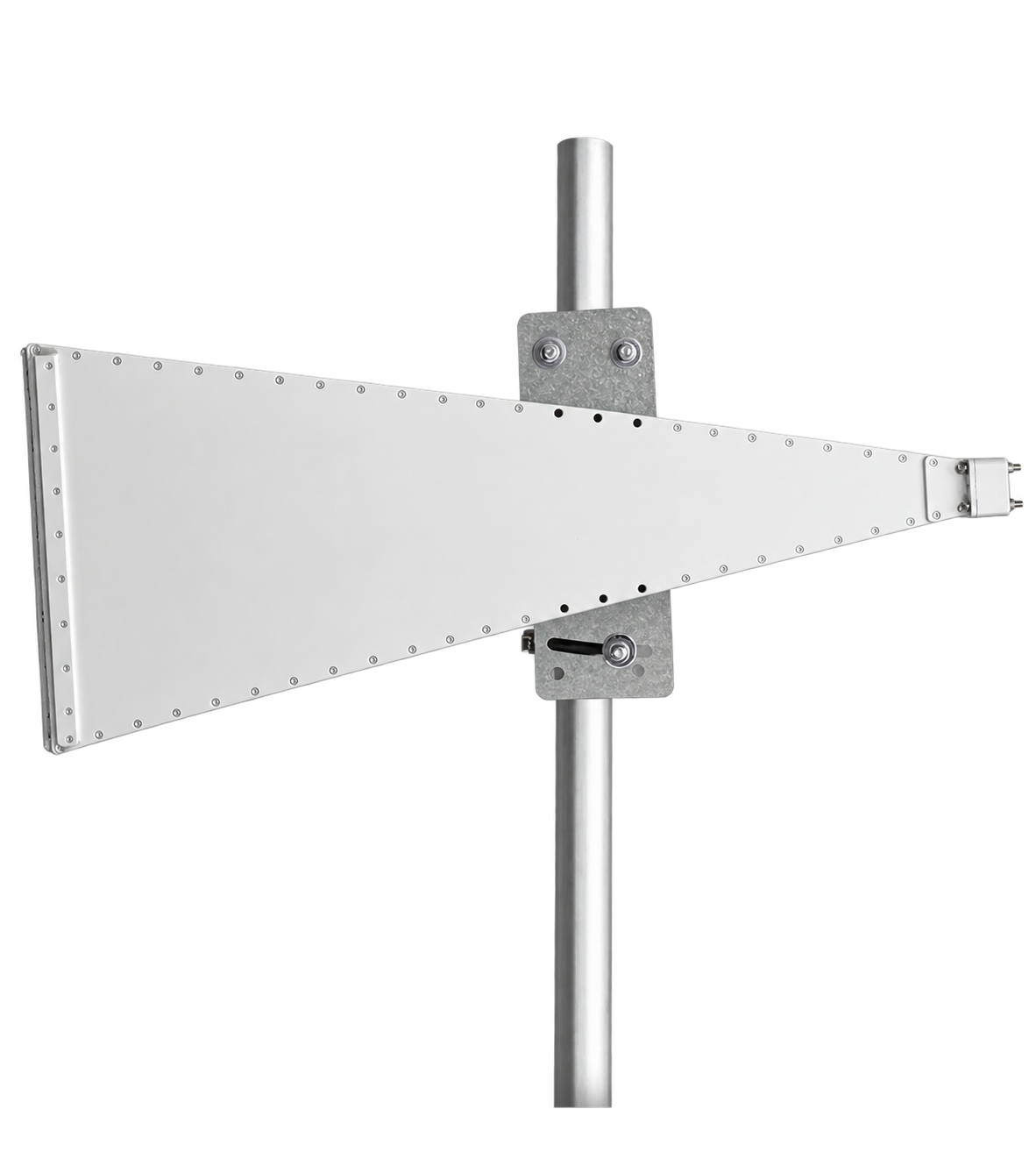

| Mounting | Installation on the pipe diameter up to 45 mm |
| Input power, W | 20 |
| Body | Dust/moisture proof |
