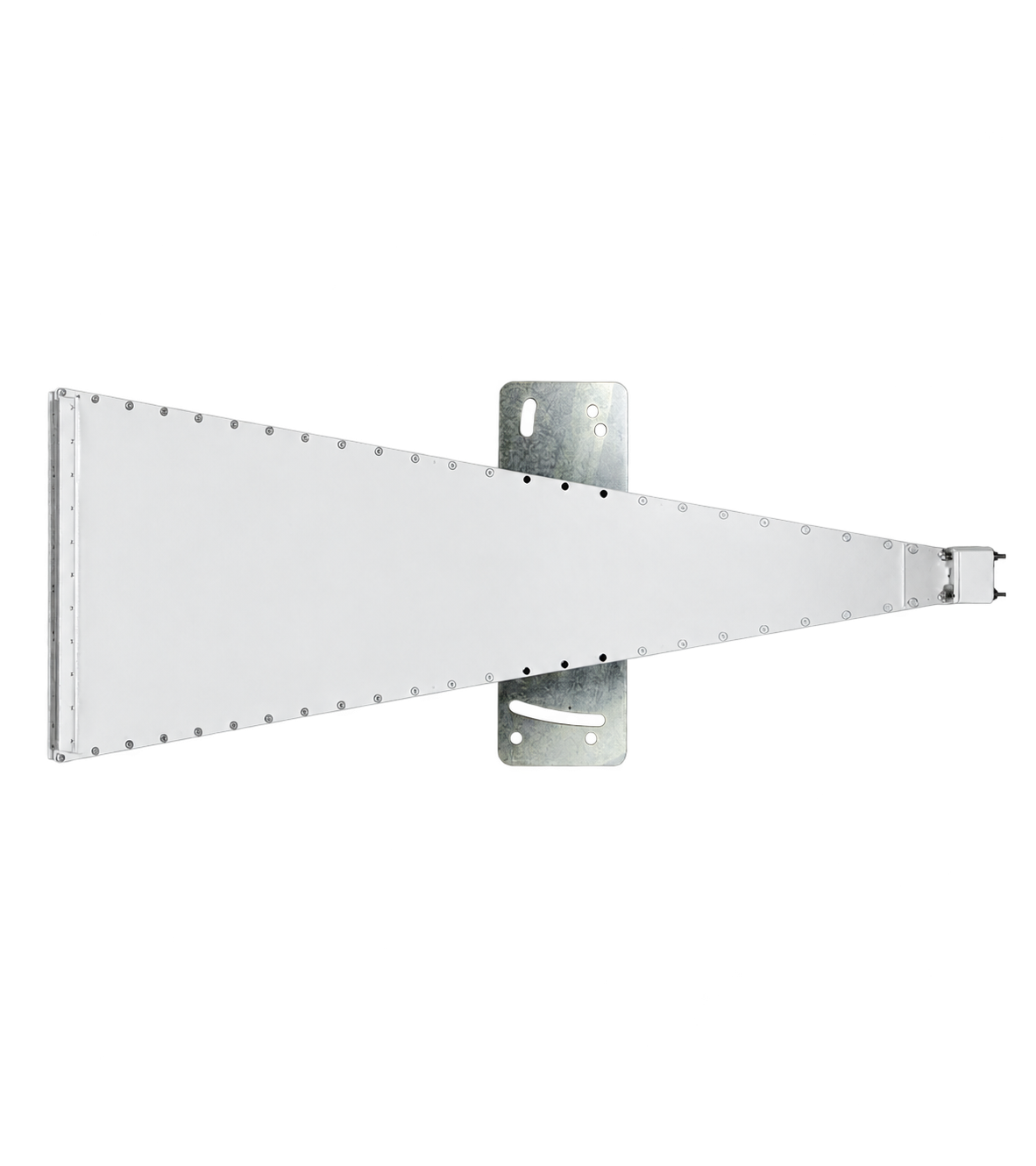

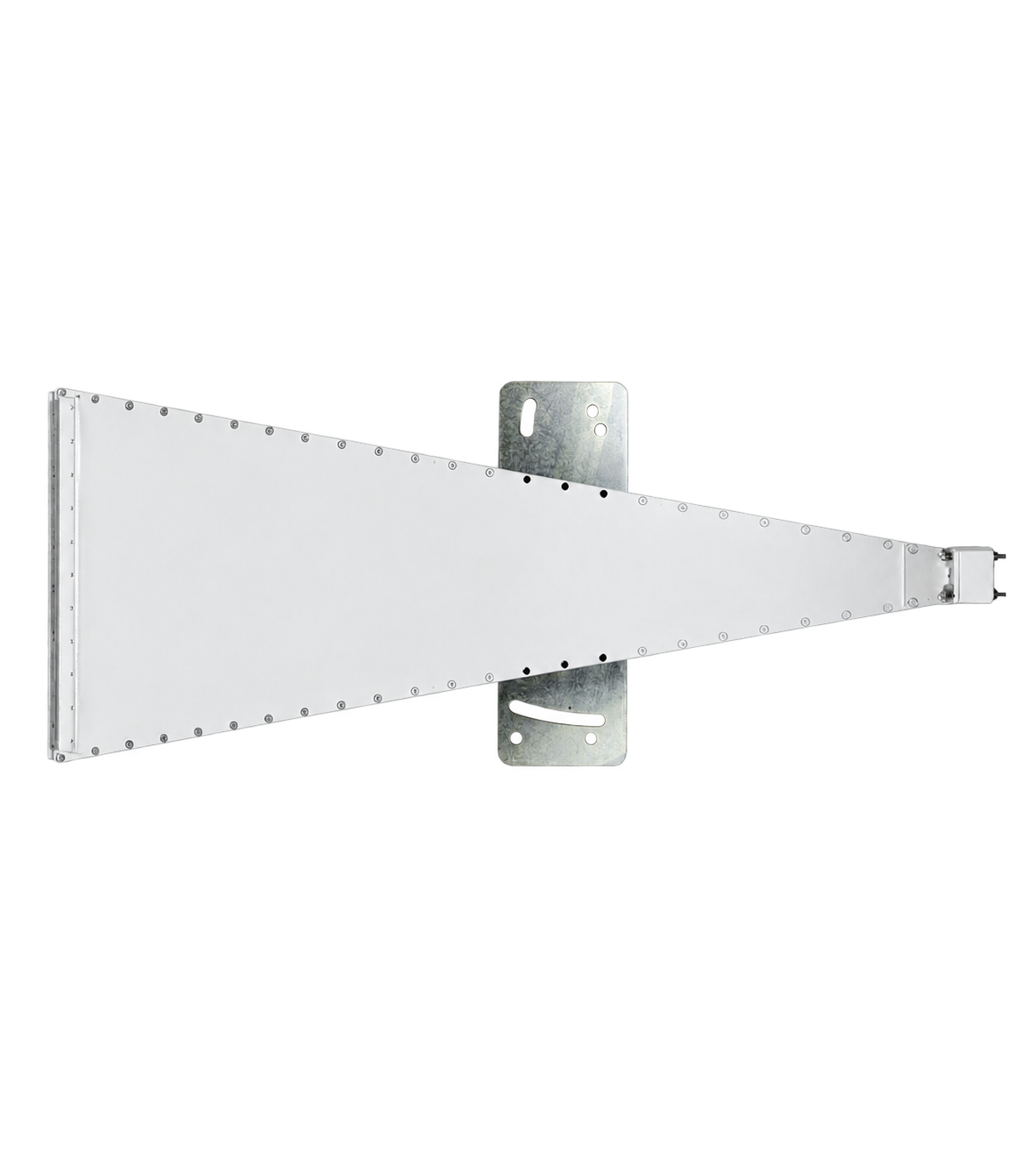

LSA-KuH120 v2 v2 is Ku-band long sector antenna which has radiation pattern of 120 degrees in horizontal plane and wide frequency range of 11000 – 13500 MHz.
LSA-KuH120 v2 Ku-band long sector antenna is a professional-grade broadcasting antenna developed for MVDS/MMDS systems, repeater hubs and interactive microwave infrastructures. Operating within the 11-13.5 GHz frequency range, it provides a 14 dBi gain, a wide 120° horizontal beamwidth and precise ±0.5 dB gain variation across the aperture. This ensures stable and efficient point-to-multipoint broadcasting with minimal interference.
With horizontal polarization and strong cross-polarization isolation ≥25 dB, the LSA-KuH120 v2 guarantees clean signal transmission for broadcasting and telecom infrastructures. Its ±20° elevation adjustment and ±360° azimuth rotation provide maximum installation flexibility, allowing operators to fine-tune coverage in professional networks.
Designed with a rugged dust- and moisture-proof body, the LSA-KuH120 v2 withstands extreme climates from -50 °C to +80 °C and 100% humidity. Despite its durability, it remains lightweight at only 3.1 kg with compact dimensions (726×26×280 mm), reducing wind load and ensuring simple outdoor installation. This makes it a durable Ku-band long sector antenna for professional broadcasting, telecom and video surveillance applications.
✅ 14 dBi high gain
The LSA-KuH120 v2 provides 14 dBi gain, ensuring efficient signal coverage across wide broadcasting areas. It functions as a high gain Ku-band sector antenna for MVDS/MMDS infrastructures, guaranteeing long-term reliability.
✅ 120° horizontal beamwidth
With a 120° wide radiation pattern, this antenna provides powerful point-to-multipoint coverage. The LSA-KuH120 v2 is a Ku-band long sector antenna that ensures stable connectivity for large subscriber networks.
✅ Horizontal polarization design
The LSA-KuH120 v2 operates with horizontal linear polarization, ensuring compatibility with professional DVB-S2 infrastructures. It is ideal for operators seeking a Ku-band sector antenna with horizontal polarization.
✅ Lightweight and compact body
At only 3.1 kg, this antenna combines durability with portability. Its slim design reduces wind load, making the LSA-KuH120 v2 a lightweight Ku-band long sector antenna for outdoor use.
✅ Rugged outdoor construction
With a dust- and moisture-proof body, the LSA-KuH120 v2 guarantees reliability in harsh weather conditions. It is a durable outdoor Ku-band antenna for broadcasting and telecom systems.
🛠️ Whether you want to buy a high gain Ku-band sector antenna with 120° beamwidth, order a commercial Ku-band broadcasting antenna online, or deploy a sector antenna with adjustable directional diagram, the LSA-KuH120 v2 is engineered to deliver.
🛒 The LSA-KuH120 v2 is available now and ready for integration into MVDS/MMDS broadcasting systems, repeater hubs and interactive microwave networks.
📌 Key features
-
Wide frequency range 11-13.5 GHz
The LSA-KuH120 v2 operates within the Ku-band spectrum, providing compatibility with DVB and microwave infrastructures. This makes it a Ku-band sector antenna for MVDS/MMDS broadcasting networks and interactive telecom systems.
Delivering 14 dBi high gain, this antenna ensures strong and reliable performance. It is a professional Ku-band long sector antenna suitable for broadcasting hubs, repeater stations and surveillance systems.
The LSA-KuH120 v2 maintains precise ±0.5 dB gain variation across the aperture, ensuring highly stable performance. This makes it a sector antenna with gain stability for DVB and microwave applications.
-
Cross-polarization isolation ≥25 dB
With strong 25 dB cross-polarization isolation, this antenna minimizes interference in dense broadcasting environments. It is a sector antenna with high cross-polarization isolation for clean Ku-band transmission.
The low VSWR design ensures efficient energy transfer and minimizes signal reflection losses. This guarantees consistent performance in professional Ku-band broadcasting infrastructures.
-
Flexible azimuth and elevation tuning

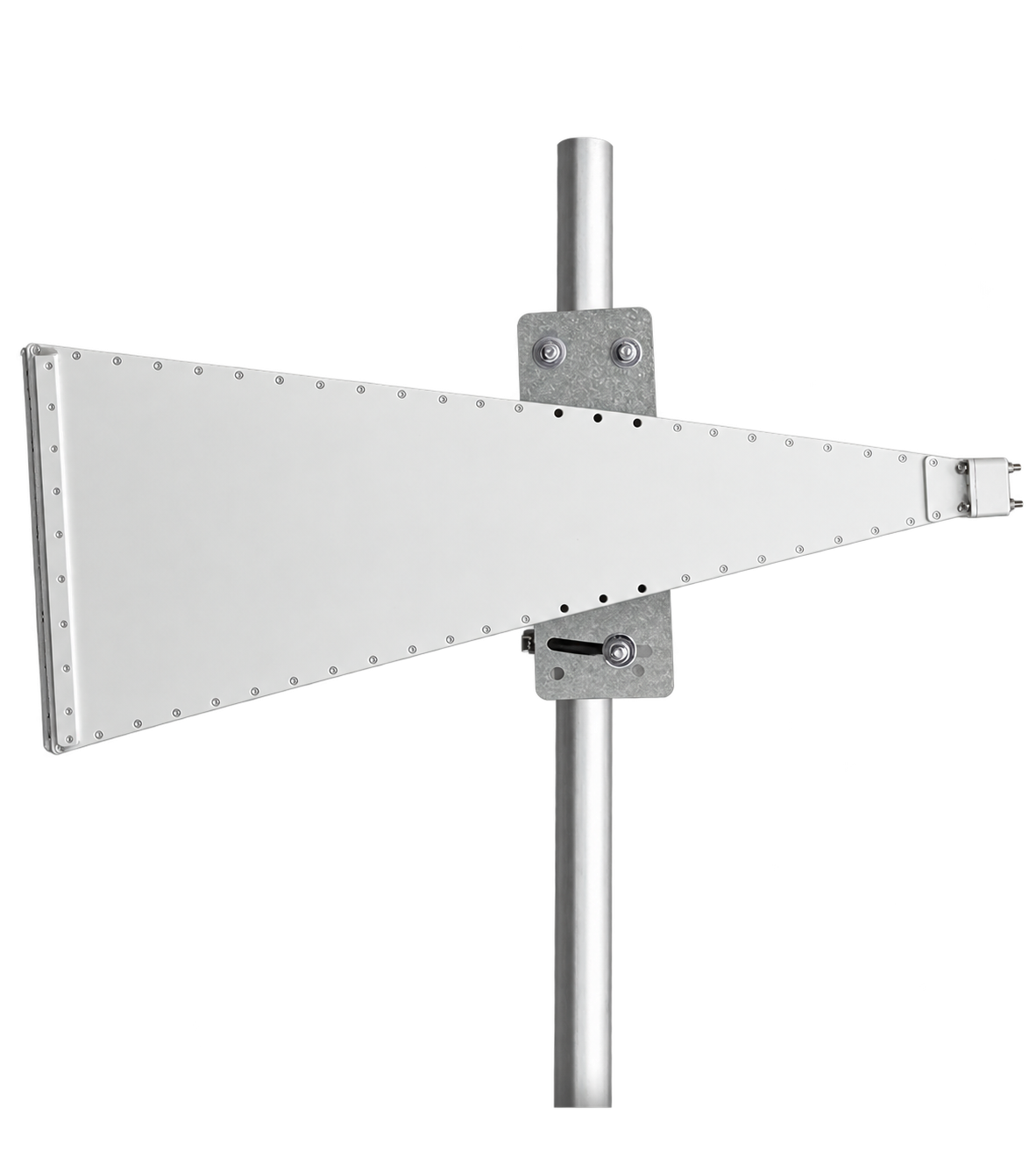

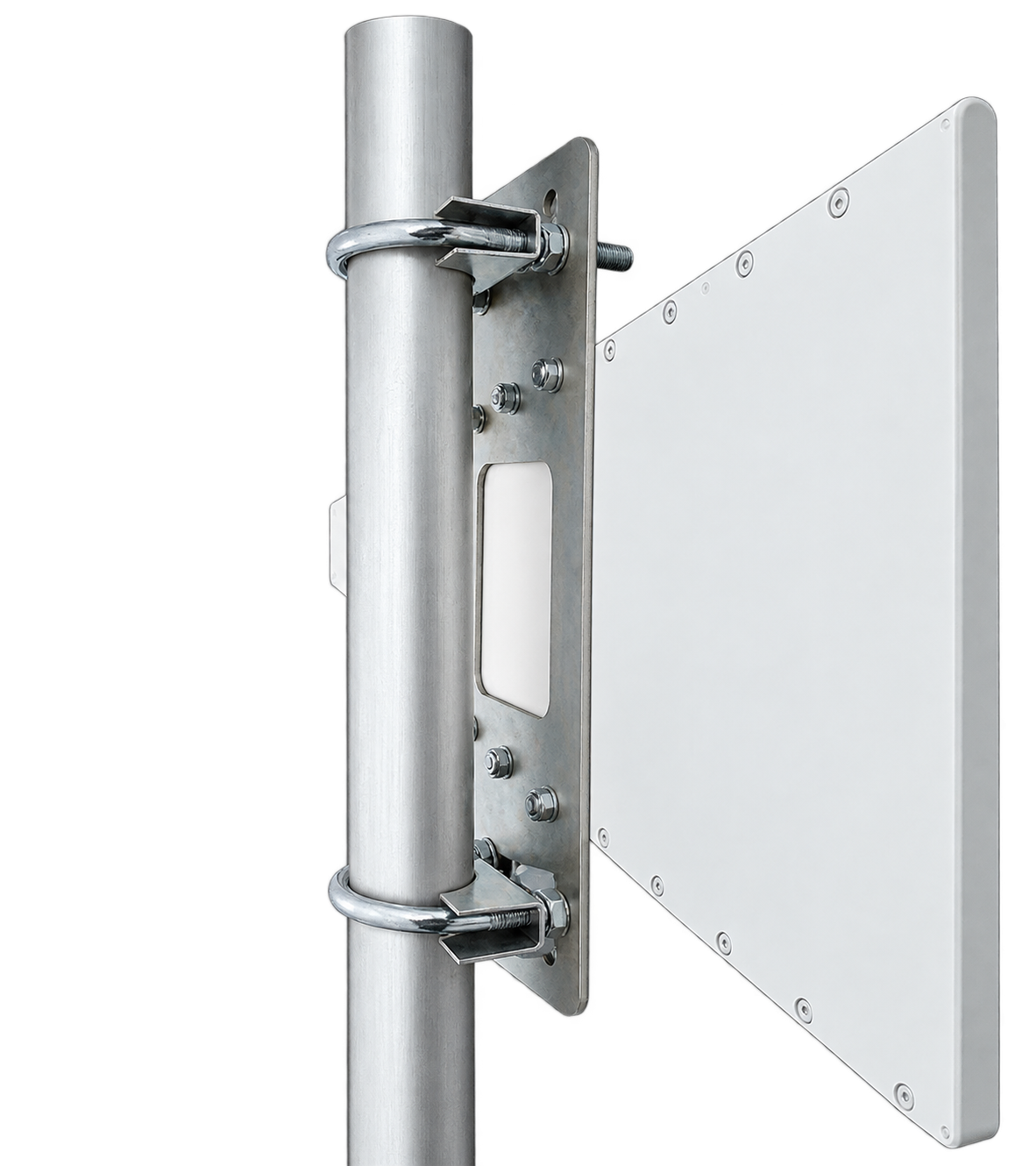

The LSA-KuH120 v2 allows ±20° elevation tuning and full ±360° azimuth adjustment, enabling precise alignment. It is a sector antenna with adjustable directional diagram, offering maximum flexibility for broadcasters.
-
Lightweight weatherproof construction
At just 3.1 kg, the antenna is lightweight and easy to install, while its rugged casing ensures durability in outdoor environments. The LSA-KuH120 v2 is a dust/moisture-proof Ku-band antenna for long-term broadcasting use.
⚙️ Main functions
-
Transmission of Ku-band signals
The LSA-KuH120 v2 provides efficient Ku-band transmission, ensuring stable broadcasting for both point-to-multipoint and long-range infrastructures. It is widely used as a Ku-band sector antenna for DVB-S2 and MVDS/MMDS systems, guaranteeing strong coverage even in regions with difficult terrain.
-
Reception of Ku-band signals
This antenna ensures reliable Ku-band signal reception, delivering stable performance in professional and subscriber-level applications. It is a Ku-band sector antenna for video surveillance systems and DVB infrastructures, providing clean reception and minimal interference.
-
Broadcasting head-end integration
The LSA-KuH120 v2 integrates seamlessly into broadcasting head-end stations, ensuring consistent upstream and downstream connections. Its design makes it a professional Ku-band antenna for DVB head-end infrastructures, providing efficient and scalable performance.
-
Repeater station deployment
As a sector antenna for repeater hubs, the LSA-KuH120 v2 retransmits signals with high stability, extending broadcasting range. It is especially valuable in regions where cable deployment is impossible, offering a cost-effective Ku-band solution.
-
Interactive microwave and surveillance systems
The antenna supports interactive microwave infrastructures, enabling efficient two-way communication. It is also widely used as a Ku-band antenna for surveillance networks, providing strong and stable coverage in critical systems.
-
MVDS/MMDS broadcasting networks
The LSA-KuH120 v2 plays a crucial role in MVDS/MMDS broadcasting infrastructures, supporting high-quality regional and national coverage. As a Ku-band high gain sector antenna, it ensures consistent performance under heavy broadcasting loads.
-
Point-to-multipoint broadcasting links
With its wide 120° HPBW, the LSA-KuH120 v2 is perfect for Ku-band multipoint broadcasting applications. It guarantees broad-area coverage for subscriber groups and professional telecom infrastructures.
The LSA-KuH120 v2 strengthens telecommunication hubs, ensuring more efficient data distribution across broadcasting systems. It is widely deployed as a professional Ku-band antenna for telecom relay stations, supporting both capacity and reliability.
-
Outdoor broadcasting infrastructures
Built with a dust- and moisture-proof body, this antenna ensures durability in extreme environments. It is a rugged Ku-band antenna for outdoor broadcasting hubs, capable of long-term deployment under harsh conditions.
-
Flexible system integration

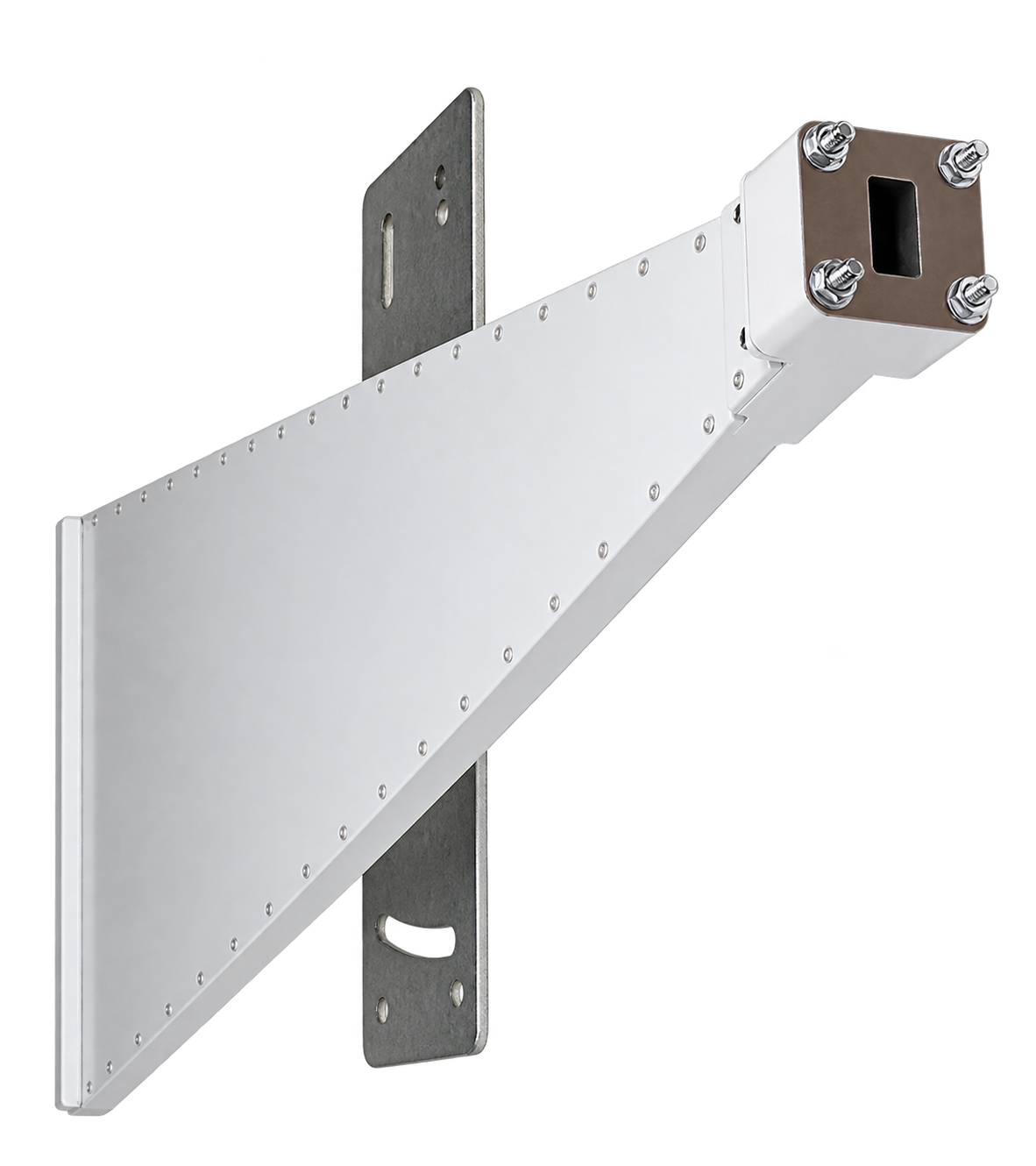

The LSA-KuH120 v2 is compatible with WR-75 waveguide interfaces, enabling quick and reliable setup. It integrates easily into professional DVB-S2 and interactive microwave systems, offering flexibility for operators.
🧩 Applications
-
Ku-band broadcasting networks
The LSA-KuH120 v2 is designed for Ku-band DVB broadcasting infrastructures, ensuring stable wide-area coverage. It is a professional Ku-band sector antenna for national and regional broadcasting networks.
-
MVDS/MMDS infrastructures
This antenna guarantees strong performance in MVDS/MMDS broadcasting systems, delivering clean and powerful signals. It is ideal as a Ku-band antenna for multipoint DVB distribution.
-
Repeater stations and relay hubs
The LSA-KuH120 v2 retransmits signals effectively in repeater stations and relay hubs, ensuring consistent coverage. It provides a reliable solution for operators working in challenging environments.
-
Broadcasting head-end stations
The antenna integrates seamlessly into DVB-S2 head-end stations, providing stable upstream and downstream links. It is a Ku-band long sector antenna for scalable and professional head-end broadcasting infrastructures.
-
Interactive microwave and video surveillance systems
The LSA-KuH120 v2 is widely used in interactive microwave infrastructures, enabling reliable two-way broadcasting. It is also deployed in video surveillance systems, offering stable Ku-band coverage for security applications.
-
Point-to-multipoint communication links
With its 120° horizontal beamwidth, the LSA-KuH120 v2 is perfect for Ku-band multipoint communication links. It ensures wide coverage for subscriber networks and telecom operators.
-
Public broadcasting infrastructures
The LSA-KuH120 v2 supports public DVB broadcasting networks, ensuring reliable regional and national service delivery. It is a professional Ku-band antenna for continuous public broadcasting.
-
Outdoor telecom installations
The rugged construction makes this antenna ideal for telecom hubs and outdoor distribution infrastructures. It ensures long-term durability as a dust/moisture-proof Ku-band sector antenna.
-
Professional DVB networks
The LSA-KuH120 v2 integrates seamlessly into DVB-S2, DVB-T2 and DVB-C networks, offering full compatibility. It is a versatile Ku-band antenna for professional DVB infrastructures.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the LSA-KuH120 v2 Ku-band long sector antenna, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment.
