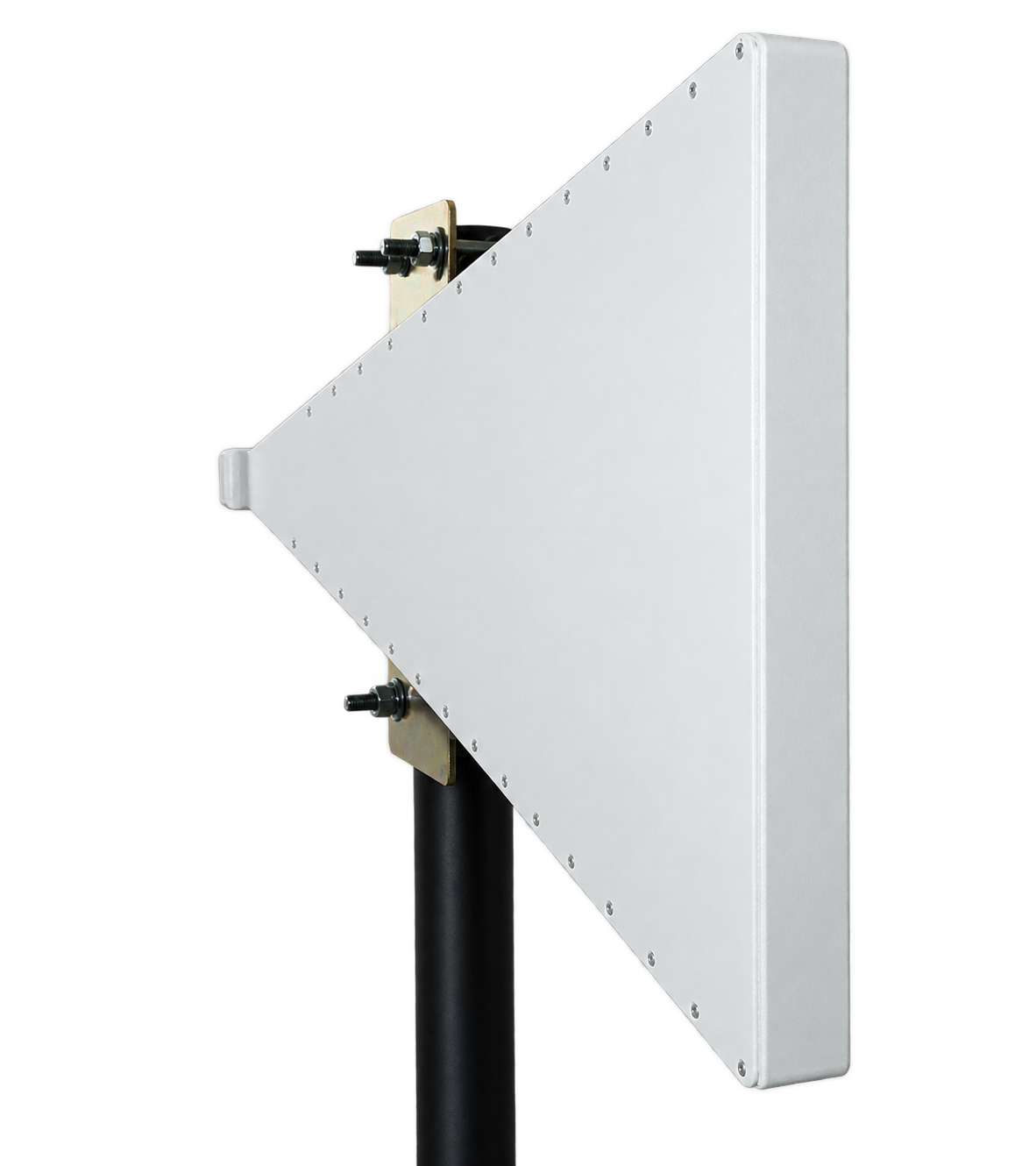

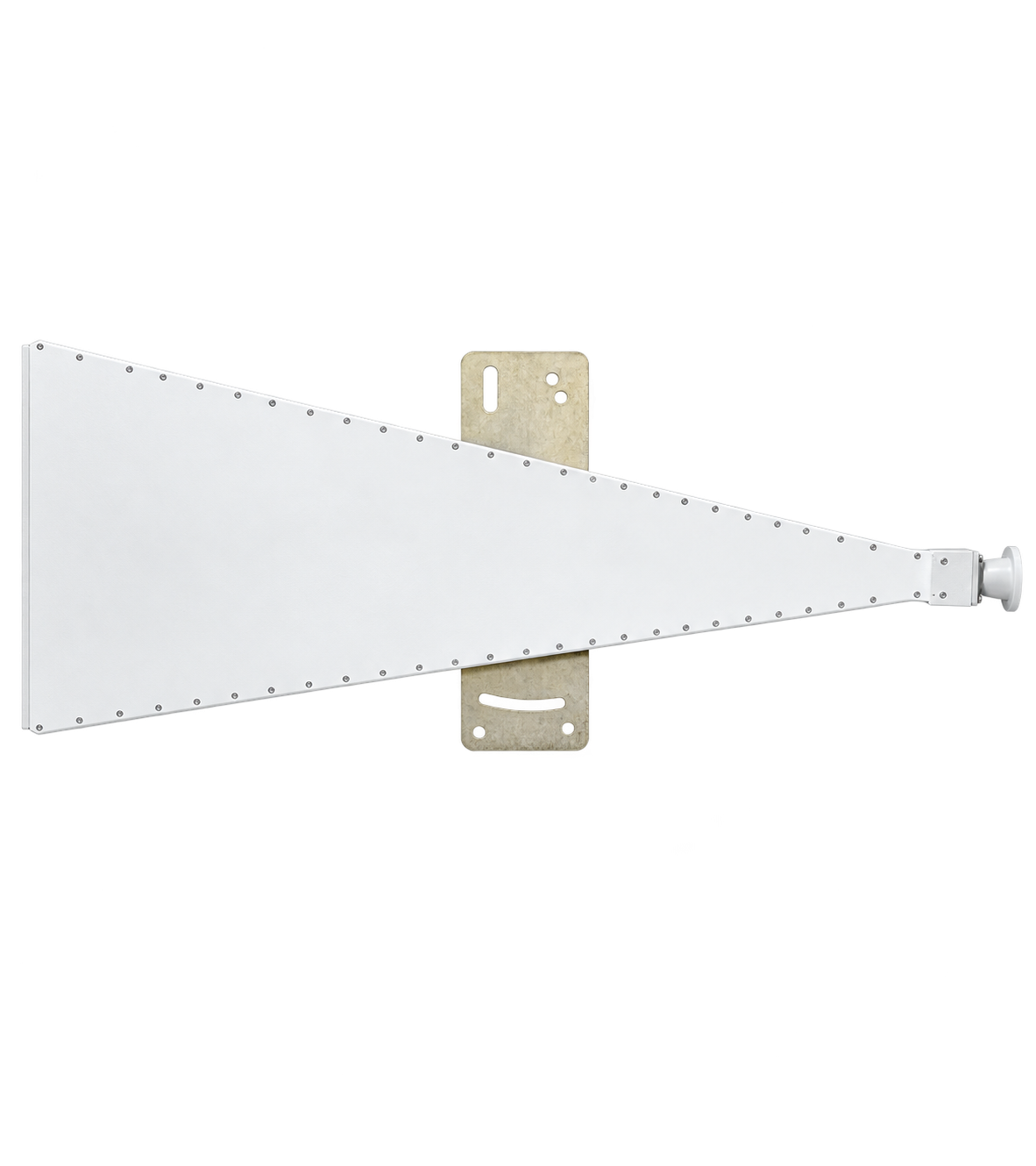

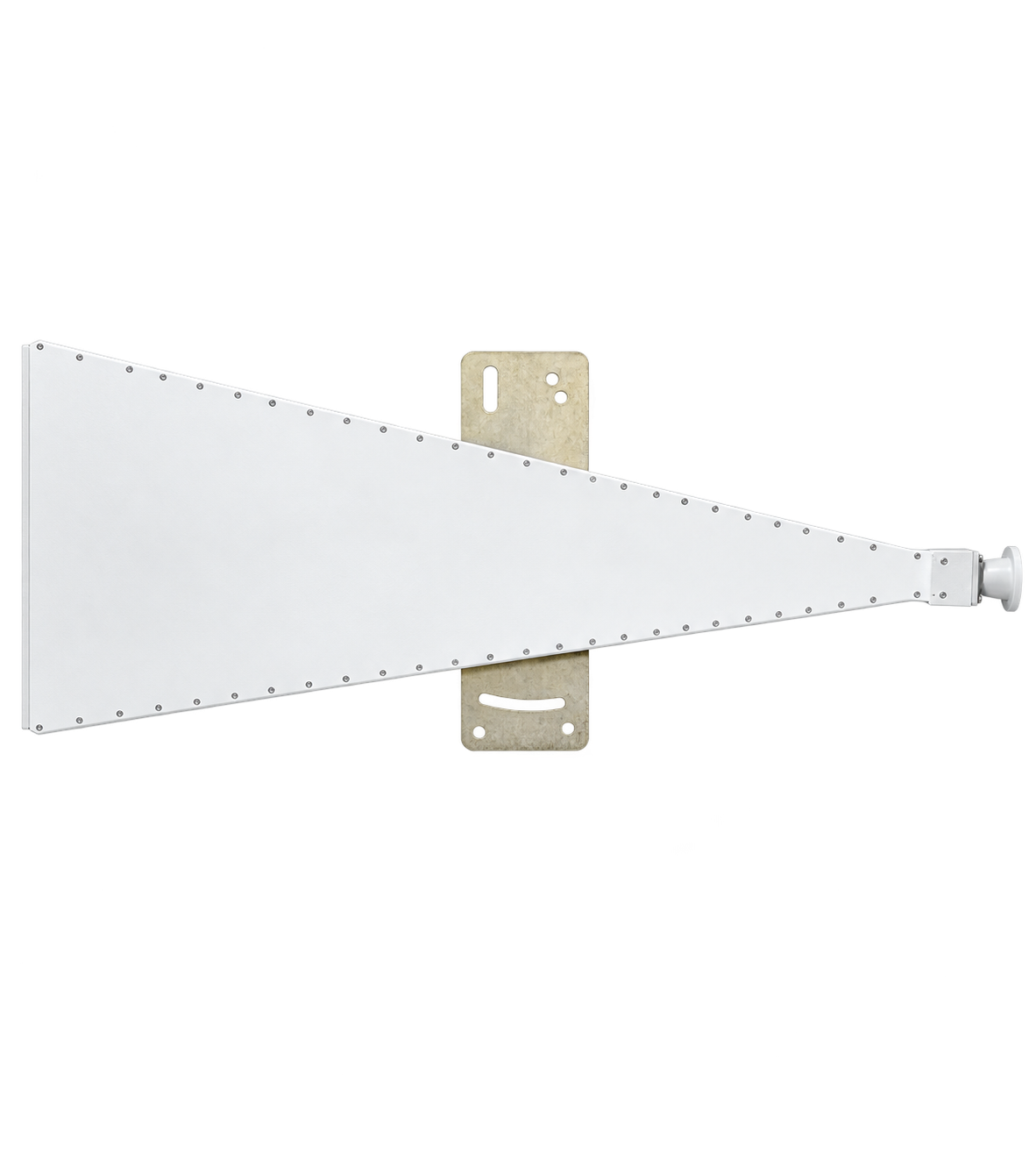

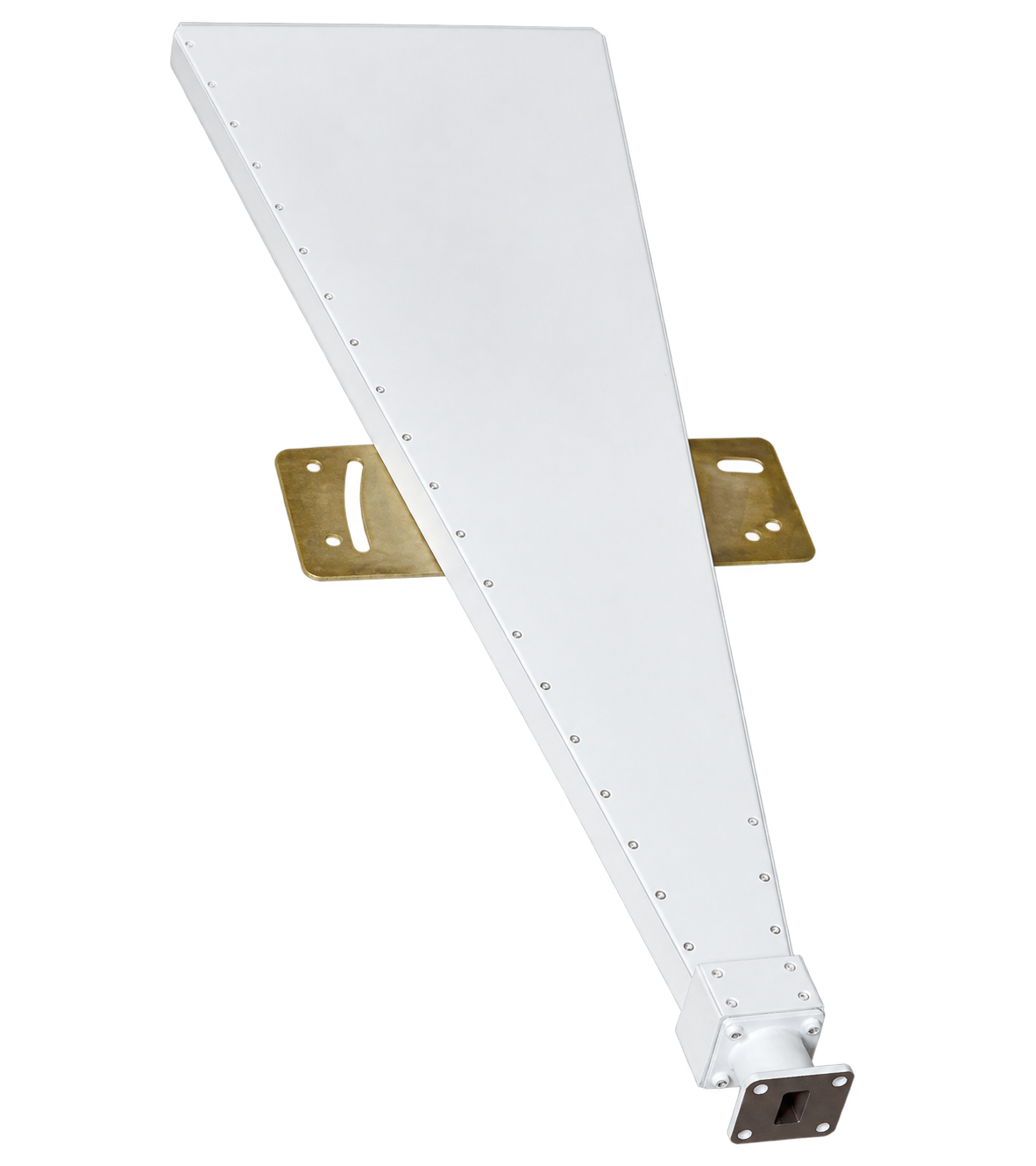

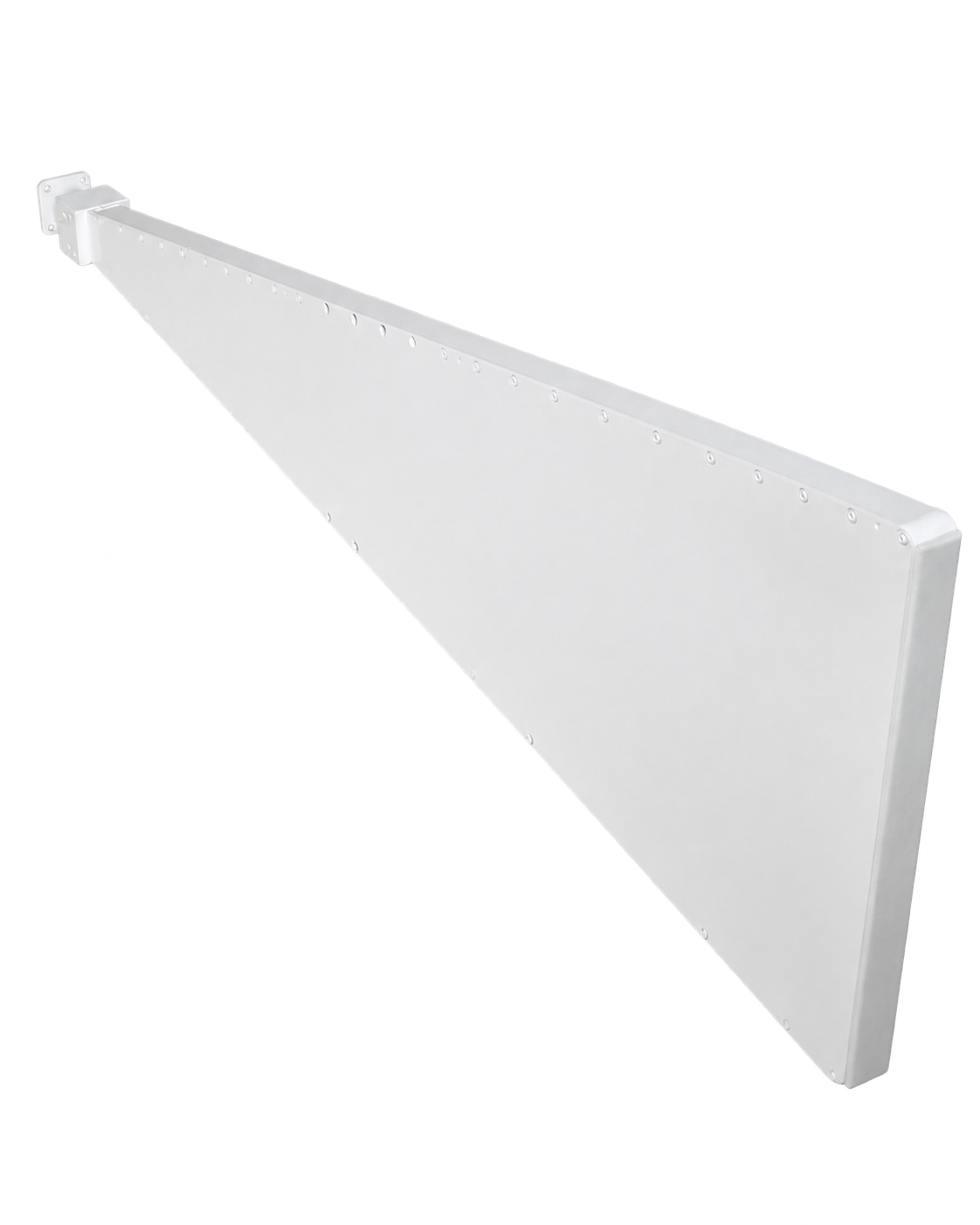

LSA-KuV90 v2

Brève description

LSA-KuV90 v2 is Long Sector Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 90 degrees and V-polarization

► Beam (H): 90°; Beam (V): 6°

► Frequency range: 10.7-13.5 GHz

► Gain: 18 dB

► It is designed for Ku-band

Polarisation VKu-bandde 90° à 120°
- +

Demande d'équipement sur mesure Antennes

    • Description
    • Téléchargements
    Parameter Value
    Frequency range, GHz 10.7 – 13.5
    Gain, dBi 18
    VSWR 2
    Polarization vertical
    Cross-polarization isolation, dB 25
    HPBW:
    @horizontal   90°
    @vertical 6°
    Gain range in aperture, dB ±1
    Temperature range, °C -50 to +80
    Humidity 100% where 25°C
    Size, mm 820х60х300
    Weight, kg 3.1
    Directional diagram tuning, deg:
     Elevation angle  ±20° (-20°…0° or 0°…+20°)
     Azimuth ±360° (around the pipe)

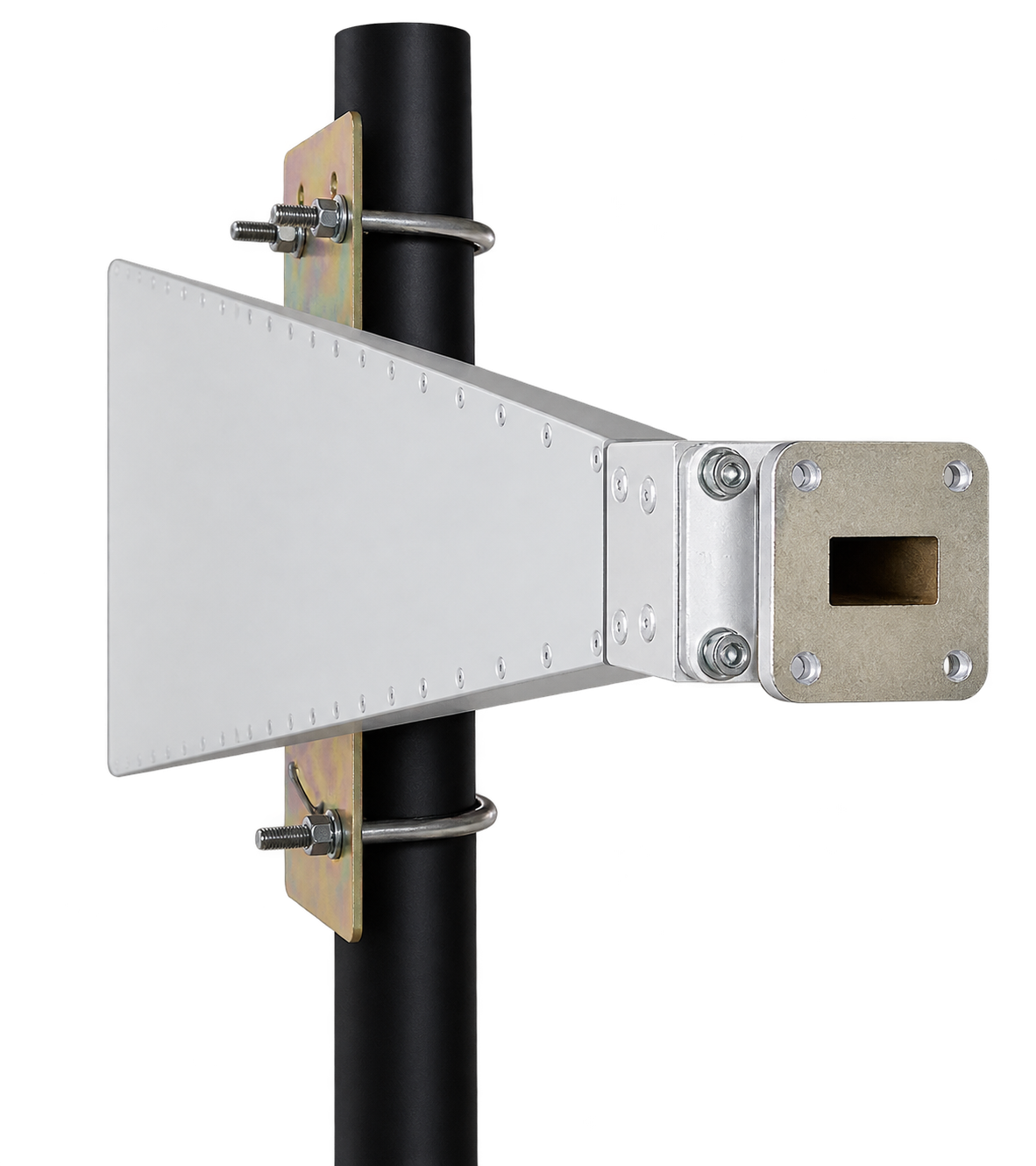

    Mounting Installation on the pipe diameter up to 45 mm
    Input power, W 20
    Body Dust/moisture proof

    Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
    Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
