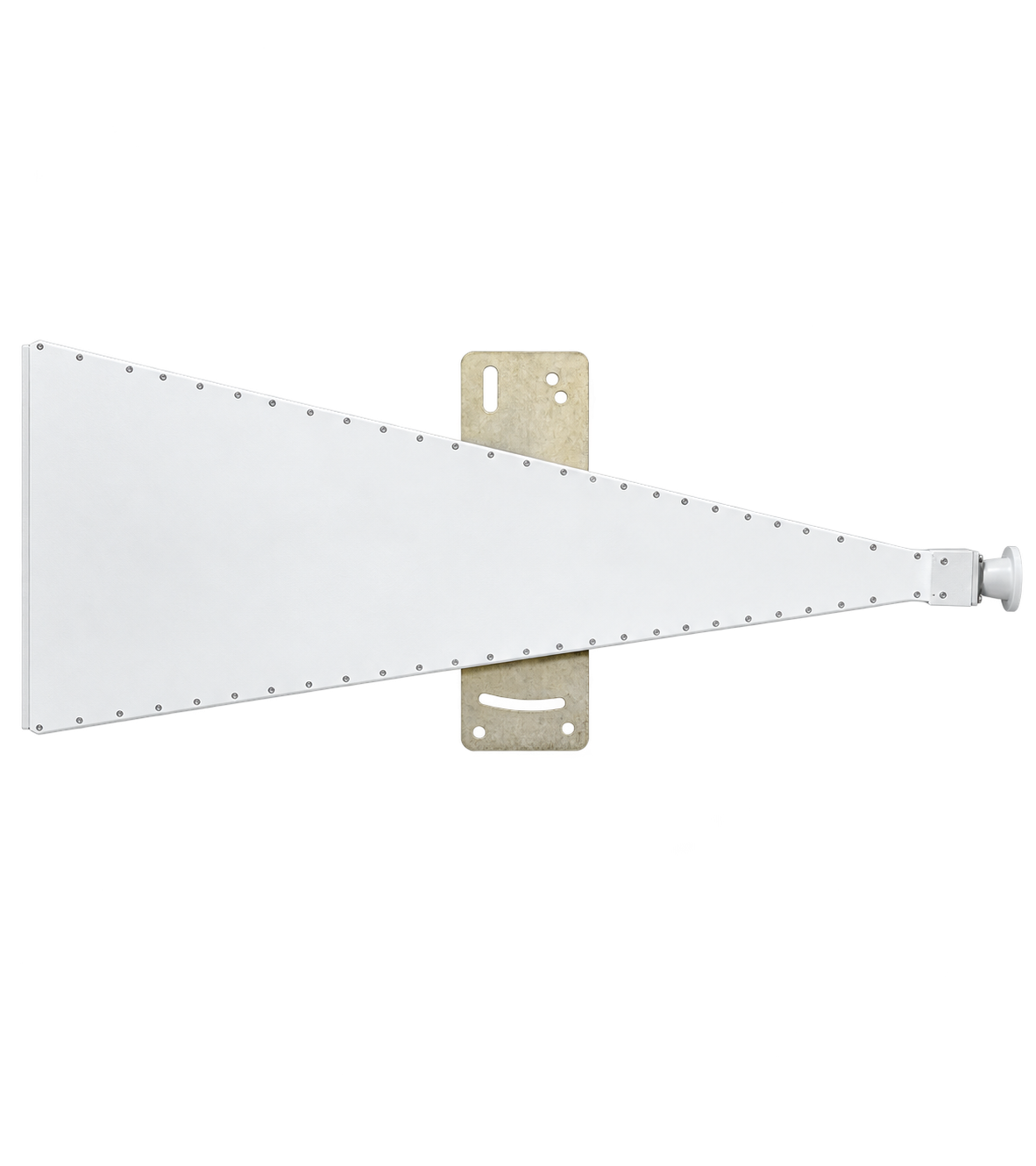

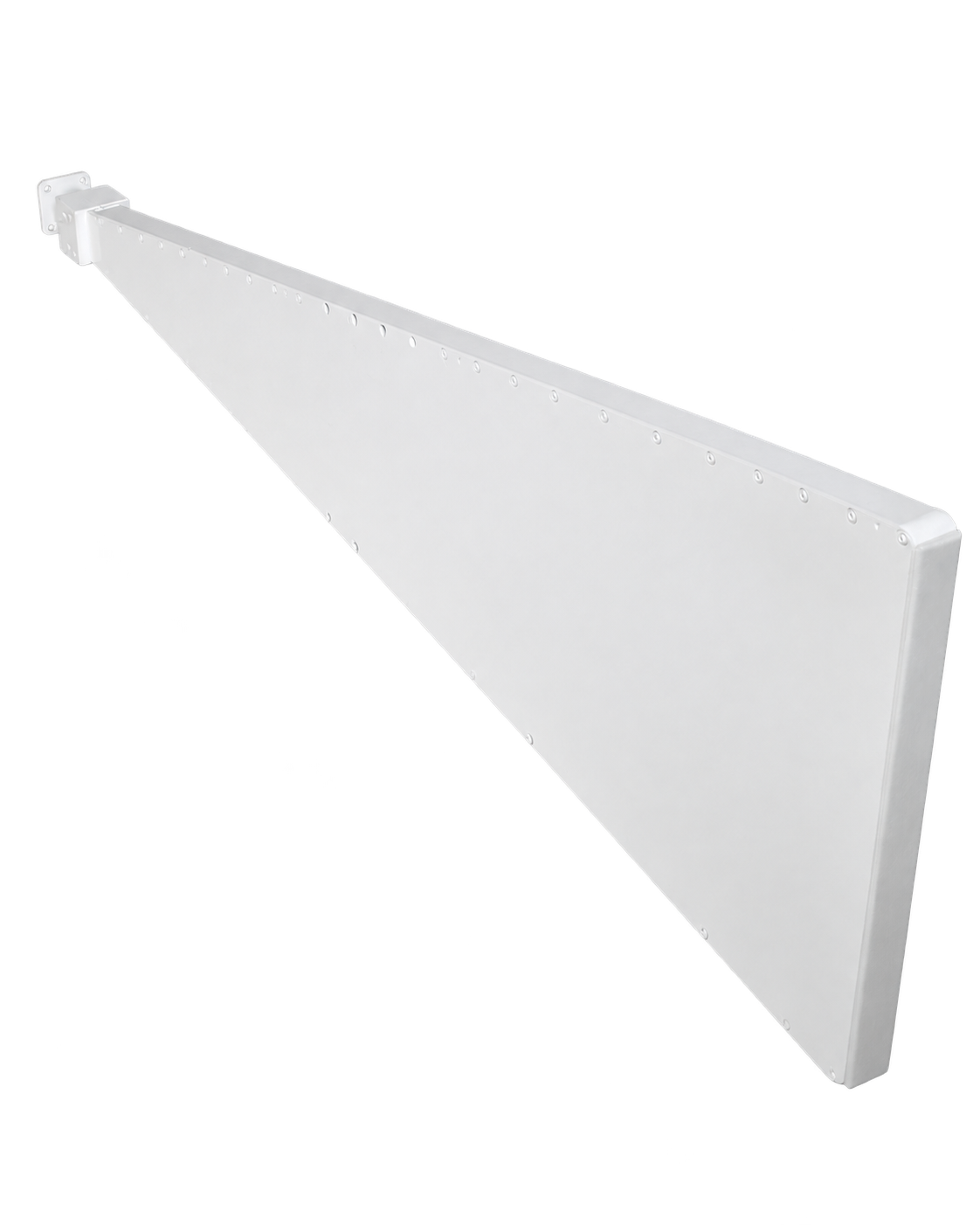

LSA-KuV90 v2 is Ku-band long sector antenna which has radiation pattern of 90 degrees in horizontal plane and wide frequency range of 10700 – 13500 MHz.
LSA-KuV90 v2 Ku-band long sector antenna is a professional solution developed for MVDS/MMDS broadcasting, repeater stations and interactive microwave networks. Operating in the 10.7-13.5 GHz frequency range, it delivers 18 dBi high gain, a wide 90° horizontal beamwidth and stable ±1 dB gain variation across the aperture, ensuring efficient and reliable signal transmission.
With vertical polarization and cross-polarization isolation ≥25 dB, the LSA-KuV90 v2 guarantees clean and interference-free broadcasting performance. It supports flexible installation with ±20° elevation tuning and full ±360° azimuth rotation, allowing precise coverage adjustments for broadcasting infrastructures.

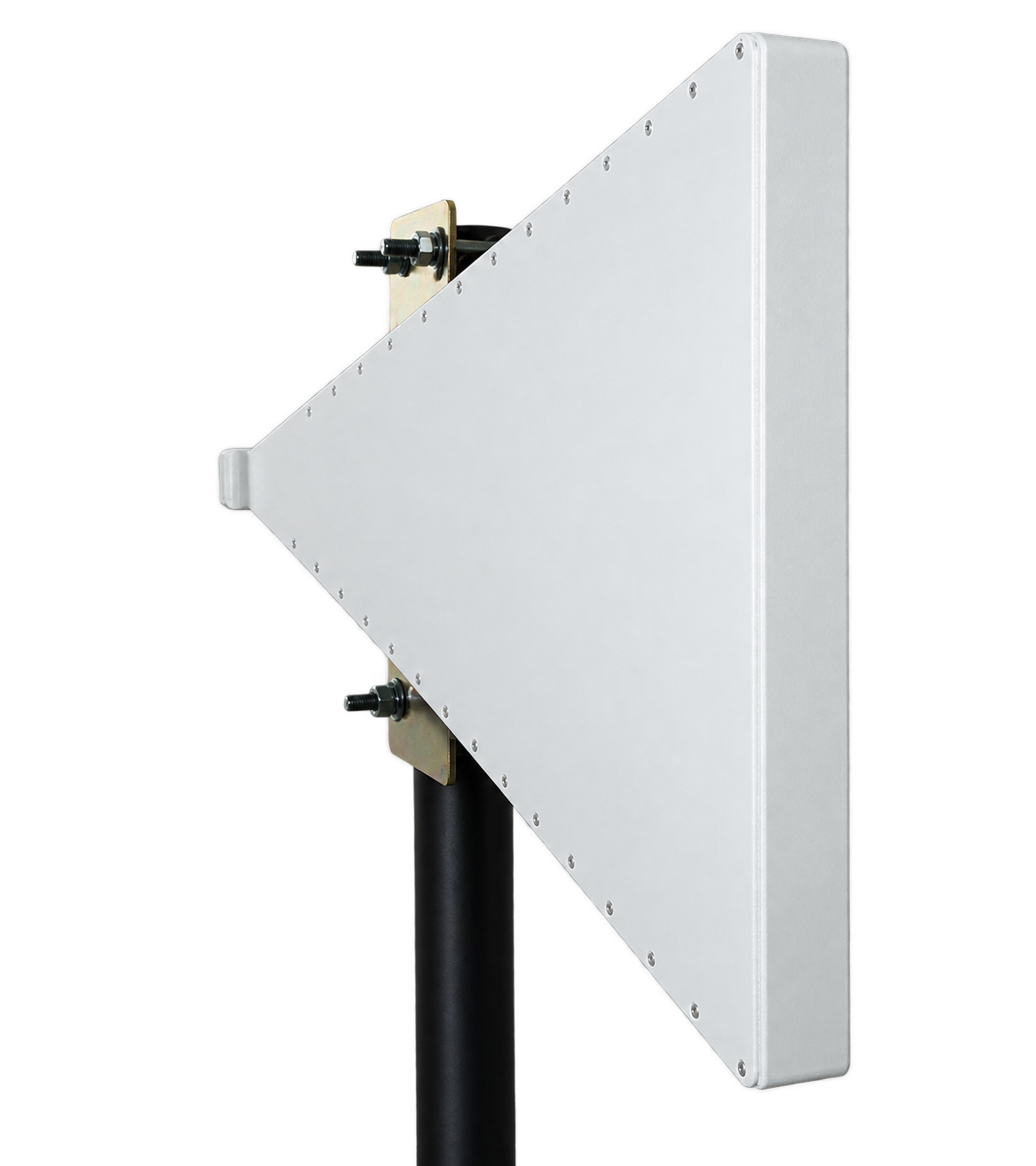

Engineered with a dust- and moisture-proof body, the antenna ensures stable outdoor operation under extreme climates (-50 °C to +80 °C, 100% humidity). Its lightweight 3.1 kg construction and compact size (820×60×300 mm) reduce wind load, while the pipe mounting system (up to 45 mm) ensures simple deployment. This makes the LSA-KuV90 v2 a durable Ku-band long sector antenna for broadcasting and video surveillance systems.
✅ 18 dBi high gain
The LSA-KuV90 v2 provides high gain sector antenna performance with 18 dBi, ensuring stable long-range broadcasting. It is a professional Ku-band sector antenna for DVB infrastructures.
✅ 90° horizontal beamwidth
With a 90° wide radiation pattern, the LSA-KuV90 v2 is a short sector antenna designed for point-to-multipoint broadcasting applications. It ensures broad and efficient coverage.
✅ Vertical polarization design
The antenna operates with vertical linear polarization, ensuring compatibility with professional DVB-S2 and video surveillance infrastructures. This guarantees reliable signal reception.
✅ Durable and weatherproof construction
With its dust- and moisture-proof body, the LSA-KuV90 v2 is a rugged outdoor sector antenna. It withstands harsh weather conditions, guaranteeing reliable long-term operation.
🛠️ Whether you want to buy a high gain Ku-band sector antenna with 90° beamwidth, order a commercial-grade Ku-band antenna with vertical polarization online, or deploy a sector antenna with azimuth and elevation tuning, the LSA-KuV90 v2 is designed to deliver.
🛒 The LSA-KuV90 v2 is available now and ready for integration into broadcasting networks, telecom hubs, repeater systems and professional DVB infrastructures.
📌 Key features
-
Wide frequency range 10.7-13.5 GHz
The LSA-KuV90 v2 operates across the full Ku-band spectrum, making it compatible with modern broadcasting standards such as DVB-S2, DVB-T2 and DVB-C. This Ku-band sector antenna is ideal for integration into MVDS/MMDS systems and interactive microwave infrastructures.
Delivering 18 dBi gain, the LSA-KuV90 v2 ensures strong and reliable broadcasting signals even in demanding environments. Its performance makes it a high gain Ku-band sector antenna for broadcasting stations and surveillance systems, providing stable coverage across wide territories.
With a precise ±1 dB gain variation across the aperture, the antenna guarantees uniform coverage across its entire radiation pattern. This makes it a sector antenna with high stability, ensuring consistent performance in professional broadcasting and telecom infrastructures.
-
Cross-polarization isolation ≥25 dB
The LSA-KuV90 v2 provides excellent cross-polarization isolation, minimizing unwanted interference and ensuring signal purity. It supports clean transmission in dense DVB broadcasting environments.
The antenna maintains a low VSWR level, which reduces reflection losses and improves energy efficiency. This ensures reliable performance in professional Ku-band broadcasting networks, making it a sector antenna for high-quality DVB transmission.
-
Flexible azimuth and elevation tuning
With ±20° elevation tuning and ±360° azimuth rotation, the LSA-KuV90 v2 allows precise directional adjustments during installation. This makes it a sector antenna with adjustable directional diagram, offering maximum flexibility for operators in broadcasting hubs and repeater stations.
-
Lightweight weatherproof design
At only 3.1 kg, the LSA-KuV90 v2 is lightweight yet built with a rugged dust- and moisture-proof casing. This design ensures it is a durable Ku-band sector antenna for outdoor broadcasting, capable of withstanding extreme climates and long-term operation.
⚙️ Main functions
-
Transmission of Ku-band signals
The LSA-KuV90 v2 ensures powerful Ku-band transmission, delivering stable coverage across point-to-multipoint networks. It is a professional Ku-band sector antenna widely used in DVB-S2 and MVDS/MMDS infrastructures.
-
Reception of Ku-band signals
The antenna provides reliable Ku-band signal reception, ensuring strong performance at the subscriber side. Its efficiency makes it a sector antenna for broadcasting and video surveillance applications, improving network quality and user experience.
-
Broadcasting head-end integration
Designed for head-end stations, the LSA-KuV90 v2 integrates seamlessly into professional infrastructures. It is a Ku-band sector antenna for DVB-S2 head-end networks, ensuring efficient upstream and downstream broadcasting.
-
Repeater station deployment
As a sector antenna for repeater hubs, the LSA-KuV90 v2 retransmits signals effectively over wide areas. It is especially valuable in terrains where cable-based infrastructures are not feasible, providing reliable signal extension.
-
Interactive microwave and video surveillance systems
The antenna supports interactive microwave infrastructures, enabling two-way communication. It is also used in Ku-band video surveillance systems, guaranteeing stability and coverage for security applications.
-
MVDS/MMDS broadcasting networks
Widely applied in MVDS/MMDS systems, the LSA-KuV90 v2 ensures stable and strong coverage. It is a high-performance Ku-band sector antenna designed for broadcasting across regional and national infrastructures.
-
Point-to-multipoint broadcasting links
With its 90° beamwidth, the antenna is perfect for multipoint broadcasting infrastructures. The LSA-KuV90 v2 functions as a short Ku-band sector antenna, delivering efficient signal distribution to large groups of subscribers.
The LSA-KuV90 v2 strengthens telecom hubs, boosting capacity in professional networks. Its design makes it a commercial Ku-band sector antenna for relay and distribution systems, ensuring high reliability.
-
Outdoor broadcasting infrastructures
With its rugged and weatherproof design, the LSA-KuV90 v2 is built for long-term outdoor deployments. It is widely used as a Ku-band antenna for harsh environments, providing durable broadcasting solutions.
The antenna supports integration into various professional networks and broadcasting infrastructures. It is a versatile Ku-band sector antenna, compatible with DVB, MVDS and interactive microwave systems.
🧩 Applications
-
Ku-band broadcasting networks
The LSA-KuV90 v2 is widely used as a high gain Ku-band sector antenna for DVB broadcasting infrastructures. It ensures reliable coverage across professional broadcasting systems.
-
MVDS/MMDS infrastructures
This antenna provides consistent and stable performance in MVDS/MMDS broadcasting systems, ensuring long-range coverage. It is a Ku-band sector antenna for multipoint infrastructures.
-
Repeater stations and relay hubs
The LSA-KuV90 v2 retransmits signals effectively in repeater hubs and relay infrastructures, extending broadcasting coverage to remote areas.
-
Broadcasting head-end stations
It integrates into DVB-S2 head-end infrastructures, providing strong upstream and downstream connectivity. The LSA-KuV90 v2 is a professional Ku-band antenna for head-end stations.
-
Interactive microwave and video surveillance systems
The antenna supports interactive microwave systems, enabling two-way broadcasting. It is also applied in Ku-band video surveillance infrastructures, providing efficient signal distribution.
-
Point-to-multipoint communication links
Thanks to its 90° HPBW, the LSA-KuV90 v2 is a short Ku-band sector antenna for point-to-multipoint communication systems, delivering efficient coverage.
-
Public broadcasting infrastructures
The LSA-KuV90 v2 supports public DVB broadcasting networks, ensuring regional and national service quality. It is a professional Ku-band antenna for wide coverage broadcasting.
-
Outdoor telecom installations
With its rugged dust- and moisture-proof body, the LSA-KuV90 v2 is ideal for outdoor telecom hubs and distribution systems, ensuring long-term reliability.
-
Professional DVB networks
The antenna integrates seamlessly into DVB-S2, DVB-T2 and DVB-C infrastructures, providing versatility. It is a professional Ku-band sector antenna with high compatibility.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the LSA-KuV90 v2 Ku-band long sector antenna, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment.
