SSA-CV60

Short description

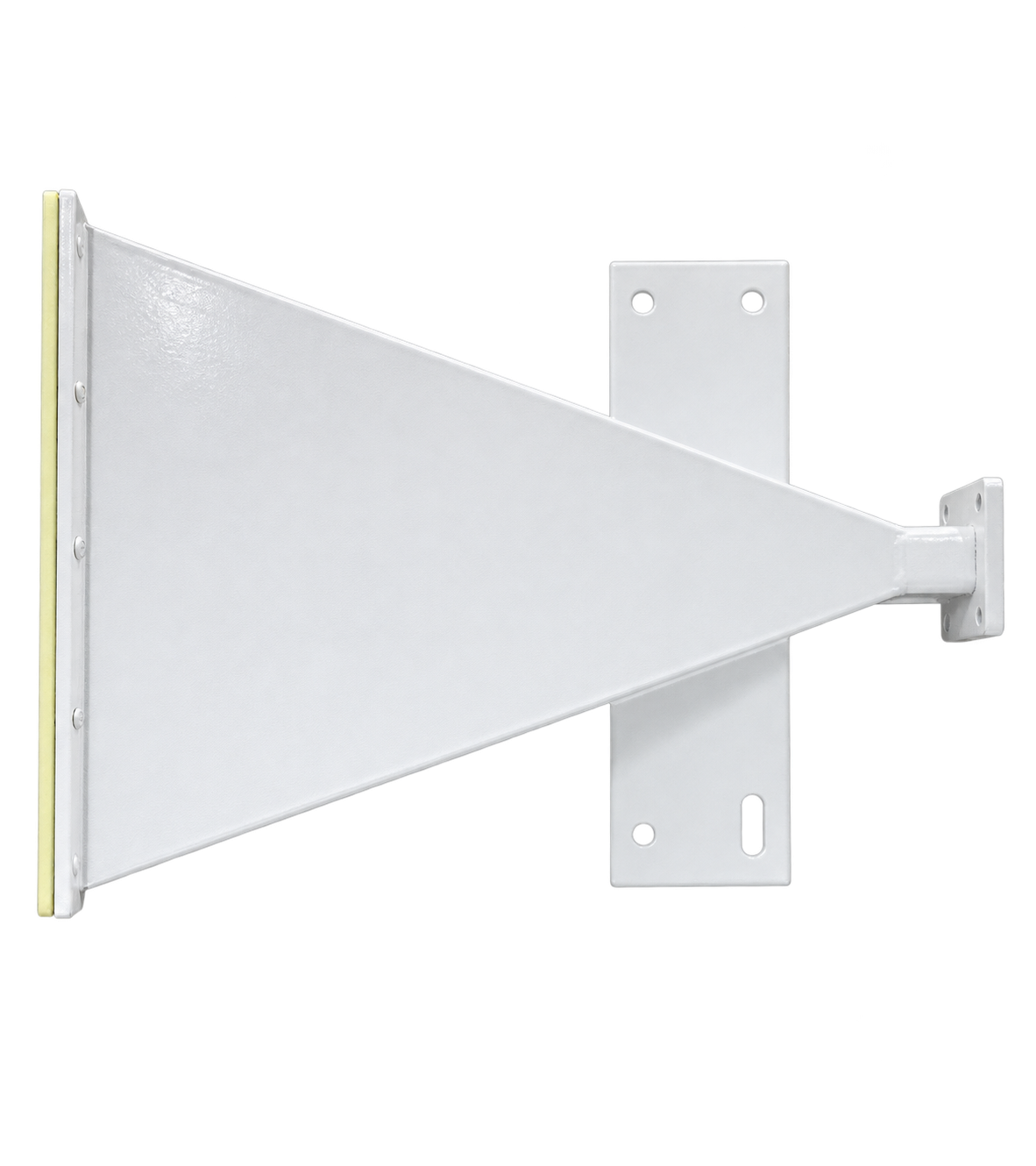

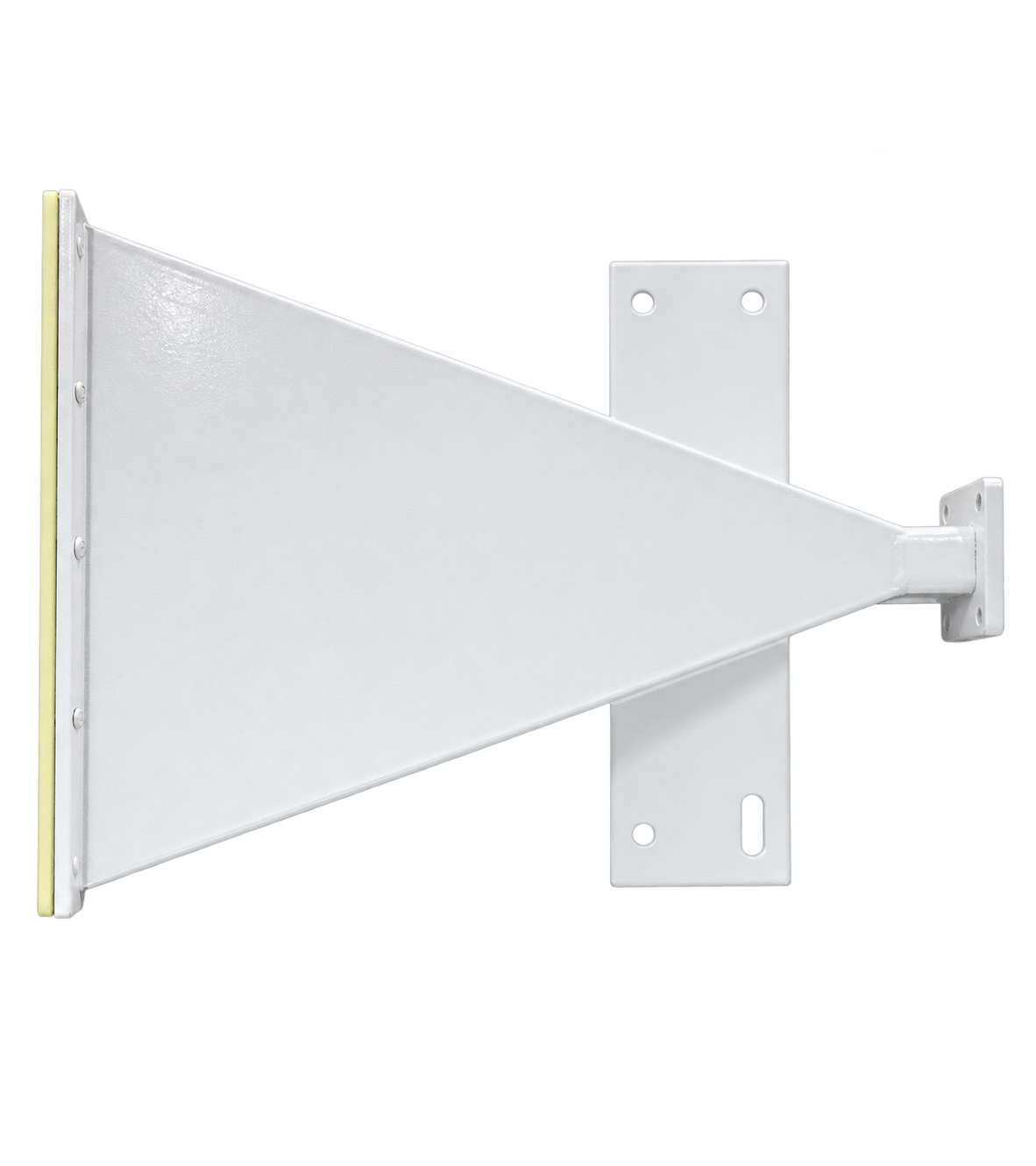

SSA-CV60 is Short Sector Antenna.

It has:

► Light weight + Compact size + High gain

► Radiation pattern of 60 degrees and V-polarization

► Beam(H): 60°; Beam(V): 20°

► Frequency range: 3.94 – 5.99 GHz

► Gain: 10 dB

► It is designed for C-band

Polarisation VC-bandjusqu'à 90°
- +

Demande d'équipement sur mesure Antennes

    • Description
    • Downloads

    SSA-CV60 is C-band short sector antenna which has radiation pattern of 60 degrees in horizontal plane and wide frequency range of 3940 – 5990 MHz.

    Key features:

    • Reliable design
    • Light weight
    • Compact size
    • High gain

    Main functions:

    • Transmit and receive C-band signals
    • Applied as a part of broadcasting station, repeater, interactive microwave or video surveillance systems
    Parameter Value
    Frequency range, GHz 3.94 – 5.99
    Gain, dBi 10
    VSWR 2.1
    Polarization vertical
    Cross-polarization isolation, dB 23
    HPBW:
    @horizontal   60°
    @vertical 20°
    Gain range in aperture, dB ±1
    Temperature range, °C -50 to +80
    Humidity 100% where 25°C
    Size, mm 306х86х420
    Weight, kg 3.2
    Directional diagram tuning, deg:
     Elevation angle  ±30
     Azimuth ±360
    Mounting Installation on the pipe diameter up to 45 mm
    Input power, W 20
    Body Dust/moisture proof
