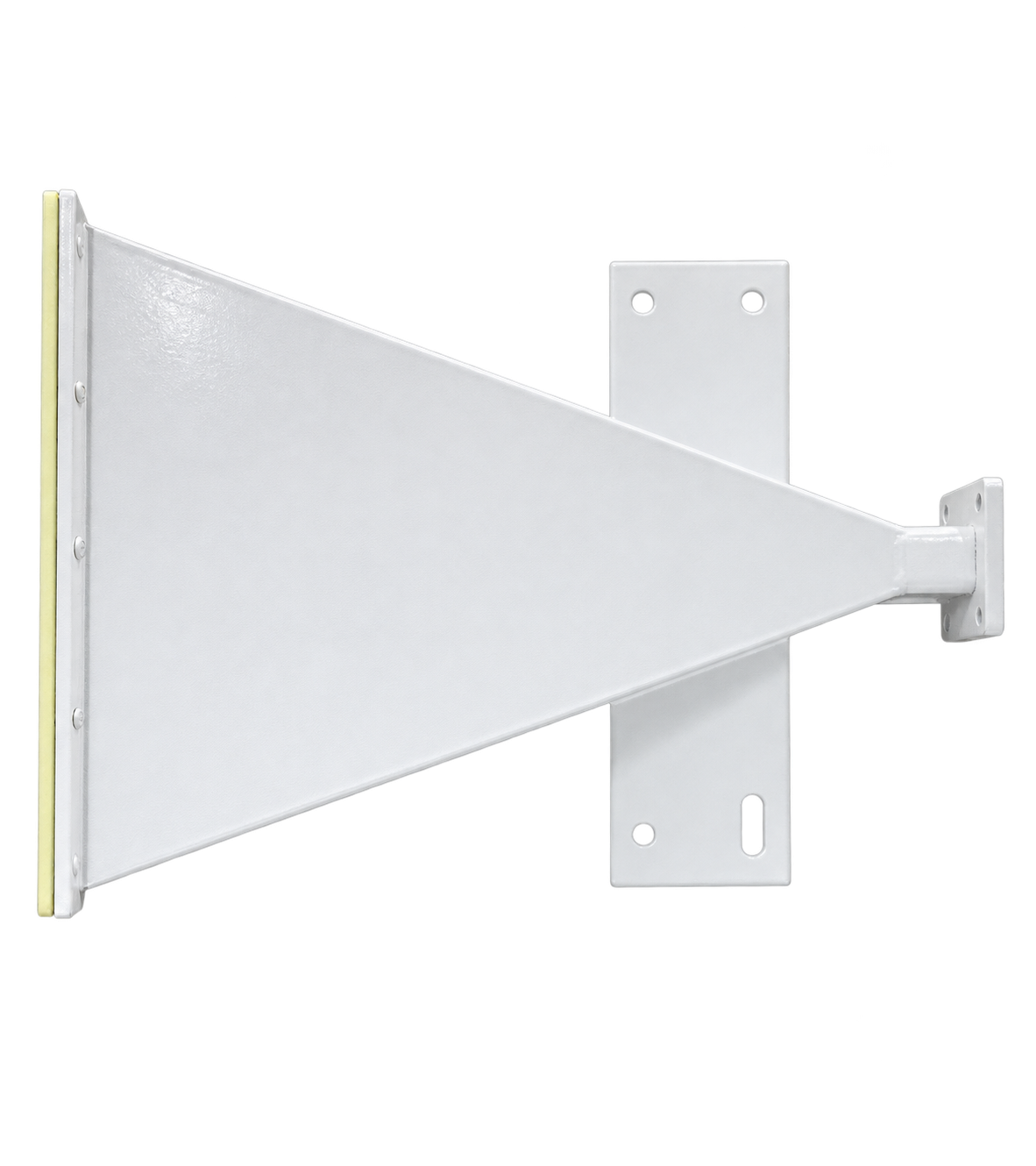

SSA-CV60 is C-band short sector antenna which has radiation pattern of 60 degrees in horizontal plane and wide frequency range of 3940 – 5990 MHz.
SSA-CV60 C-band short sector antenna is a professional broadcasting solution designed for MVDS/MMDS systems, repeater hubs and interactive microwave infrastructures. Operating in the 3.94-5.99 GHz frequency range, it delivers 10 dBi gain, a 60° horizontal beamwidth and stable ±1 dB gain variation, ensuring precise and consistent coverage in professional networks.
With vertical polarization and 23 dB cross-polarization isolation, the SSA-CV60 minimizes interference and provides clean signal transmission for DVB and telecom applications. Its ±30° elevation tuning and ±360° azimuth rotation enable precise alignment, making it a flexible choice for operators seeking accurate directional broadcasting.
Designed with a rugged dust/moisture-proof body, this antenna withstands extreme temperatures from -50 °C to +80 °C and 100% humidity. Despite its durable construction, the SSA-CV60 is compact (306×86×420 mm) and lightweight (3.2 kg), providing minimal wind load and easy installation on pipes up to 45 mm in diameter. It is a short C-band antenna optimized for broadcasting, telecom and surveillance systems.
✅ 10 dBi high gain
The SSA-CV60 provides 10 dBi gain, enabling stable and efficient broadcasting across medium-distance ranges. It is widely used as a C-band short sector antenna for DVB infrastructures, ensuring reliable performance.
✅ 60° horizontal beamwidth
With a 60° wide radiation pattern, the SSA-CV60 delivers precise point-to-multipoint coverage. This makes it a short C-band antenna for broadcasting networks and interactive microwave infrastructures.
✅ Vertical polarization design
The SSA-CV60 operates with vertical linear polarization, ensuring compatibility with DVB-S2 and MVDS/MMDS systems. It guarantees stable transmission and reception in both professional and subscriber infrastructures.
✅ Rugged outdoor construction
Built with a dust- and moisture-proof casing, the SSA-CV60 ensures long-term durability in extreme weather conditions. It is a durable C-band short sector antenna for outdoor broadcasting systems.
🛠️ Whether you want to buy a reliable C-band short sector antenna with 60° beamwidth, order a professional antenna for broadcasting stations, or integrate a rugged dust/moisture-proof C-band antenna, the SSA-CV60 is the right solution.
🛒 The SSA-CV60 is available now and ready for deployment in broadcasting head-end stations, repeater hubs and telecom infrastructures.
📌 Key features
-
Wide frequency range 3.94-5.99 GHz
The SSA-CV60 covers the C-band spectrum, offering compatibility with DVB and microwave infrastructures. It is a short C-band antenna for MVDS/MMDS broadcasting systems, ensuring reliable operation in modern networks.
With 10 dBi gain, this antenna ensures strong performance for professional broadcasting and telecom applications. The SSA-CV60 is widely applied as a short sector C-band antenna for DVB and surveillance infrastructures.
The SSA-CV60 maintains ±1 dB gain variation across the aperture, guaranteeing precise coverage and stable signal quality. It is ideal as a sector antenna with high stability for broadcasting and interactive microwave systems.
-
Cross-polarization isolation ≥23 dB
With 23 dB cross-polarization isolation, this antenna minimizes interference and enhances signal purity. The SSA-CV60 is a C-band antenna with strong isolation, suitable for professional DVB networks.
The SSA-CV60 ensures low VSWR performance, reducing signal reflection losses and improving efficiency. It is widely used as a C-band short sector antenna for high-quality DVB broadcasting.
-
Flexible azimuth and elevation tuning
With ±30° elevation adjustment and ±360° azimuth rotation, the SSA-CV60 supports precise directional setup. It is a C-band antenna with adjustable directional diagram, ideal for flexible installations.
-
Compact weatherproof design
At just 3.2 kg, this antenna is lightweight yet rugged, with a dust/moisture-proof construction for long-term outdoor use. The SSA-CV60 is a compact C-band short sector antenna designed for professional broadcasting.
⚙️ Main functions
-
Transmission of C-band signals
The SSA-CV60 ensures efficient C-band signal transmission, supporting point-to-multipoint coverage. It is a short C-band antenna for DVB broadcasting networks and MVDS/MMDS infrastructures, providing reliable long-term operation.
-
Reception of C-band signals
This antenna provides stable C-band reception, improving overall signal quality in subscriber and professional networks. It is widely used as a short C-band antenna for telecom and surveillance applications.
-
Broadcasting head-end integration
The SSA-CV60 integrates smoothly into DVB-S2 head-end stations, ensuring upstream and downstream stability. It is a C-band short sector antenna for broadcasting hubs, offering professional-grade performance.
-
Repeater station deployment
As a sector antenna for repeater hubs, the SSA-CV60 retransmits signals effectively, ensuring wide coverage in complex terrains. It is ideal where cable deployment is impractical, providing a cost-effective broadcasting solution.
-
Interactive microwave and surveillance systems
The SSA-CV60 supports interactive microwave infrastructures, offering reliable two-way communication. It also functions as a C-band antenna for surveillance systems, delivering consistent coverage in security applications.
-
MVDS/MMDS broadcasting networks
The SSA-CV60 is widely used in MVDS/MMDS broadcasting infrastructures, providing reliable and stable signal quality. It is a C-band short sector antenna for DVB and telecom applications.
-
Point-to-multipoint broadcasting links
Thanks to its 60° HPBW, the SSA-CV60 is suitable for short C-band multipoint broadcasting links. It ensures efficient coverage in regional broadcasting and subscriber networks.
The SSA-CV60 enhances telecommunication hub infrastructures, ensuring efficient signal distribution. It is a professional C-band antenna for telecom relay systems.
-
Outdoor broadcasting infrastructures
With its rugged dust/moisture-proof casing, the SSA-CV60 is ideal for outdoor C-band broadcasting installations. It provides long-term stability in harsh environmental conditions.
-
Flexible system integration
The SSA-CV60 integrates easily into professional DVB and microwave infrastructures, ensuring wide usability. It is a versatile C-band antenna for broadcasting and telecom systems.
🧩 Applications
-
C-band broadcasting networks
The SSA-CV60 is widely applied in C-band DVB broadcasting infrastructures, ensuring reliable coverage. It is a short sector C-band antenna designed for stable performance in regional and national broadcasting.
-
MVDS/MMDS infrastructures
This antenna supports MVDS/MMDS networks, providing stable coverage across professional broadcasting systems. It is a C-band antenna for DVB distribution and multipoint applications.
-
Repeater stations and relay hubs
The SSA-CV60 works effectively in repeater hubs and relay stations, retransmitting signals to expand coverage. It ensures reliability in professional broadcasting and telecom infrastructures.
-
Broadcasting head-end stations
The SSA-CV60 integrates into DVB-S2 head-end stations, supporting efficient upstream and downstream connections. It is a short C-band antenna for professional broadcasting hubs.
-
Interactive microwave and video surveillance systems
The antenna is ideal for interactive microwave networks and video surveillance systems, enabling stable communication. The SSA-CV60 provides reliable coverage for both telecom and security applications.
-
Point-to-multipoint communication links
With its 60° beamwidth, the SSA-CV60 is designed for short C-band point-to-multipoint broadcasting links. It ensures broad coverage for subscribers and professional infrastructures.
-
Public broadcasting infrastructures
The SSA-CV60 supports public DVB broadcasting systems, delivering consistent regional and national service. It is a professional C-band antenna for public communication networks.
-
Outdoor telecom installations
Built with rugged construction, this antenna is suitable for outdoor C-band telecom hubs and relay infrastructures. It provides stable operation in challenging environments.
-
Professional DVB networks
The SSA-CV60 integrates into DVB-S2, DVB-T2 and DVB-C infrastructures, ensuring maximum compatibility. It is a versatile short C-band antenna for professional DVB applications.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the SSA-CV60 C-band short sector antenna, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment.
