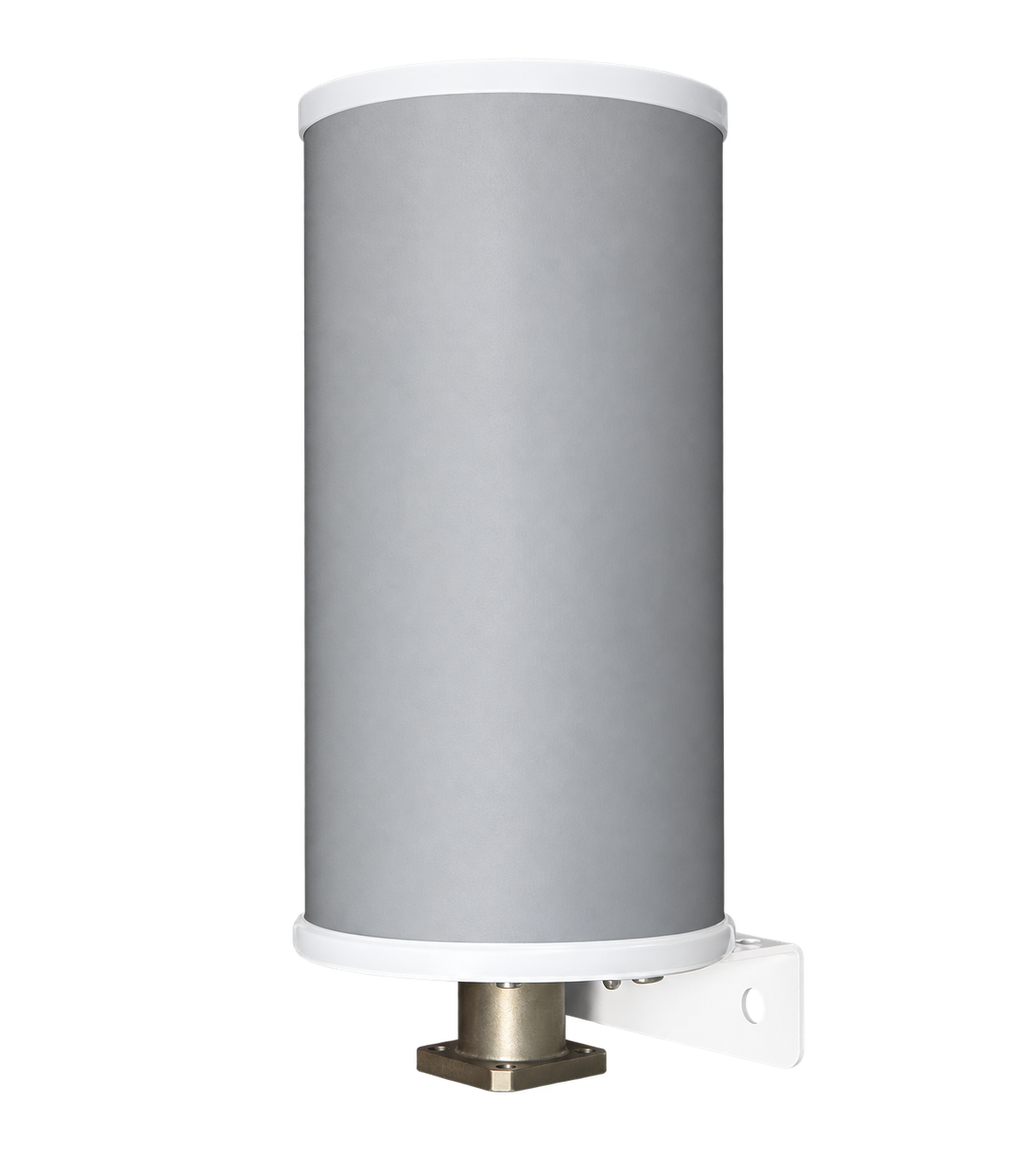

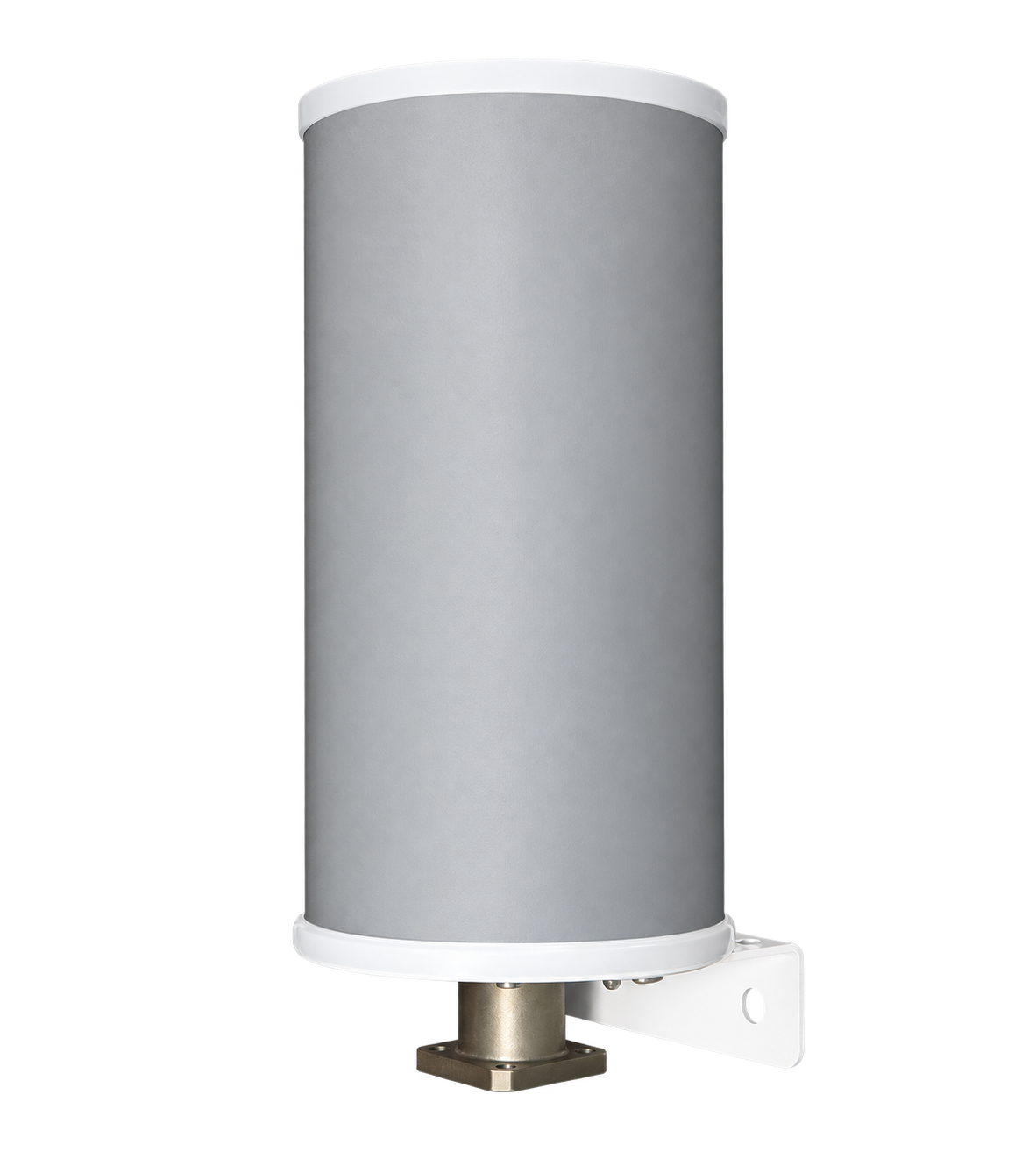

SWA-Ku360v2 10.7-11.7 GHz is omni Slotted Waveguide Antenna

► It is designed for Ku-band with antenna aperture of 360° and H-polarization

► Frequency range of 10.7-11.7 GHz (or other 800 MHz of Ku-band)

► Beam (H): 360°; Beam (V): 10°

► Gain: 11 dBi

- +
  • Description
  • Téléchargements

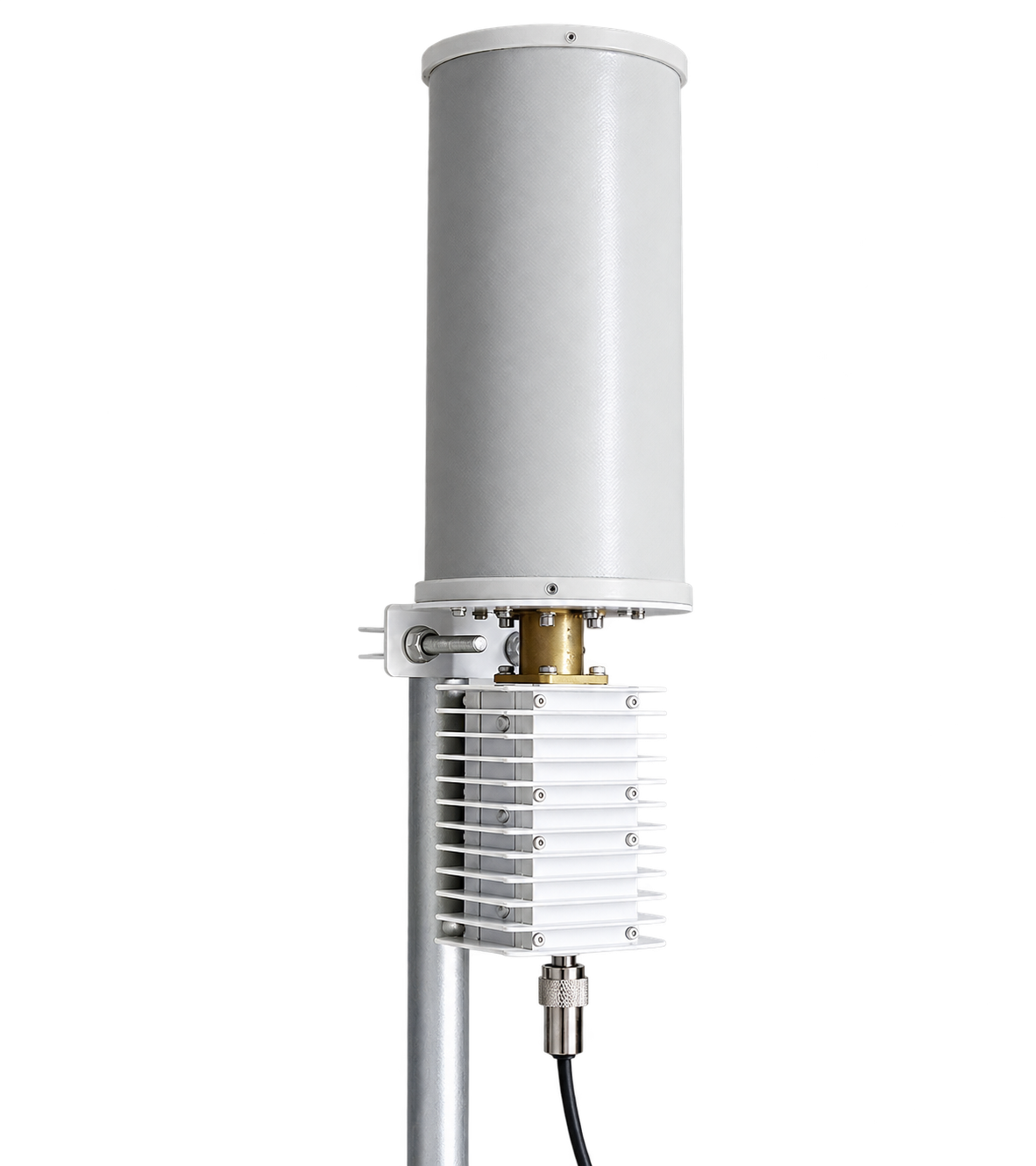

SWA-Ku360v2 10.7-11.7 GHz is Ku-band omni slotted waveguide antenna designed for MVDS / MMDS broadcasting systems. SWA-Ku360v2 10.7-11.7 GHz has 360 deg radiation pattern, high gain of 11dBi and wide frequency range of 10.7-11.7 GHz, also it has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by SWA-Ku360 v2 10.7-11.7 GHz can be received by typical Ku-band satellite dish and LNB.

 Short instruction about antenna assembling

Key features:

  • Omnidirectional: 360-degree radiation pattern
  • Frequency range of 10.7-11.7 GHz (or choose other 800 MHz of Ku-band using “customized equipment” button)
  • High gain: 11 dBi
  • Full Ku-band covering
  • Light weight
  • Compact size

Main functions:

  • Transmit Ku-band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

SWA-Ku360 v2 10.7-11.7 GHz radiation pattern - developed by UMT LLC



 Parameter Value
Frequency range, GHz 10.7-11.7 (or choose other 800 MHz of Ku-band using “customized equipment” button)
Gain, dBi, at least 11
Gain variation in the aperture, dB, not more ±2
VSWR, max 2
Polarization horizontal
Cross-polarization, dB, not less 25
HPBW:
@horizontal 360°
@vertical 10±1°
Input power, W, up to 20
Waveguide WR-75 flange
Operating temperature, ° C -40 … +80
Humidity 100% @ 25°C
Dimensions, mm, not more 245x115x115
Weight, kg, not more 2.5
Mount Mounting on a vertical pipe with a diameter of 40 mm (max)
Casing material dust/moisture proof
