SWA-Ku360 v2 10.7-11.7 GHz
Short description
SWA-Ku360v2 10.7-11.7 GHz is omni Slotted Waveguide Antenna
► It is designed for Ku-band with antenna aperture of 360° and H-polarization
► Frequency range of 10.7-11.7 GHz (or other 800 MHz of Ku-band)
► Beam (H): 360°; Beam (V): 10°
► Gain: 11 dBi
Request for customized equipment Antennas
- Description
- Downloads

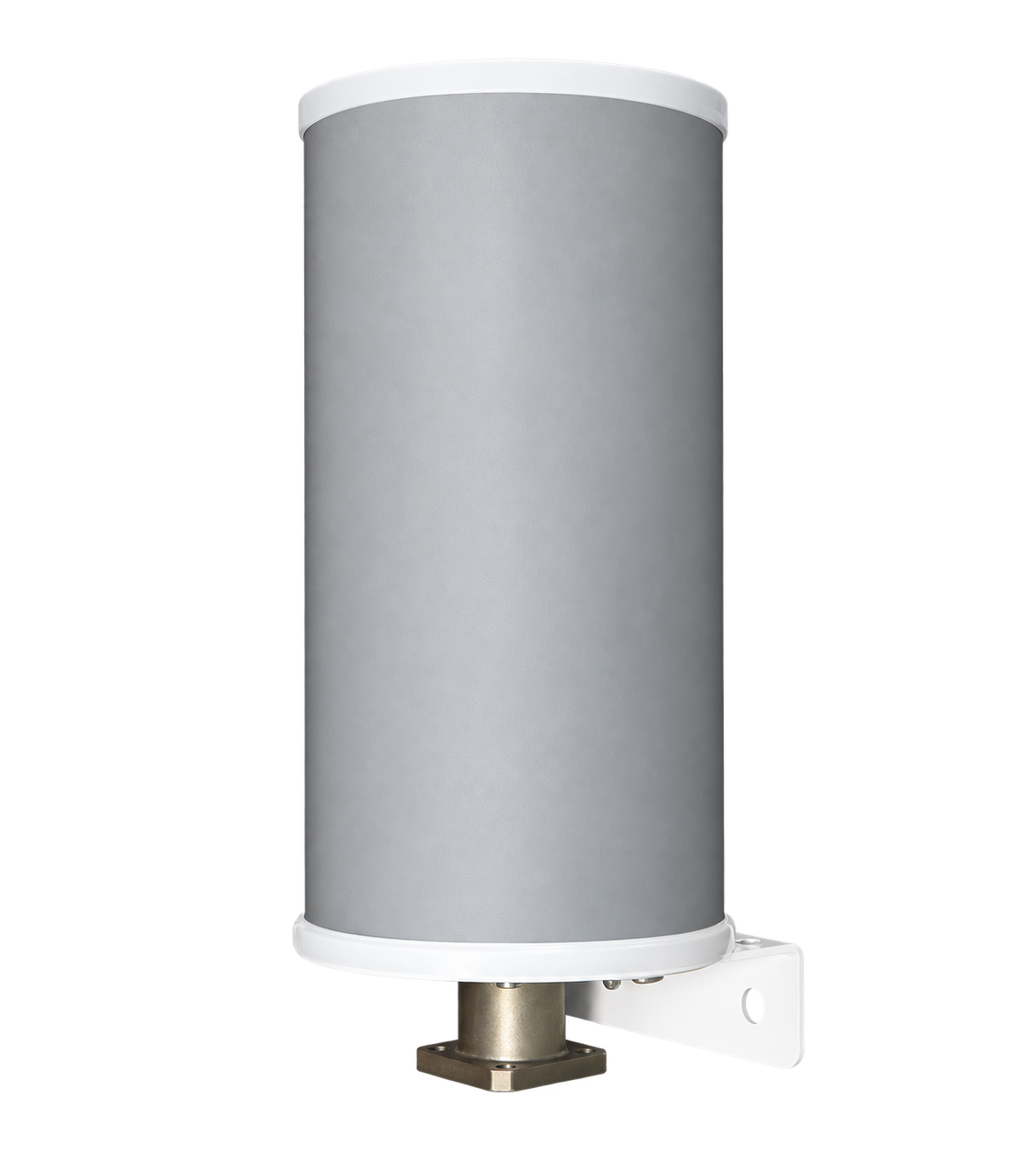

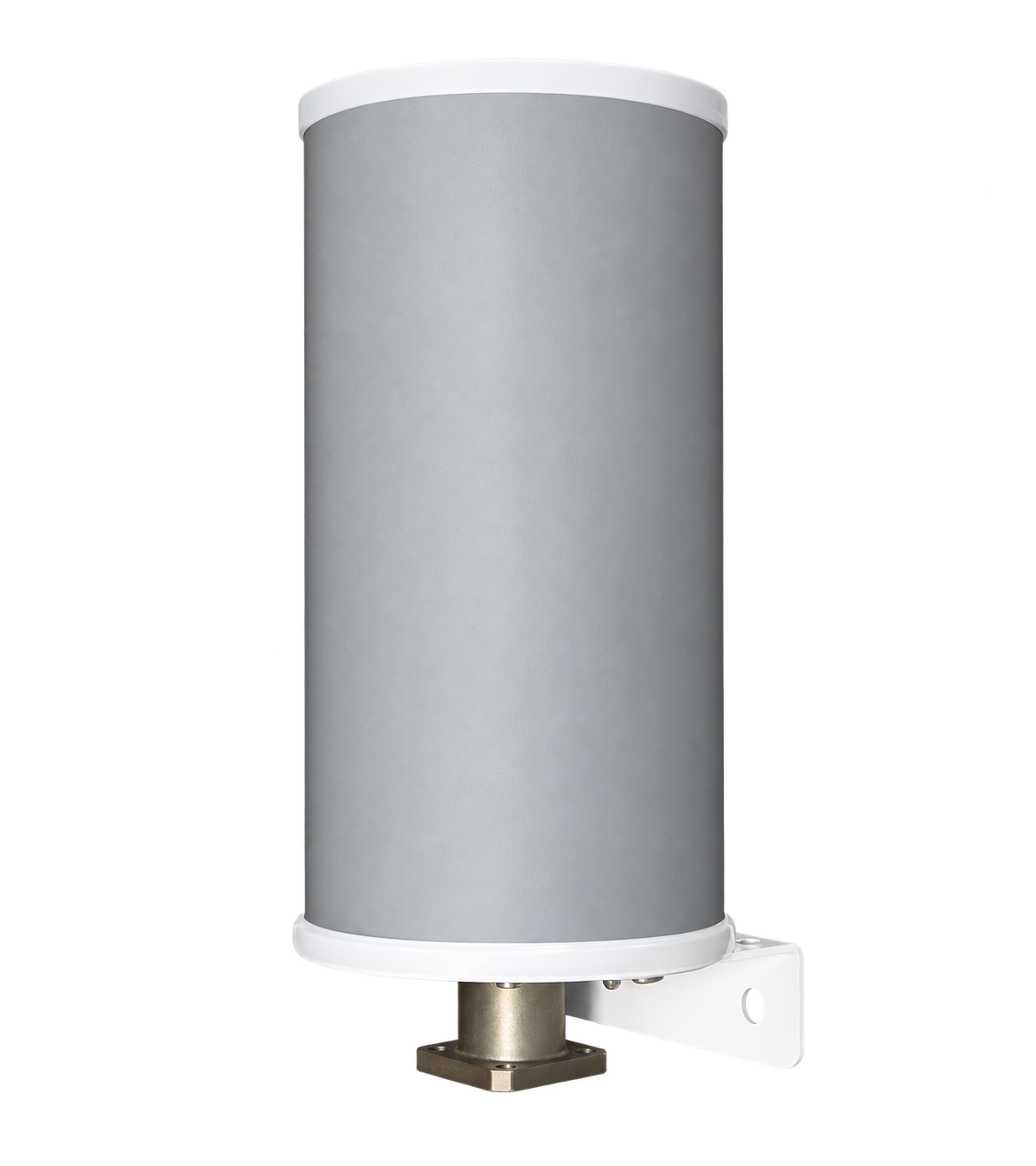

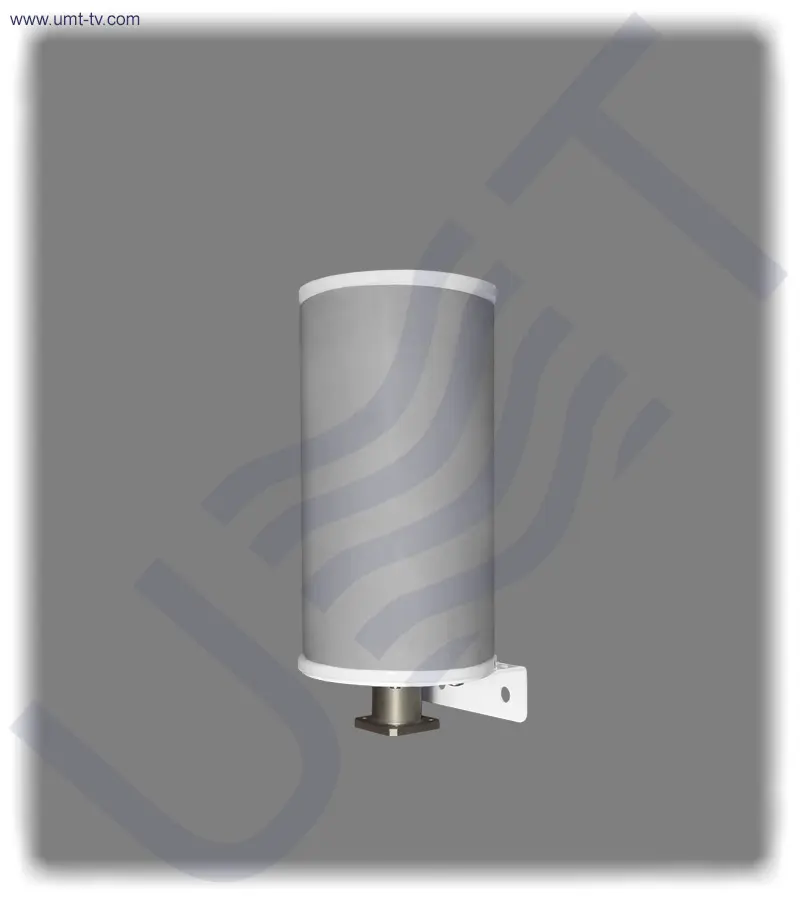

SWA-Ku360v2 10.7-11.7 GHz is Ku-band omni slotted waveguide antenna designed for MVDS / MMDS broadcasting systems. SWA-Ku360v2 10.7-11.7 GHz has 360 deg radiation pattern, high gain of 11dBi and wide frequency range of 10.7-11.7 GHz, also it has compact dimensions, minimal visibility and minimum windage characteristics. Signal transmitted by SWA-Ku360 v2 10.7-11.7 GHz can be received by typical Ku-band satellite dish and LNB.
Short instruction about antenna assembling
Key features:
- Omnidirectional: 360-degree radiation pattern
- Frequency range of 10.7-11.7 GHz (or choose other 800 MHz of Ku-band using “customized equipment” button)
- High gain: 11 dBi
- Full Ku-band covering
- Light weight
- Compact size
Main functions:
- Transmit Ku-band signals
- Applied as a part of broadcasting station, repeater and interactive microwave system
Parameter | Value |
---|---|
Frequency range, GHz | 10.7-11.7 (or choose other 800 MHz of Ku-band using “customized equipment” button) |
Gain, dBi, at least | 11 |
Gain variation in the aperture, dB, not more | ±2 |
VSWR, max | 2 |
Polarization | horizontal |
Cross-polarization, dB, not less | 25 |
HPBW: | |
@horizontal | 360° |
@vertical | 10±1° |
Input power, W, up to | 20 |
Waveguide | WR-75 flange |
Operating temperature, ° C | -40 … +80 |
Humidity | 100% @ 25°C |
Dimensions, mm, not more | 245x115x115 |
Weight, kg, not more | 2.5 |

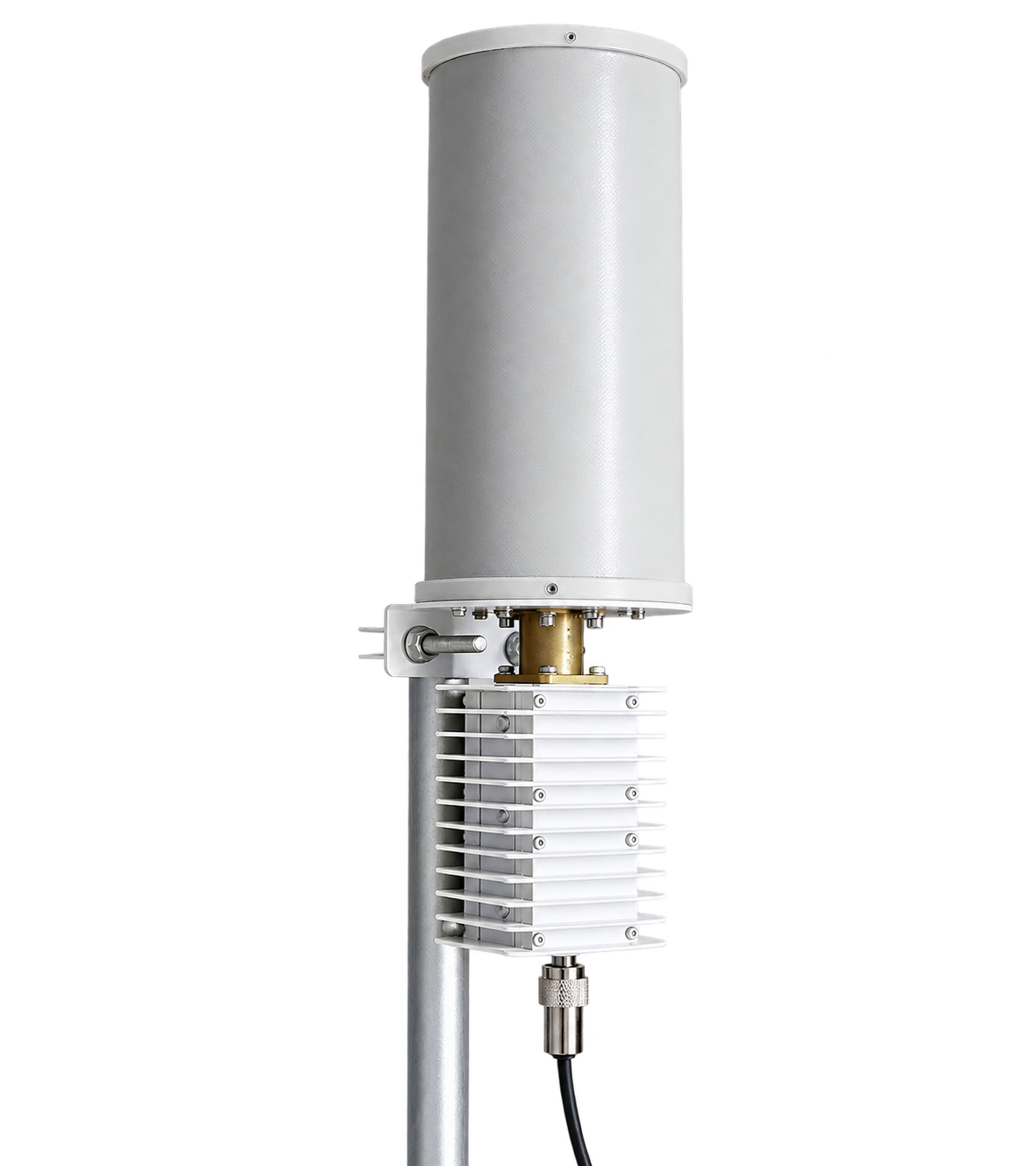

Mount | Mounting on a vertical pipe with a diameter of 40 mm (max) |
Casing material | dust/moisture proof |
