new PLL LNB with AGC

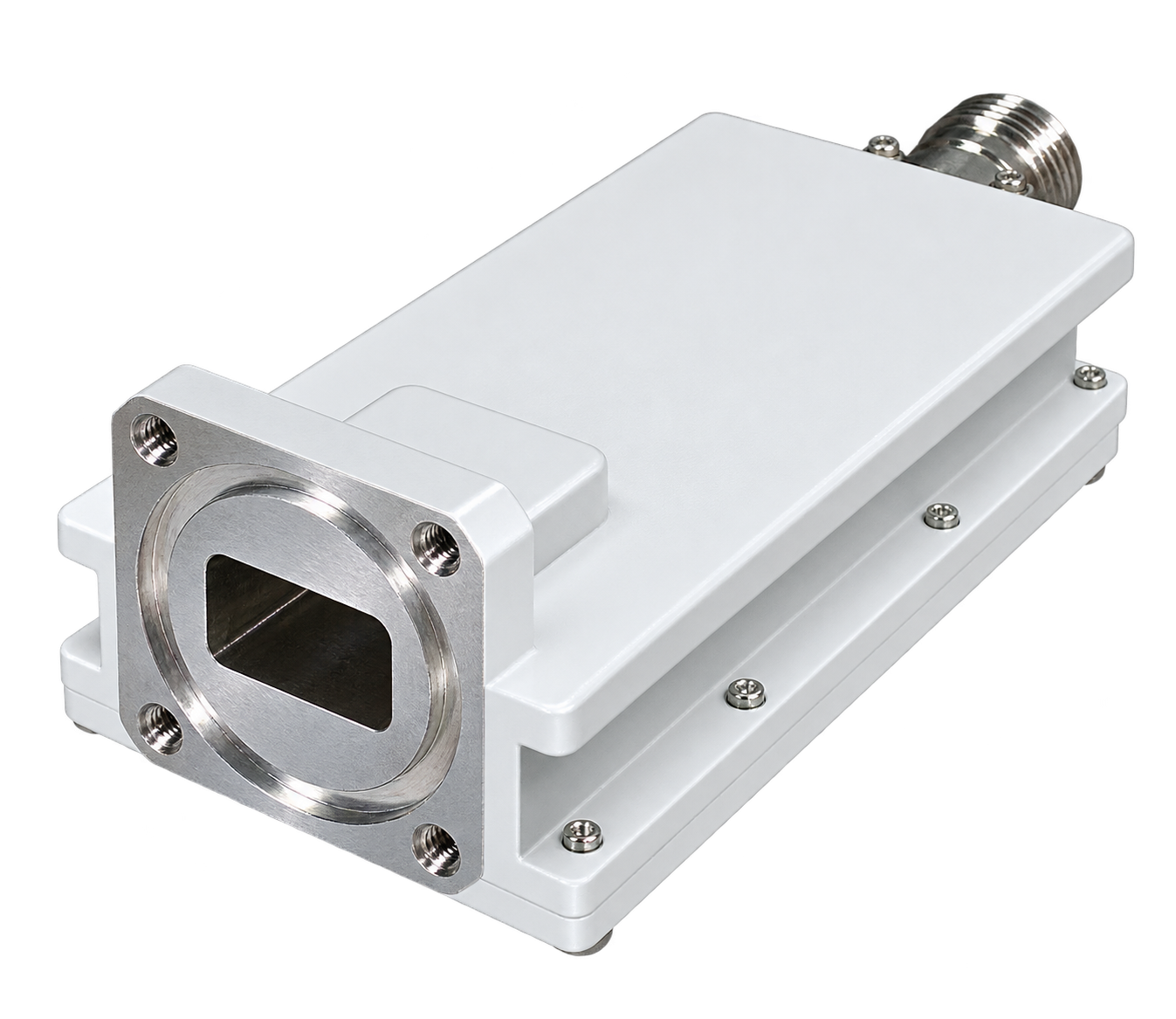

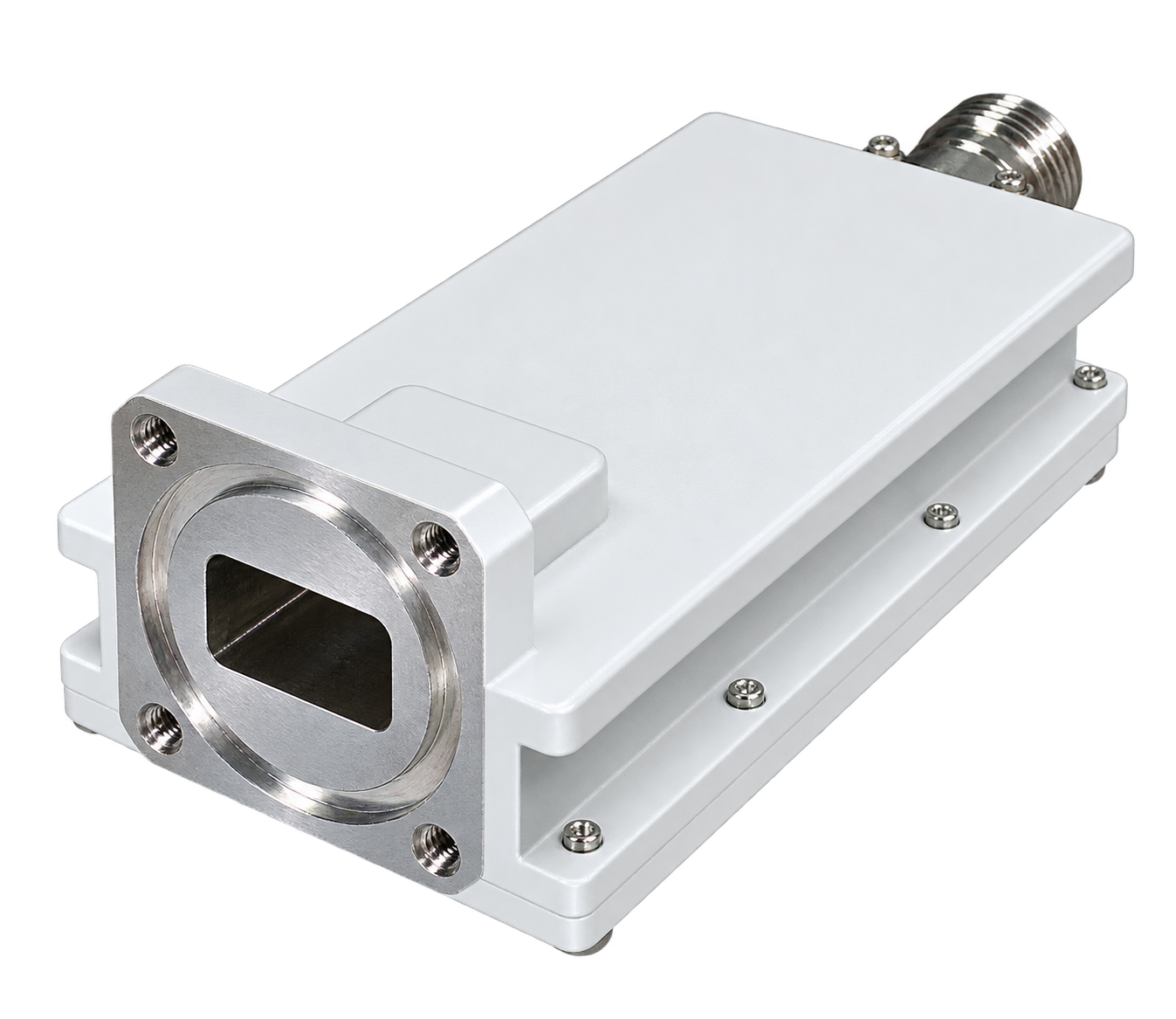

new PLL LNB with AGC is professional low noise block down converter with automatic gain control, wide dynamic range of up to 50 dB (biggest among any other LNB). AGC range of 25 dB, LO instability of 50 kHz, Gain (min) of 40 dB.
UMT presents new Ku-band PLL LNB with AGC .
It is professional LNB which has the following advantages comparing with old one: wide dynamic range - up to 50 dB (biggest among any other LNB). AGC range: 25 dB, LO instability: 50 kHz, Gain (min): 40 dB.
Ku-band PLL LNB with AGC is professional low noise block down converter with automatic gain control designed for MVDS / MITRIS TV broadcasting systems (links and repeaters) application in which the signal stability is very important. In addition, PLL LNB with AGC has wide dynamic range (power at the input) which is the biggest among other LNBs.
New PLL LNB with AGC has the following advantages comparing with old one:
- higher level stability
- higher frequency stability
- wider dynamic range - up to 50 dB (biggest among any other LNB)
- less weight and dimensions
- less price
Output frequency range: 950 - 1950 MHz
- Wide dynamic range (power at the input) - up to 50 dB (biggest among any other LNB)
- AGC range: 25 dB
- Waveguide: WR75
- Flange: PBR120
- 75 Ohm F-type or 50 Ohm N-type output connector
|Input Frequency range||any 1 GHz (from Ku-band by order)|
|Input level range||- 65 ... -15 dBm|
|Input VSWR, max||1.8|
|Input interface||Waveguide WR75, Flange UBR120|
|LO frequency||by order|
|LO Phase noise:|
|@1 kHz||-77 dBc/Hz|
|@10 kHz||-87 dBc/Hz|
|@100 kHz||-97 dBc/Hz|
|LO instability||± 100 kHz (or by order)|
|Output frequency range||950 - 1750 MHz|
|Output Power @P1dB||0 dBm|
|Gain, min||40 dB|
|Output interface||N/F-type female (by order)|
|Output impedance||50/75 Ohm|
|Output VSWR, max||1.8 : 1|
|Flatness over Full Band||3 dB|
|Flatness over 27MHz Band||0.5 dB|
|Noise figure given to the input, no more||5.0 dB|
|LO leakage, max||-50 dBm|
|Image rejection, min||60 dBc|
|Input voltage||15 VDC - 30 VDC, nominal 18 VDC|
|Power consumption, max||5 W|
|Operating temperature||–40℃ to +60℃ (–40℉ to +140℉)|
|Storage temperature||–40℃ to +80℃ (–40℉ to +176℉)|
|Operating humidity||0% - 95%|
|Dimensions (W x H x D)||55x38x116 mm|
