ASI TS received by DVB ASI TS output board is used for our boards which create streams for further broadcasting in RF or IP. It can be ASI-to-IP converters and DVB-S-S2-T modulators.

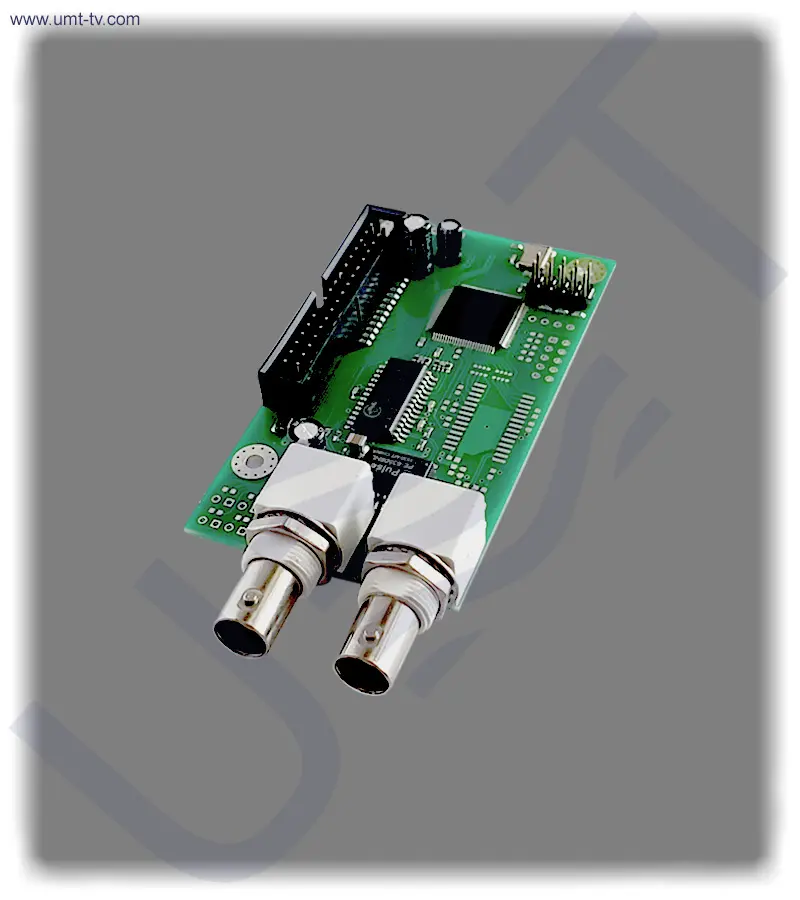

DVB ASI TS Output Board is a professional module designed to deliver DVB ASI transport streams for RF and IP broadcasting systems. It provides dual loop BNC outputs and operates in both burst and byte modes, offering flexibility for signal distribution. Compact, reliable and energy-efficient, this board is ideal for OEM developers and broadcasters creating modular DVB equipment.
Supporting automatic stream type detection and up to 150 Mbps output bitrate, the DVB ASI TS Output Board ensures stable data transfer across professional broadcasting systems. It maintains signal quality with 75 Ohm impedance and 880 mV output voltage, guaranteeing seamless compatibility with standard DVB equipment.
✅ Designed for professional DVB broadcasting
This module efficiently outputs transport streams from ASI-to-IP converters and DVB modulators. With dual loop outputs, it enables signal duplication for redundancy and monitoring. The board ensures reliable operation in 24/7 broadcasting environments.
✅ High-performance signal delivery
The DVB ASI TS Output Board supports bitrates up to 150 Mbps, ensuring clear and uninterrupted transmission. Its automatic stream recognition and burst/byte mode operation enhance flexibility and compatibility. This guarantees optimal performance in high-capacity DVB setups.
✅ Compact, energy-efficient OEM solution
With dimensions of 112×50 mm and power consumption up to 2 W, the board offers an excellent balance of size and performance. Operating from a +5 VDC supply, it is ideal for embedded broadcasting and OEM integration.
🛠️ The DVB ASI TS Output Board can be combined with DVB ASI TS Input Boards, DVB-S/S2/T modulators and DVB IP boards to create complete modular headend systems.
🛒 The DVB ASI TS Output Board is in stock, ready for integration and available by order. You can buy online, get pricing or request quote for your broadcasting solutions.
📌 Key features
-
Dual BNC loop outputs with 75 Ohm impedance
The DVB ASI TS Output Board features two looped BNC connectors, providing secure and flexible ASI signal distribution. The 75 Ohm impedance ensures compatibility with professional DVB equipment. Engineers can route or duplicate signals efficiently across broadcasting systems.
-
High bitrate up to 150 Mbps
The module supports transport stream output up to 150 Mbps, ensuring smooth and reliable data transfer. It maintains signal integrity across long cable runs and multi-device connections. This capability makes it suitable for demanding headend and converter applications.
-
Automatic stream detection
The board automatically determines stream type and packet size (188/204 bytes), simplifying setup and integration. It eliminates manual configuration and reduces commissioning time. Automatic detection ensures consistent operation in dynamic DVB networks.
-
Supports burst and byte modes
This DVB ASI output module offers burst and byte operating modes for flexible transmission control. The modes provide compatibility with a variety of DVB transmission devices. Engineers can tailor system performance to meet specific broadcasting requirements.
-
Low power, high-efficiency design
Consuming only 2 W and powered by +5 VDC, the module minimizes power use without sacrificing performance. It operates stably in continuous service conditions. The efficient design ensures long-term reliability and minimal heat generation.
-
Compact and durable construction
Measuring 112×50 mm, the board fits easily into OEM enclosures and compact broadcasting units. Its solid build supports dependable signal operation in professional systems. Compact dimensions simplify integration in space-limited setups.
⚙️ Main functions
-
Professional ASI signal output
The board generates DVB ASI transport streams with precise timing and minimal distortion. It provides dual BNC outputs for parallel signal routing. This function supports reliable data output in both RF and IP broadcasting environments.
-
Dual output for redundancy and monitoring
With two independent loop outputs, the DVB ASI TS Output Board enables simultaneous connection to modulators or analyzers. This allows redundancy setups and live signal monitoring without affecting performance. It increases system safety and reliability.
Supporting burst and byte modes, the module adapts to varied DVB transmission environments. It ensures compatibility with multiple modulator and converter types. This flexibility helps engineers optimize data flow and reduce latency.
-
Automatic packet size detection
The ASI TS Output Board automatically identifies whether packets are 188 or 204 bytes. It simplifies configuration, guaranteeing accurate transmission setup. This feature reduces human error and accelerates deployment.
-
Low power operation and compact integration
With 2 W consumption and +5 VDC power input, the board ensures efficient, cool operation. It fits compact OEM assemblies without requiring additional cooling. Its size and reliability make it ideal for modern broadcasting infrastructures.
🧩 Applications
The DVB ASI TS Output Board outputs ASI transport streams for conversion to IP-based broadcasting systems. It provides stable, high-speed transfer for hybrid DVB networks. Broadcasters can achieve seamless RF-to-IP signal distribution.
-
DVB modulators and transmodulators
Used in conjunction with DVB-S/S2/T modulators, the board ensures accurate ASI data output. It delivers consistent signal quality for modulation and transmodulation chains. This makes it essential in professional headend systems.
-
Signal distribution and redundancy systems
Dual loop outputs allow simultaneous routing to multiple destinations or monitoring devices. This function enhances reliability in critical broadcast infrastructures. Engineers can ensure redundancy without compromising output quality.
-
OEM and professional broadcasting systems
Ideal for OEM developers and system integrators designing modular DVB equipment. It combines high performance, compact dimensions and low power consumption. The board is ready for integration and available for professional use.
💡 Why you should buy from us❓
- 1.5 years warranty
- 7 years after-sales support
- Remote support team of engineers
- Discount program for regular customers 🎁
💬 Contact Us
For additional details or assistance regarding the DVB ASI TS Output Board, feel free to contact our team. We provide professional consultation and aftersales support to help with installation and setup, ensuring you get the most out of your broadcasting equipment.
