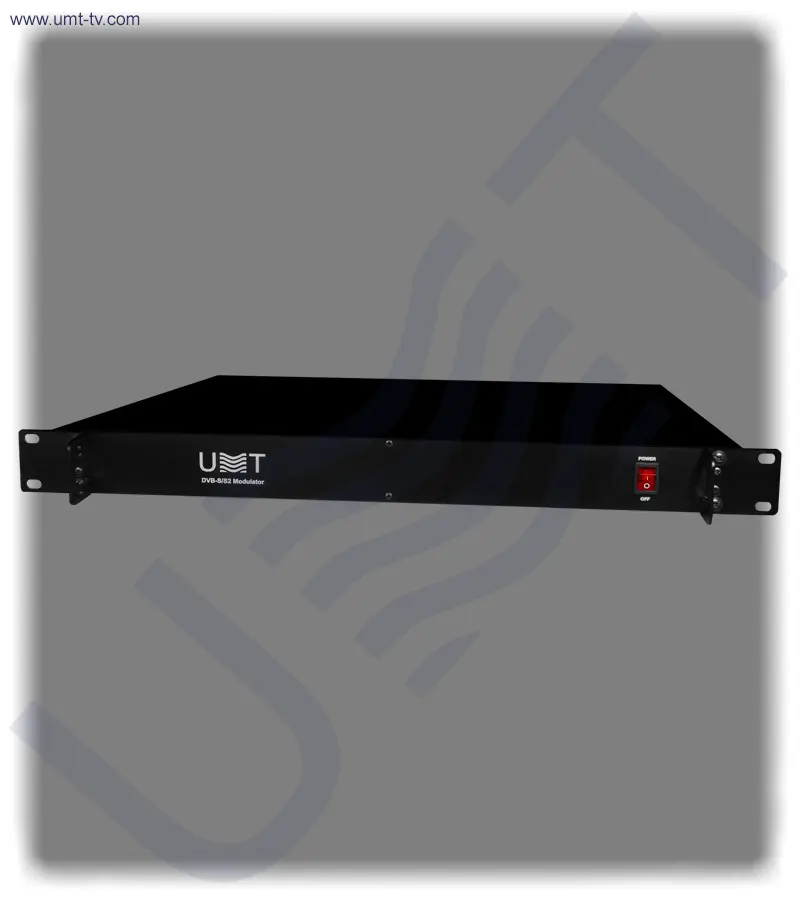

DVB-S S2 Modulator-v.1.1

  • Description
  • Downloads

This type of modulator supports the DVB-S/S2 standard.  DVB-S-S2 Modulator is controlled by our own developed VCC software by Ethernet. DVB-S-S2 Modulator has input BNC connector and can be produced with N-, F- or SMA-type of output connectors by order. The DVB-S-S2 Modulator is professional device and it is usually used by TV operators for modulation up to 32APSK.

KEY FEATURES:

  • supports symbol-rate up to 45 Msymb/s
  • output frequency range of 950-2150 MHz
  • supports constellations of QPSK, 8PSK, 16APSK, 32APSK
  • has high modulation error rate (MER)
  • has output level up to 115 dBµV
  • can be produced from 1 to 32 independent modulation channels
  • optionally has 10 MHz reference and DC injection


MAIN FUNCTIONS:

  • remote control by Ethernet
  • if power is lost all saved settings are recovered in the device after restoration of supply
  • integrated over‐voltage protection (by power supplying)
  • integrated over‐load protection (by power supplying)
  • integrated short‐circuit protection (by power supplying)

Inputs
Intreface, connector type ASI, BNC-type
RF output:
RF out (50Ω) 80-100 dBµV
Number of inputs, connector type RF output N-type (F or SMA as option)
Injection Optionaly can provide injection of DC and 10 MHz reference
Modulation parameters DVB-S mode
Constellation   QPSK
Modulation Error Rate (MER)   >27 dB
FEC  1/2 , 2/3 , 3/4 , 5/6 , 7/8
Symbolrate   1–45 MSymbol/s
Bandwidth  defined by symbolrate
Modulation parameters DVB-S2 mode:
Constellation   QPSK / 8PSK / 16APSK / 32APSK
Modulation Error Rate (MER)  >27 dB
FEC (LDPC)   1/4 , 1/3 , 2/5 , 1/2 , 3/5 , 2/3 , 3/4 , 4/5 , 5/6 , 8/9 , 9/10
Symbolrate   1–32 MSymbol/s
Roll-Off-Factor   0.2, 0.25, 0.35
Pilots   on/off
Bandwidth  defined by symbolrate
Signals injection
10 MHz reference  10-6-10-8 stability (optional)
Power injection  for the BUC 24V, 3А (optional)
Adjustment
Interface RJ-45, Ethernet
Power Supply
Input Voltage  110‐240 VAC, 50/60Hz
Power Consumption  6W per channel
Environmental
Operating Temperature  0℃ to 45℃ (32℉ to 113℉)
Storage Temperature ‐20℃ to 80℃ (‐4℉ to 176℉)
Operating Humidity  90%, non‐condensing
Mechanical
Dimensions (W x H x D)  1RU: 483mm x 44.5mm x 450mm, 19’’ x 1.73’’ (1RU) x 17.7’’
2RU: 483mm x 89mm x 450mm, 19’’ x 3.5’’ (2RU) x 17.7’’

 Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
