What is directional antennas

Directional antennas, also known as highly-directional antennas, are engineered to receive signals from a specific direction or range of directions, offering precise and targeted signal acquisition. These antennas are ideal for users looking to capture signals from a particular source or location, providing enhanced reception capabilities compared to omnidirectional antennas.

UMT LLC offers a diverse range of high-quality directional antennas designed to meet various signal acquisition needs. Whether you require a clearstream antenna, a unidirectional antenna, or specialized high-gain options, we have the perfect solution to enhance your signal reception experience

Omni Antennas

Omni Antennas

Sector Antennas

Sector Antennas


Add filter

Filters

Diameter

DRA-Ka06

DRA-Ka06

DRA-Ka06 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for K-band & Ka-band: 18-40 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 1.5°; Beam (V): 1.5°

► Cross-polarization isolation: 25 dB

► Gain: 40 dBi

More

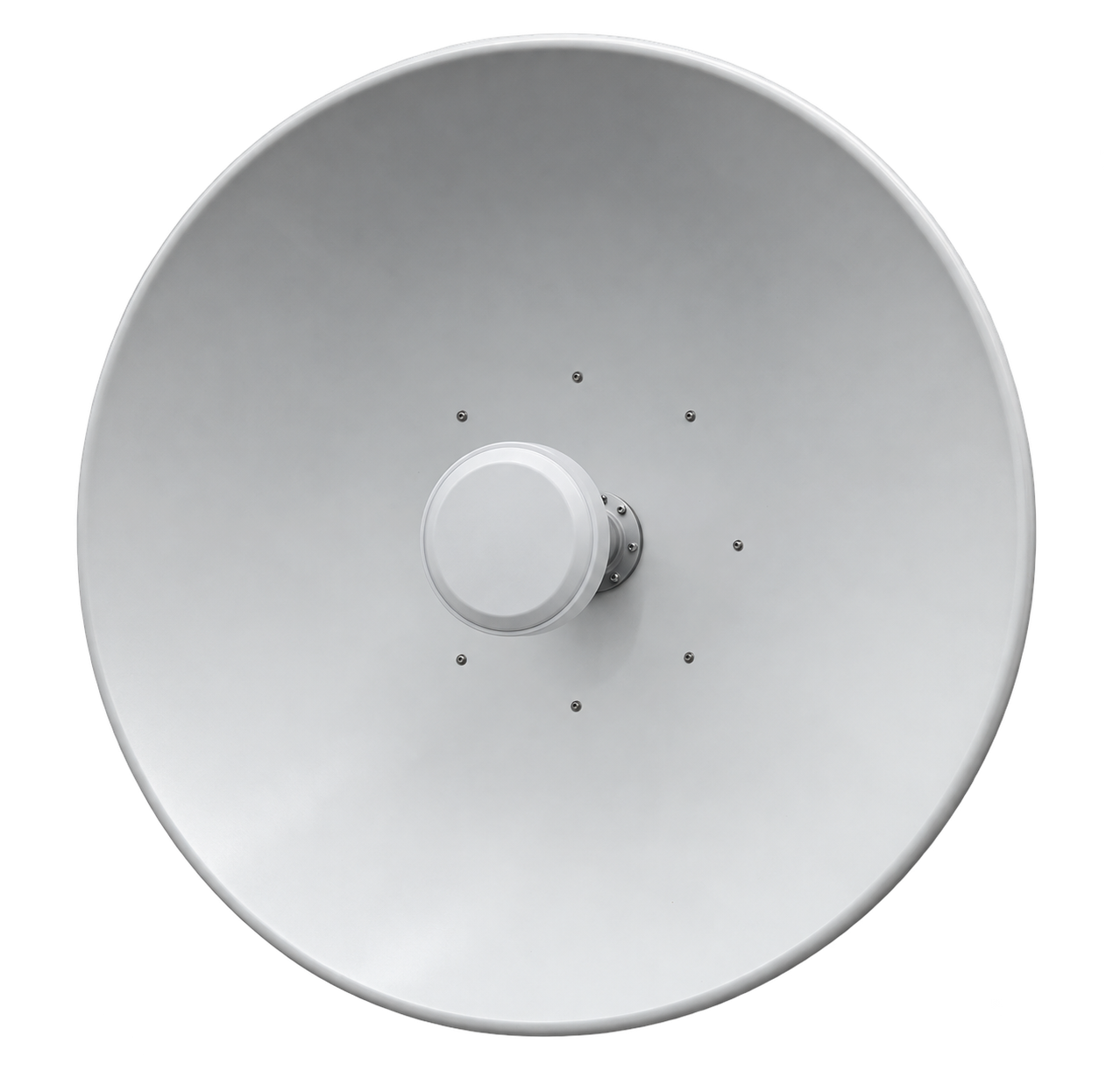

DRA-Ka09

DRA-Ka09

DRA-Ka09 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for K-band & Ka-band covering 18-40 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 1°; Beam (V): 1°

► Cross-polarization isolation: 25 dB

► Gain: 41 dBi

More
DRA-K09

DRA-K09

DRA-K09 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for K-band: 18-27 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 1.5°; Beam (V): 1.5°

► Cross-polarization isolation: 25 dB

► Gain, max: 41-45 dBi

More
DRA-K06

DRA-K06

DRA-K06 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for K-band: 18-27 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 3°; Beam (V): 3°

► Cross-polarization isolation: 25 dB

► Gain: 38-41 dBi

More
DRA-Ka045

DRA-Ka045

DRA-Ka045 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for K-band & Ka-band: 18-40 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 2°; Beam (V): 2°

► Cross-polarization isolation: 25 dB

► Gain: 39 dBi

More
Customized Directed Antenna

Customized Directed Antenna

3 easy steps to obtain special development from our company:



1. Click button “request/сustomized”.

2. Fill needed parameters.

3. Wait for our reply.

P.S. We will reply you as soon as possible after query processing in accordance to our business hours.



DRA-Ku125

DRA-Ku125

DRA-Ku125 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for Ku-band: 10-15 GHz

► Supports linear and circular polarizations (by order)

► Beam (H): 1.2°; Beam (V): 1.2°

► Cross-polarization isolation: 25 dB

► Gain: 39 dBi

More
DRA-Ku045

DRA-Ku045

DRA-Ku045 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for Ku-band: 10-15 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 5°; Beam (V): 5°

► Cross-polarization isolation: 25 dB

► Gain: 30 dBi

More
DRA-Ku09

DRA-Ku09

DRA-Ku09 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for Ku-band: 10-15 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 2°; Beam (V): 2°

► Cross-polarization isolation: 25 dB

► Gain: 36 dBi

More
DRA-Ku06

DRA-Ku06

DRA-Ku06 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for Ku-band: 10-15 GHz

► Can operate with linear and circular polarizations (by order)

► Beam (H): 3°; Beam (V): 3°

► Cross-polarization isolation: 25 dB

► Gain: 33 dBi

More
DRA-Ku150

DRA-Ku150

DRA-Ku150 is Double Reflector Antenna (Cassegrain antenna).



► It is designed for Ku-band: 10-15 GHz

► Supports linear and circular polarizations (by order)

► Beam (H): 0.9°; Beam (V): 0.9°

► Cross-polarization isolation: 25 dB

► Gain: 41 dBi

More

Advantages of buying direct antennas from UMT LLC?

When you choose to buy direct antennas from UMT LLC, you’re making an investment in superior signal reception and unmatched performance. Here are some compelling reasons to opt for UMT LLC’s directional antennas:

  1. Extensive Product Catalog: Our catalog features a wide variety of directional antennas, including medium and high gain options, as well as specialized reflector and customized amplifier designs.
  2. Global Reach: We offer delivery services across the USA, India, Europe, Africa, and to customers across the world, ensuring that everyone can benefit from our exceptional antennas.
  3. Competitive Pricing: UMT LLC provides competitive prices for high-quality directional antennas, making advanced signal acquisition technology accessible to users worldwide.
  4. Technology Reviews: Our antennas have been reviewed for their performance, clarity, and ability to capture the best signal possible for radio, TV, and digital frequencies.

By choosing UMT LLC’s direct antennas, you’re ensuring that you receive optimal signal reception, impeccable performance, and reliability. Experience the difference with UMT LLC’s superior directional antennas today!
