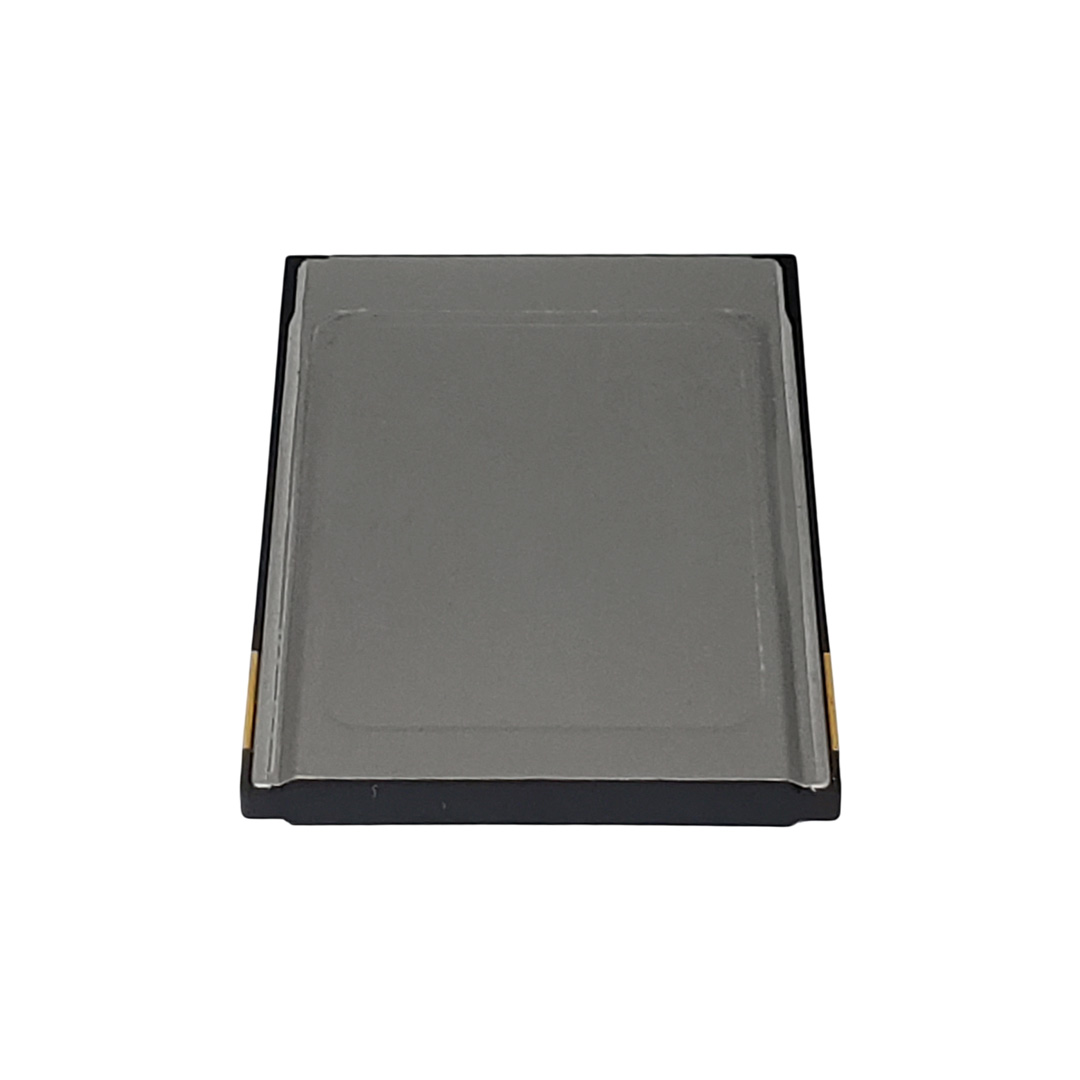

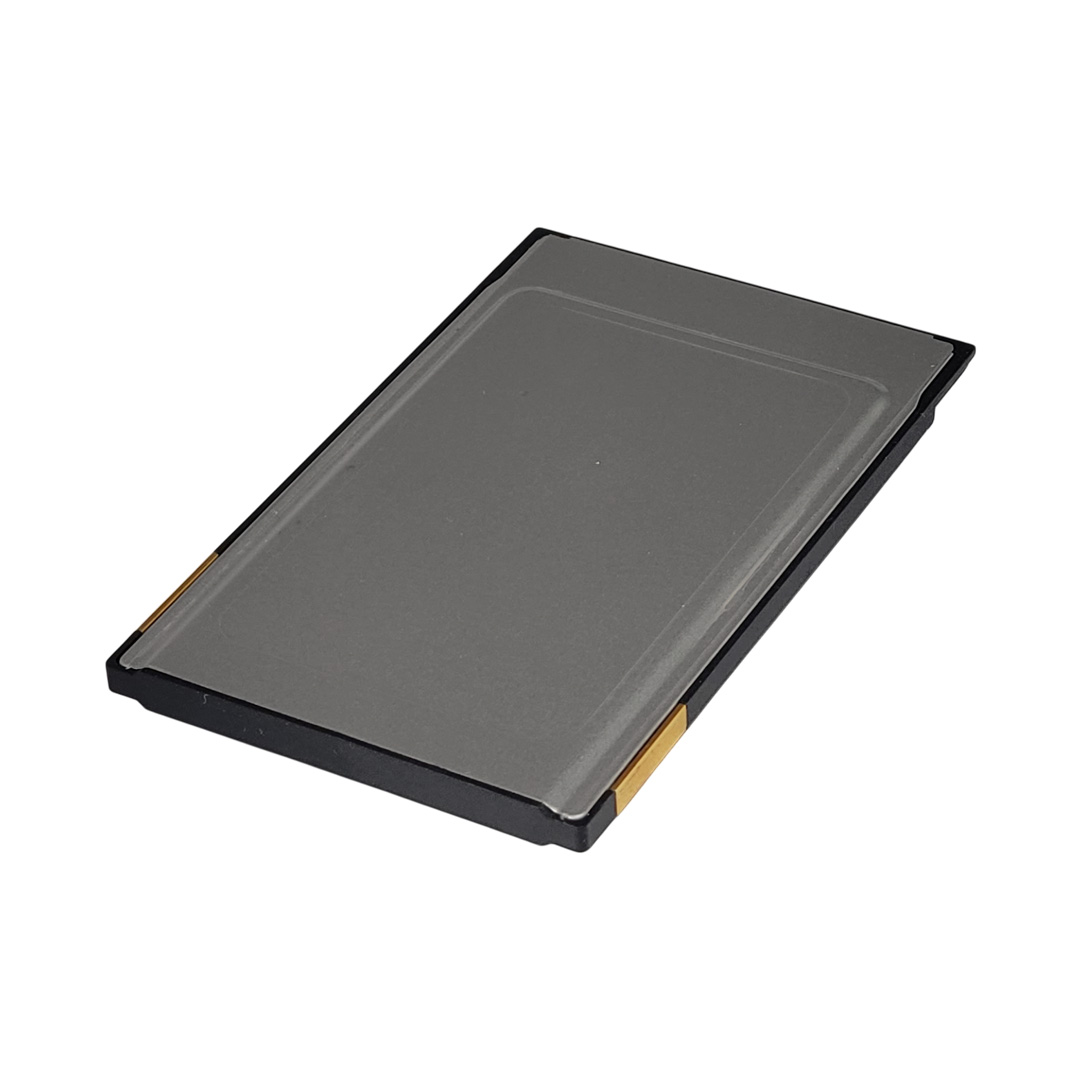

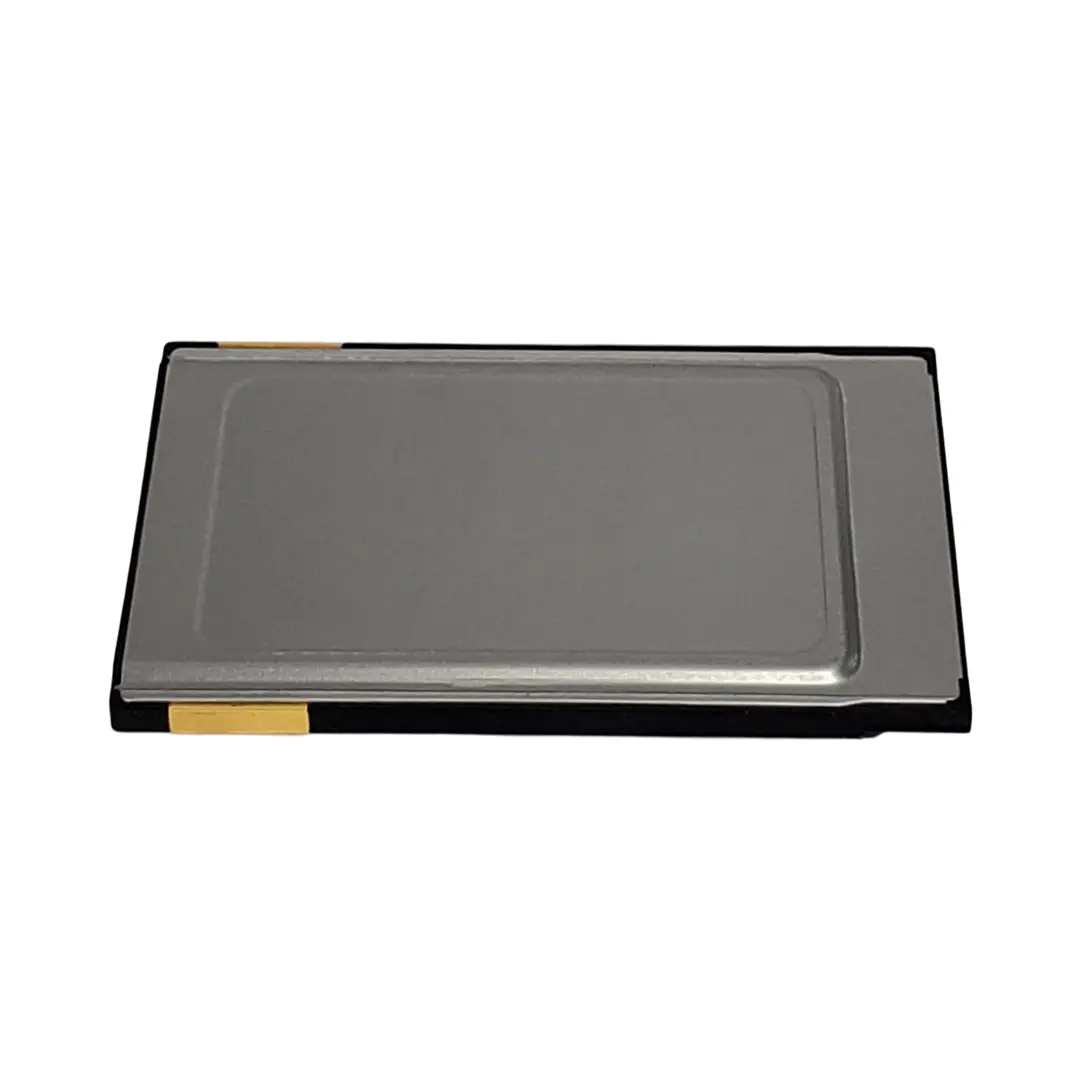

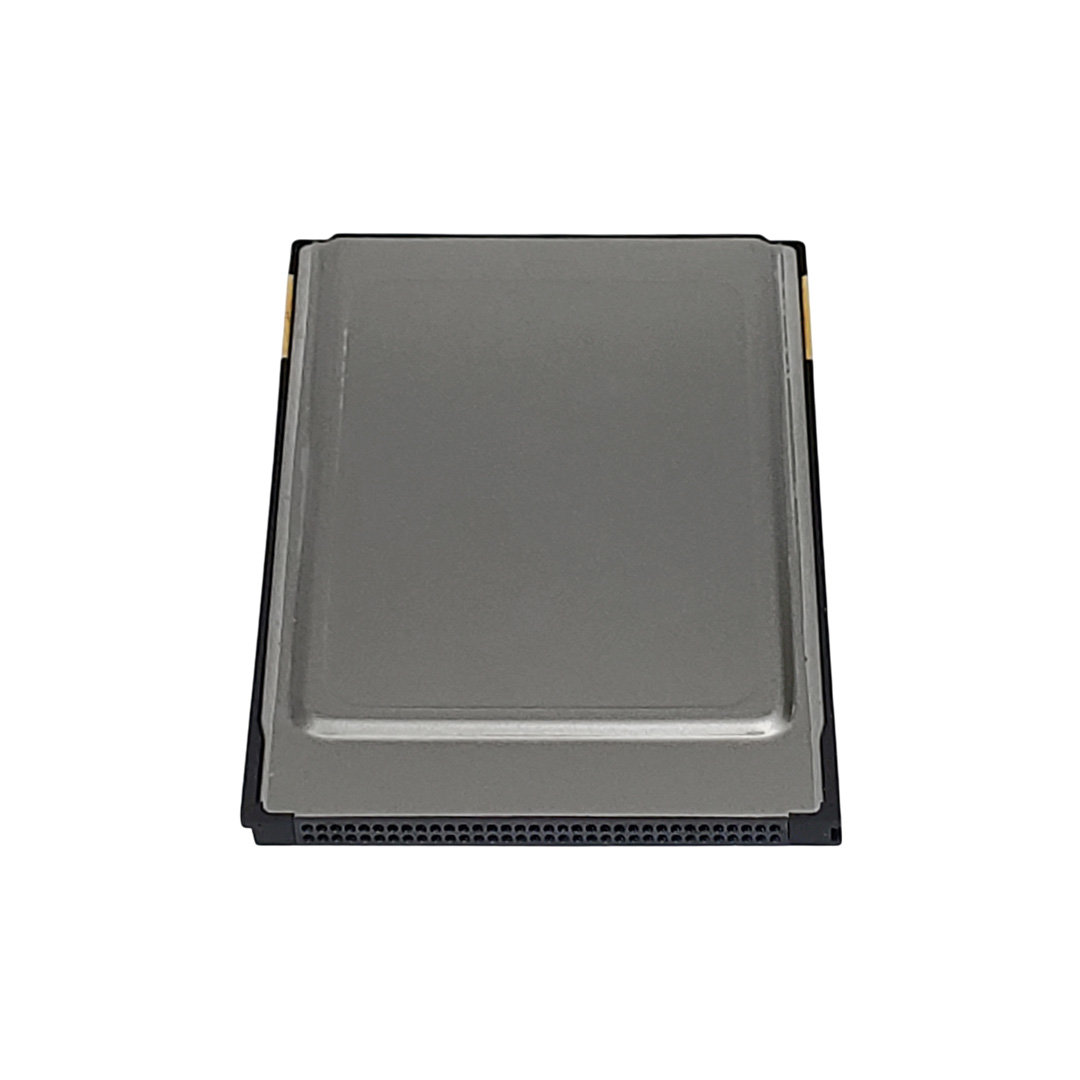

Conditional-access module (CAM) cardless
Short description
CConditional Access Module (CAM) – Cardless DVCrypt CI Module for Encrypted Digital TV Access
Request for customized equipment HEAD-END
-
Description
-
Downloads
UMT LLC Conditional Access Module (CAM) is a professional hardware interface designed to DVCrypt encrypted digital TV content using the DVCrypt scrambling system. Compatible with any digital TV receiver or television with a Common Interface (CI) slot, this CAM module enables secure content access for authorized users without the need for physical smart cards (cardless configuration available).
Developed in accordance with DVB-CI and PCMCIA standards, the CAM supports both broadcast and pay-TV environments, ensuring seamless integration into satellite, cable, or terrestrial digital broadcasting systems. It enables operators and broadcasters to manage content rights and subscriber access in a secure, flexible, and efficient way.
Conditional-access module (CAM) cardless is designed to DVCrypt encrypted digital television broadcasts without the need for a physical smart card. By embedding the conditional access system (CAS) directly into the module’s hardware, it offers a streamlined and tamper-resistant solution for pay-TV operators.
🔧 Technical Specifications
Parameter | Specification |
Form Factor | PCMCIA Type II |
Dimensions | 86 × 54 × 5 mm |
Connector | 68-pin PCMCIA |
Conditional Access System | DVCrypt |
Common Interface Protocols | DVB-CI Profile 1, PCMCIA-compliant |
Smart Card Slot | Integrated (ISO7816 standard) – cardless version available |
Operating Voltage | 3 – 5 V |
Compatibility | All TVs and STBs with CI or CI+ slots |
Usage | DVB-S/S2, DVB-T/T2, DVB-C environments |
✅ Key Features & Benefits
- Secure access to scrambled digital television broadcasts
- Cost Efficiency – Reduces operational costs associated with smart card distribution and management.
- Fully compatible with DVCrypt conditional access system
- Plug-and-play with CI-enabled TVs and receivers
- Cardless architecture simplifies deployment and reduces cost
- Optional integrated smart card reader for CAS cards (ISO7816 standard)
- Compact PCMCIA Type II design fits directly into standard CI slots
- Suitable for satellite, cable, and terrestrial DVB infrastructures
- Supports both free-to-air and pay-TV environments
- Built to industry-standard DVB-CI protocol specifications
- Integrated CAS – Eliminates the need for external smart cards by embedding the CAS within the module, reducing potential points of failure
- Enhanced Security – Utilizes hardware-based encryption and secure chipsets to protect against unauthorized access and card sharing
- Plug-and-Play Compatibility – Compliant with DVB-CI and CI+ standards, ensuring seamless integration with a wide range of televisions and set-top boxes
🧩 Applications
- Conditional access control in DVB-S/S2, DVB-T/T2, DVB-C networks
- Digital Pay-TV service delivery
- MVDS/MMDS broadcast systems
- Hospitality, hotel TV, and IPTV environments
- Private content delivery networks using encrypted transmission
- Digital terrestrial, satellite, and cable pay-TV services
📈 Enhance Your Broadcast Security and Efficiency
Implementing the Cardless CAM Module simplifies subscriber access management while maintaining high security standards. Its cardless design reduces logistical complexities and potential vulnerabilities associated with physical smart cards.
🤝 Contact Us for Bulk Orders and Integration
Optimize your content protection strategy with our Cardless CAM Module. Reach out to our team for detailed information on bulk purchasing options and integration support.
Physical characteristics | |
---|---|
Dimensions |
|
Connector | 68-pin PCMCIA |
Interface protocols | |
CI-interface protocols | according to profile 1 DVB-CI protocol and PCMCIA specifications |
Protocols of the smart card interface |
|
Electrical characteristics | |
Operating voltage | 3 ~ 5V |
Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
