UMT LLC offers a wide range of professional OEM DVB boards for digital TV broadcasting. Our product line includes DVB-T2 modulator board (174-862 MHz), DVB-S/S2 modulator and DVB-S/S2 receiver boards (950-2150 MHz), ASI input/output modules, IP input boards and IP control boards (6 or 16 ports). These broadcast-grade modules support in DVB-S2 modulation up to 32 APSK and in DVB-T2 up to 256QAM constellations, transport stream processing and flexible integration into any TV headend system.
Our IP to ASI converters and multi-standard DVB solutions ensure compatibility with existing infrastructure and future expansion. Designed for 24/7 reliability, they are ideal for terrestrial and satellite networks, IPTV gateways and digital TV laboratories.
📡 Scalable, configurable and ready for integration – choose UMT OEM broadcast modules for your DVB projects
Feel free to contact us for details 🤝
Converters
Integrated Receiver Decoder & Descrambler
Encoders
IP Streamers
Mixers
RF Distribution
DVB Modulators & Signal Regenerators
Scramblers
Multiplexers
Filters

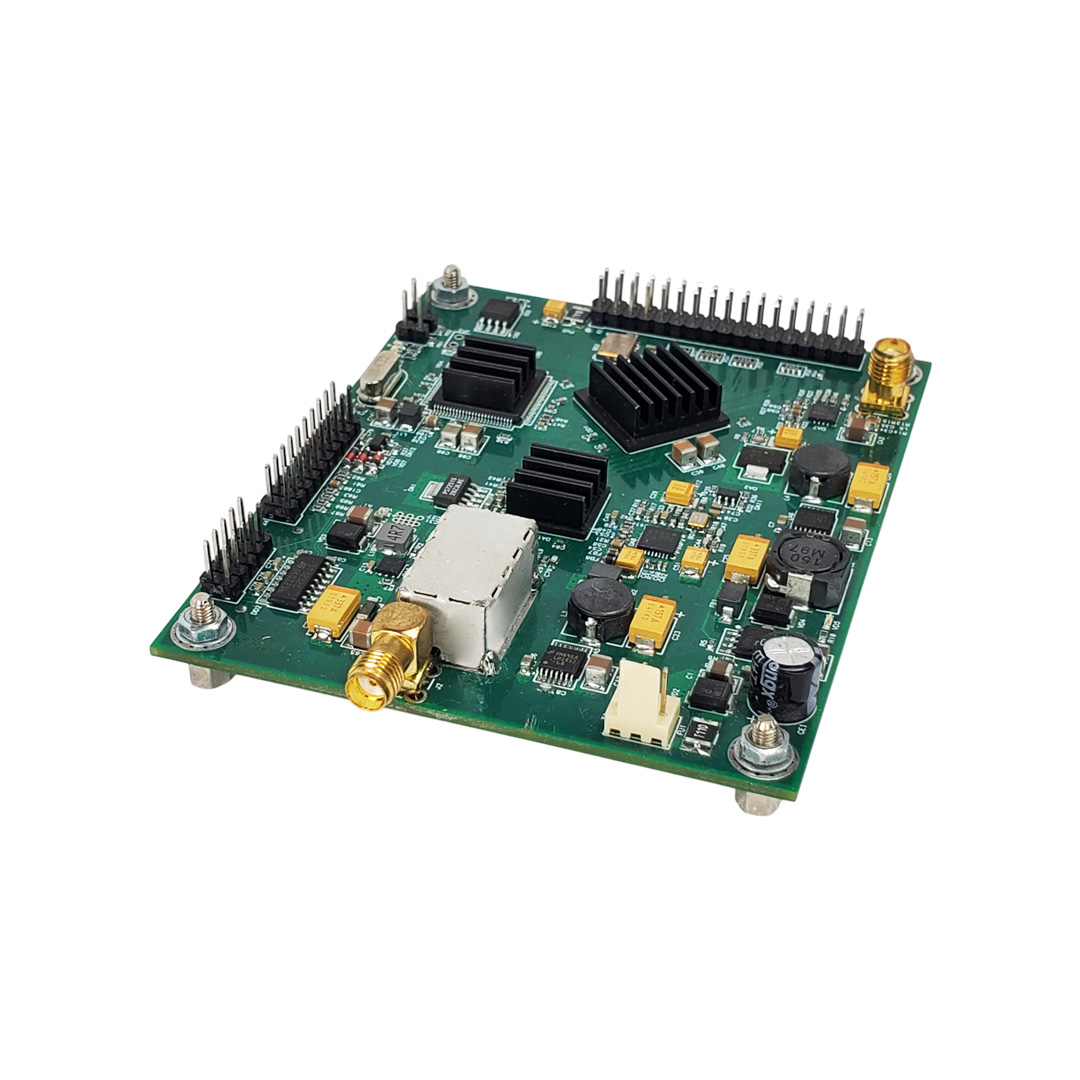

DVB-T2 modulator board
High-performance UHF (174–862 MHz) DVB-T2 modulator board with ASI input – designed for OEM integration, supports advanced digital terrestrial broadcasting with robust signal quality and efficient spectrum utilization.
L-band DVB-S-S2-T modulator board
L-band DVB-S-S2-T modulator board is designed for DVB TS (transport stream) modulating, creating the L-band IF signal from parallel TS for further broadcasting in DVB-S, DVB-S2 or DVB-T standards.
2 ch DVB-S-S2 receiver board
2 ch DVB-S-S2 receiver board is designed to convert the DVB-S/S2 IF (intermediate frequency in the L-band obtained from the LNB) to parallel DVB TS (transport stream).
6 ch IP control board
This IP control board has 6 ports for connecting and managing the 6 independent DVB boards (modulator, receiver, IP input or output boards, etc.). Ideal for building custom digital TV broadcasting systems.
DVB ASI TS input board
DVB ASI TS input board is designed to convert the ASI TS into parallel DVB TS and can be used with other our boards for building ASI-IP converters modulators and other digital broadcasting equipment.
DVB ASI TS output board
DVB ASI TS output board is designed to convert the parallel DVB TS into ASI TS and can be used with other our boards for building IP-ASI converters, receivers and other digital broadcasting equipment.
DVB IP input/output board
DVB IP input/output board is designed for receiving/transmitting the DVB TS using UDP / RTP protocols accordingly to DVB-over-IP standard including converting from/into synchronous parallel interface.
DVB Interface Boards | DVB-T/T2 and DVB-S/S2 Modulator & Receiver Boards | IP / ASI input & ASI output Boards for TV Broadcast Systems
🔹 DVB-T2 Modulator Board
- Frequency range: 174–862 MHz
- Standard: DVB-T2 (EN302 755)
- Constellation: Up to 256QAM
- Interfaces: Parallel TS, IP, ASI
- Control: TCP/IP via IP Control Board
- Low power consumption
- Small dimensions
Applications 👉 Terrestrial TV broadcasting, DVB-T2 transmitters, gap-fillers, test labs.
🔹 DVB-S/S2 Modulator Board (L-band)
- Frequency range: 950–2150 MHz
- Modulation:
- DVB-S: QPSK
- DVB-S2: QPSK, 8PSK, 16APSK, 32APSK (on request)
- MER: >27 dB
- FEC: 1/4 to 9/10
- Symbol rate: 1–45 Msps
- Input: Parallel DVB-TS
Applications 👉 Satellite transmission, DVB-S/S2 headend, MVDS/MMDS systems.
🔹 DVB-S/S2 Receiver Board (2-channel)
- Frequency range: 950–2150 MHz
- Modulation: QPSK, 8PSK
- FEC: 1/2 to 7/8
- Symbol rate: 1–65 Msps
- Output: Parallel TS
Applications 👉 Satellite reception, TV gateways, IRD, IPTV systems.
🔹 DVB ASI Input Board
- Input signal: DVB ASI (electrical)
- Modes: Burst, Byte
- Function: Converts ASI to parallel TS
Applications 👉 ASI-IP converters, DVB modulators, broadcast systems.
🔹 DVB ASI Output Board
- Output signal: DVB ASI
- Bitrate: Up to 150 Mbps
- Modes: Burst, Byte
- Function: Converts parallel TS to ASI
Applications 👉 DVB receivers, IP-ASI converters, professional broadcasting.
🔹 DVB IP Input/Output Board
- Network interface: 10/100 Base-T, RJ-45
- Protocols supported: UDP/RTP, Unicast/Multicast
- Standards: DVB over IP, SMPTE 2022-2/3
- Max bitrate: 90 Mbps
- Control: Ethernet, RS-232
Applications 👉 IPTV gateways, IP-ASI bridges, DVB IP streaming systems.
🔹 6-Port IP Control Board
- Ports: 6
- Control: Ethernet TCP/IP
- Compatible with: Modulators, receivers, IP/ASI boards
Applications 👉 Compact headend systems, multi-board control.
🔹 16-Port IP Control Board
- Ports: 16
- Control: Ethernet TCP/IP
- Compatible with: Full system integration
Applications 👉 Scalable TV headends, centralized DVB control units.
🔹 IP to ASI Converter
- Function: IP stream to DVB ASI conversion
- Protocols: UDP/RTP
- Interfaces: IP input, ASI output
Applications 👉 IPTV to ASI bridges, digital broadcast integration.
✅ Applications of UMT LLC DVB Boards
UMT LLC offers you OEM broadcast boards which are designed for 24/7 operation in digital TV networks, including:
- Terrestrial DVB-T/T2 transmission
- Satellite DVB-S/S2 uplinks and gateways
- IPTV platforms
- Broadcast labs and educational setups
- Compact and scalable TV headends
🔧 Customization available on request
