Short description

C-band LNB PLL LO 5.15 is Low Noise Block Down Converter with single LO 5.15 GHz and single 75 Ohm F-type output. LO instability (depends on temp.): ± 2…100 kHz, Gain: 58 dB, Noise figure: 30K, Output power P1dB: +3 dBm

- +
  • Description
  • Downloads

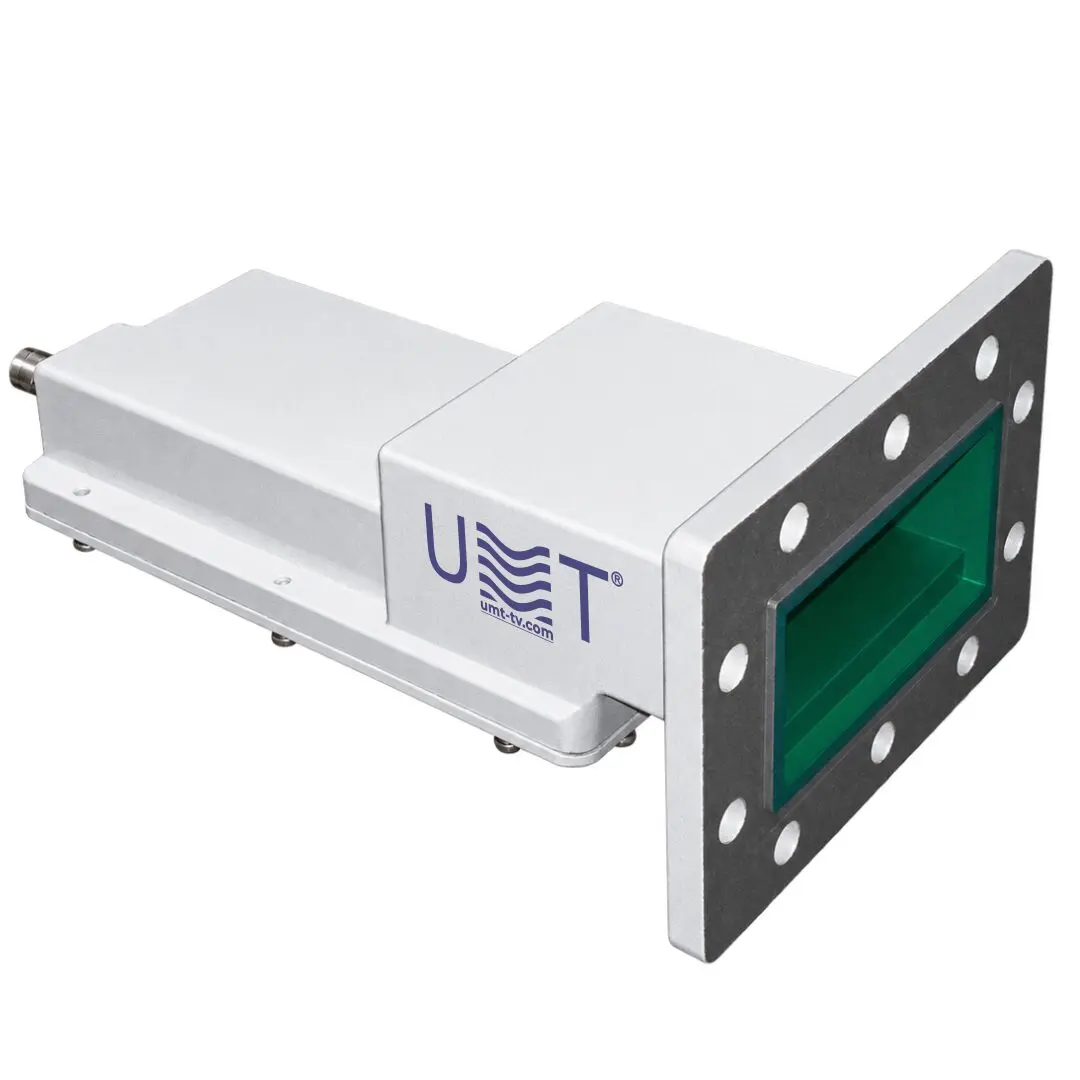

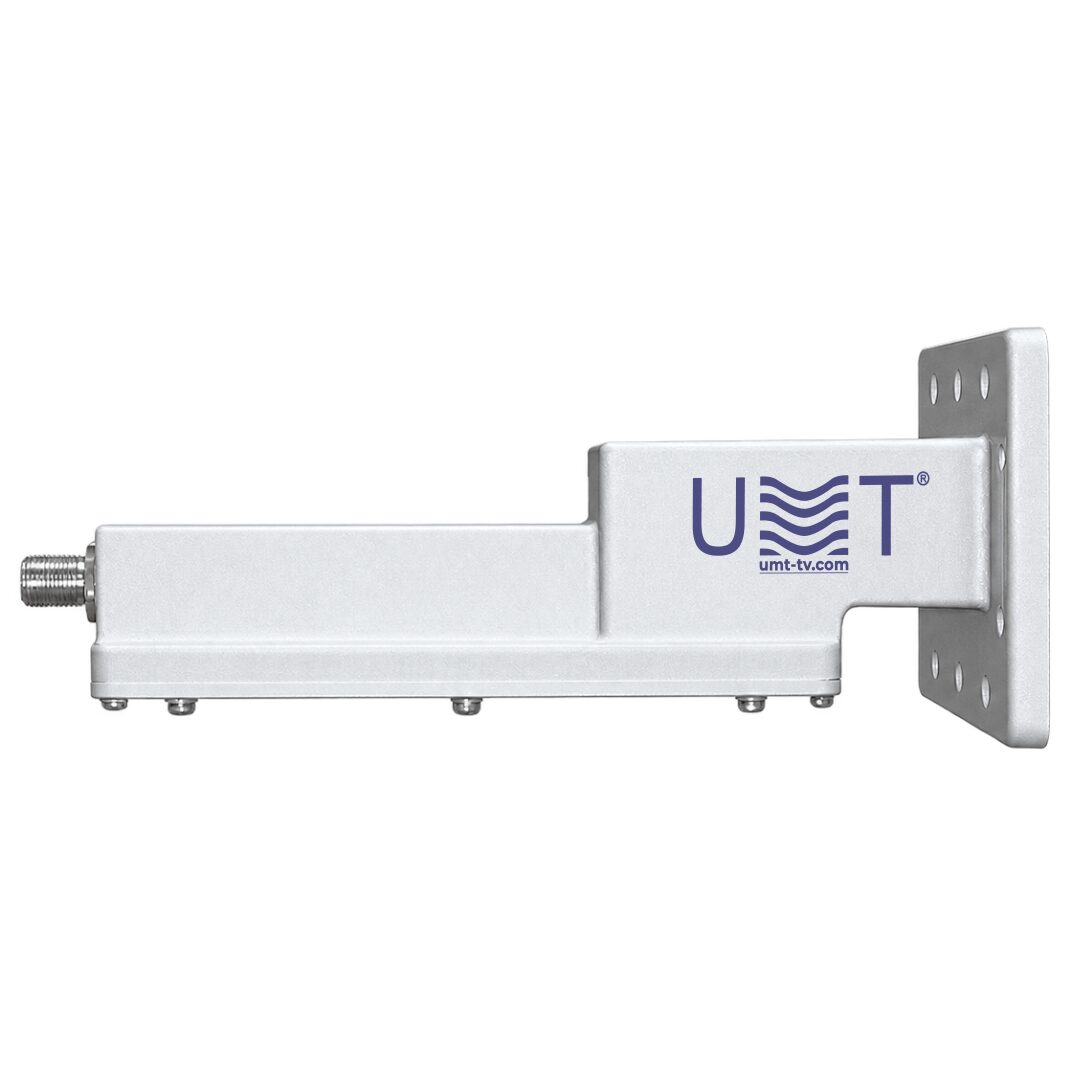

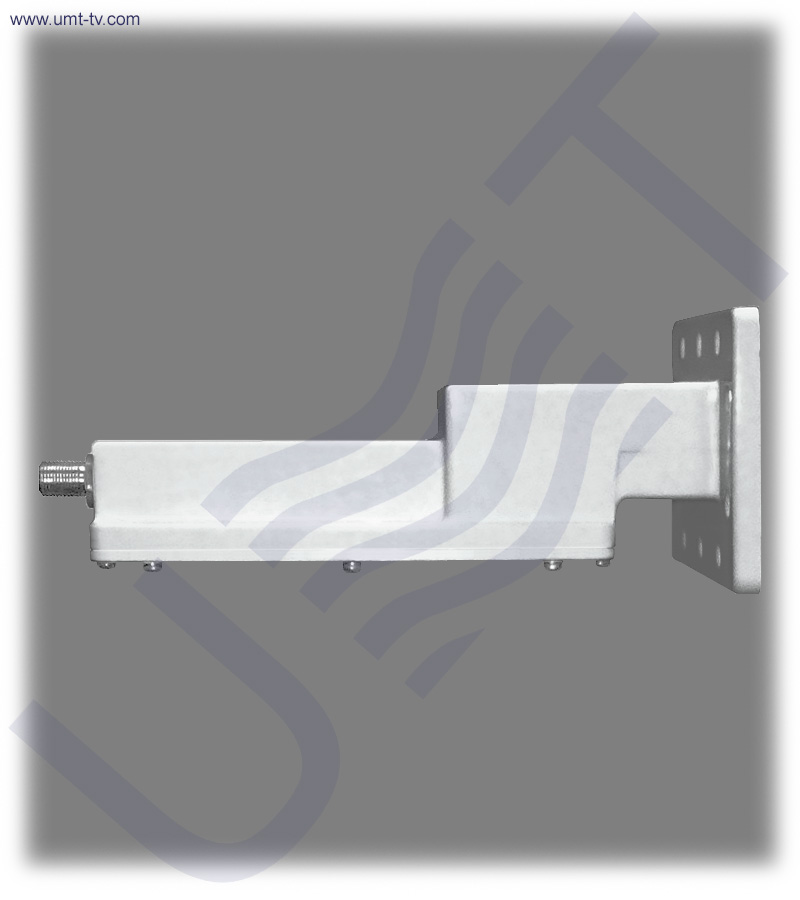

C-band LNB PLL LO 5.15 is Low Noise Block Down Converter which is designed for RF signals gaining and transforming from C-band to L-band (intermediate frequencies). The LNB PLL LO 5.15 has a waterproof case. LNB PLL LO 5.15 can be mounted in close proximity to antenna. LNB parameters correspond to MVDS / MITRIS TV broadcasting systems conditions in accordance with DVB-S/S2 or DVB-C standard and can be operated up to 25 carriers. LNB PLL LO 5.15 has input flange of CPR-229G type and can be used with regular RRL or receive antennas.

LO: 5.15 GHz IN: 3.4 – 4.2 GHz OUT: 950 – 1750 MHz


  • Input flange CPR-229G
  • Output power (P1dB) +3 dBm
  • Output frequencies 950 – 1750 MHz
  • Gain 58 dB (min)
  • Oscillator type PLL
  • Operates up to 25 carriers
  • Designed for operation in MVDS/MITRIS TV broadcasting systems
Input parameters
 Input Frequency  3.4 … 4.2 GHz
 Waveguide interface  WR-229
 Flange  CPR-229G
 Input VSWR  2.5:1
 Impedance  50 Ohm
Output parameters
 Output Frequency  950 … 1750 MHz
 Output VSWR  2.2:1
 Output Interface  F-type (female)
 Impedance  75 Ohm
Local frequency
 LO frequency  5.15 GHz
 LO instability  ± 2 to ± 50 kHz  (room temp.)
± 10 to ± 100 kHz  (over room temp.)
 LO Phase noise:
@1kHz  -65dBc/Hz
@10kHz  -80dBc/Hz
@100kHz  -95dBc/Hz
@1MHz  -110dBc/Hz
 Gain  58 dB
 Flatness  ± 2 dB   @ full band
 Ripple  ± 0.75 dB   @ 30 MHz
 Variation  ± 2 dB max
 Noise figure  30K max
 P1dB  +3 dBm
 Image rejection  45 dB min
Power Supply
 Input voltage  +12 V … + 24 V DC
 Required current  300 mA max
 Operating temperature  -30℃ to +60℃
 Storage temperature  -40℃ to +80℃
 Operating humidity  0% – 95% RH
 Dimensions (W x H x D)  98x70x138 mm
 Weight  0.645 kg

Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
