TCKu2W

Short description

Ku-band Frequency Transceivers – High-Performance RF Units for Satellite Uplink & Downlink by UMT LLC

UMT LLC’s Ku-band transceivers are advanced RF communication devices designed for reliable satellite uplink and downlink in the Ku-band frequency range (10.7–14.5 GHz). These high-stability, low-phase-noise RF transceivers combine upconverter and downconverter functionality in a compact unit, making them ideal for VSAT systems, teleports, broadcasting hubs, and mobile satellite stations. Featuring PLL local oscillators, 50/75 Ohm I/O, and N- or SMA-type connectors, they ensure seamless integration and precise frequency conversion.

BUC-Ku02-9.75 v2.0 is block up-converter with fixed output power P1dB 2 W (ALC power: 200 mW) and LO of 9.75 GHz.

Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;

and ALC with 25 dB range;

IP Ctrl (by order)

+ LED status indication at the rear side.

- +
  • Description
  • Downloads

Ku-band Frequency Transceiver – High-Stability RF Converter for Satellite Uplink and Downlink by UMT LLC

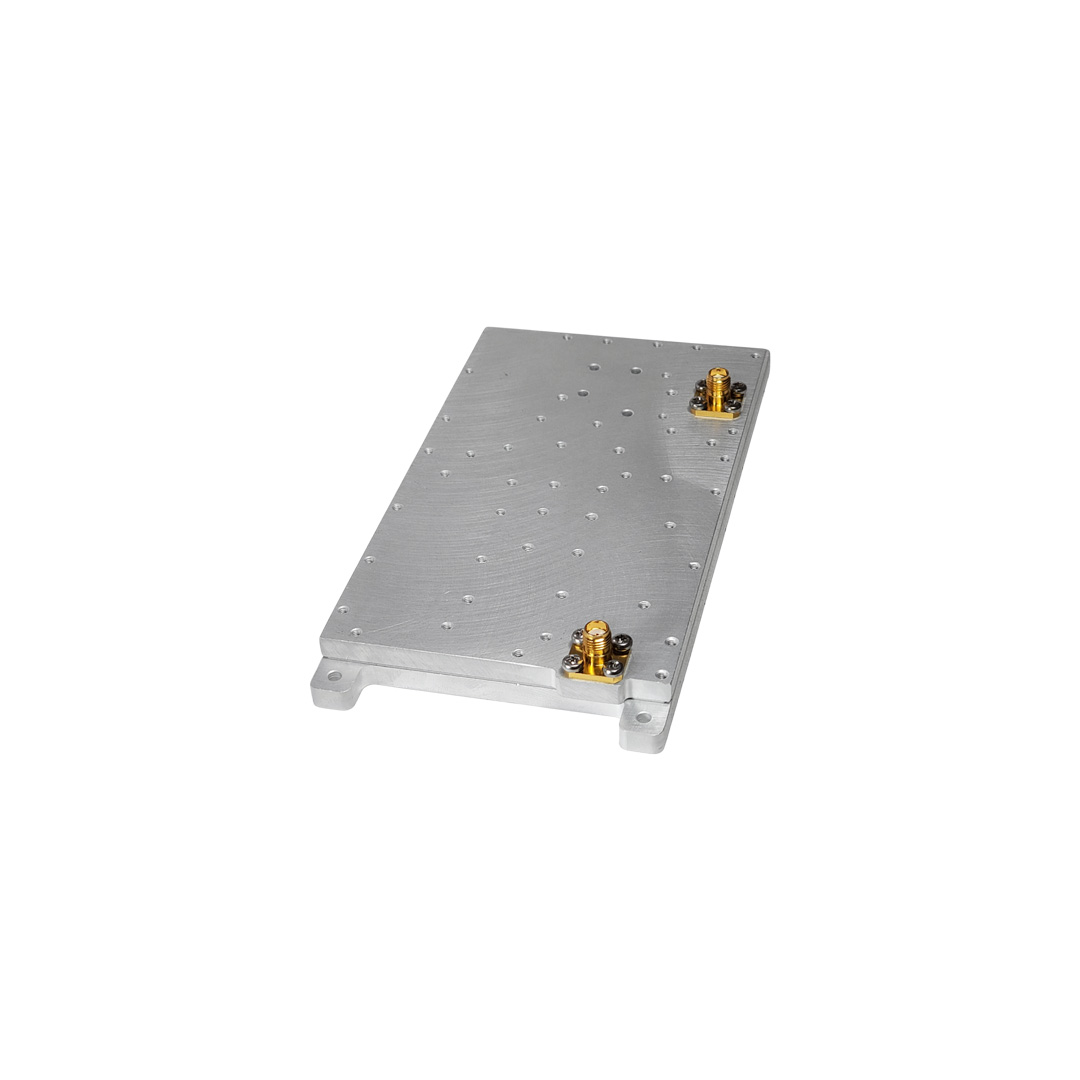

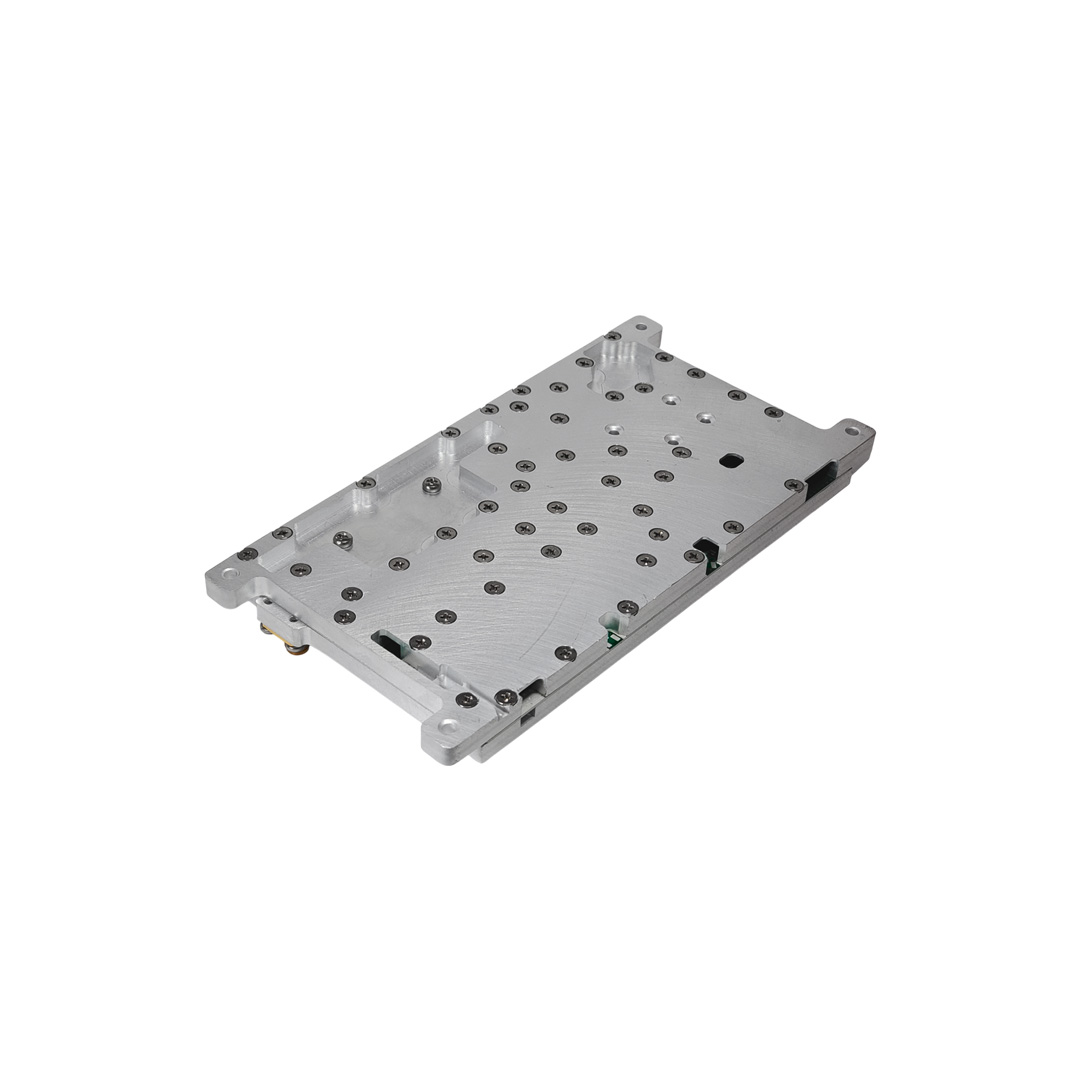

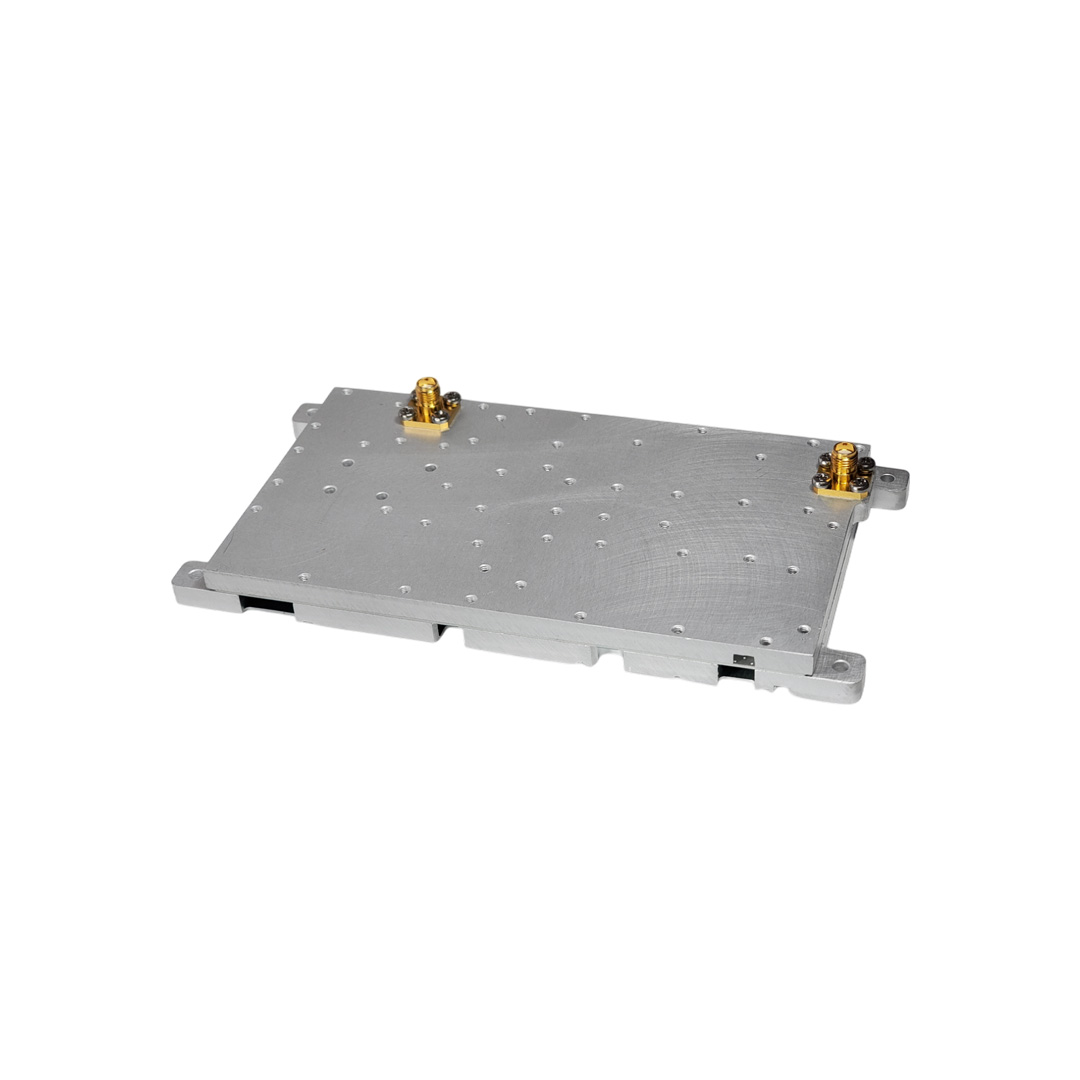

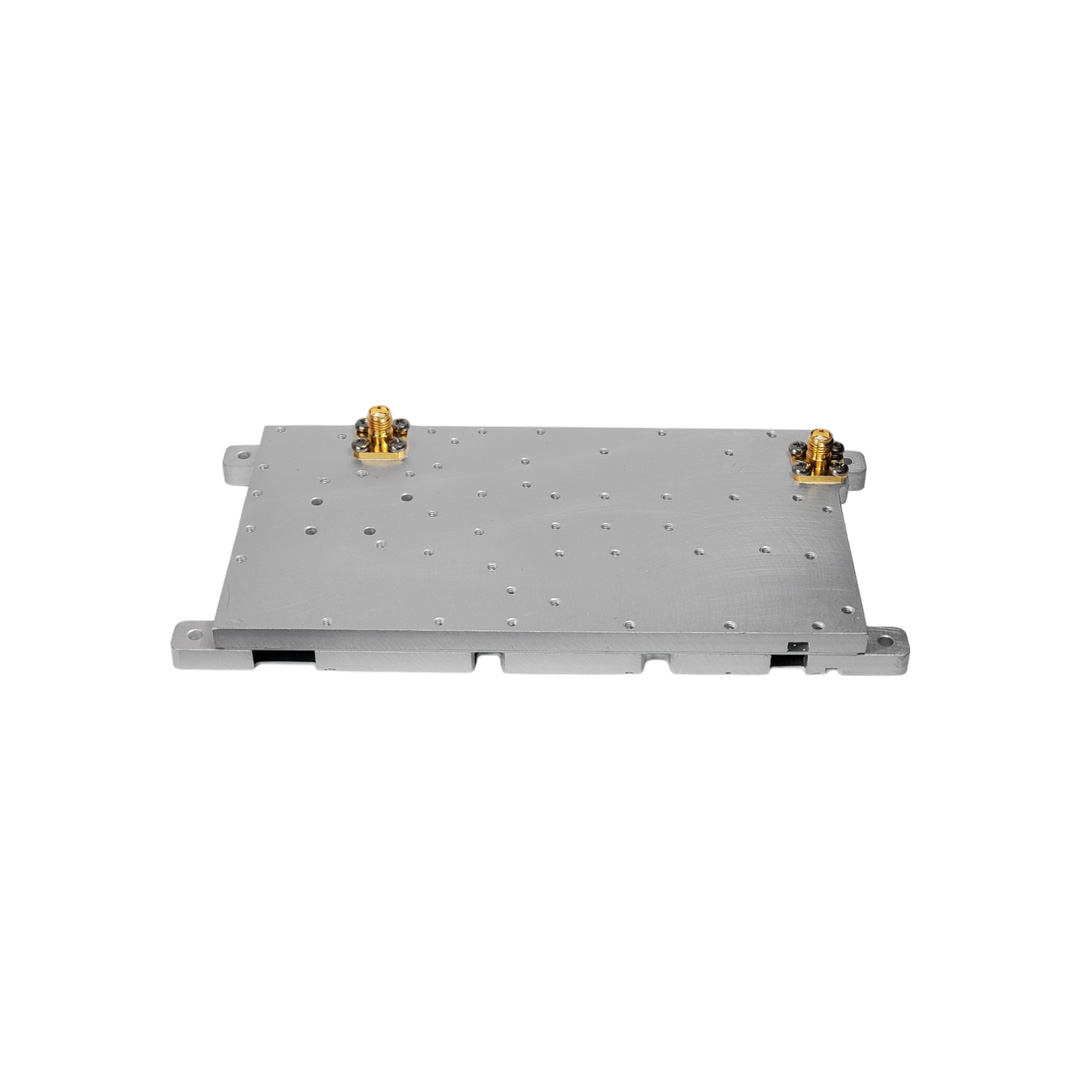

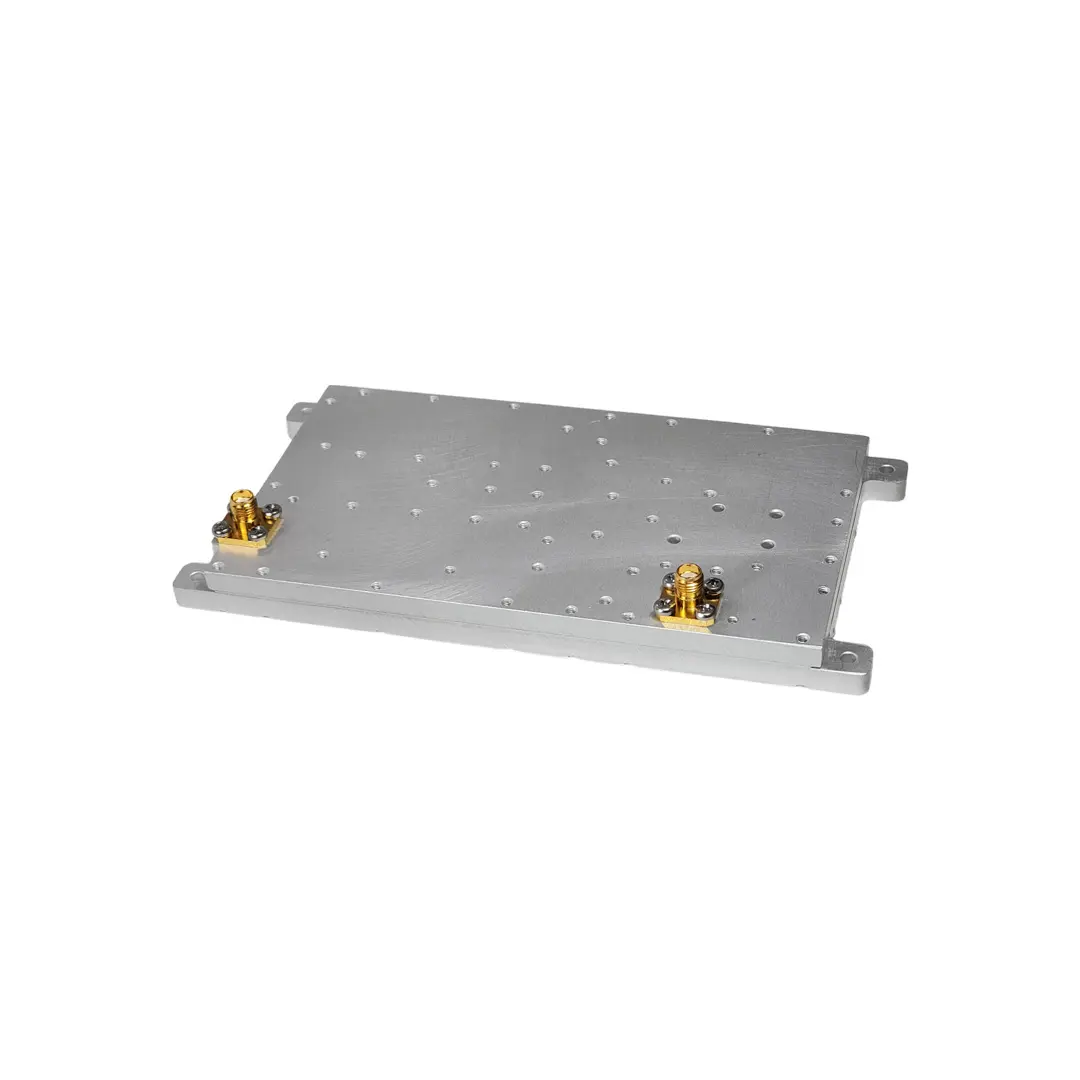

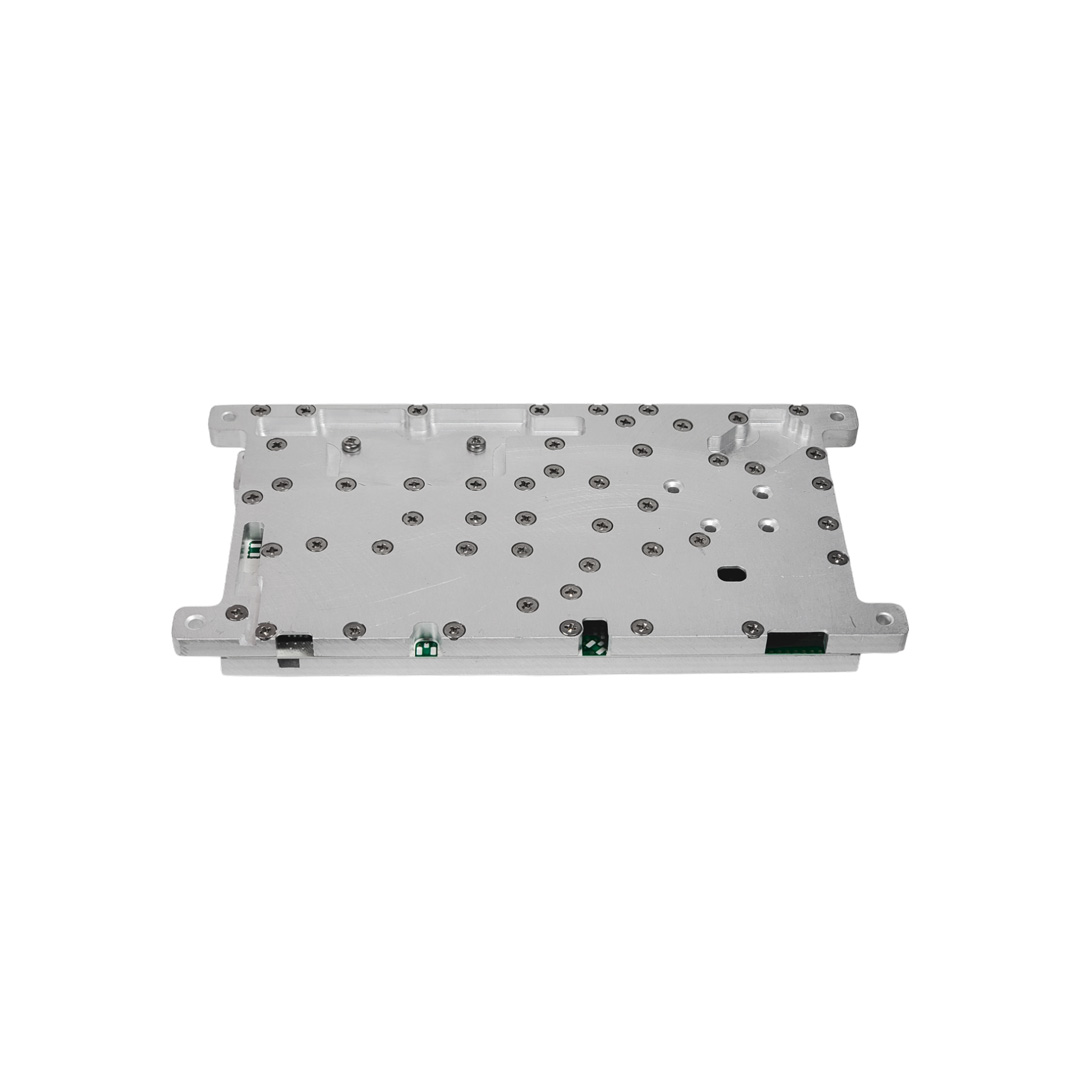

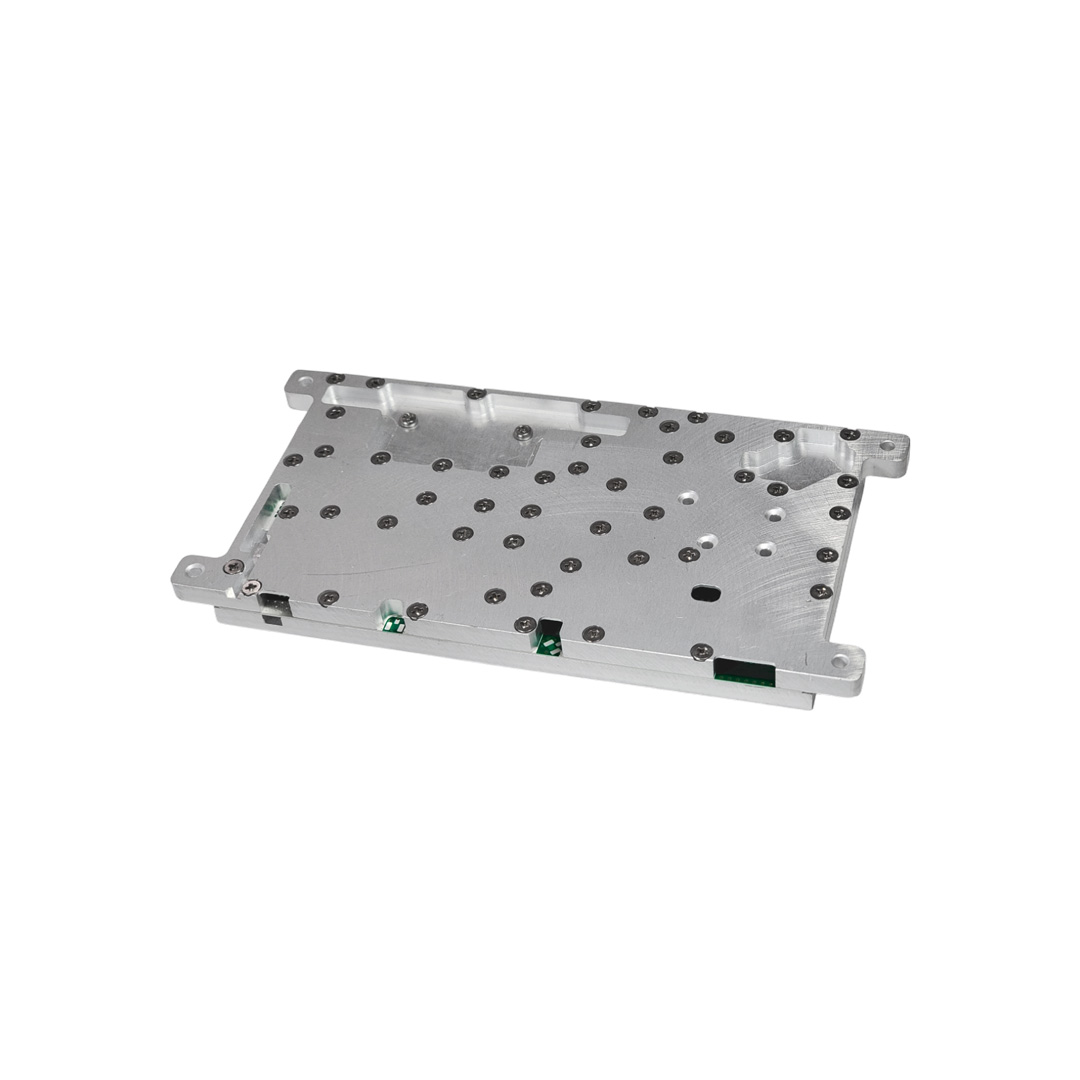

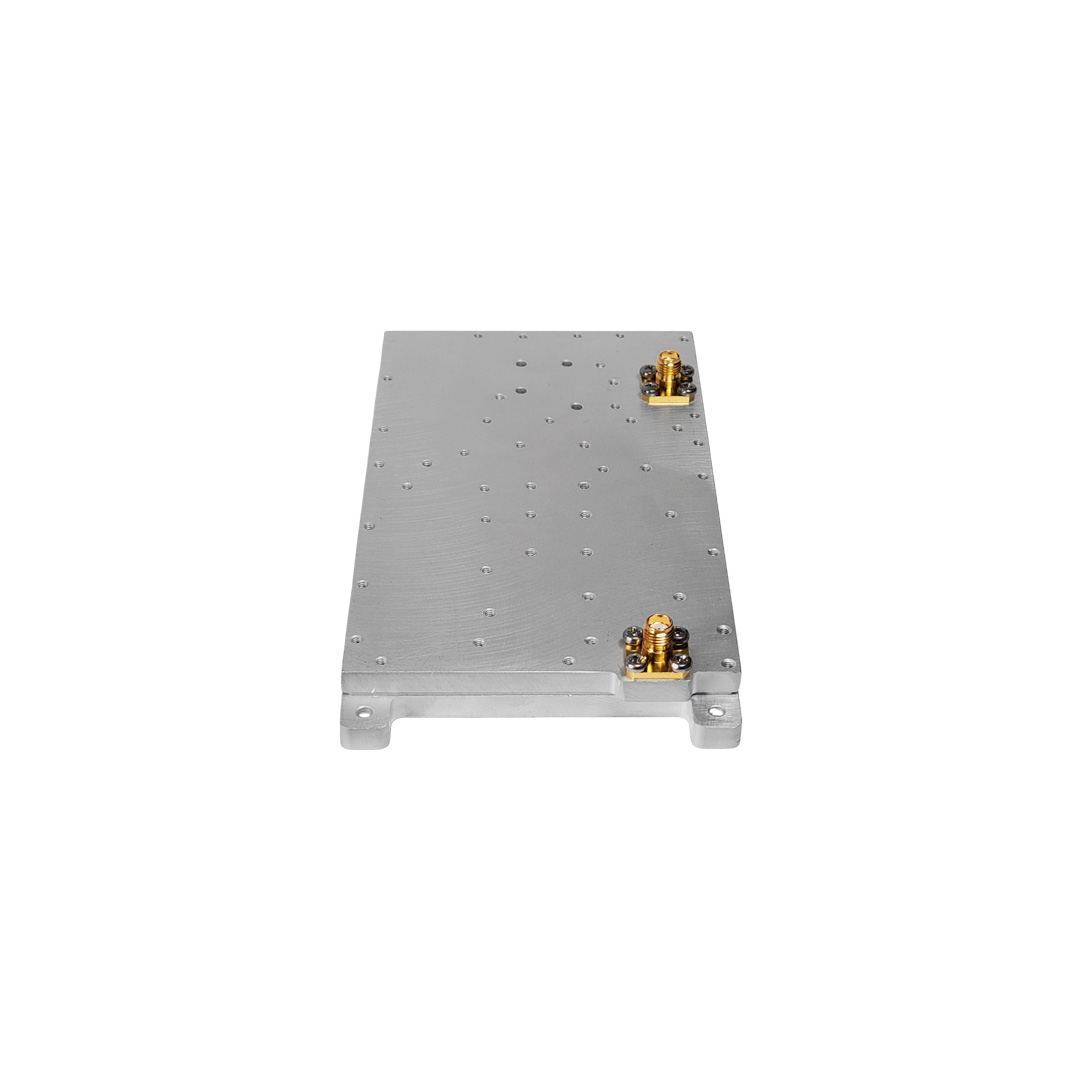

The Ku-band Frequency Transceiver by UMT LLC is a high-performance, dual-function RF unit that integrates both upconversion (Tx) and downconversion (Rx) into a single compact device. Designed for professional satellite communication systems, the transceiver ensures efficient and accurate signal transmission and reception within the Ku-band frequency spectrum. It is optimized for VSAT networks, broadcasting headends, mobile satellite terminals, and teleport infrastructure.


📡 Operating Frequency Ranges:

  • Receive (Rx) Frequency Range: 10.95 – 12.15 GHz

  • Transmit (Tx) Frequency Range: 13.75 – 14.50 GHz

  • Output Power at 1 dB Compression (P1dB): ≥ [Insert value] W

These ranges are fully compliant with ITU satellite frequency allocations and ideal for two-way Ku-band satellite links in DVB-S/S2 and IP-based systems.


🔧 Technical Highlights:

  • RF Architecture: Integrated Upconverter + Downconverter

  • Local Oscillator: High-stability PLL-based synthesis

  • Phase Noise: Ultra-low for clean modulation

  • Gain: High conversion gain with flat frequency response

  • Connectors: SMA or N-type (50 or 75 Ohm, customizable)

  • Power Supply: 24 VDC or 220 VAC (optional adapter)

  • Cooling: Passive heatsink or active cooling (model-dependent)

  • Remote Monitoring: Optional Ethernet or RS-485 interface


Key Benefits:

  • Full-duplex operation in standard Ku-band frequency ranges

  • High output power with excellent linearity and low intermodulation

  • Precise frequency stability for digital modulations (DVB-S2, QPSK, 8PSK)

  • Compact, durable housing for rack or outdoor integration

  • Compatible with UMT BUCs, LNBs, modulators, and IP networks

  • Ideal for fixed, transportable, and mobile satellite stations


📦 Applications:

  • VSAT terminals and remote communication nodes

  • Broadcast satellite uplinks/downlinks

  • MVDS and MITRIS TV distribution systems

  • Tactical and mobile satellite platforms

  • Satellite IoT or telemetry stations


Whether you’re deploying a fixed broadcast hub or building a mobile uplink terminal, the UMT LLC Ku-band Frequency Transceiver delivers stable performance, reliable connectivity, and high signal integrity across every link.


📩 Contact us to get a detailed datasheet, customization options, or a project-based quote.

Input parameters:
Input frequency range 950 – 1950 MHz
Input impedance 50 Ohm
Input level, max -12 dBm
Input VSWR, max 1.5
Input interface N-type Female
ALC range, min 25 dB
ALC threshold level -30 dBm
Local oscilator:
LO frequency 9750 MHz
LO phase noise:
@1 kHz -80 dBc/Hz
@10 kHz -85 dBc/Hz
@100 kHz -100 dBc/Hz
LO instability ± 2 ppm
Output parameters:
Output frequency range 10700 – 11700 MHz
Output power @P1dB 2 W
ALC output power 200 mW
Gain, min 53 dB
IMD3 level at ALC output power, max -37 dBc
Output interface Waveguide WR75, Flange PBR120
Output VSWR, max 2
Frequency response:
Flatness over Full Band ± 1.5 dB
Spurious:
In-band @P1dB, max -55 dBc
Out-Band, max -30 dBm
LO leakage at ALC output power, max -40 dBm
Image rejection, min 60 dB
Power supply:
Input voltage 18 – 30 VDC, nominal 24 VDC
Power consumption, max 15 W
Environmental:
Operating temperature -40℃ to +50℃ (-40℉ to +122℉)
Storage temperature -60℃ to +80℃ (-76℉ to +176℉)
Operating humidity 100%, non‐condensing
Mechanical:
Dimensions (W x H x D) 104x89x157 mm
Weight 1.15kg

Taking into consideration that we (UMT LLC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
