BOA-Ku09

Short description

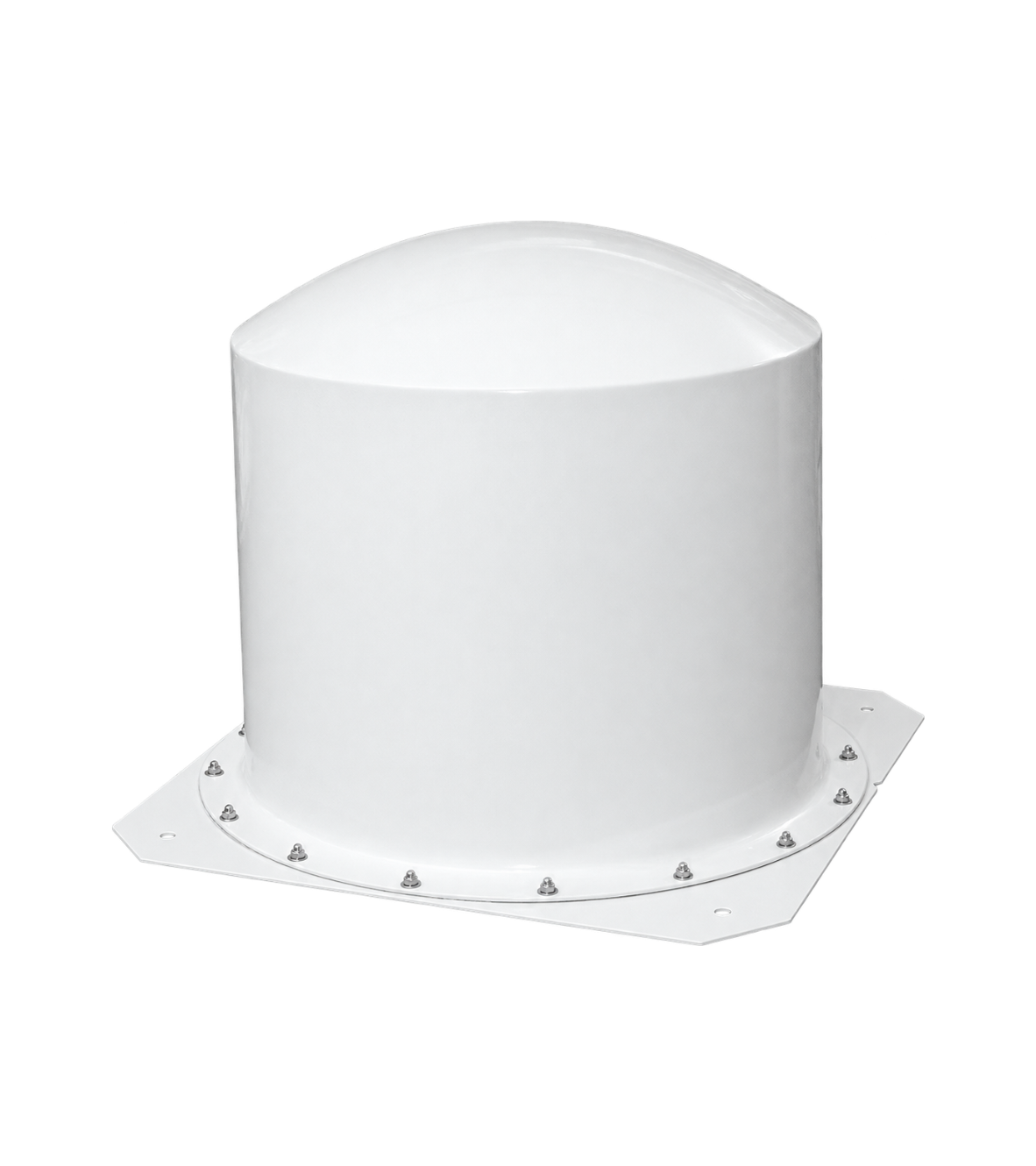

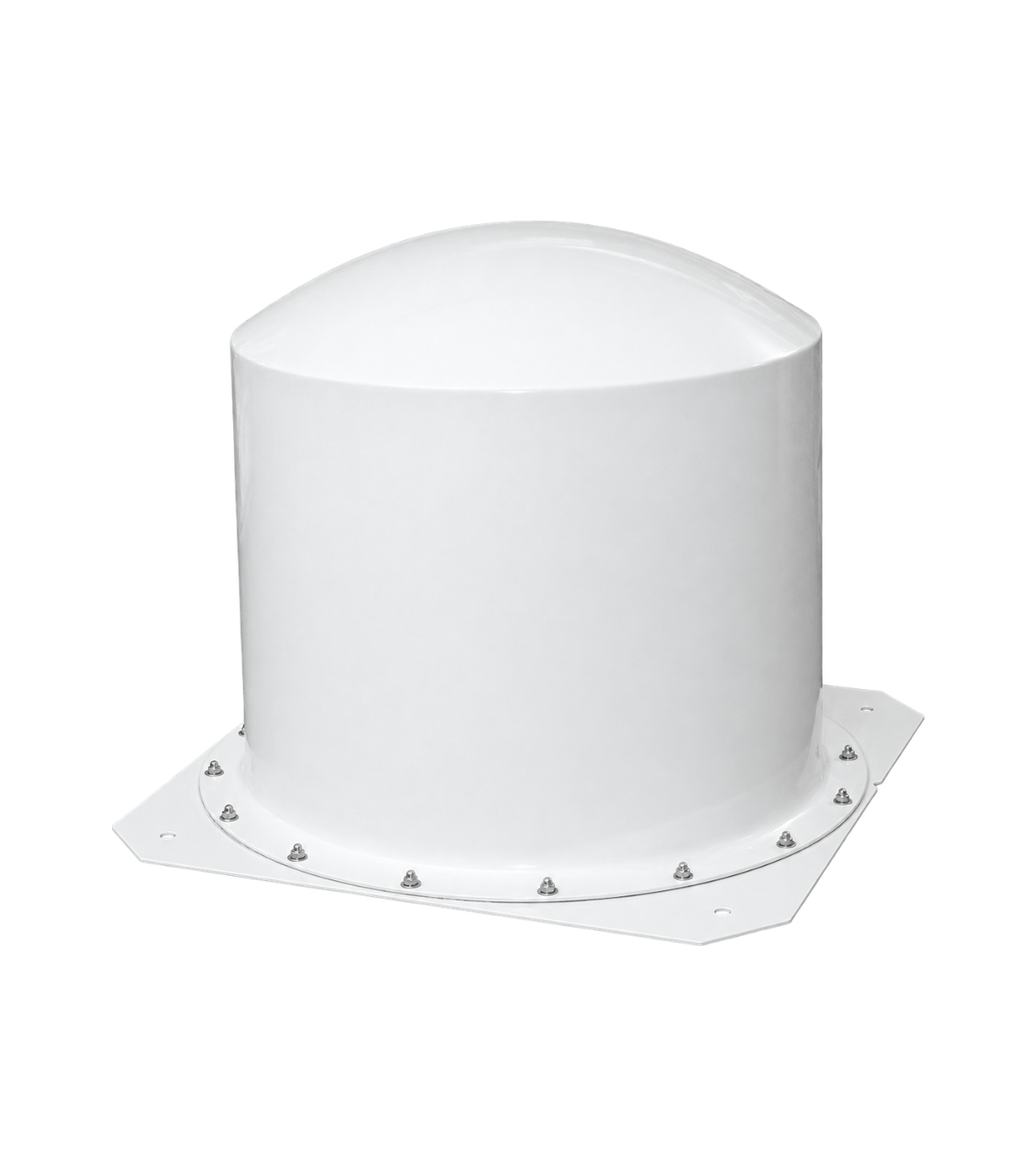

BOA-Ku09 is omni antenna of “Barrel” type

► It is designed for Ku-band (or for C-band – optional) with 360° radiation pattern and linear polarization

► Frequency range of 10-14 GHz

► Beam (H): 360°; Beam (V): 4°

► Gain: 16 dB







- +
  • Description
  • Downloads

BOA-Ku09 is Ku / C-band omnidirectional antenna of “Barrel” type. BOA-Ku09 has antenna aperture angle of 360°, wide frequency range of 10 – 14 GHz and linear polarization.

Key features:

  • Reliable design
  • High gain
  • Omnidirectional

Main functions:

  • Transmit and receive Ku/C-band signals
  • Applied as a part of broadcasting station, repeater and interactive microwave system

BOA-Ku09 diagram - developed by UMT LLC

Parameter Value
Frequency range, GHz 10-14
Gain, dB 16.0
VSWR 1.5
Polarization Linear
HPBW (vertical), deg
Input power, kW 1
Waveguide WR-75 or С-120
Temperature range, °C -40 to +80
Humidity 100%
Dimensions (diameter), mm 1040
Weight, kg, max 14,5
Allowable wind speed, mps 40
Casing material Radio transparent plastic
Mount Mounting on a horizontal surface
