BUC-Ku002-11.8

Short description

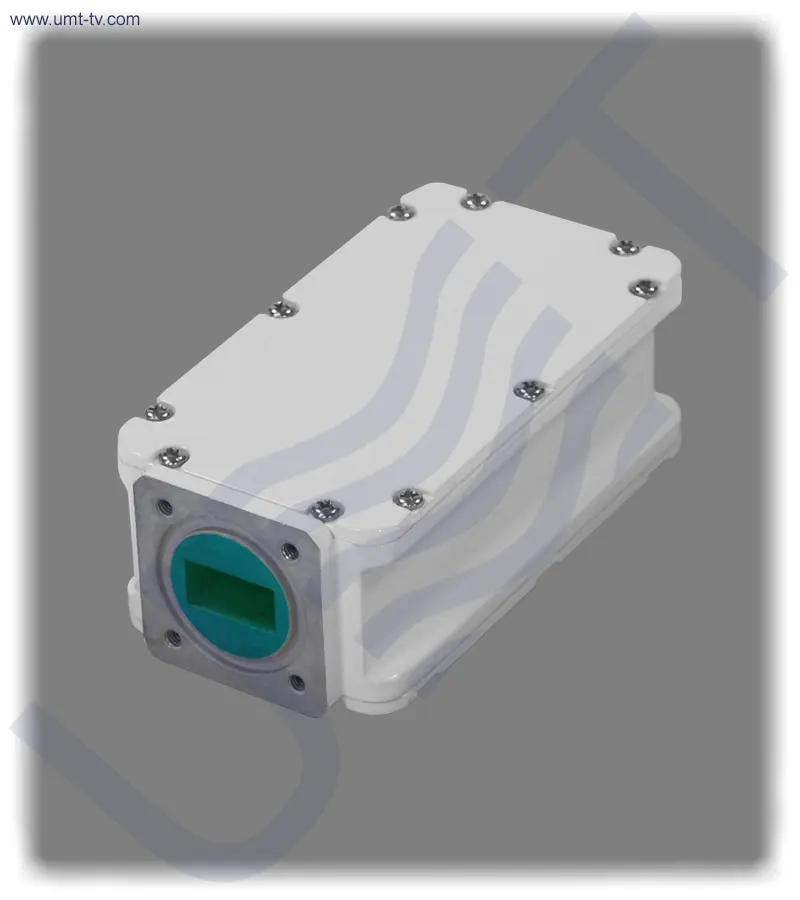

BUC-Ku002-11.8 is block up-converter with fixed output power P1dB 0.2 W (ALC power: 30 mW) and LO of 11.8GHz.

Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;

has ALC with 25 dB range;

+ LED status indication at the rear side.

Out of production
0.2 W11.8 GHz
- +
  • Description
  • Downloads

0.2 W Ku-band block up-converter with LO of 11.8 GHz BUC-Ku002-11.8 is designed for MVDS TV broadcasting systems application in accordance with DVB-S/S2 or DVB-C standards (use “Customized” button to choose needed parameters) and operates with up to 25 carriers. BUC-Ku002-11.8 has output flange of PBR120 type and can be used with regular radio-relay link (directional) or broadcast (sector and OMNI) antennas. BUC-Ku002-11.8 supports all modulation types up to 32APSK and 256QAM (you may choose the modulation type while filling the “customized equipment” form). BUC-Ku002-11.8 has the best linearity parameters to ensure the stability of the output frequency and low IMD3 level (these parameters are very important for high quality modulation, therefore the local oscillator of BUC-Ku002-11.8 is locked by PLL with internal frequency reference). BUC-Ku002-11.8 provides 12.75 – 13.75 GHz output frequency range (bandwidth in Ku-band) for 950-1950 MHz input frequency range (bandwidth in L-band).

LO: 11.8 GHz    IN: 950 – 1950 MHz    OUT: 12.75 – 13.75 GHz



KEY FEATURES:

  • Output flange: PBR120
  • Output power (P1dB, min): 0.2 W
  • Output frequency range: 12.75 – 13.75 GHz
  • Input frequency range: 950 – 1950 MHz
  • Gain (min): 45 dB
  • Highly stable internal frequency reference
  • LO is locked by PLL with internal frequency reference
  • IMD3 level at ALC output power (the lowest value): -45 dBc max
  • Operates with up to 25 carriers
  • Supported modulation types: up to 32APSK and 256QAM
Input parameters:
Input frequency range 950 – 1950 MHz
Input impedance 50 Ohm
Input level, max -15 dBm
Input VSWR, max 1.5
Input interface N-type Female
ALC range, min 25 dB
ALC threshold level -30 dBm
Local oscilator:
LO frequency 11.8 GHz
LO phase noise:
@1 kHz -80 dBc/Hz
@10 kHz -85dBc/Hz
@100 kHz -100dBc/Hz
LO instability ± 2ppm
Output parameters:
Output frequency range 12.75 – 13.75 GHz
Output power @P1dB 0.2 W
ALC output power 30 mW
Gain, min 45 dB
IMD3 level at ALC output power, max -37 dBc
Output interface Waveguide WR75, Flange PBR120
Output VSWR, max 2
Frequency response:
Flatness over Full Band ±1.5 dB
Spurious:
In-band @P1dB, max -55 dBc
Out-Band, max -30 dBm
LO leakage at ALC output power, max -40 dBm
Image rejection, min 60 dB
Power supply:
Input voltage 18 – 30 VDC, nominal 24 VDC
Power consumption, max 6 W
Environmental:
Operating temperature -40℃ to +50℃ (-40℉ to +122℉)
Storage temperature -60℃ to +80℃ (-76℉ to +176℉)
Operating humidity 100%, non‐condensing
Mechanical:
Dimensions (W x H x D) 60x40x130 mm
Weight 0.55 kg
